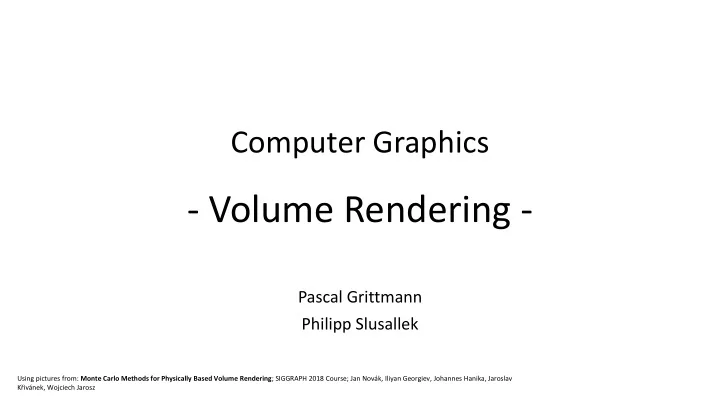

SLIDE 1

Computer Graphics

Volume Rendering -

Pascal Grittmann Philipp Slusallek

Using pictures from: Monte Carlo Methods for Physically Based Volume Rendering; SIGGRAPH 2018 Course; Jan Novák, Iliyan Georgiev, Johannes Hanika, Jaroslav Křivánek, Wojciech Jarosz

SLIDE 2

Overview

So far:
Light interactions with surfaces
Assume vacuum in and around objects
This lecture:
Participating media
How to represent volumetric data
How to compute volumetric lighting effects
How to implement a very basic volume renderer

06.12.2018 CG - Volume Rendering - Pascal Grittmann 2

SLIDE 3

SLIDE 4

SLIDE 5

SLIDE 6

SLIDE 7

SLIDE 8

Fundamentals

06.12.2018 CG - Volume Rendering - Pascal Grittmann 8

SLIDE 9

Volumetric Effects

Light interacts not only with surfaces but everywhere inside!
Volumes scatter, emit, or absorb light

06.12.2018 CG - Volume Rendering - Pascal Grittmann 9

http://coclouds.com http://wikipedia.org http://commons.wikimedia.org

SLIDE 10

Approximation: Model Particle Density

Modeling individual particles of a volume is, of course, not practical
Instead, represent statistically using the average density
(Same idea as, e.g., microfacet BSDFs)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 10

SLIDE 11

Volume Representation

Many possibilities (particles, voxel octrees, procedural,…)
A common approach: Scene objects can “contain” a volume

06.12.2018 CG - Volume Rendering - Pascal Grittmann 11

SLIDE 12

Volume Representation

Homogeneous:
Constant density
Constant absorption, scattering, emission,
Constant phase function (later)
Heterogeneous:
Coefficients and/or phase function vary across the

volume

Can be represented using 3D textures
(e.g., voxel grid, procedural)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 12

http://wikipedia.org

SLIDE 13

Representation Example: OpenVDB

Open source library
Manages volume data
Discretized, sparse, hierarchical grid

06.12.2018 CG - Volume Rendering - Pascal Grittmann 13

[K. Museth, 2013]

SLIDE 14

Data Acquisition Examples

Real-world measurements via tomography
Simulation, e.g.,
Fluids,
Fire and smoke,
Fog

06.12.2018 CG - Volume Rendering - Pascal Grittmann 14

https://docs.blender.org

SLIDE 15

Simulating Volumes

Mathematical Formulation of Volumetric Light Transport

06.12.2018 CG - Volume Rendering - Pascal Grittmann 15

SLIDE 16

Compute 𝑀𝑝(𝑦, 𝜕𝑝) using the rendering equation

So far: Assume Vacuum

06.12.2018 CG - Volume Rendering - Pascal Grittmann 16

𝑦

SLIDE 17

Compute 𝑀𝑝(𝑦, 𝜕𝑝) using the rendering equation
Only a fraction 𝑈 𝑏, 𝑐 𝑀𝑝 𝑦, 𝜕𝑝 arrives at the eye

Volume Absorbs and Scatters Light

06.12.2018 CG - Volume Rendering - Pascal Grittmann 17

𝑦 𝑏 𝑐

SLIDE 18

Compute 𝑀𝑝(𝑦, 𝜕𝑝) using the rendering equation
Only a fraction 𝑈 𝑏, 𝑐 𝑀𝑝 𝑦, 𝜕𝑝 arrives at the eye
Every point 𝑨 between 𝑏 and 𝑐 might emit light

Volume Emits Light

06.12.2018 CG - Volume Rendering - Pascal Grittmann 18

𝑦 𝑏 𝑐 𝑨

SLIDE 19

Compute 𝑀𝑝(𝑦, 𝜕𝑝) using the rendering equation
Only a fraction 𝑈 𝑏, 𝑐 𝑀𝑝 𝑦, 𝜕𝑝 arrives at the eye
Every point 𝑨 between 𝑏 and 𝑐 might emit light
Every point 𝑨 might be illuminated through the volume

Volume Scatters Light

06.12.2018 CG - Volume Rendering - Pascal Grittmann 19

𝑦 𝑏 𝑐 𝑨

SLIDE 20

Attenuation

Computing Absorption and Out-Scattering

06.12.2018 CG - Volume Rendering - Pascal Grittmann 20

𝑦 𝑏 𝑐 𝑀𝑗 = ? 𝑀0 𝑦

http://commons.wikimedia.org

SLIDE 21

Attenuation = Absorption + Out-Scattering

Every point in the volume might absorb light or scatter it in other

directions

Modeled by absorption and scattering densities: 𝜈𝑏 𝑨 and 𝜈𝑡 𝑨
Might depend on position, direction, time, wavelength,…
For simplicity: we assume only positional dependence

06.12.2018 CG - Volume Rendering - Pascal Grittmann 21

𝑦 𝑏 𝑐 𝑨

SLIDE 22

Computing Absorption – Intuition

Consider a small segment Δ𝑨
Along that segment, radiance is reduced from 𝑀 to 𝑀′
𝑀′ = 𝑀 − 𝜈𝑏 𝑀 Δ𝑨
Where 𝜈𝑏 is the percentage of radiance that is absorbed (per unit

distance)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 22

𝑏 𝑐 Δ𝑨 𝑀 𝑀′

SLIDE 23

Computing Absorption – Intuition

Consider a small segment Δ𝑨
Along that segment, radiance is reduced from 𝑀 to 𝑀′
𝑀′ = 𝑀 − 𝜈𝑏 𝑀 Δ𝑨
Where 𝜈𝑏 is the percentage of radiance that is absorbed (per unit

distance)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 23

𝑏 𝑐 Δ𝑨 𝑀 𝑀′

So the absorbed radiance is: Δ𝑀 = 𝑀′ − 𝑀 = −𝜈𝑏 𝑀 Δ𝑨

SLIDE 24

Computing Absorption – Exponential Decay

Δ𝑀 = −𝜈𝑏 𝑀 Δ𝑨
For infinitely small Δ𝑨, this becomes
𝑒𝑀 = −𝜈𝑏 𝑀 𝑒𝑨
A differential equation that models exponential decay!
Solution: 𝑀 𝑏 = 𝑀𝑝 𝑦 𝑓− ׬

𝑐 𝑏 𝜈𝑏 𝑢 𝑒𝑢

06.12.2018 CG - Volume Rendering - Pascal Grittmann 24

𝑦 𝑀 𝑐 = 𝑀𝑝 𝑦 𝑀 𝑏 𝑏 𝑐 Δ𝑨 𝑀 𝑀′

SLIDE 25

Computing Out-Scattering

Same as absorption, only different factor!
𝜈𝑡 𝑨 : percentage of light scattered at point 𝑨
𝑀 𝑏 = 𝑀𝑝 𝑦 𝑓− ׬

𝑐 𝑏 𝜈𝑡 𝑢 𝑒𝑢

06.12.2018 CG - Volume Rendering - Pascal Grittmann 25

𝑦 𝑏 𝑐 𝑨

SLIDE 26

Computing Attenuation

Fraction of light that is neither absorbed nor out-scattered
𝜈𝑢 = 𝜈𝑏 + 𝜈𝑡
𝑀 𝑏 = 𝑀𝑝 𝑦 𝑓− ׬

𝑐 𝑏(𝜈𝑏 𝑢 +𝜈𝑡 𝑢 ) 𝑒𝑢

Attenuation: 𝑈 𝑏, 𝑐 = 𝑓− ׬

𝑐 𝑏 𝜈𝑢 𝑢 𝑒𝑢

06.12.2018 CG - Volume Rendering - Pascal Grittmann 26

𝑦 𝑏 𝑐 𝑨

SLIDE 27

Computing Attenuation – Homogeneous

Simple case: constant density / attenuation
𝜈𝑢 𝑨 = 𝜈𝑢

∀𝑨

𝑈 𝑏, 𝑐 = 𝑓− ׬

𝑐 𝑏 𝜈𝑢 𝑢 𝑒𝑢 = 𝑓−(𝑏−𝑐)𝜈𝑢

06.12.2018 CG - Volume Rendering - Pascal Grittmann 27

𝑦 𝑏 𝑐 𝑨

SLIDE 28

Estimating Attenuation

We need to solve another integral:
𝑈 𝑏, 𝑐 = 𝑓− ׬

𝑐 𝑏 𝜈𝑢 𝑢 𝑒𝑢

Many solutions, e.g., Monte Carlo integration (next semester)
Simple solution: Quadrature

06.12.2018 CG - Volume Rendering - Pascal Grittmann 28

SLIDE 29

Estimating Attenuation – Ray Marching

We need to solve another integral:
𝑈 𝑏, 𝑐 = 𝑓− ׬

𝑐 𝑏 𝜈𝑢 𝑢 𝑒𝑢

Simple solution: Quadrature
Ray marching: evaluate at discrete positions (fixed stepsize Δ𝑨)
׬

𝑐 𝑏 𝜈𝑢 𝑢 𝑒𝑢 ≈ σ𝑗 𝜈𝑢(𝑨𝑗) Δ𝑨

06.12.2018 CG - Volume Rendering - Pascal Grittmann 29

𝑦 𝑏 𝑐 𝑨1 𝑨2 𝑨3 Δ𝑨 Δ𝑨 Δ𝑨 Δ𝑨

SLIDE 30

Emission

Explosions!

06.12.2018 CG - Volume Rendering - Pascal Grittmann 30

𝑏 𝑐 𝑨

http://wikipedia.org

SLIDE 31

Every Point Might Emit Light

Assume 𝑨 emits 𝑀𝑓 𝑨 towards 𝑏
Some of that light might be absorbed or out-scattered: It is

attenuated

𝑀 𝑏 = 𝑀𝑓 𝑨 𝑈 𝑨, 𝑏

06.12.2018 CG - Volume Rendering - Pascal Grittmann 31

𝑏 𝑐 𝑨

SLIDE 32

Every Point Might Emit Light

Assume 𝑨 emits 𝑀𝑓 𝑨 towards 𝑏
Some of that light might be absorbed or out-scattered: It is

attenuated

𝑀 𝑏 = 𝑀𝑓 𝑨 𝑈 𝑨, 𝑏
Happens at every point along the ray!
𝑀 𝑏 = ׬

𝑏 𝑐 𝑀𝑓 𝑨 𝑈 𝑨, 𝑏 𝑒𝑨

Another integral…

06.12.2018 CG - Volume Rendering - Pascal Grittmann 32

𝑏 𝑐 𝑨

SLIDE 33

Ray Marching for Emission

Same as before: integrate via quadrature
׬

𝑏 𝑐 𝑀𝑓 𝑨 𝑈 𝑨, 𝑏 𝑒𝑨 ≈ σ𝑗 𝑀𝑓 𝑨𝑗 𝑈 𝑨𝑗, 𝑏 Δ𝑨

Attenuation 𝑈 𝑨𝑗, 𝑏 estimated as before

06.12.2018 CG - Volume Rendering - Pascal Grittmann 33

𝑦 𝑏 𝑐 𝑨1 𝑨2 𝑨3 Δ𝑨 Δ𝑨 Δ𝑨 Δ𝑨

SLIDE 34

Ray Marching for Emission

Same as before: integrate via quadrature
׬

𝑏 𝑐 𝑀𝑓 𝑨 𝑈 𝑨, 𝑏 𝑒𝑨 ≈ σ𝑗 𝑀𝑓 𝑨𝑗 𝑈 𝑨𝑗, 𝑏 Δ𝑨

Attenuation 𝑈 𝑨𝑗, 𝑏 estimated as before
Attenuation can be incrementally updated:
𝑈 𝑨𝑗, 𝑏 = 𝑈 𝑨𝑗−1, 𝑏 𝑈 𝑨𝑗, 𝑨𝑗−1
(because it is an exponential function)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 34

𝑦 𝑏 𝑐 𝑨1 𝑨2 𝑨3 Δ𝑨 Δ𝑨 Δ𝑨 Δ𝑨

SLIDE 35

In-Scattering

Accounting for Reflections Inside the Volume

06.12.2018 CG - Volume Rendering - Pascal Grittmann 35

𝑏 𝑐 𝑨

SLIDE 36

Direct Illumination

Account for the (attenuated) direct illumination at every point 𝑨
Similar to the rendering equation:
𝑀𝑝 𝑨, 𝜕𝑝 = ׬

Ω 𝑀𝑗 𝑦, 𝜕𝑗 𝑔 𝑞 𝜕𝑗, 𝜕𝑝 𝑒𝜕𝑗

Integration over the whole sphere Ω
The phase function 𝑔

𝑞 takes on the role of the BSDF

06.12.2018 CG - Volume Rendering - Pascal Grittmann 36

𝑏 𝑐 𝑨 𝜕𝑗 𝜕𝑝

SLIDE 37

Phase Functions

𝑀𝑝 𝑨, 𝜕𝑝 = ׬

Ω 𝑀𝑗 𝑦, 𝜕𝑗 𝒈𝒒 𝝏𝒋, 𝝏𝒑 𝑒𝜕𝑗

Describe what fraction of light is reflected from 𝜕𝑗 to 𝜕𝑝
Similar to BSDF for surface scattering
Simplest example: isotropic phase function
𝑔

𝑞 𝜕𝑗, 𝜕𝑝 = 1 4𝜌

(energy conservation: ׬

Ω 1 4𝜌 𝑒𝜕 = 1)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 37

SLIDE 38

Phase Functions: Henyey-Greenstein

Widely used
Easy to fit to measured data
𝑔

𝑞 𝜕𝑗, 𝜕𝑝 = 1 4𝜌 1−𝑕2 1+𝑕2+2𝑕 cos 𝜕𝑗,𝜕𝑝

3 2

𝑕: asymmetry (scalar)
cos 𝜕𝑗, 𝜕𝑝 : cosine of the angle formed by 𝜕𝑗 and 𝜕𝑝

06.12.2018 CG - Volume Rendering - Pascal Grittmann 38

SLIDE 39

Henyey-Greenstein: Asymmetry Parameter

𝑕 = 0: isotropic
Negative 𝑕: back scattering
Positive 𝑕: forward scattering

06.12.2018 CG - Volume Rendering - Pascal Grittmann 39

http://coclouds.com

Forward Scattering

http://commons.wikimedia.org

Back Scattering

SLIDE 40

How to Estimate Volume Direct Illumination

Reflected radiance at a point 𝑨: 𝑀𝑝 𝑨, 𝜕𝑝 =

׬

Ω 𝑀𝑗 𝑦, 𝜕𝑗 𝑔 𝑞 𝜕𝑗, 𝜕𝑝 𝑒𝜕𝑗

In our framework:
Sum over all point lights (as for surfaces)
Trace shadow ray (as for surfaces)
Estimate attenuation along the shadow ray (as for surfaces)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 40

𝑏 𝑐 𝑨 𝜕𝑗 𝜕𝑝

SLIDE 41

Ray Marching to Compute In-Scattering

Same as for emission
Goal: estimate the integral ׬

𝑏 𝑐 𝑈 𝑨, 𝑏 𝜈𝑡 𝑨 𝑀𝑗 𝑨 𝑔 𝑞 𝑒𝑨

Quadrature:
׬

𝑏 𝑐 𝑈 𝑨, 𝑏 𝜈𝑡 𝑨 𝑀𝑗 𝑨 𝑔 𝑞 𝑒𝑨 ≈ σ𝑗 𝑈 𝑨𝑗, 𝑏 𝜈𝑡 𝑨 𝑀𝑗 𝑨𝑗 𝑔 𝑞 Δ𝑨

06.12.2018 CG - Volume Rendering - Pascal Grittmann 41

𝑏 𝑐 𝑨1 𝑨2 𝑨3 Δ𝑨 Δ𝑨 Δ𝑨 Δ𝑨

SLIDE 42

Ray Marching to Compute In-Scattering

Same as for emission
Goal: estimate the integral ׬

𝑏 𝑐 𝑈 𝑨, 𝑏 𝑀𝑗 𝑨 𝑔 𝑞 𝑒𝑨

Quadrature:
׬

𝑏 𝑐 𝑈 𝑨, 𝑏 𝑀𝑗 𝑨 𝑔 𝑞 𝑒𝑨 ≈ σ𝑗 𝑈 𝑨𝑗, 𝑏 𝑀𝑗 𝑨𝑗 𝑔 𝑞 Δ𝑨

Attenuation 𝑈 𝑨𝑗, 𝑏 estimated as before
Attenuation can be incrementally updated:
𝑈 𝑨𝑗, 𝑏 = 𝑈 𝑨𝑗−1, 𝑏 𝑈 𝑨𝑗, 𝑨𝑗−1
(because it is an exponential function)

06.12.2018 CG - Volume Rendering - Pascal Grittmann 42

𝑏 𝑐 𝑨1 𝑨2 𝑨3 Δ𝑨 Δ𝑨 Δ𝑨 Δ𝑨

SLIDE 43

Estimate direct illumination at x (as before)
If volume: continue straight ahead until no volume (yields intersections y, z)
Ray marching to estimate attenuation, emission, and in-scattering
Shadow rays to the lights + ray marching to compute attenuation
Compute illumination at z (as before)
Add together:
Attenuated illumination from z
Volumetric emission along 𝑦𝑧
In-scattering along 𝑦𝑧
Direct illumination at 𝑦

𝑦 𝑧 𝑨

{

Multiply by BTDF!

06.12.2018 CG - Volume Rendering - Pascal Grittmann 49

SLIDE 50

References

06.12.2018 CG - Volume Rendering - Pascal Grittmann 50

[K. Museth, 2013] “VDB: High-Resolution Sparse Volumes With

Dynamic Topology”. ACM Transactions on Graphics, Volume 32, Issue 3, Pages 27:1-27:22, June 2013
