Vision: From Eye to Brain (Chap 3, Part II) Lecture 7 Jonathan Pillow Sensation & Perception (PSY 345 / NEU 325) Princeton University, Spring 2019 1 lateral geniculate nucleus (LGN): one on each side of the brain this is where

slide-1
SLIDE 1

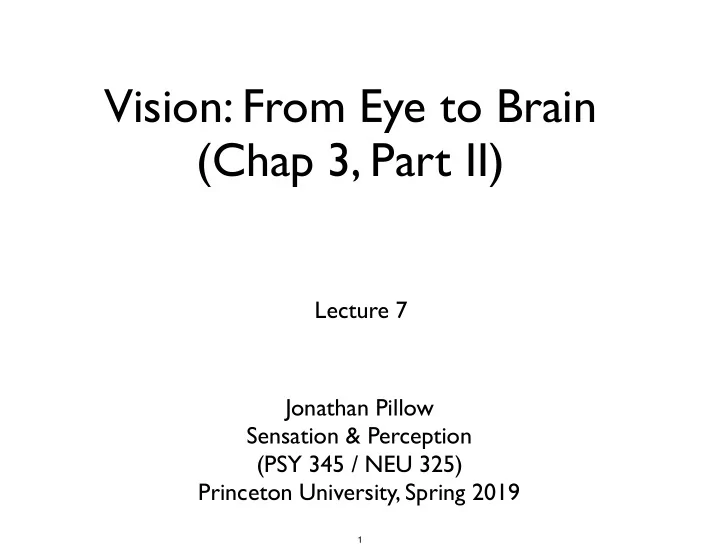

Vision: From Eye to Brain (Chap 3, Part II)

Lecture 7 Jonathan Pillow Sensation & Perception (PSY 345 / NEU 325)
 Princeton University, Spring 2019

1

slide-2
SLIDE 2

Ipsilateral: Referring to the same side of the body Contralateral: Referring to the

  • pposite side of the

body

lateral geniculate nucleus (LGN): one on each side of the brain

  • this is where axons of retinal ganglion cells synapse

Organization:

  • represents contralateral

visual field

  • segregated into eye-

specific layers

  • segregated into M and P

layers

2

slide-3
SLIDE 3

Primary Visual Cortex

  • Striate cortex: known as primary visual cortex, or

V1

  • “Primary visual cortex” = first place in cortex where

visual information is processed

 (Previous two stages: retina and LGN are pre-cortical)

3

slide-4
SLIDE 4

Receptive Fields: monocular vs. binocular

  • LGN cells: responds to one

eye or the other, never both

  • V1 cells: can respond to input from both eyes


(but V1 neurons still tend to have a preferred eye - they spike more to input from one eye)

V1 LGN

4

slide-5
SLIDE 5

Topography: mapping of visual space onto visual cortex

  • contralateral representation
  • each visual field (L/R) represented in
  • pposite hemisphere
  • cortical magnification
  • unequal representation of

fovea vs. periphery in cortex

  • but this is a misnomer!

5

slide-6
SLIDE 6

Acuity in V1

Visual acuity declines in an orderly fashion with eccentricity—distance from the fovea (in deg)

6

slide-7
SLIDE 7

major change in sensory representation in V1

V1

  • elongated, oriented RFs
  • 200M cells!

retina & LGN:

  • circular RFs
  • 1M fibers (from RGCs)

7

slide-8
SLIDE 8

Orientation tuning:

  • neurons in

V1 respond more to bars of certain orientations

  • response rate falls off with difference from preferred orientation

“preferred orientation”

8

slide-9
SLIDE 9

Receptive Fields in V1

Many cortical cells respond especially well to:

  • Moving lines
  • Bars
  • Edges
  • Gratings
  • Direction of motion

Ocular dominance:

  • Cells in V1 tend to have a “preferred eye”

(respond better to inputs from one eye than the

  • ther)

9

slide-10
SLIDE 10

Simple vs. Complex Cells

Cells in V1 respond best to bars of light rather than to spots of light

  • “simple” cells: prefer bars of light, or prefer bars of dark
  • “complex” cells: respond to both bars of light and dark

10

slide-11
SLIDE 11

Receptive Fields in V1

[see link to Hubel & Weisel movie]

11

slide-12
SLIDE 12
  • orientation column:

for a particular location in cortex, neurons have same preferred orientation

Column: a vertical arrangement of neurons

  • ocular dominance

column: for particular location in cortex, neurons have same preferred eye

12

slide-13
SLIDE 13
  • Hypercolumn: 1-mm block
  • f

V1 containing “all the machinery necessary to look after everything the visual cortex is responsible for, in a certain small part of the visual world” (Hubel, 1982

  • Each hypercolumn contains a full set of columns

  • has cells responding to every possible orientation, and

inputs from left right eyes

Hypercolumn - contains all possible columns

13

slide-14
SLIDE 14

web demos

receptive fields http://sites.sinauer.com/wolfe4e/wa03.04.html columns http://sites.sinauer.com/wolfe4e/wa03.05.html

14

slide-15
SLIDE 15

Adaptation

15

slide-16
SLIDE 16

“tilt after-effect”

Adaptation: the Psychologist’s Electrode

16

slide-17
SLIDE 17

“tilt after-effect”

  • perceptual illusion of

tilt, provided by adapting to a pattern

  • f a given orientation
  • supports idea that the

human visual system contains individual neurons selective for different orientations

Adaptation: the Psychologist’s Electrode

17

slide-18
SLIDE 18

Adaptation: the Psychologist’s Electrode

Adaptation: the diminishing response of a sense organ to a sustained stimulus

  • An important method for deactivating

groups of neurons without surgery

  • Allows selective temporary “knock out”
  • f group of neurons by activating them

strongly

18

slide-19
SLIDE 19

Effects of adaptation on population response and perception

Stimulus presented = Before Adaptation unadapted population resp to 0 deg 0 degree stimulus

19

slide-20
SLIDE 20

Effects of adaptation on population response and perception

Stimulus presented = Then adapt to 20º Before Adaptation unadapted population resp to 0 deg

20

slide-21
SLIDE 21

Selective adaptation alters neural responses and perception

Stimulus presented = After Adaptation perceptual effect of adaptation is repulsion away from the adapter

21

slide-22
SLIDE 22

Selective adaptation for spatial frequency: = evidence that visual system contains neurons selective for spatial frequency

22

slide-23
SLIDE 23

Adaptation that is specific to spatial frequency (SF)

  • 1. adapt
  • 2. test
  • 3. percept

23

slide-24
SLIDE 24

Adaptation that is specific to spatial frequency (SF)

  • 1. adapt
  • 2. test
  • 3. percept

24

slide-25
SLIDE 25

Adaptation that is specific to spatial frequency (SF)

  • 1. adapt
  • 2. test
  • 3. percept

25

slide-26
SLIDE 26

Adaptation that is specific to spatial frequency AND orientation

  • 1. adapt
  • 2. test
  • 3. No adaptive percept

26

slide-27
SLIDE 27

Adaptation that is specific to spatial frequency AND orientation

  • 1. adapt
  • 2. test
  • 3. No adaptive percept

27

slide-28
SLIDE 28

Adaptation that is specific to spatial frequency AND orientation

  • 1. adapt
  • 2. test
  • 3. No adaptive percept

28

slide-29
SLIDE 29

Orthodox viewpoint:

  • If you can observe a particular type of adaptive after-effect,

there is a certain neuron in the brain that is selective (or tuned) for that property

Selective Adaptation: The Psychologist’s Electrode

THUS (for example): There are no neurons tuned for spatial frequency across all

  • rientations, because adaptation is orientation specific.

29

slide-30
SLIDE 30

Selective Adaptation to Faces

30

slide-31
SLIDE 31

Selective Adaptation to Faces

31

slide-32
SLIDE 32

The Development of Spatial Vision

Read in book!

  • how can you study the vision of infants

who can’t yet speak?

32

slide-33
SLIDE 33

The Development of Spatial Vision

  • 1. preferential-looking paradigm

  • infants prefer to look at more complex stimuli
  • how can you study the vision of infants who can’t yet speak?

33

slide-34
SLIDE 34

The Development of Spatial Vision

  • 2. visually evoked potentials (VEP)

  • measure brain’s electrical activity directly
  • how can you study the vision of infants who can’t yet speak?

34

slide-35
SLIDE 35

young children: not very sensitive to high spatial frequencies
 Visual system is still developing:

  • Cones and rods are still developing
  • Retinal ganglion cells still migrating and growing connections

with the fovea

  • fovea: not fully developed until 4 years of age

The Development of Spatial Vision

35

slide-36
SLIDE 36

Summary (Chapter 3B)

  • spatial frequency sensitivity & tuning
  • V1 receptive fields, orientation tuning
  • Hubel & Weisel experiments
  • simple vs. complex cells
  • cortical magnification
  • cortical columns
  • adaptation

36
