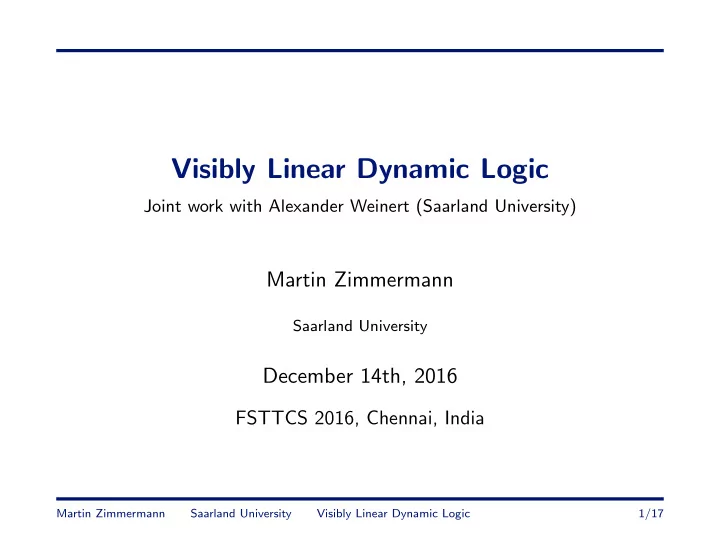

Visibly Linear Dynamic Logic Joint work with Alexander Weinert (Saarland University) Martin Zimmermann Saarland University December 14th, 2016 FSTTCS 2016, Chennai, India Martin Zimmermann Saarland University Visibly Linear Dynamic Logic

slide-1
SLIDE 1

Visibly Linear Dynamic Logic

Joint work with Alexander Weinert (Saarland University)

Martin Zimmermann

Saarland University

December 14th, 2016

FSTTCS 2016, Chennai, India

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 1/17

slide-2
SLIDE 2

The Everlasting Quest for Expressiveness

Consider an arbiter granting access to a shared resource. Requirements: “Every request q is eventually answered by a response p” “Every request q is eventually answered by a response p after an even number of steps” “There are never more responses than requests”

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 2/17

slide-3
SLIDE 3

The Everlasting Quest for Expressiveness

Consider an arbiter granting access to a shared resource. Requirements: “Every request q is eventually answered by a response p” Linear Temporal Logic: G(q → F p) “Every request q is eventually answered by a response p after an even number of steps” “There are never more responses than requests”

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 2/17

slide-4
SLIDE 4

The Everlasting Quest for Expressiveness

Consider an arbiter granting access to a shared resource. Requirements: “Every request q is eventually answered by a response p” Linear Temporal Logic: G(q → F p) “Every request q is eventually answered by a response p after an even number of steps” Linear Dynamic Logic: [true∗]( q → (true · true)∗p ) “There are never more responses than requests”

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 2/17

slide-5
SLIDE 5

The Everlasting Quest for Expressiveness

Consider an arbiter granting access to a shared resource. Requirements: “Every request q is eventually answered by a response p” Linear Temporal Logic: G(q → F p) “Every request q is eventually answered by a response p after an even number of steps” Linear Dynamic Logic: [true∗]( q → (true · true)∗p ) “There are never more responses than requests” Expressible with pushdown automata/context-free grammars as guards ⇒ Visibly Linear Dynamic Logic

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 2/17

slide-6
SLIDE 6

Outline

  • 1. Preliminaries
  • 2. Expressiveness
  • 3. VLDL Verification
  • 4. Discussion

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 3/17

slide-7
SLIDE 7

Outline

  • 1. Preliminaries
  • 2. Expressiveness
  • 3. VLDL Verification
  • 4. Discussion

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 4/17

slide-8
SLIDE 8

Visibly Pushdown Automata

Partition input alphabet Σ into Σc (calls), Σr (returns), and Σℓ (local actions). A visibly pushdown automaton (VPA) has to push when processing a call, pop when processing a return, and leave the stack unchanged when processing a local action. Stack height determined by input word ⇒ closure under union, intersection, and complement.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 5/17

slide-9
SLIDE 9

Visibly Pushdown Automata

Partition input alphabet Σ into Σc (calls), Σr (returns), and Σℓ (local actions). A visibly pushdown automaton (VPA) has to push when processing a call, pop when processing a return, and leave the stack unchanged when processing a local action. Stack height determined by input word ⇒ closure under union, intersection, and complement. Examples: anbn is a VPL, if a is a call and b a return. wwR is not a VPL.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 5/17

slide-10
SLIDE 10

Visibly Linear Dynamic Logic (VLDL)

Syntax ϕ := p | ¬ϕ | ϕ ∧ ϕ | ϕ ∨ ϕ | Aϕ | [A]ϕ where p ∈ P ranges over atomic propositions and A ranges over VPA’s. All VPA’s have the same partition of 2P into calls, returns, and local actions.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 6/17

slide-11
SLIDE 11

Visibly Linear Dynamic Logic (VLDL)

Syntax ϕ := p | ¬ϕ | ϕ ∧ ϕ | ϕ ∨ ϕ | Aϕ | [A]ϕ where p ∈ P ranges over atomic propositions and A ranges over VPA’s. All VPA’s have the same partition of 2P into calls, returns, and local actions. Semantics: (w ∈ (2P)ω) w | = Aϕ if there exists an n such that w0 · · · wn−1 is accepted by A and wnwn+1wn+2 · · · | = ϕ. w | = [A]ϕ if for every n s.t. w0 · · · wn−1 is accepted by A we have wnwn+1wn+2 · · · | = ϕ.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 6/17

slide-12
SLIDE 12

Example

“Every request q is eventually answered by a response p and there are never more responses than requests” [A∗]( q → A∗p ) ∧ ¬Atrue where A∗ accepts every word, and A accepts those words with more responses than requests. Both languages are visibly pushdown, if {q} is a call, {p} is a return, and ∅ and {p, q} are local actions.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 7/17

slide-13
SLIDE 13

Outline

  • 1. Preliminaries
  • 2. Expressiveness
  • 3. VLDL Verification
  • 4. Discussion

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 8/17

slide-14
SLIDE 14

Expressiveness

Lemma

VLDL and non-deterministic ω-VPA are expressively equivalent.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 9/17

slide-15
SLIDE 15

Expressiveness

Lemma

VLDL and non-deterministic ω-VPA are expressively equivalent. Proof Idea VLDL non-deterministic ω-VPA

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 9/17

slide-16
SLIDE 16

Expressiveness

Lemma

VLDL and non-deterministic ω-VPA are expressively equivalent. Proof Idea VLDL non-deterministic ω-VPA Deterministic Stair Automata [LMS ’04] O(2n)

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 9/17

slide-17
SLIDE 17

Expressiveness

Lemma

VLDL and non-deterministic ω-VPA are expressively equivalent. Proof Idea VLDL non-deterministic ω-VPA Deterministic Stair Automata [LMS ’04] O(2n) O(n2)

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 9/17

slide-18
SLIDE 18

Expressiveness

Lemma

VLDL and non-deterministic ω-VPA are expressively equivalent. Proof Idea VLDL non-deterministic ω-VPA Deterministic Stair Automata [LMS ’04] O(2n) O(n2) 1-way Alternating Jumping Automata O(n2)

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 9/17

slide-19
SLIDE 19

Expressiveness

Lemma

VLDL and non-deterministic ω-VPA are expressively equivalent. Proof Idea VLDL non-deterministic ω-VPA Deterministic Stair Automata [LMS ’04] O(2n) O(n2) 1-way Alternating Jumping Automata O(n2) [Bozelli ’07] O(2n)

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 9/17

slide-20
SLIDE 20

Expressiveness

Lemma

VLDL and non-deterministic ω-VPA are expressively equivalent. Proof Idea VLDL non-deterministic ω-VPA Deterministic Stair Automata [LMS ’04] O(2n) O(n2) 1-way Alternating Jumping Automata O(n2) [Bozelli ’07] O(2n)

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 9/17

slide-21
SLIDE 21

From Stair Automata to VLDL

c c c c r c r r c l c c r r cω 3 7 1 3 2 2 5 2 1 2 3

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 10/17

slide-22
SLIDE 22

From Stair Automata to VLDL

c c c c r c r r c l c c r r cω 3 7 1 3 2 2 5 2 1 2 3 Acceptance: maximal priority occuring at infinitely many steps even

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 10/17

slide-23
SLIDE 23

From Stair Automata to VLDL

c c c c r c r r c l c c r r cω 3 7 1 3 2 2 5 2 1 2 3 Acceptance: maximal priority occuring at infinitely many steps even Equivalently: For some state q of even priority c there is step with state q s.t.

  • 1. after this step, no larger priority appears at a step, and
  • 2. for every step with state q, there is a later one with state q.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 10/17

slide-24
SLIDE 24

From Stair Automata to VLDL

c c c c r c r r c l c c r r cω 3 7 1 3 2 2 5 2 1 2 3 Acceptance: maximal priority occuring at infinitely many steps even Equivalently: For some state q of even priority c there is step with state q s.t.

  • 1. after this step, no larger priority appears at a step, and
  • 2. for every step with state q, there is a later one with state q.
  • q∈Qeven

qI A′

q

 

  • q′∈Q>Ω(q)

[qA′

q′ ]false

  ∧ [A′

q ]qA′ qtrue

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 10/17

slide-25
SLIDE 25

Outline

  • 1. Preliminaries
  • 2. Expressiveness
  • 3. VLDL Verification
  • 4. Discussion

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 11/17

slide-26
SLIDE 26

Satisfiability

Theorem

VLDL Satisfiability is ExpTime-complete.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 12/17

slide-27
SLIDE 27

Satisfiability

Theorem

VLDL Satisfiability is ExpTime-complete. Proof Sketch Membership: Construct equivalent ω-VPA and check it for emptiness. Hardness: Adapt ExpTime-hardness proof of LTL model-checking of pushdown systems [BEM ’97]

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 12/17

slide-28
SLIDE 28

Model Checking

Theorem

VLDL model checking of visibly pushdown systems is ExpTime-complete.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 13/17

slide-29
SLIDE 29

Model Checking

Theorem

VLDL model checking of visibly pushdown systems is ExpTime-complete. Proof Sketch Membership: To check S | = ϕ, construct ω-VPA equivalent to ¬ϕ and check intersection with S for emptiness. Hardness: Follows immediately from ExpTime-hardness of satisfiability.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 13/17

slide-30
SLIDE 30

Synthesis

Theorem

Solving infinite games on visibly pushdown graphs with VLDL winning conditions is 3ExpTime-complete.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 14/17

slide-31
SLIDE 31

Synthesis

Theorem

Solving infinite games on visibly pushdown graphs with VLDL winning conditions is 3ExpTime-complete. Proof Sketch Membership: To determine the winner, construct an ω-VPA that accepts the winning condition and solve the resulting game with VPA winning condition [LMS ’04]. Hardness: Adapt 3ExpTime-hardness proof of pushdown games with LTL winning condition [LMS ’04].

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 14/17

slide-32
SLIDE 32

Outline

  • 1. Preliminaries
  • 2. Expressiveness
  • 3. VLDL Verification
  • 4. Discussion

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 15/17

slide-33
SLIDE 33

The Competitors

“If p holds true immediately after entering module m, it shall hold immediately after the corresponding return from m as well”

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 16/17

slide-34
SLIDE 34

The Competitors

“If p holds true immediately after entering module m, it shall hold immediately after the corresponding return from m as well” VLDL: [Ac ](p → Arp) with Ac Σc, ↓A Σr, ↑A Σℓ, → Σc, ↓A Ar Σc, ↓A Σr, ↑A Σℓ, → Σr, ↑⊥

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 16/17

slide-35
SLIDE 35

The Competitors

“If p holds true immediately after entering module m, it shall hold immediately after the corresponding return from m as well” ω-VPA: Σc, ↓P Σr, ↑P Σc, ↓P Σr, ↑P Σℓ, → Σp

ℓ , →

Σp

c, ↓ ¯

P Σp

r , ↑ ¯

P Σp

c, ↓P

Σp

r , ↑P

Σ¬p

ℓ , →

Σ¬p

c , ↓P

Σ¬p

r , ↑P

Σ¬p

c , ↓ ¯

P Σ¬p

r , ↑ ¯

P

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 16/17

slide-36
SLIDE 36

The Competitors

“If p holds true immediately after entering module m, it shall hold immediately after the corresponding return from m as well” VLTL: [Bozzelli ’14] (α; true)|αfalse with visibly rational expression α below: [(p ∪ q)∗callm [(q) ∪ (pp)] returnm(p ∪ q)∗] (p ∪ q)∗

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 16/17

slide-37
SLIDE 37

Conclusion

Results: VLDL as expressive as ω-VPA

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 17/17

slide-38
SLIDE 38

Conclusion

Results: VLDL as expressive as ω-VPA validity model-checking infinite games LTL PSpace PSpace 2ExpTime LDL PSpace PSpace 2ExpTime

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 17/17

slide-39
SLIDE 39

Conclusion

Results: VLDL as expressive as ω-VPA validity model-checking infinite games LTL PSpace PSpace 2ExpTime LDL PSpace PSpace 2ExpTime VLDL ExpTime ExpTime 3ExpTime

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 17/17

slide-40
SLIDE 40

Conclusion

Results: VLDL as expressive as ω-VPA validity model-checking infinite games LTL PSpace PSpace 2ExpTime LDL PSpace PSpace 2ExpTime VLDL ExpTime ExpTime 3ExpTime VLTL ExpTime ExpTime ? Using (deterministic) pushdown automata as guards leads to undecidability, i.e., A1# ∧ A2# ∧ “exactly one #” is satisfiable ⇔ L(A1) ∩ L(A2) = ∅.

Martin Zimmermann Saarland University Visibly Linear Dynamic Logic 17/17
