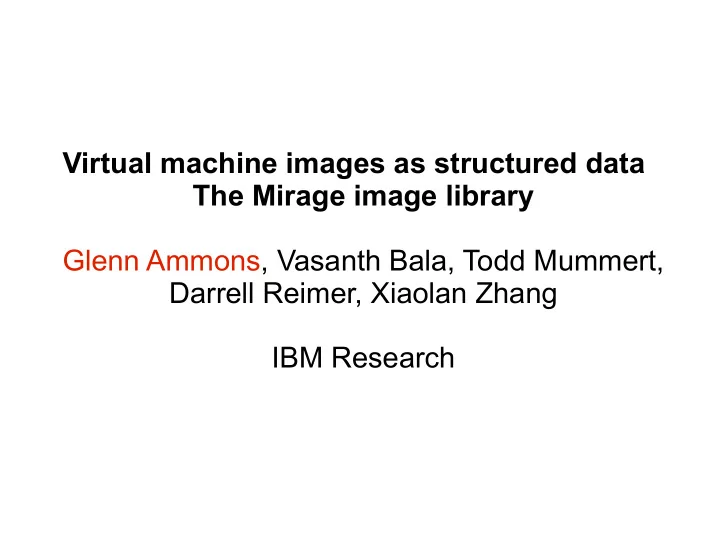

Virtual machine images as structured data The Mirage image library Glenn Ammons, Vasanth Bala, Todd Mummert, Darrell Reimer, Xiaolan Zhang IBM Research

slide-2
SLIDE 2

June 2011 IBM Research 2

Why image libraries?

  • VM image puts app config in one place; image

library puts enterprise config in one place

  • Improve maintenance: scans, patches
  • Permit analyses: search, mine, compare

– What DBMSs do we use? Why did our webapp break?

  • Image libraries: go beyond deploy/capture
  • Provenance
  • Version and access control
  • Efficient, offline maintenance and analyses
slide-3
SLIDE 3

June 2011 IBM Research 3

VM images as structured data

Unstructured (hypervisor) Structured (Mirage)

Image manifest FS manifest

/etc/passwd /usr/bin/ls ...

Metadata File contents (in CAS) Checkin Checkout Disk manifest VM image

slide-4
SLIDE 4

June 2011 IBM Research 4

Experience: RC2

  • Problem: convert all images from Xen to KVM
  • No downtime, low resource use, user transparency
  • Must install kernels, kernel modules, change config.
  • Iterative: fail → find bug → fix → try again
  • Version control useful

– Rollback – Comparisons for debugging

  • Used virtual mount to speed conversion
slide-5
SLIDE 5

June 2011 IBM Research 5

Virtual mount

Structured (Mirage)

Image manifest FS manifest

/boot/kernel /etc/network/foo ...

Metadata File contents (in CAS) Disk manifest % import kvm-kernel % vmount IMAGE /mnt

slide-6
SLIDE 6

June 2011 IBM Research 6

Virtual mount

Structured (Mirage)

Image manifest FS manifest

/boot/kernel /etc/network/foo ...

Metadata File contents (in CAS) Disk manifest % import kvm-kernel % vmount IMAGE /mnt % replace-content \ /boot/kernel

slide-7
SLIDE 7

June 2011 IBM Research 7

Virtual mount

Structured (Mirage)

Image manifest FS manifest

/boot/kernel /etc/network/foo ...

Metadata File contents (in CAS) Disk manifest % import kvm-kernel % vmount IMAGE /mnt % replace-content \ /boot/kernel % vi /etc/network/foo

slide-8
SLIDE 8

June 2011 IBM Research 8

Experience: IBM Workload Deployer

OS team MW team App team A.0 B.0 clone B.1 Install MW C.0 clone C.1 Install app

slide-9
SLIDE 9

June 2011 IBM Research 9

Experience: IBM Workload Deployer

OS team MW team App team A.0 B.0 clone B.1 Install MW C.0 clone C.1 Install app A.1 Update OS

slide-10
SLIDE 10

June 2011 IBM Research 10

Experience: IBM Workload Deployer

OS team MW team App team A.0 B.0 clone B.1 Install MW C.0 clone C.1 Install app A.1 B.2 Patch w/ diff(A.0, A.1) Update OS

slide-11
SLIDE 11

June 2011 IBM Research 11

Backup slides

slide-12
SLIDE 12

June 2011 IBM Research 12

Mirage architecture

Catalog manager Library services Image indexer Content-addressed store Database Storage Clients

slide-13
SLIDE 13

June 2011 IBM Research 13

Mirage architecture

Catalog manager Library services Image indexer Content-addressed store Database Storage Clients Deduplication Garbage collection Structure-aware Optimized for images Deduplication Garbage collection Structure-aware Optimized for images

slide-14
SLIDE 14

June 2011 IBM Research 14

Mirage architecture

Catalog manager Library services Image indexer Content-addressed store Database Storage Clients Converts to and from Mirage format Flexible plugin architecture Converts to and from Mirage format Flexible plugin architecture

slide-15
SLIDE 15

June 2011 IBM Research 15

Mirage architecture

Catalog manager Library services Image indexer Content-addressed store Database Storage Clients Maintains metadata State (active/deleted) Provenance tree Access control Version control Maintains metadata State (active/deleted) Provenance tree Access control Version control

slide-16
SLIDE 16

June 2011 IBM Research 16

Mirage architecture

Catalog manager Library services Image indexer Content-addressed store Database Storage Clients Checkin/checkout Virtual mount Describe, list, compare, search Admin functions Checkin/checkout Virtual mount Describe, list, compare, search Admin functions

slide-17
SLIDE 17

June 2011 IBM Research 17

Reducing translation costs

  • Runtime translation costs reduced by
  • Structure-aware CAS (faster lookups)
  • Virtual mount (avoids translation)
  • Delta deployment (exploits sharing)
  • Hybrid indexing reduces dev. Costs
  • Offloads grotty details to backup/restore tools
  • See paper for details
