Verisoft Verification as Engineering Gerd Beuster gb@uni-koblenz.de Universitt Koblenz-Landau Overview Part 1: Verisoft Part 2: Formalizing Input and Output Verisoft p. 2/15 Part 1 Part 1: Verisoft Verisoft p. 3/15 Verisoft

slide-1
SLIDE 1

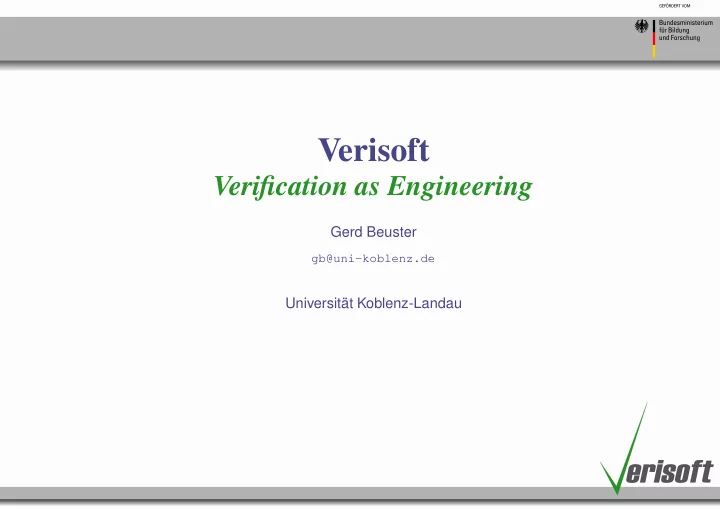

Verisoft

Verification as Engineering

Gerd Beuster

gb@uni-koblenz.de

Universität Koblenz-Landau

slide-2
SLIDE 2

Overview

Part 1: Verisoft Part 2: Formalizing Input and Output

Verisoft – p. 2/15

slide-3
SLIDE 3

Part 1

Part 1: Verisoft

Verisoft – p. 3/15

slide-4
SLIDE 4

Verisoft — Project Goals

Completely verified systems:

Tools Compiler Industrial System System−on−a−Chip Academic System Email System Access Control Biometric Verisoft – p. 4/15

slide-5
SLIDE 5

Verisoft — Project Goals

Completely verified systems:

Tools Compiler Industrial System System−on−a−Chip Academic System Email System Access Control Biometric Verification

  • stoch. System

Verification

  • dist. Systems

Verification Software− Verisoft – p. 4/15

slide-6
SLIDE 6

Verisoft — Project Goals

Completely verified systems:

Tools Compiler Industrial System System−on−a−Chip Academic System Email System Access Control Biometric CPU Software Verification

  • stoch. System

Verification

  • dist. Systems

Verification Software− Verisoft – p. 4/15

slide-7
SLIDE 7

Verisoft — Project Goals

Completely verified systems:

Tools Compiler Industrial System System−on−a−Chip Academic System Email System Access Control Biometric CPU Software C Compiler C Library Verification

  • stoch. System

Verification

  • dist. Systems

Verification Software− Verisoft – p. 4/15

slide-8
SLIDE 8

Verisoft — Project Goals

Completely verified systems:

Tools Compiler Industrial System System−on−a−Chip Academic System Email System Access Control Biometric CPU Software Crypto System & Protocols OS Comm.− Protocols & Signature Email Client C Compiler C Library Verification

  • stoch. System

Verification

  • dist. Systems

Verification Software− Verisoft – p. 4/15

slide-9
SLIDE 9

Verisoft — Project Goals

Completely verified systems:

Tools Compiler Industrial System System−on−a−Chip Academic System Email System Access Control Biometric CPU Software Crypto System & Protocols OS Comm.− Protocols & Signature Email Client Crypto System & Protocols OS C Compiler C Library Verification

  • stoch. System

Verification

  • dist. Systems

Verification Software− Protocol Access Control Verisoft – p. 4/15

slide-10
SLIDE 10

Email Client

Our part: A Simple Email Client

  • Send & receive email via SMTP
  • Sign email & check signatures
  • Text based (ASCII)
  • No folders (not even an Inbox)

Verisoft – p. 5/15

slide-11
SLIDE 11

Email Client—Screenshot

Keyboard locked by PID 57256 (bb) | Screen locked by PID 57256 (bb)

  • From: "Gerd Beuster" <gb@uni-koblenz.de>

To: "Bernhard Beckert" <beckert@uni-koblenz.de> Message-ID: <8d6701c3db02$76191724$cb29c023@uni-koblenz.de> Subject: Verisoft-Spezifikation X-Signature: SDLJK489342HJFVSFKJWQUI89237CFSDKJOIQ398LKSDFJSKLDJ Date: Tue, 27 Jan 2004 16:53:48 +0100 Hallo Bernhard, wir sollten uns mal ueber die Spezifikation des Email-Clients

  • unterhalten. Wann hast Du Zeit?

Gruesse, Gerd

  • Public Key:

DLFJDLSDCMVCDZ53DFDFJL9087/LDIEHJSDLFDJIOEJKLDST/GHSB2SLJ Private Key: FDSLJF4O3489VNV XCKLJN3457896T87HSFDJVNS943ZFHFDIUSFHLA8V

  • (s)end (p)oll | edit (m)ail p(u)b p(r)iv key | (a)dd (c)heck signature
  • Last Cmd: Check Signature | Result: Signature valid

| Processing...

Verisoft – p. 6/15

slide-12
SLIDE 12

Email Client—Methods & Tools

Specification:

  • Semi-formal specification in UML
  • Formal specification in HOL-OCL
  • Proofs in Isabelle

Verisoft – p. 7/15

slide-13
SLIDE 13

Part 2

Part 2: Formalizing Input and Output

Verisoft – p. 8/15

slide-14
SLIDE 14

Security Aspects

Securing I/O against man-in-the-middle attacks

Verisoft – p. 9/15

slide-15
SLIDE 15

Security Aspects

Securing I/O against man-in-the-middle attacks

Verisoft – p. 9/15

slide-16
SLIDE 16

Security Aspects

Securing I/O against man-in-the-middle attacks

Verisoft – p. 9/15

slide-17
SLIDE 17

Software Attacks

  • Locking screen & keyboard
  • Providing information who locks the resource

Keyboard locked by PID 57256 (bb) | Screen locked by PID 57256 (bb)

  • From: "Gerd Beuster" <gb@uni-koblenz.de>

To: "Bernhard Beckert" <beckert@uni-koblenz.de> Message-ID: <8d6701c3db02$76191724$cb29c023@uni-koblenz.de> Subject: Verisoft-Spezifikation X-Signature: SDLJK489342HJFVSFKJWQUI89237CFSDKJOIQ398LKSDFJSKLDJ Date: Tue, 27 Jan 2004 16:53:48 +0100 Hallo Bernhard,

Verisoft – p. 10/15

slide-18
SLIDE 18

The Boundary between Hard- and Software

In a text based application, input is a list of keystrokes,and

  • utput is a (multi-dimensional) list of characters.

Verisoft – p. 11/15

slide-19
SLIDE 19

The Boundary between Hard- and Software

In a text based application, input is a list of keystrokes,and

  • utput is a (multi-dimensional) list of characters.
  • keyboard = List of all keystrokes
  • keyboard(t) = List of all keystrokes received up to time t.
  • screenAt(t)[x, y] = The character shown at time t at

screen position (x, y).

Verisoft – p. 11/15

slide-20
SLIDE 20

The Boundary between Hard- and Software

In a text based application, input is a list of keystrokes,and

  • utput is a (multi-dimensional) list of characters.
  • keyboard = List of all keystrokes
  • keyboard(t) = List of all keystrokes received up to time t.
  • screenAt(t)[x, y] = The character shown at time t at

screen position (x, y).

screenAt(t) = f(keyboard(t))

Verisoft – p. 11/15

slide-21
SLIDE 21

Screen Up-To-Date

screenAt(t) describes what’s actually shown on the screen.

Verisoft – p. 12/15

slide-22
SLIDE 22

Screen Up-To-Date

screenAt(t) describes what’s actually shown on the screen. screenOutput(conf ) describes what should be shown in a

given system configuration. (“observer”)

Verisoft – p. 12/15

slide-23
SLIDE 23

Screen Up-To-Date

screenAt(t) describes what’s actually shown on the screen. screenOutput(conf ) describes what should be shown in a

given system configuration. (“observer”)

⇒ The screen is up-to-date if what we want to show

(screenOutput) is identical to what is actually shown (screenAt).

Verisoft – p. 12/15

slide-24
SLIDE 24

Screen Up-To-Date

screenAt(t) describes what’s actually shown on the screen. screenOutput(conf ) describes what should be shown in a

given system configuration. (“observer”)

⇒ The screen is up-to-date if what we want to show

(screenOutput) is identical to what is actually shown (screenAt). For security reasons, we also want to show who locks i/o ressources.

Verisoft – p. 12/15

slide-25
SLIDE 25

Constraints for Secure Systems

The display is correct (or up-to-date) at time t, if

∀x, y : screenAt(t)[x, y] = screenOutput(conf (t))[x, y]

Verisoft – p. 13/15

slide-26
SLIDE 26

Constraints for Secure Systems

The display is correct (or up-to-date) at time t, if

∀x, y : screenAt(t)[x, y] = screenOutput(conf (t))[x, y]

If resources are locked, this should be shown on the screen.

Verisoft – p. 13/15

slide-27
SLIDE 27

Constraints for Secure Systems

The display is correct (or up-to-date) at time t, if

∀x, y : screenAt(t)[x, y] = screenOutput(conf (t))[x, y]

If resources are locked, this should be shown on the screen.

displayLocked(conf ) provides information who locks the

resources.

Verisoft – p. 13/15

slide-28
SLIDE 28

Constraints for Secure Systems

The display is correct (or up-to-date) at time t, if

∀x, y : screenAt(t)[x, y] = screenOutput(conf (t))[x, y]

If resources are locked, this should be shown on the screen.

displayLocked(conf ) provides information who locks the

resources.

displayLocked(conf )[x] = screenOutput(conf )[x, 0]

Verisoft – p. 13/15

slide-29
SLIDE 29

Constraints for Secure Systems

The display is correct (or up-to-date) at time t, if

∀x, y : screenAt(t)[x, y] = screenOutput(conf (t))[x, y]

If resources are locked, this should be shown on the screen.

displayLocked(conf ) provides information who locks the

resources.

displayLocked(conf )[x] = screenOutput(conf )[x, 0]

It is essential that only the operating system may change the area where this information is shown!

Verisoft – p. 13/15

slide-30
SLIDE 30

Conclusions

The method we introduced. . .

  • . . . does not help against hardware based attacks.

Verisoft – p. 14/15

slide-31
SLIDE 31

Conclusions

The method we introduced. . .

  • . . . does not help against hardware based attacks.
  • . . . does not help against content based attacks.

Verisoft – p. 14/15

slide-32
SLIDE 32

Conclusions

The method we introduced. . .

  • . . . does not help against hardware based attacks.
  • . . . does not help against content based attacks.
  • . . . does not guarantee that the output is perceived as

intended.

Verisoft – p. 14/15

slide-33
SLIDE 33

Conclusions

The method we introduced. . .

  • . . . does not help against hardware based attacks.
  • . . . does not help against content based attacks.
  • . . . does not guarantee that the output is perceived as

intended.

  • . . . does prevent software based attacks on i/o

ressources.

Verisoft – p. 14/15

slide-34
SLIDE 34

Conclusions

The method we introduced. . .

  • . . . does not help against hardware based attacks.
  • . . . does not help against content based attacks.
  • . . . does not guarantee that the output is perceived as

intended.

  • . . . does prevent software based attacks on i/o

ressources.

  • . . . can be applied to other i/o devices (card readers,

graphical terminals,. . . )

Verisoft – p. 14/15

slide-35
SLIDE 35

Conclusions

The method we introduced. . .

  • . . . does not help against hardware based attacks.
  • . . . does not help against content based attacks.
  • . . . does not guarantee that the output is perceived as

intended.

  • . . . does prevent software based attacks on i/o

ressources.

  • . . . can be applied to other i/o devices (card readers,

graphical terminals,. . . )

  • . . . requires special operating system functionality

(locking of resources).

Verisoft – p. 14/15

slide-36
SLIDE 36

Summary and Future

Summary

  • We gave a formalism for the description of text based

input and output.

  • We showed an effective counter-measure against

certain types of man-in-the-middle attacks.

Verisoft – p. 15/15

slide-37
SLIDE 37

Summary and Future

Summary

  • We gave a formalism for the description of text based

input and output.

  • We showed an effective counter-measure against

certain types of man-in-the-middle attacks. Future

  • We will provide a methods for the formal specification of

text based interactive applications, based on state charts.

  • More email specific security issues will be addressed.

Verisoft – p. 15/15
