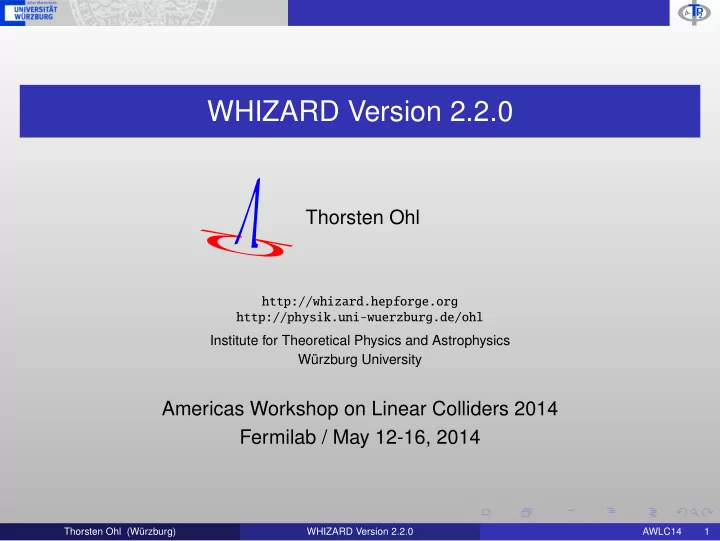

T P 2 WHIZARD Version 2.2.0 V Thorsten Ohl http://whizard.hepforge.org http://physik.uni-wuerzburg.de/ohl Institute for Theoretical Physics and Astrophysics Wrzburg University Americas Workshop on Linear Colliders 2014 Fermilab
T
P
2
Thorsten Ohl
http://whizard.hepforge.org http://physik.uni-wuerzburg.de/ohl Institute for Theoretical Physics and Astrophysics Würzburg University
Americas Workshop on Linear Colliders 2014 Fermilab / May 12-16, 2014
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 1
WHIZARD . . . in a Nutshell
T
P
2
WHIZARD
◮ . . . is a universal event generator for elementary processes at colliders:
◮ e+e−: LEP and TESLA/NLC ⇒ ILC, CLIC, . . . ◮ pp: Tevatron ⇒ LHC, . . . Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 2
WHIZARD . . . in a Nutshell
T
P
2
WHIZARD
◮ . . . is a universal event generator for elementary processes at colliders:
◮ e+e−: LEP and TESLA/NLC ⇒ ILC, CLIC, . . . ◮ pp: Tevatron ⇒ LHC, . . .
◮ . . . contains
elementary processes, supports SM and many BSM extensions
generation
properties, cascade decays, shower, hadronization, analysis, event file formats, etc., etc.
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 2
WHIZARD Highlights
T
P
2
◮ Multi-Channel Monte-Carlo integration
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 3
WHIZARD Highlights
T
P
2
◮ Multi-Channel Monte-Carlo integration ◮ Efficient phase space and event generation (weighted & unweighted)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 3
WHIZARD Highlights
T
P
2
◮ Multi-Channel Monte-Carlo integration ◮ Efficient phase space and event generation (weighted & unweighted) ◮ Optimized tree-level matrix elements (O’Mega)
◮ e+e− → t¯
tH → b¯ bb¯ bjjℓν (110,000 diagrams)
◮ e+e− → ZHH → ZWWWW → bb + 8j
(12,000,000 diagrams)
◮ pp → ℓℓ + nj, n = 0, 1, 2, 3, 4, . . . (2,100,000 d/s with 4 jets + flavors) ◮ pp → ˜
χ0
1 ˜
χ0
1bbbb (32,000 d/s, 22 color flows, ∼ 10, 000 PS channels)
◮ pp → VVjj → jjℓℓνν
◮ Test case gg → 9g
(224,000,000 d/s)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 3
WHIZARD Highlights
T
P
2
◮ Multi-Channel Monte-Carlo integration ◮ Efficient phase space and event generation (weighted & unweighted) ◮ Optimized tree-level matrix elements (O’Mega)
◮ e+e− → t¯
tH → b¯ bb¯ bjjℓν (110,000 diagrams)
◮ e+e− → ZHH → ZWWWW → bb + 8j
(12,000,000 diagrams)
◮ pp → ℓℓ + nj, n = 0, 1, 2, 3, 4, . . . (2,100,000 d/s with 4 jets + flavors) ◮ pp → ˜
χ0
1 ˜
χ0
1bbbb (32,000 d/s, 22 color flows, ∼ 10, 000 PS channels)
◮ pp → VVjj → jjℓℓνν
◮ Test case gg → 9g
(224,000,000 d/s)
◮ active WHIZARD developers (as of 2014):
F . Bach, B. Chokoufe,
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 3
WHIZARD Highlights
T
P
2
◮ Multi-Channel Monte-Carlo integration ◮ Efficient phase space and event generation (weighted & unweighted) ◮ Optimized tree-level matrix elements (O’Mega)
◮ e+e− → t¯
tH → b¯ bb¯ bjjℓν (110,000 diagrams)
◮ e+e− → ZHH → ZWWWW → bb + 8j
(12,000,000 diagrams)
◮ pp → ℓℓ + nj, n = 0, 1, 2, 3, 4, . . . (2,100,000 d/s with 4 jets + flavors) ◮ pp → ˜
χ0
1 ˜
χ0
1bbbb (32,000 d/s, 22 color flows, ∼ 10, 000 PS channels)
◮ pp → VVjj → jjℓℓνν
◮ Test case gg → 9g
(224,000,000 d/s)
◮ active WHIZARD developers (as of 2014):
F . Bach, B. Chokoufe,
◮ One Stop Shop (tarballs, svn, bugtracker, etc.):
http://whizard.hepforge.org
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 3
WHIZARD Highlights
T
P
2
◮ Multi-Channel Monte-Carlo integration ◮ Efficient phase space and event generation (weighted & unweighted) ◮ Optimized tree-level matrix elements (O’Mega)
◮ e+e− → t¯
tH → b¯ bb¯ bjjℓν (110,000 diagrams)
◮ e+e− → ZHH → ZWWWW → bb + 8j
(12,000,000 diagrams)
◮ pp → ℓℓ + nj, n = 0, 1, 2, 3, 4, . . . (2,100,000 d/s with 4 jets + flavors) ◮ pp → ˜
χ0
1 ˜
χ0
1bbbb (32,000 d/s, 22 color flows, ∼ 10, 000 PS channels)
◮ pp → VVjj → jjℓℓνν
◮ Test case gg → 9g
(224,000,000 d/s)
◮ active WHIZARD developers (as of 2014):
F . Bach, B. Chokoufe,
◮ One Stop Shop (tarballs, svn, bugtracker, etc.):
http://whizard.hepforge.org
◮ Standard Reference:
Kilian/TO/Reuter, EPJC 71 (2011) 1742, arXiv:0708.4233
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 3
WHIZARD Milestones
T
P
2
1.0 Project started around 1999: Studies for electroweak multi-particle processes at TESLA (W, Higgs, Z)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 4
WHIZARD Milestones
T
P
2
1.0 Project started around 1999: Studies for electroweak multi-particle processes at TESLA (W, Higgs, Z) Event samples for LC studies at SLAC
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 4
WHIZARD Milestones
T
P
2
1.0 Project started around 1999: Studies for electroweak multi-particle processes at TESLA (W, Higgs, Z) Event samples for LC studies at SLAC 1.9 Full SM w/ QCD, beam properties, SUSY/BSM, event formats
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 4
WHIZARD Milestones
T
P
2
1.0 Project started around 1999: Studies for electroweak multi-particle processes at TESLA (W, Higgs, Z) Event samples for LC studies at SLAC 1.9 Full SM w/ QCD, beam properties, SUSY/BSM, event formats 2.1 QCD shower+matching, FeynRules support, internal density-matrix formalism (cascade decays), language SINDARIN as user interface, OpenMP parallelization, . . . (this week’s production version)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 4
WHIZARD Milestones
T
P
2
1.0 Project started around 1999: Studies for electroweak multi-particle processes at TESLA (W, Higgs, Z) Event samples for LC studies at SLAC 1.9 Full SM w/ QCD, beam properties, SUSY/BSM, event formats 2.1 QCD shower+matching, FeynRules support, internal density-matrix formalism (cascade decays), language SINDARIN as user interface, OpenMP parallelization, . . . (this week’s production version) 2.2 Major refactoring of internals (same user interface), event sample reweighting, inclusive processes, improved LC beam description (currently polishing, updating manual, official release on May 17, 2014)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 4
WHIZARD Milestones
T
P
2
1.0 Project started around 1999: Studies for electroweak multi-particle processes at TESLA (W, Higgs, Z) Event samples for LC studies at SLAC 1.9 Full SM w/ QCD, beam properties, SUSY/BSM, event formats 2.1 QCD shower+matching, FeynRules support, internal density-matrix formalism (cascade decays), language SINDARIN as user interface, OpenMP parallelization, . . . (this week’s production version) 2.2 Major refactoring of internals (same user interface), event sample reweighting, inclusive processes, improved LC beam description (currently polishing, updating manual, official release on May 17, 2014) Plan Further improve ILC support; NLO + matching; improve user interface ⇒ adapt to specific needs of user groups
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 4
Hard matrix elements particle types
T
P
2
◮ Spin 0 particles ◮ Spin 1/2 fermions (Majorana and Dirac)
correct Fermi statistics for both fermion-number conserving and violating cases
◮ Spin 1 particles
◮ massive and massless ◮ Unitarity, Feynman and arbitrary Rξ gauges
◮ Spin 3/2 particles (Majorana only, gravitinos) ◮ Spin 2 particles (massless and massive, gravitons)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 5
Hard matrix elements particle types
T
P
2
◮ Spin 0 particles ◮ Spin 1/2 fermions (Majorana and Dirac)
correct Fermi statistics for both fermion-number conserving and violating cases
◮ Spin 1 particles
◮ massive and massless ◮ Unitarity, Feynman and arbitrary Rξ gauges
◮ Spin 3/2 particles (Majorana only, gravitinos) ◮ Spin 2 particles (massless and massive, gravitons) ◮ both propagating particles and insertions of external currents ◮ unphysical particles for Ward- and Slavnov-Taylor identities
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 5
Hard matrix elements BSM Models
T
P
2
◮ in official distribution: MODEL TYPE with CKM matrix trivial CKM QED with e, µ, τ, γ – QED QCD with d, u, s, c, b, t, g – QCD Standard Model SM_CKM SM SM with anomalous gauge couplings SM_ac_CKM SM_ac SM with anomalous top couplings SMtop_CKM SMtop SM with WW resonances and unitarization — SSC MSSM MSSM_CKM MSSM MSSM with gravitinos — MSSM_Grav NMSSM NMSSM_CKM NMSSM extended SUSY models — PS/E/SSM Littlest Higgs — Littlest Littlest Higgs with ungauged U(1) — Littlest_Eta Littlest Higgs with T parity — Littlest_Tpar Simplest Little Higgs (anomaly-free) — Simplest Simplest Little Higgs (universal) — Simplest_univ 3-site model — Threeshl UED — UED SM with Z′ — Zprime SM with gravitino and photino — GravTest Augmentable SM template — Template
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 6
Hard matrix elements BSM Models
T
P
2
◮ in official distribution: MODEL TYPE with CKM matrix trivial CKM QED with e, µ, τ, γ – QED QCD with d, u, s, c, b, t, g – QCD Standard Model SM_CKM SM SM with anomalous gauge couplings SM_ac_CKM SM_ac SM with anomalous top couplings SMtop_CKM SMtop SM with WW resonances and unitarization — SSC MSSM MSSM_CKM MSSM MSSM with gravitinos — MSSM_Grav NMSSM NMSSM_CKM NMSSM extended SUSY models — PS/E/SSM Littlest Higgs — Littlest Littlest Higgs with ungauged U(1) — Littlest_Eta Littlest Higgs with T parity — Littlest_Tpar Simplest Little Higgs (anomaly-free) — Simplest Simplest Little Higgs (universal) — Simplest_univ 3-site model — Threeshl UED — UED SM with Z′ — Zprime SM with gravitino and photino — GravTest Augmentable SM template — Template ◮ more via FeynRules:
Christensen/Duhr/Fuks/Reuter/Speckner, 1010.3251
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 6
Hard matrix elements BSM Models
T
P
2
◮ in official distribution: MODEL TYPE with CKM matrix trivial CKM QED with e, µ, τ, γ – QED QCD with d, u, s, c, b, t, g – QCD Standard Model SM_CKM SM SM with anomalous gauge couplings SM_ac_CKM SM_ac SM with anomalous top couplings SMtop_CKM SMtop SM with WW resonances and unitarization — SSC MSSM MSSM_CKM MSSM MSSM with gravitinos — MSSM_Grav NMSSM NMSSM_CKM NMSSM extended SUSY models — PS/E/SSM Littlest Higgs — Littlest Littlest Higgs with ungauged U(1) — Littlest_Eta Littlest Higgs with T parity — Littlest_Tpar Simplest Little Higgs (anomaly-free) — Simplest Simplest Little Higgs (universal) — Simplest_univ 3-site model — Threeshl UED — UED SM with Z′ — Zprime SM with gravitino and photino — GravTest Augmentable SM template — Template ◮ more via FeynRules:
Christensen/Duhr/Fuks/Reuter/Speckner, 1010.3251
◮ Interface to SARAH:
Staub, 0909.2863; TO/Porod/Speckner/Staub, 1109.5147
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 6
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
◮ Color in final state: several options
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
◮ Color in final state: several options
shower/hadronization (PYTHIA 6, PYTHIA 8, HERWIG)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
◮ Color in final state: several options
shower/hadronization (PYTHIA 6, PYTHIA 8, HERWIG)
correlation) ⇒ automatic generation of showered/hadronized event files
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
◮ Color in final state: several options
shower/hadronization (PYTHIA 6, PYTHIA 8, HERWIG)
correlation) ⇒ automatic generation of showered/hadronized event files
PYTHIA hadronization
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
◮ Color in final state: several options
shower/hadronization (PYTHIA 6, PYTHIA 8, HERWIG)
correlation) ⇒ automatic generation of showered/hadronized event files
PYTHIA hadronization
hadronization
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
◮ Color in final state: several options
shower/hadronization (PYTHIA 6, PYTHIA 8, HERWIG)
correlation) ⇒ automatic generation of showered/hadronized event files
PYTHIA hadronization
hadronization
◮ Extra radiation: avoid double-counting
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Color
T
P
2
◮ WHIZARD 2: Color is treated exactly, color-flow formalism
[NB: old event samples: color flow was inferred from kinematics]
◮ Color in final state: several options
shower/hadronization (PYTHIA 6, PYTHIA 8, HERWIG)
correlation) ⇒ automatic generation of showered/hadronized event files
PYTHIA hadronization
hadronization
◮ Extra radiation: avoid double-counting
◮ Matrix element for extra radiation + MLM matching scheme Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 7
QCD Parton Shower
T
P
2
Reuter/Schmidt/Wiesler, JHEP 1204 (2012) 013, arXiv:1112.1039
◮ Analytic Parton Shower:
◮ no shower veto: shower history is exactly known ◮ allows reweighting and (maybe) more reliable error estimate Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 8
QCD Parton Shower
T
P
2
Reuter/Schmidt/Wiesler, JHEP 1204 (2012) 013, arXiv:1112.1039
◮ Analytic Parton Shower:
◮ no shower veto: shower history is exactly known ◮ allows reweighting and (maybe) more reliable error estimate
◮ validated against PYTHIA shower (tuning-assistance welcome!)
0.01 0.1 1 10 100 0.05 0.1 0.15 0.2 0.25 0.3 0.35 1/N dN/d(1-T) 1-T LEP data PYTHIA PS WHIZARD PS 10-3 10-2 10-1 100 101 102 103 104 10-5 10-4 10-3 10-2 10-1 100 1/N dN/dy23 y23 OPAL data WHIZARD PS
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 8
QCD Parton Shower
T
P
2
Reuter/Schmidt/Wiesler, JHEP 1204 (2012) 013, arXiv:1112.1039
◮ Analytic Parton Shower:
◮ no shower veto: shower history is exactly known ◮ allows reweighting and (maybe) more reliable error estimate
◮ validated against PYTHIA shower (tuning-assistance welcome!)
0.0001 0.001 0.01 0.1 10 20 30 40 50 60 70 80 90 100 110 120 1/N dN/dpt pt D0 Data NoMatching Matching (1jet) Matching (2jet) 10-7 10-6 10-5 10-4 10-3 10-2 10-1 1 10 100 1/N dN/dpt pt CMS Data WHIZARD PS PYTHIA PS
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 8
QCD Parton Shower
T
P
2
Reuter/Schmidt/Wiesler, JHEP 1204 (2012) 013, arXiv:1112.1039
◮ Analytic Parton Shower:
◮ no shower veto: shower history is exactly known ◮ allows reweighting and (maybe) more reliable error estimate
◮ validated against PYTHIA shower (tuning-assistance welcome!)
0.0001 0.001 0.01 0.1 10 20 30 40 50 60 70 80 90 100 110 120 1/N dN/dpt pt D0 Data NoMatching Matching (1jet) Matching (2jet) 10-7 10-6 10-5 10-4 10-3 10-2 10-1 1 10 100 1/N dN/dpt pt CMS Data WHIZARD PS PYTHIA PS
◮ matching with hard matrix elements
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 8
New in WHIZARD 2
T
P
2
◮ SINDARIN
(Scripting INtegration, Data Analysis, Results display and INterfaces)
◮ steering: process definition, parameters, models, beam structure,
scans/loops, conditionals, I/O, file formats, . . .
◮ expressions: for cuts, scales, weights ◮ analysis: observables, plots, histograms
cuts = any 5 degree < Theta < 175 degree [select if abs (Eta) < eta_cut [lepton]] cuts = any E > 2 * mW [extract index 2 [sort by Pt [lepton]]]
◮ Decay cascades including full spin correlations ◮ Event-dependent scales in PDFs and running αs ◮ unitarity (K-matrix) and resonances in vector-boson scattering with
anomalous couplings (cf. ATLAS-CONF-2014-013)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 9
New in WHIZARD 2 Towards 2.2.X
T
P
2
◮ status: official release, Saturday May 17, 2014 ◮ WHIZARD core: insert an extra abstraction layer, consistently separate
interface from implementation ∵ Replaceable modules with well-defined interface: matrix-elements, beam structure, phase space, integration, decays, shower, . . . ∴ Much easier to contribute new parts to the code ∴ Framework for testing ideas and algorithms ∴ Technical changes hidden from the user
◮ Models for BSM interactions of electroweak vector bosons (w/light Higgs) ◮ Automatically construct decay chains, depending on the model
?auto_decays = true unstable Z ()
◮ Inclusive processes
process cpp = "e-", "e+" => "ch1+" + "ch2+", "ch1-" + "ch2-" (NB: "ch1+:ch2-" requires the same mass!)
◮ Read event files, reweight and reanalyze
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 10
New in WHIZARD 2 Technical Features
T
P
2
◮ WHIZARD 2: code substantially rewritten, only Fortran 2003 (gfortran
4.7) and O’Caml
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 11
New in WHIZARD 2 Technical Features
T
P
2
◮ WHIZARD 2: code substantially rewritten, only Fortran 2003 (gfortran
4.7) and O’Caml
◮ Object-oriented implementation and clean modularization of code
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 11
New in WHIZARD 2 Technical Features
T
P
2
◮ WHIZARD 2: code substantially rewritten, only Fortran 2003 (gfortran
4.7) and O’Caml
◮ Object-oriented implementation and clean modularization of code ◮ transparent OpenMP parallelization
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 11
New in WHIZARD 2 Technical Features
T
P
2
◮ WHIZARD 2: code substantially rewritten, only Fortran 2003 (gfortran
4.7) and O’Caml
◮ Object-oriented implementation and clean modularization of code ◮ transparent OpenMP parallelization ◮ Operation modes:
◮ dynamic linking (default) with on-the-fly generation of process code ◮ static linking for batch clusters and the grid ◮ library mode, callable from C/C++/Python/. . . ◮ interactive mode: WHIZARD works as a REPL (read-eval-print loop) Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 11
New in WHIZARD 2 Technical Features
T
P
2
◮ WHIZARD 2: code substantially rewritten, only Fortran 2003 (gfortran
4.7) and O’Caml
◮ Object-oriented implementation and clean modularization of code ◮ transparent OpenMP parallelization ◮ Operation modes:
◮ dynamic linking (default) with on-the-fly generation of process code ◮ static linking for batch clusters and the grid ◮ library mode, callable from C/C++/Python/. . . ◮ interactive mode: WHIZARD works as a REPL (read-eval-print loop)
◮ Standard toolchain: uses autotools: automake/autoconf/libtool ◮ comprehensive suite of unit tests ◮ Version control (svn) at HepForge: use of ticket system and bug tracker ◮ Continuous integration system (jenkins) linked with svn repository
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 11
New in WHIZARD 2 Installation and Running
T
P
2
◮ Download WHIZARD from
http://www.hepforge.org/archive/whizard/ and unpack it
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 12
New in WHIZARD 2 Installation and Running
T
P
2
◮ Download WHIZARD from
http://www.hepforge.org/archive/whizard/ and unpack it
◮ WHIZARD can be centrally installed on a
system, e. g. in /usr/local, or locally on any user account
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 12
New in WHIZARD 2 Installation and Running
T
P
2
◮ Download WHIZARD from
http://www.hepforge.org/archive/whizard/ and unpack it
◮ WHIZARD can be centrally installed on a
system, e. g. in /usr/local, or locally on any user account
◮ Create build directory and configure
NB: might need flags for external programs (LHAPDF, StdHEP , HepMC)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 12
New in WHIZARD 2 Installation and Running
T
P
2
◮ Download WHIZARD from
http://www.hepforge.org/archive/whizard/ and unpack it
◮ WHIZARD can be centrally installed on a
system, e. g. in /usr/local, or locally on any user account
◮ Create build directory and configure
NB: might need flags for external programs (LHAPDF, StdHEP , HepMC)
◮ make, make check and make install
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 12
New in WHIZARD 2 Installation and Running
T
P
2
◮ Download WHIZARD from
http://www.hepforge.org/archive/whizard/ and unpack it
◮ WHIZARD can be centrally installed on a
system, e. g. in /usr/local, or locally on any user account
◮ Create build directory and configure
NB: might need flags for external programs (LHAPDF, StdHEP , HepMC)
◮ make, make check and make install
O’Mega self tests: make check-TESTS PASS: test_omega95 PASS: test_omega95_bispinors PASS: test_qed_eemm PASS: ects PASS: ward PASS: compare_split_function PASS: compare_split_module ================== All 7 tests passed ================== WHIZARD self tests: make check-am make check-TESTS PASS: empty.run PASS: vars.run PASS: md5.run [...] XFAIL: errors.run [...] PASS: smtest.run PASS: defaultcuts.run PASS: restrictions.run PASS: decays.run PASS: alphas.run PASS: colors.run PASS: cuts.run PASS: lhapdf.run PASS: ilc.run PASS: mssmtest.run PASS: models.run PASS: stdhep.run PASS: stdhep_up.run ===================================================== All 53 tests behaved as expected (1 expected ===================================================== Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 12
New in WHIZARD 2 Installation and Running
T
P
2
◮ Download WHIZARD from
http://www.hepforge.org/archive/whizard/ and unpack it
◮ WHIZARD can be centrally installed on a
system, e. g. in /usr/local, or locally on any user account
◮ Create build directory and configure
NB: might need flags for external programs (LHAPDF, StdHEP , HepMC)
◮ make, make check and make install ◮ Create SINDARIN steering file (in any working
directory)
O’Mega self tests: make check-TESTS PASS: test_omega95 PASS: test_omega95_bispinors PASS: test_qed_eemm PASS: ects PASS: ward PASS: compare_split_function PASS: compare_split_module ================== All 7 tests passed ================== WHIZARD self tests: make check-am make check-TESTS PASS: empty.run PASS: vars.run PASS: md5.run [...] XFAIL: errors.run [...] PASS: smtest.run PASS: defaultcuts.run PASS: restrictions.run PASS: decays.run PASS: alphas.run PASS: colors.run PASS: cuts.run PASS: lhapdf.run PASS: ilc.run PASS: mssmtest.run PASS: models.run PASS: stdhep.run PASS: stdhep_up.run ===================================================== All 53 tests behaved as expected (1 expected ===================================================== Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 12
New in WHIZARD 2 Installation and Running
T
P
2
◮ Download WHIZARD from
http://www.hepforge.org/archive/whizard/ and unpack it
◮ WHIZARD can be centrally installed on a
system, e. g. in /usr/local, or locally on any user account
◮ Create build directory and configure
NB: might need flags for external programs (LHAPDF, StdHEP , HepMC)
◮ make, make check and make install ◮ Create SINDARIN steering file (in any working
directory)
◮ Run whizard in working directory
O’Mega self tests: make check-TESTS PASS: test_omega95 PASS: test_omega95_bispinors PASS: test_qed_eemm PASS: ects PASS: ward PASS: compare_split_function PASS: compare_split_module ================== All 7 tests passed ================== WHIZARD self tests: make check-am make check-TESTS PASS: empty.run PASS: vars.run PASS: md5.run [...] XFAIL: errors.run [...] PASS: smtest.run PASS: defaultcuts.run PASS: restrictions.run PASS: decays.run PASS: alphas.run PASS: colors.run PASS: cuts.run PASS: lhapdf.run PASS: ilc.run PASS: mssmtest.run PASS: models.run PASS: stdhep.run PASS: stdhep_up.run ===================================================== All 53 tests behaved as expected (1 expected ===================================================== Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 12
New in WHIZARD 2 Manual
T
P
2
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 13
New in WHIZARD 2 Histograms
T
P
2
◮
WHIZARD data analysis
March 16, 2007 Process: qqttdec (u¯ u → b¯ bW +W −) √s = 500.0 GeV
100 200 300 160 165 170 175 180 #evt/bin Minv [GeV] of (5) σtot = 36305. ± 310. fb [±0.85 %] nevt, tot = 1000 σcut = 36305. ± 0.115 × 10+04 fb [±3.16 %] nevt, cut = 1000 [100.00 %]
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 14
New in WHIZARD 2 Histograms
T
P
2
◮
WHIZARD data analysis
March 16, 2007 Process: qqttdec (u¯ u → b¯ bW +W −) √s = 500.0 GeV
100 200 300 160 165 170 175 180 #evt/bin Minv [GeV] of (5) σtot = 36305. ± 310. fb [±0.85 %] nevt, tot = 1000 σcut = 36305. ± 0.115 × 10+04 fb [±3.16 %] nevt, cut = 1000 [100.00 %]
◮ New completely general syntax in WHIZARD 2.x
$title = "Jet Energy in $pp\to \ell\bar\nu j$" $x_label = "$E$/GeV" histogram e_jet (0 GeV, 80 GeV, 2 GeV) analysis = record pt_lepton (eval Pt [extract index 1 [sort by Pt [lepton]]]); record pt_jet (eval Pt [extract index 1 [sort by Pt [jet]]]); record e_lepton (eval E [extract index 1 [sort by Pt [lepton]]]); record e_jet (eval E [extract index 1 [sort by Pt [jet]]])
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 14
New in WHIZARD 2 Example: SUSY cascade decays @LHC
T
P
2
p + p → u ¯ u → ¯ ˜ u1 + ( ˜ u1 → u + (˜ χ0
2 → ˜
e+
12 + e−))
isotropic decay
2000 4000 6000 8000 1×104 200 400 600 Minv(ue−)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 15
New in WHIZARD 2 Example: SUSY cascade decays @LHC
T
P
2
p + p → u ¯ u → ¯ ˜ u1 + ( ˜ u1 → u + (˜ χ0
2 → ˜
e+
12 + e−))
isotropic decay / full matrix element
2000 4000 6000 8000 1×104 200 400 600 Minv(ue−)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 15
New in WHIZARD 2 Example: SUSY cascade decays @LHC
T
P
2
p + p → u ¯ u → ¯ ˜ u1 + ( ˜ u1 → u + (˜ χ0
2 → ˜
e+
12 + e−))
isotropic decay / diagonal density matrix / full matrix element
2000 4000 6000 8000 1×104 200 400 600 Minv(ue−)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 15
New in WHIZARD 2 Example: SUSY cascade decays @LHC
T
P
2
p + p → u ¯ u → ¯ ˜ u1 + ( ˜ u1 → u + (˜ χ0
2 → ˜
e+
12 + e−))
isotropic decay / diagonal density matrix / full density matrix / full matrix element
2000 4000 6000 8000 1×104 200 400 600 Minv(ue−)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 15
New in WHIZARD 2 Example: SUSY cascade decays @LHC
T
P
2
p + p → u ¯ u → ¯ ˜ u1 + ( ˜ u1 → u + (˜ χ0
2 → ˜
e+
12 + e−))
isotropic decay / diagonal density matrix / full density matrix
2000 4000 6000 8000 1×104 200 400 600 Minv(ue−)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 15
New in WHIZARD 2 NLO development(s)
T
P
2
◮ Proof-of-concept code in WHIZARD 2.1 by C. Speckner, support
discontinued
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 16
New in WHIZARD 2 NLO development(s)
T
P
2
◮ Proof-of-concept code in WHIZARD 2.1 by C. Speckner, support
discontinued
◮ New implementation under way for WHIZARD 2.2+ by C. Weiss
Build upon the refactored WHIZARD core, exchangeable modules
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 16
New in WHIZARD 2 NLO development(s)
T
P
2
◮ Proof-of-concept code in WHIZARD 2.1 by C. Speckner, support
discontinued
◮ New implementation under way for WHIZARD 2.2+ by C. Weiss
Build upon the refactored WHIZARD core, exchangeable modules
◮ Top threshold by F
. Bach with input from A. Hoang
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 16
New in WHIZARD 2 NLO development(s)
T
P
2
◮ Proof-of-concept code in WHIZARD 2.1 by C. Speckner, support
discontinued
◮ New implementation under way for WHIZARD 2.2+ by C. Weiss
Build upon the refactored WHIZARD core, exchangeable modules
◮ Top threshold by F
. Bach with input from A. Hoang
340 342 344 346 348 0.0 0.5 1.0 1.5 s GeV Σ pb Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 16
New in WHIZARD 2 NLO development(s)
T
P
2
◮ Proof-of-concept code in WHIZARD 2.1 by C. Speckner, support
discontinued
◮ New implementation under way for WHIZARD 2.2+ by C. Weiss
Build upon the refactored WHIZARD core, exchangeable modules
◮ Top threshold by F
. Bach with input from A. Hoang
◮ non trivial matching of threshold and continuum:
340 342 344 346 348 0.0 0.5 1.0 1.5 s GeV Σ pb 340 360 380 400 420 0.0 0.5 1.0 1.5 s GeV Σpb
NLL NLO LL thresh . LO
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 16
Linear Colliders WHIZARD 2.1
T
P
2
◮ Predefined parameter sets (CIRCE1) (250/350/500/1000/2000/3000
GeV)
◮ ISR and beamstrahlung
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 17
Linear Colliders WHIZARD 2.1
T
P
2
◮ Predefined parameter sets (CIRCE1) (250/350/500/1000/2000/3000
GeV)
◮ ISR and beamstrahlung ◮ Exhaustive support for these effects in WHIZARD (collaboration with LC
groups)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 17
Linear Colliders WHIZARD 2.1
T
P
2
◮ Predefined parameter sets (CIRCE1) (250/350/500/1000/2000/3000
GeV)
◮ ISR and beamstrahlung ◮ Exhaustive support for these effects in WHIZARD (collaboration with LC
groups)
◮ Example e+e− → b¯
b:
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 17
Linear Colliders WHIZARD 2.1
T
P
2
◮ Predefined parameter sets (CIRCE1) (250/350/500/1000/2000/3000
GeV)
◮ ISR and beamstrahlung ◮ Exhaustive support for these effects in WHIZARD (collaboration with LC
groups)
◮ Example e+e− → b¯
b:
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 17
Linear Colliders WHIZARD 2.1
T
P
2
◮ Predefined parameter sets (CIRCE1) (250/350/500/1000/2000/3000
GeV)
◮ ISR and beamstrahlung ◮ Exhaustive support for these effects in WHIZARD (collaboration with LC
groups)
◮ Example e+e− → b¯
b:
◮ Luminosity spectrum picks up the Z resonance!
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 17
Linear Colliders WHIZARD 2.2
T
P
2
Choices:
◮ ILC parameter set(s) (CIRCE1)
beams = "e-", "e+" => circe1 => isr $circe1_acc = "ILC"
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 18
Linear Colliders WHIZARD 2.2
T
P
2
Choices:
◮ ILC parameter set(s) (CIRCE1)
beams = "e-", "e+" => circe1 => isr $circe1_acc = "ILC"
◮ Read from beam-event data file
beams = "e-", "e+" => beam_events => isr $beam_events_file = "guineapig_output.dat"
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 18
Linear Colliders WHIZARD 2.2
T
P
2
Choices:
◮ ILC parameter set(s) (CIRCE1)
beams = "e-", "e+" => circe1 => isr $circe1_acc = "ILC"
◮ Read from beam-event data file
beams = "e-", "e+" => beam_events => isr $beam_events_file = "guineapig_output.dat"
◮ CIRCE2: parameterizes GuineaPig output and transforms into
unweighted beam-event generator (cf. T. Barklow’s LumiLinker code for WHIZARD1)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 18
Linear Colliders WHIZARD 2.2
T
P
2
Choices:
◮ ILC parameter set(s) (CIRCE1)
beams = "e-", "e+" => circe1 => isr $circe1_acc = "ILC"
◮ Read from beam-event data file
beams = "e-", "e+" => beam_events => isr $beam_events_file = "guineapig_output.dat"
◮ CIRCE2: parameterizes GuineaPig output and transforms into
unweighted beam-event generator (cf. T. Barklow’s LumiLinker code for WHIZARD1)
◮ Specific mappings efficiently handle s-channel resonances and on-shell
2 → 1 production (ISR radiative return)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 18
Linear Colliders WHIZARD 2.2
T
P
2
Choices:
◮ ILC parameter set(s) (CIRCE1)
beams = "e-", "e+" => circe1 => isr $circe1_acc = "ILC"
◮ Read from beam-event data file
beams = "e-", "e+" => beam_events => isr $beam_events_file = "guineapig_output.dat"
◮ CIRCE2: parameterizes GuineaPig output and transforms into
unweighted beam-event generator (cf. T. Barklow’s LumiLinker code for WHIZARD1)
◮ Specific mappings efficiently handle s-channel resonances and on-shell
2 → 1 production (ISR radiative return)
◮ Users’ feedback on prefered methods required!
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 18
Linear Colliders WHIZARD 2.2
T
P
2
More options for beams:
◮ Polarization (longitudinal, transversal, arbitrary)
beams = "e-", "e+" beams_pol_density = @(-1), @(+1) beams_pol_fraction = 80%, 40%
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 19
Linear Colliders WHIZARD 2.2
T
P
2
More options for beams:
◮ Polarization (longitudinal, transversal, arbitrary)
beams = "e-", "e+" beams_pol_density = @(-1), @(+1) beams_pol_fraction = 80%, 40%
◮ Asymmetric beams
beams_momentum = 100 GeV, 900 GeV
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 19
Linear Colliders WHIZARD 2.2
T
P
2
More options for beams:
◮ Polarization (longitudinal, transversal, arbitrary)
beams = "e-", "e+" beams_pol_density = @(-1), @(+1) beams_pol_fraction = 80%, 40%
◮ Asymmetric beams
beams_momentum = 100 GeV, 900 GeV
◮ Crossing angle
beams_theta = 0 degree, 10 degree beams_phi = 0 degree, 90 degree
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 19
Linear Colliders WHIZARD 2.2
T
P
2
More options for beams:
◮ Polarization (longitudinal, transversal, arbitrary)
beams = "e-", "e+" beams_pol_density = @(-1), @(+1) beams_pol_fraction = 80%, 40%
◮ Asymmetric beams
beams_momentum = 100 GeV, 900 GeV
◮ Crossing angle
beams_theta = 0 degree, 10 degree beams_phi = 0 degree, 90 degree
◮ All parameters can be looped over in Sindarin input
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 19
Linear Colliders WHIZARD 2.2
T
P
2
More options for beams:
◮ Polarization (longitudinal, transversal, arbitrary)
beams = "e-", "e+" beams_pol_density = @(-1), @(+1) beams_pol_fraction = 80%, 40%
◮ Asymmetric beams
beams_momentum = 100 GeV, 900 GeV
◮ Crossing angle
beams_theta = 0 degree, 10 degree beams_phi = 0 degree, 90 degree
◮ All parameters can be looped over in Sindarin input ◮ Polarization also available for final state (full correlations), just need a
suitable event format for the density matrix . . .
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 19
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
◮ Distribution of ISR photons with pT (in collinear/infrared limit)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
◮ Distribution of ISR photons with pT (in collinear/infrared limit) ◮ LCIO as event format (F
. Gaede)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
◮ Distribution of ISR photons with pT (in collinear/infrared limit) ◮ LCIO as event format (F
. Gaede)
◮ polarization of decaying particle
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
◮ Distribution of ISR photons with pT (in collinear/infrared limit) ◮ LCIO as event format (F
. Gaede)
◮ polarization of decaying particle ◮ Jets, shower, matching: Bijan Chokoufe
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
◮ Distribution of ISR photons with pT (in collinear/infrared limit) ◮ LCIO as event format (F
. Gaede)
◮ polarization of decaying particle ◮ Jets, shower, matching: Bijan Chokoufe ◮ Unitary models for WW scattering at high energies: Marco Sekulla
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
◮ Distribution of ISR photons with pT (in collinear/infrared limit) ◮ LCIO as event format (F
. Gaede)
◮ polarization of decaying particle ◮ Jets, shower, matching: Bijan Chokoufe ◮ Unitary models for WW scattering at high energies: Marco Sekulla ◮ Top-quark threshold (resummed + corrected): Fabian Bach
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Linear Colliders Projects
T
P
2
◮ Comprehensive, up-to-date parameter sets for ILC/CLIC beamstrahlung
spectra
◮ Distribution of ISR photons with pT (in collinear/infrared limit) ◮ LCIO as event format (F
. Gaede)
◮ polarization of decaying particle ◮ Jets, shower, matching: Bijan Chokoufe ◮ Unitary models for WW scattering at high energies: Marco Sekulla ◮ Top-quark threshold (resummed + corrected): Fabian Bach ◮ Automatic inclusion of NLO effects: C. Weiss
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 20
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics ◮ Versatile, user-friendly tool
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics ◮ Versatile, user-friendly tool ◮ Detailed and flexible implementation of ILC beam properties
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics ◮ Versatile, user-friendly tool ◮ Detailed and flexible implementation of ILC beam properties ◮ One-Stop-Shopping: http://whizard.hepforge.org
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics ◮ Versatile, user-friendly tool ◮ Detailed and flexible implementation of ILC beam properties ◮ One-Stop-Shopping: http://whizard.hepforge.org ◮ Expect continuous improvement
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics ◮ Versatile, user-friendly tool ◮ Detailed and flexible implementation of ILC beam properties ◮ One-Stop-Shopping: http://whizard.hepforge.org ◮ Expect continuous improvement ◮ Thanks to all contributors (list is not exhaustive!)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics ◮ Versatile, user-friendly tool ◮ Detailed and flexible implementation of ILC beam properties ◮ One-Stop-Shopping: http://whizard.hepforge.org ◮ Expect continuous improvement ◮ Thanks to all contributors (list is not exhaustive!)
. Bechtle, M. Berggren, M. Beyer, H. Boschmann, F . Braam,
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
Summary and Outlook
T
P
2
◮ WHIZARD 2 for LC and LHC physics ◮ Versatile, user-friendly tool ◮ Detailed and flexible implementation of ILC beam properties ◮ One-Stop-Shopping: http://whizard.hepforge.org ◮ Expect continuous improvement ◮ Thanks to all contributors (list is not exhaustive!)
. Bechtle, M. Berggren, M. Beyer, H. Boschmann, F . Braam,
◮ Open for suggestions: (please contact us!)
Thorsten Ohl (Würzburg) WHIZARD Version 2.2.0 AWLC14 21
