UWE Faculty of Business and Law Stakeholder Group Meeting Design Update May 2014 Overview Engagement process BIM (Building Information Modelling) Stakeholder sessions Design development Current concept design masterplan Heartzone

slide-1
SLIDE 1

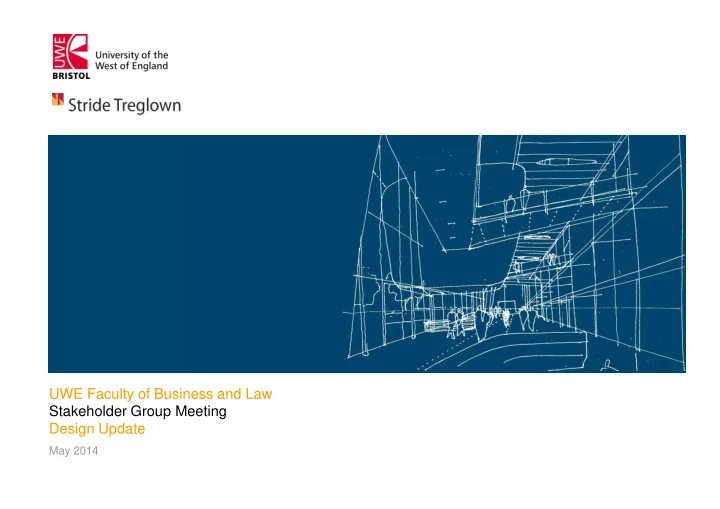

UWE Faculty of Business and Law Stakeholder Group Meeting Design Update

May 2014

slide-2
SLIDE 2

Overview Engagement process BIM (Building Information Modelling) Stakeholder sessions Design development Current concept design

slide-3
SLIDE 3

masterplan

slide-4
SLIDE 4

masterplan

‘Heartzone’

slide-5
SLIDE 5

masterplan student union

slide-6
SLIDE 6

masterplan student accommodation

slide-7
SLIDE 7

masterplan Plaza

slide-8
SLIDE 8

masterplan Faculty of Business and Law – Phase 1

slide-9
SLIDE 9

masterplan Faculty of Business and Law – Phase 2

slide-10
SLIDE 10

Masterplan Faculty of Business and Law Site

slide-11
SLIDE 11

Masterplan Faculty of Business and Law Site

slide-12
SLIDE 12

Masterplan Faculty of Business and Law Site 5 s

slide-13
SLIDE 13

Masterplan Faculty of Business and Law Site 5 s 4 s

slide-14
SLIDE 14

masterplan Initial massing views

FBL Masterplan massing only

slide-15
SLIDE 15

masterplan Initial massing views

FBL Masterplan massing only

slide-16
SLIDE 16

Overview Engagement process BIM (Building Information Modelling) Stakeholder sessions Design development Current concept design

slide-17
SLIDE 17
  • Shadowing sessions
  • Departmental sessions
  • Office environment reviews – mock ups
  • Teaching environment reviews
  • Collaboration space review
  • Building visits

Stakeholder engagement

slide-18
SLIDE 18
  • Nottingham Trent University
  • Manchester Metropolitan University
  • Northumbria University
  • Newcastle University
  • Exeter University
  • Cardiff School of Management
  • University of Reading (Henley Business School)

Visits undertaken

slide-19
SLIDE 19

Overview Engagement process BIM (Building Information Modelling) Stakeholder sessions Design development Current concept design

slide-20
SLIDE 20

Stakeholder Engagement and Communication

BIM Visualisation

slide-21
SLIDE 21

Stakeholder Engagement and Communication

BIM Visualisation

slide-22
SLIDE 22

Stakeholder Engagement and Communication

BIM Visualisation

slide-23
SLIDE 23

Stakeholder Engagement and Communication

BIM Visualisation

slide-24
SLIDE 24

Stakeholder Engagement and Communication

BIM Visualisation

slide-25
SLIDE 25

Stakeholder Engagement and Communication

BIM Visualisation

slide-26
SLIDE 26

BIM (Building Information Modelling)

slide-27
SLIDE 27

Overview Engagement process BIM (Building Information Modelling) Stakeholder sessions Design development Current concept design

slide-28
SLIDE 28
  • Review and comment on current design
  • Communicate feedback from departments
  • Discuss ideas

Stakeholder sessions

Purpose

slide-29
SLIDE 29

Building organisation

Location of departments Location of key spaces (lecture theatres, café) Office and teaching space arrangement

Office / meeting rooms

Aspirations Anxieties Ideas

Stakeholder sessions

Structure / topics

slide-30
SLIDE 30

Teaching / learning environment

Flexibility Standardisation between rooms and equipment

Informal learning spaces and event requirements

Café / Tea points Social learning spaces Special events

Stakeholder sessions

Structure / topics

slide-31
SLIDE 31

Overview Engagement process BIM (Building Information Modelling) Stakeholder sessions Design development Current concept design

slide-32
SLIDE 32

Site Analysis Existing Site

  • Level change across

site

  • Views
  • Relationship to

Wallscourt Farm

  • Proximity to P Block

Site Analysis

slide-33
SLIDE 33

Opportunities Proposed Context

  • Relationship to Heart

Zone

  • Relationship to Vehicular

and pedestrian routes

  • Entrance Options
  • Views
  • Potential connection to

FBL Phase II

Site Analysis

slide-34
SLIDE 34

Site bird’s eye view

slide-35
SLIDE 35

Initial thoughts

Concept options

Wing option Perimeter option Organic option

slide-36
SLIDE 36

Permeability

Concept Development

Lower Ground Floor Upper Floors First Floor Ground Floor

Link to Phase 2 Link to Phase 2

slide-37
SLIDE 37

Initial thoughts

Concept options

  • 1 0 1 2 3 4
slide-38
SLIDE 38

Initial thoughts

Concept options

slide-39
SLIDE 39

Teaching Spaces

300 Seat Lecture Theatre

  • 300 seat lecture theatre

with 4 wheelchair spaces

  • Total area = 375m2
  • Area per student =

1.25m2 per student

  • Opportunity for flexible

learning

Flexible lecture theatre

JISC Lecture Theatre

slide-40
SLIDE 40

Teaching Spaces

100 Seat Lecture Theatre

  • 100 seat lecture theatre

with 2 wheelchair spaces

  • Total area = 130m2
  • Area per student =

1.3m2 per student

  • Rectilinear seating

arrangement

Harvard lecture theatre

Lincolnshire Leadership & Management Centre

slide-41
SLIDE 41

Space standards

Teaching Spaces

Options – Plectrum room configuration

slide-42
SLIDE 42

Office space

Offices

slide-43
SLIDE 43

Collaboration spaces

Collaboration

slide-44
SLIDE 44

Collaboration spaces

Collaboration

slide-45
SLIDE 45

Collaboration spaces

Collaboration spaces

slide-46
SLIDE 46

Overview Engagement process BIM (Building Information Modelling) Stakeholder sessions Design development Current concept design

slide-47
SLIDE 47

Developed concept: perimeter / atrium option

slide-48
SLIDE 48

Developed concept: perimeter / atrium option

slide-49
SLIDE 49

Developed concept: concept section

slide-50
SLIDE 50

Spatial planning: concept plans

slide-51
SLIDE 51

Spatial planning: concept plans

slide-52
SLIDE 52

Spatial planning: concept plans

BM BM BM BM

slide-53
SLIDE 53

Office space

Offices concept design

slide-54
SLIDE 54

Offices concept design

Indicative drawing for presentation and discussion only

slide-55
SLIDE 55

Offices concept design

Proposed Single Office (Large)

1:50

Interior View Proposed Single (Large) 3D view Single (Large) Indicative drawing for presentation and discussion only

slide-56
SLIDE 56

Offices concept design

Indicative drawing for presentation and discussion only

slide-57
SLIDE 57

Offices comparisons: Felixstowe Court

slide-58
SLIDE 58

Offices concept design

Indicative drawing for presentation and discussion only

slide-59
SLIDE 59

Offices comparisons: B Block

29.38m2 24.85m2

slide-60
SLIDE 60

Teaching space

25 person seminar room

slide-61
SLIDE 61

50 person seminar room

slide-62
SLIDE 62

Locations

Collaboration space

slide-63
SLIDE 63

Collaboration

slide-64
SLIDE 64

Collaboration

slide-65
SLIDE 65

Moore Business School , Royal Holloway University of London, Surrey

slide-66
SLIDE 66

Social Learning Space | Goldsmiths College l University of London

slide-67
SLIDE 67

Building organisation

Location of departments Location of key spaces (lecture theatres, café) Office and teaching space arrangement

Office / meeting rooms

Aspirations Anxieties Ideas

Teaching / learning environment

Flexibility Standardisation between rooms and equipment

Informal learning spaces

Café / Tea points Social learning / Collaboration spaces Special events

Workshop structure / topics

slide-68
SLIDE 68
