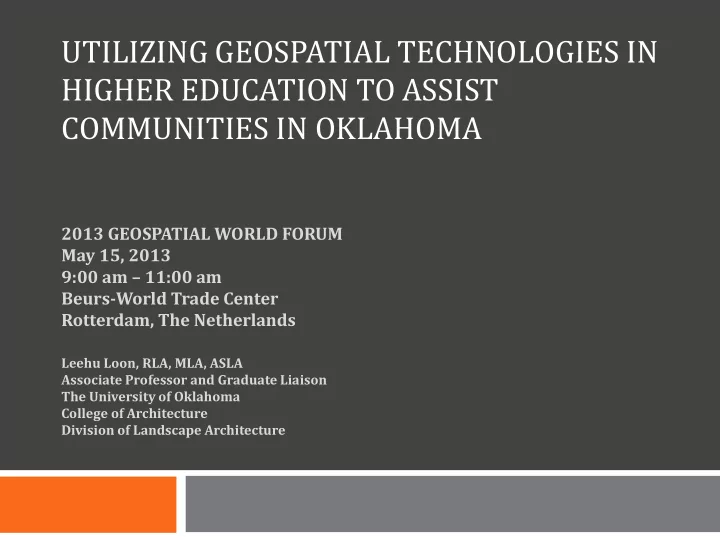

UTILIZING GEOSPATIAL TECHNOLOGIES IN HIGHER EDUCATION TO ASSIST COMMUNITIES IN OKLAHOMA

2013 GEOSPATIAL WORLD FORUM May 15, 2013 9:00 am – 11:00 am Beurs-World Trade Center Rotterdam, The Netherlands

Leehu Loon, RLA, MLA, ASLA Associate Professor and Graduate Liaison The University of Oklahoma College of Architecture Division of Landscape Architecture

slide-2
SLIDE 2

The United States

slide-3
SLIDE 3

Oklahoma

slide-4
SLIDE 4

Oklahoma City, Oklahoma

slide-5
SLIDE 5

The City of Yukon, Oklahoma

slide-6
SLIDE 6

Route 66

slide-7
SLIDE 7

Route 66 and Oklahoma

slide-8
SLIDE 8

Route 66

  • Opened in the 1920’s
  • First major east/ west road in the US
  • Modernization/ personal vehicles made it a

recreational activity to go “motoring”

  • Cultural significance
  • Construction of Interstate system in the mid-

1950’s

  • Has endured as a tourist attraction
slide-9
SLIDE 9

City of Yukon, OK Data

  • Population: 22,709
  • Median Household Income: $64,763
  • Median Age: 38
  • Average Household Size: 2.6
  • Most residents drive a personal vehicle to work for an average of

20 minutes

  • Racial demographics
  • 91%

White

  • 4%

American Indian & Alaska Native

  • 2%

Asian

  • 2%

Native Hawaiian & Other Pacific Islander

  • 1%

Black or African American

slide-10
SLIDE 10

Studio Design Team

  • 12 month grant from the City of Yukon
  • Faculty
  • Landscape Architecture and Architecture
  • Students
  • 3rd year undergraduate Architecture students
  • 2nd year graduate Landscape Architecture students
  • Community and City leaders
slide-11
SLIDE 11

Geospatial Technologies and Landscape Architecture

  • Well rounded educational opportunity
  • Project scope evolves throughout
  • Multi-disciplinary education
  • Pivotal for design education to mimic real world

application

  • Faculty can conduct applied research
  • Positive impacts for Oklahoma communities
  • Connecting University to the taxpayers
slide-12
SLIDE 12

Research Methods

  • Applied Research
  • Assesses theories, knowledge, methods, techniques
  • Qualitative Research
  • Why and how?
  • Results relate to specific cases(s) and general

conclusions are only hypotheses

slide-13
SLIDE 13

Geodesign and Landscape Architecture

  • What is Geodesign?
  • “Geodesign is the thought process comprising the creation of

entities in geographic space.” –Bill Miller

  • “Geodesign is designing with nature in mind.” –Jack Dangermond
  • “Geodesign is changing geography by design.” –Carl Steinitz
  • “Geodesign is both an old idea and a new idea.” –Jack Dangermond
slide-14
SLIDE 14

What is Geodesign?

A Framework for Geodesign. (Source: Carl Steinitz, Esri Press)

  • A Framework for Geodesign: Changing Geography by Design.

Written by Carl Steinitz, Esri Press, 2012.

slide-15
SLIDE 15

A Geodesign Framework

slide-16
SLIDE 16

GIS Methodology (Workflow)

  • GIS Workflow from Making Spatial Decision: Using GIS, A Workbook
  • by Kathryn Keranen and Robert Kolvoord
  • GIS Workflow

1.

Define the problem or scenario

2.

Identify the deliverables (mostly maps) needed to support the decision

3.

Identify, collect, organize, and examine the data needed to address the problem

4.

Document your work

  • Create a process summary
  • Document your map
  • Set the environments

5.

Prepare your data

6.

Create a basemap or locational map

7.

Perform the geospatial analysis

8.

Produce the deliverables, draw conclusion, and present the results

slide-17
SLIDE 17

LA Design Process

  • Pre-Project Design Phase Work
  • Phase I: Data Collection and Analysis
  • Phase II: Conceptual Design and/or Program

Development and Planning Studies

  • Phase III: Preliminary Master Plan
  • Phase IV: Master Plan
  • Phase V: Schematic Design
  • Phase VI: Design Development
  • Phase VII: Contract Documents
  • Phase VIII: Bidding and Contract Award
  • Phase IX: Construction Administration
  • Phase X: Post Construction Observation and

Evaluation

slide-18
SLIDE 18

GIS Workflow and the LA Design Process

GIS Workflow

1.

Define problem

2.

Identify deliverables

3.

Data

4.

Document work

5.

Prepare data

6.

Create basemap

7.

Perform geospatial analysis

8.

Deliverables, conclusions, and results LA Design Process

I.

Data Collection/ Analysis

II.

Conceptual Design

III.

Preliminary Master Plan

IV.

Master Plan

V.

Schematic Design

VI.

Design Development

VII.

Contract Documents

VIII.

Bidding/ Contract Award

IX.

Construction Administration

X.

Post Construction Observation/ Evaluation

slide-19
SLIDE 19

Course Goals and Objectives

  • Course Goals
  • Understand key areas of information, GIS, and design
  • Course Objectives
  • Analyzing, synthesizing, and applying information

pertinent to projects

  • What is meaning in built environment?
  • What is a sense of community?
  • Real world project
  • Relevant issues: sustainability, urban form,

pedestrian circulation, infill development, housing, density, mixed-use, public spaces, mixed-mode circulation; public participation, implementation and funding strategies, feasibility, and place.

slide-20
SLIDE 20

Project #1 – Site Inventory and Analysis

  • Understand the City
  • What is successful?
  • Residential, Commercial, Parks & Recreation Areas

GIS Workflow (8 of 8)

  • All 8!
  • Define problem, Identify

deliverables, Data, Document work, Prepare data, create basemap, Perform geospatial analysis, Deliverables, conclusions, results LA Design Process (2 of 10)

  • I: Data collection/ analysis
  • II: Conceptual Design
slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27

Project #2 – Connections and Corridors

  • Scales of Urban Design
  • Traffic Calming
  • Pedestrian Oriented Community

GIS Workflow (4 of 8)

  • 1: Define problem
  • 2: Identify deliverables
  • 5: Prepare data
  • 8: Deliverables, conclusions, results

LA Design Process (4 of 10)

  • I: Data collection/ analysis
  • II: Conceptual Design
  • III: Preliminary Master Plan
  • IV: Master Plan
slide-28
SLIDE 28
slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36

Project #3 – Urban Design (Main Street)

  • Comprehensive design process
  • Collect data, analyze data, understand data
  • Prepare basemap
  • Site Inventory and Analysis to Schematic Design

to Master Plan

GIS Workflow (5 of 8)

  • 3: Data
  • 5: Prepare data
  • 6: Create basemap
  • 7: Perform geospatial analysis
  • 8: Deliverables, conclusions, results

LA Design Process (6 of 10)

  • I: Data collection/ analysis
  • II: Conceptual design
  • III: Preliminary master plan
  • IV: Master plan
  • V: Schematic design
  • VI: Design development
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45

The Final Report

slide-46
SLIDE 46

The Final Report

  • ArcGIS Online for inventory and analysis
  • ArcGIS Desktop
  • Lumion rendering software
  • City Engine software from Esri
slide-47
SLIDE 47

For Oklahoma Communities?

  • What worked?
  • What did not work?
  • What almost worked?
  • Future community projects
slide-48
SLIDE 48

Geodesign Center at OU

  • New initiative in the College of Architecture
  • Working to connect to…
  • On-campus partners
  • Off-campus partners
  • Find the people who…
  • Are asking the questions
  • Want the answers
  • Identify…
  • Potential projects
  • Funding sources
slide-49
SLIDE 49

Questions/ Comments

Utilizing Geospatial Technologies in Higher Education to Assist Communities in Oklahoma

Leehu Loon, RLA, MLA, ASLA Associate Professor and Graduate Liaison The University of Oklahoma College of Architecture Division of Landscape Architecture lloon@ou.edu
