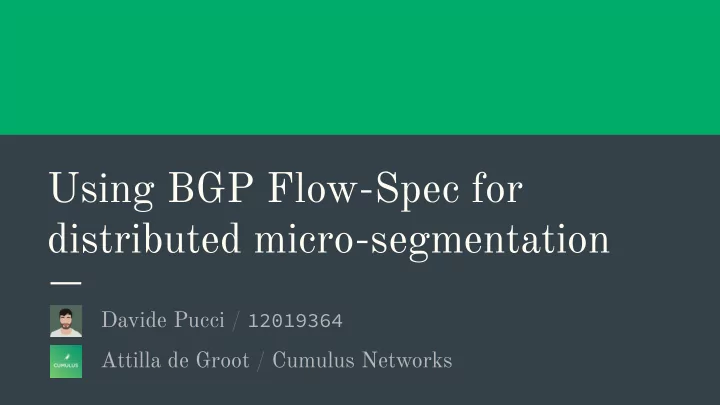

Using BGP Flow-Spec for distributed micro-segmentation

Davide Pucci / 12019364 Attilla de Groot / Cumulus Networks

Data Center micro-segmentation

2

Micro-segmentation

Apply custom security filtering within the same VLAN.

Layer 2 segmentation

VLANs to isolate multiple flows

• ver the same link.

Layer 3 segmentation

VRFs to separate routing tables.

Border Gateway Protocol (BGP)

BGP is the de-facto Internet routing protocol. Pulls intra-Autonomous System prefixes, relying on iBGP. Exchanges these internal prefixes with neighbouring Autonomous Systems to enable proper routing, relying on eBGP.

3

AS #1 AS #3

1.0.0.0/8

AS #2

BGP Flow Specification

4

RFC 5575 Dissemination of Flow Specification Rules August 2009 Extension of BGP, born with the only aim of DDoS attacks mitigation. The Flow-Spec controller spreads filtering policies to its neighbours, the clients. Regulate actions against given prefixes with extended communities, relying on BGP for the diffusion.

BGP in Data Centers

5

RFC 5575 Dissemination of Flow Specification Rules RFC 7938 Use of BGP for Routing in Large-Scale Data Centers August 2016 Third-wave applications moved most

• f the traffic to a east-west

direction. This change introduced the need of more elastic Data Centers. All the switches represent a (private) Autonomous System.

Is the BGP Flow Specification applicable for Data Center micro-segmentation?

6

Distributed micro-segmentation with Flow-Spec

7

route flow4 { src 2.0.0.1/32; dst 1.0.0.1/32; } { bgp_ext_community.add( (generic, 0x80060000, 0x0) ); }; Flow Specification controller Flow Specification clients

Open source implementations

8

FRR for client capabilities Bird for controller capabilities

as none of them implements routes injection over the underlying system

Custom utility for rules injection

Open source implementations

9

FRR Used to be unable to relay Flow-Spec announcements, later patched by working together with Cumulus Networks developers. Bird Starting from version 2.0, it correctly implements the whole Flow-Spec specification.

Rules fetcher ~ iptables on the controller

10

fs-controller:~# iptables -L FORWARD Chain FORWARD (policy DROP) num target prot opt source destination 1 ACCEPT all -- 2.0.0.1 1.0.0.1

Rules fetcher ~ Flow-Spec routes on Bird

11

# default policy route flow4 { src 0.0.0.0/0; dst 0.0.0.0/0; } { # traffic drop bgp_ext_community.add( (generic, 0x80060000, 0x0) ); }; # rule 1 route flow4 { src 2.0.0.1/32; dst 1.0.0.1/32; } { # traffic-mark as rule number bgp_ext_community.add( (generic, 0x80090000, 0x1) ); };

Rules transit

12

BIRD controller FRR clients

BGP UPDATE

Rules injector ~ Flow-Spec routes on FRR

13

fs-client# show bgp ipv4 flowspec detail json { "to":"1.0.0.1/32", "from":"2.0.0.1/32" }, { "ecomlist":"FS:marking 1" }, { "time":"00:00:09" } { "to":"0.0.0.0/0", "from":"0.0.0.0/0" }, { "ecomlist":"FS:rate 0.000000" }, { "time":"00:00:09" }

Rules injector ~ iptables on the controller

14

fs-client:~# iptables -L FORWARD Chain FORWARD (policy ACCEPT) num target prot opt source destination 1 FLOWSPEC all -- anywhere anywhere [...] fs-client:~# iptables -L FLOWSPEC Chain FLOWSPEC (1 references) num target prot opt source destination 1 ACCEPT all -- 2.0.0.1 1.0.0.1 2 DROP all -- anywhere anywhere

A. Rules numbering must be carried along with routes, preferably with own extended community sub-type B. A proper implementation of routes injection in the underlying system is still missing C. Rules application can be filtered at a BGP level, using the Route Target extended community to achieve higher scalability

15

Flow Specification is suitable for such a purpose

and

Thank you.

16

Cumulus Networks https://cumulusnetworks.com Security and Network Engineering https://os3.nl University of Amsterdam https://uva.nl Davide Pucci https://davidepucci.it
