IBM - CVUT Student Research Projects USB Host with ATmega Microcontroller Ji Dostl (dostaj3@fel.cvut.cz) Martin Chloupek (chloum1@fel.cvut.cz) Our goal to create USB host device with microcontroller ATmega2560 to create a

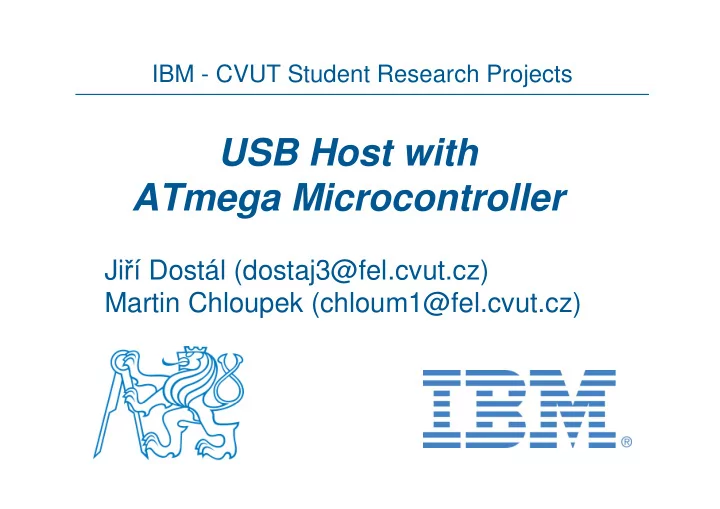

SLIDE 1

IBM - CVUT Student Research Projects

USB Host with ATmega Microcontroller

Jiří Dostál (dostaj3@fel.cvut.cz) Martin Chloupek (chloum1@fel.cvut.cz)

SLIDE 2

IBM - CVUT Student Research Projects 2

Our goal

to create USB host device with

microcontroller ATmega2560

to create a device that benefits from all

ATmega2560 features

to create a device with SL811 USB

controller

to create a device for universal purposes

e.g. for WiFi connection, BlueTooth….

SLIDE 3

IBM - CVUT Student Research Projects 3

Example of usage

SLIDE 4

IBM - CVUT Student Research Projects 4

Results

4x USB HOST Universal board Connectors:

USB
I/O (40, 40, 20 pins)
RS232
PGM (program)

SLIDE 5

IBM - CVUT Student Research Projects 5

Is done:

Four new USB Host boards
HW verification
Basic API library for device programming in C
USB Stack

Will be done:

WiFi software

In the Future:

Software for other devices
PC sofware

SLIDE 6

IBM - CVUT Student Research Projects 6

USB Stack

API similiar to libusb

(http://libusb.sourceforge.net/)

Support

– reading device, configuration, interface, endpoint and string descriptors – Control, Bulk, Interrupt transfer r/w

Isochronous transfers and timeouts are

not implemented yet

SLIDE 7

IBM - CVUT Student Research Projects 7
