Units Physical quantities Physical Quantity? A physical quantity is anything measurable. Five litres of petrol is a volume of liquid. It means 5 x 1 litre Volume is a physical quantity. It is measurable, has a size e.g. 5 and a unit,

slide-1
SLIDE 1

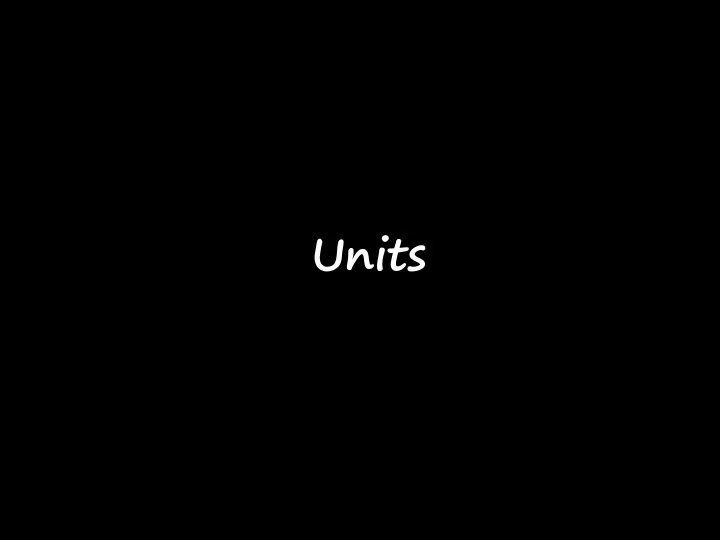

Units

slide-2
SLIDE 2

Physical quantities

slide-3
SLIDE 3

‘Physical Quantity’?

slide-4
SLIDE 4

A physical quantity is anything measurable.

slide-5
SLIDE 5

Five litres of petrol is a volume of liquid.

slide-6
SLIDE 6

It means 5 x 1 litre

slide-7
SLIDE 7

Volume is a physical quantity.

slide-8
SLIDE 8

It is measurable, has a size e.g. 5 and a unit, e.g. litre

slide-9
SLIDE 9

All physical quantities have a magnitude (size i.e. how much) and…………

slide-10
SLIDE 10

and… a unit!

slide-11
SLIDE 11

Quick revision activity from last lesson: Spend about a minute on each one

slide-12
SLIDE 12
  • 1. How many kW are there

in 3 GW?

slide-13
SLIDE 13

Answer: (3 x 109)/103 = 3 x 106

slide-14
SLIDE 14
  • 2. How many mm are there

in 2 km?

slide-15
SLIDE 15

Answer: (2 x 103)/10-3 = 2 x 106

slide-16
SLIDE 16
  • 3. How many nm are there

in a mm?

slide-17
SLIDE 17

Answer: 10-3/10-9 = 106

slide-18
SLIDE 18
  • 4. Convert 85 km/h into m/s
slide-19
SLIDE 19

Answer: (85 x 103)/(60 x 60) = 23.6 m/s

slide-20
SLIDE 20
  • 5. How many m2 are there in

a km2 ?

slide-21
SLIDE 21

Answer: 103 x 103 = 106

slide-22
SLIDE 22

So, what physical quantities do you know already? Spend a couple of minutes listing as many as you can.

slide-23
SLIDE 23

You will have met all of these in Physics and Science Mass, Length, Time, Area, Volume, Density

slide-24
SLIDE 24

In Describing Motion Distance, Speed Displacement, Velocity, Acceleration

slide-25
SLIDE 25

In Forces and Motion Force, Momentum, Impulse

slide-26
SLIDE 26

In Pressure Pressure, Volume, Temperature

slide-27
SLIDE 27

In Forces and Energy Work, Energy, Kinetic Energy, Gravitational Potential Energy, Elastic Potential Energy, Power, Efficiency

slide-28
SLIDE 28

In Thermal Physics Temperature, Specific Heat Capacity

slide-29
SLIDE 29

In Electricity Amount of Charge, Electric Current, Potential Difference, Resistance, Power

slide-30
SLIDE 30

In Atomic and Nuclear Physics Decay Rate

slide-31
SLIDE 31

All except one in the above have units. Any ideas which one?

slide-32
SLIDE 32

Efficiency is a ratio of two physical quantities with the same unit, so the units cancel out (refractive index is the same)

slide-33
SLIDE 33

We take just seven of these as base quantities

slide-34
SLIDE 34

All others come from i.e. are generated from these base or fundamental quantities. The base quantities are…

slide-35
SLIDE 35

Length

slide-36
SLIDE 36

Time

slide-37
SLIDE 37

Mass

slide-38
SLIDE 38

Temperature

slide-39
SLIDE 39

Electric Current

slide-40
SLIDE 40

Amount of Substance

slide-41
SLIDE 41

And……

slide-42
SLIDE 42

Luminous Intensity (not used in A Level Physics)

slide-43
SLIDE 43

In 1971 world’s scientists agreed on a common system

  • f units for those 7 base
  • quantities. These are….
slide-44
SLIDE 44

These are the SI units. SI = Systeme Internationale

slide-45
SLIDE 45

These are… metre for length

slide-46
SLIDE 46

second for time

slide-47
SLIDE 47

kilogram for mass

slide-48
SLIDE 48

kelvin for temperature

slide-49
SLIDE 49

ampere for electric current

slide-50
SLIDE 50

mole for amount of substance

slide-51
SLIDE 51

And…

slide-52
SLIDE 52

candela for luminous intensity

slide-53
SLIDE 53

Base Quantity SI Unit & Abbreviation Length metre, m Time second, s Mass kilogram, kg Temperature kelvin, K Electric current ampere, A Amount of substance mole, mol Luminous Intensity candela, cd

Here’s a summary

slide-54
SLIDE 54

What are other quantities called?

slide-55
SLIDE 55

Take speed. It’s defined by speed = distance/time

slide-56
SLIDE 56

Speed = distance/time The equation is derived from two base quantities. So speed is a derived quantity.

slide-57
SLIDE 57

Volume of cuboid = length x width x height Width and height are also lengths. So volume is a derived quantity.

slide-58
SLIDE 58

Density = mass/volume This is derived from a base quantity, mass and another derived quantity, volume. So density is a derived quantity.

slide-59
SLIDE 59

Any quantity that’s defined in terms of base or other derived quantities must then be a derived quantity.

slide-60
SLIDE 60

Accordingly, a derived quantity should also have units.

slide-61
SLIDE 61

This is simple. The units come from the defining equation. But first …. a quick maths recap

slide-62
SLIDE 62

A quick maths recap 1 The unit of speed is m/s This can also be written as ms-1 Why? Because m/s is m x 1/s and 1/s is the same as s-1 hence m x s-1 = ms-1

slide-63
SLIDE 63

A quick maths recap 2

The unit of acceleration is m/s2 This can also be written as ms-2 Why? Because m/s2 is m x 1/s2 and 1/s2 is the same as s-2 hence m x s-2 = ms-2

THIS COMES UP ALL THE TIME IN A LEVEL PHYSICS – YOU MUST BE CONFIDENT USING THIS TECHNIQUE

slide-64
SLIDE 64

Units of volume = unit of (length x length x length) = m x m x m = m3 Derived units……

slide-65
SLIDE 65

Units of density = unit of mass/unit of volume = kg/m3 = kgm-3

slide-66
SLIDE 66

Units of velocity = unit of displacement/unit of time = m/s = ms-1

slide-67
SLIDE 67

Units of acceleration = units of velocity/units of time = ms-1/s = ms-2

slide-68
SLIDE 68

Units of force = = units of mass x units of acceleration = kg x ms-2 = kgms-2

This looks unfamiliar as we know that force is measured in newtons, N

slide-69
SLIDE 69

Units of force = kgms-2 This looks unfamiliar as we know that force is measured in newtons, N Is 1 N same as 1 kgms-2 ? Yes, exactly. The newton is a derived unit.

slide-70
SLIDE 70

Class work Find the units of pressure in terms of the base units! (hint: start with the GCSE equation for pressure, and you will also need the base units for the Newton)

slide-71
SLIDE 71

Units of pressure = = unit of force/ unit of area = kgms-2/ m2 = kgm-1s-2

Again this looks unfamiliar as we know that pressure is measured in pascals, Pa. The pascal is another example of a derived unit.

slide-72
SLIDE 72

Class work (more difficult)

The resistance force F on a body

  • f cross sectional area A moving

at constant speed v in a fluid is given by F = kAv. Find the SI units of k in terms of base units (hint: make k the subject of the equation first).

slide-73
SLIDE 73

Answer k = F/Av Units of k = = units of force/ (units of area x units of speed) = (kgms-2) / (m2 ms-1) = kgm-2s-1

slide-74
SLIDE 74

Is there any use for these exercises?!!

slide-75
SLIDE 75

The above is an example of dimensional analysis. It uses homogeneity in physics equations. Homogeneity means uniform. A homogeneous mixture of tea with sugar will have same sugar concentration everywhere!

slide-76
SLIDE 76

Homogeneity of Equations An equation in Physics makes sense

  • nly if the left hand side (lhs)

quantity and the right hand side (rhs) quantity have the same units, AND the lhs magnitude is the same as the rhs magnitude.

slide-77
SLIDE 77

An equation in Physics makes sense only if the left hand side (lhs) quantity and the right hand side (rhs) quantity have the same units, AND the lhs magnitude is the same as the rhs magnitude.

Can 5 ms-1 = 5 s ? You can’t say a speed is the same as a time interval, can you?

slide-78
SLIDE 78

An equation in Physics makes sense only if the left hand side (lhs) quantity and the right hand side (rhs) quantity have the same units, AND the lhs magnitude is the same as the rhs magnitude.

slide-79
SLIDE 79

Thank you!
