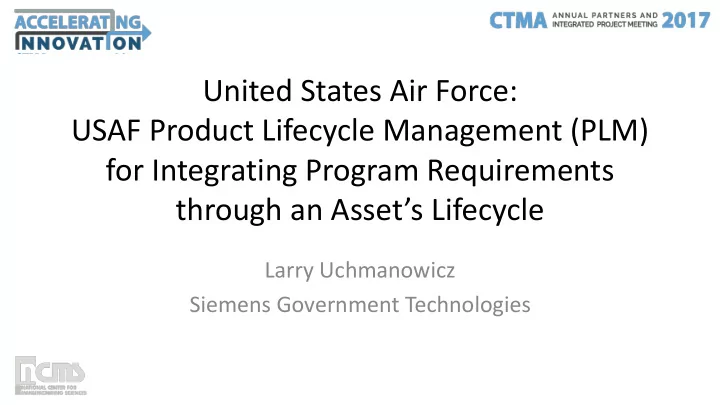

United States Air Force: USAF Product Lifecycle Management (PLM) for Integrating Program Requirements through an Asset’s Lifecycle

Larry Uchmanowicz Siemens Government Technologies

Problem Statement

• USAF needs to own and manage the Technical Baseline for new and
• ngoing Weapon System Acquisitions
• To accomplish this, the Air Force needs to establish Configuration

Management (CM) of program data with links to requirements, legacy product data, and new design and build data to support cost tradeoffs, impact analysis and trade studies early in acquisition

Digital Thread for the Asset Life Cycle

• ID Key R&M Cost Drivers
• Failure Definition/Scoring Criteria
• Reliability Allocations
• Feasibility Analysis

RAM Requirements

• Operational Mode Summary & Mission

Profile

• Failure Definition & Scoring Criteria

AOA CPD CDD LCSP LCSP

Material Solution Analysis Technology Development Engineering & Manufacturing Development

A B

Production & Deployment Operations & Support

C

• Requirements
• Logical Models
• Analytics
• Reporting
• Documents
• CDRLs
• Parts/systems
• Supporting Technical Data

Teamcenter

Tail MDS

Acquire Technical Baseline here… Rather than here…

Technology Deployment

• In October 2016, the US Air Force, NCMS, and Siemens Government Technologies

(Siemens) entered into a collaborative agreement to perform work for the Ground Based Strategic Deterrent (GBSD) Program, located at Hill AFB, UT and managed by NCMS.

• Value Proposition

–Teamcenter provides a single view of program information from “Requirements to Retirement” –Early acquisition information in a single location leveraged for later acquisition stages (e.g., AOA, LCSP, RAM-C data) –Drive Technology Dev, Manufacturing/Development, and sustainment phases through a single source of program engineering data (e.g., models, supporting documentation, requirements)

Overall Benefits

• Provide a single Integrated

Intellectual Property (IP) Backbone.

• Introduce consistency and

improve accuracy of information to reduce time spent looking for information.

• Reduce total Document,

Requirements and Data management costs by improving access to information at the right time and in the right form.

• Integrate design data management

within a PLM Solution.

• Incorporate authors, Engineer, and

Approvers in product development lifecycle where knowledge and processes are common.

• Optimise process for authoring and

managing documents, requirements, and

• data. – reduce button clicks.
• Standardise authoring process for

engineering and pure document management authors.

Business Initiatives Process Improvements

Technical Approach

Siemens uses their commercial expertise and practices, such as the AdvantEdge Delivery methodology, to:

• Provide a Teamcenter template solution, “PLM-in-a-Box

– Early Acquisition Edition”

• Deliver a virtual machine application copy and

supporting documentation to enable deployment to a host environment for PLM on-boarding and Program Management Office The Early Acquisition PLM Solution is being modeled on the Ground Based Strategic Deterrent Program (GBSD) program office and select Enterprise PLM-CI Defense Business System (DBS) artifacts.

Validate Solution Definition Deploy Key User Exposure Iterative Configuration & Verification Affirm Value

Frozen Solution Definition

… Maturity Reviews…

Verified Solution

Sustain Business Adoption & Readiness

Business, Process & IT Characteristics Business Goals & Process Improvements Refine Business Impact & Adoption Plan Initial Business Impact & & UOC / Learning Strategies Hand-Over to Deployment Team MR Plan

Affirm Value Validate Solution Definition Iterative Configuration & Verification Key User Exposure Deploy Sustain

• Establish project scope
• Outline solution and define

value

• Configure & integrate

solutions into single view (Big-Block)

• Validate (or define*) the solution

through an integrated review of characteristics, process, business use cases, capabilities and scenarios

• Confirm and freeze scope &

business requirements

• Define configuration points with

process experts

• Verify (test) subset of

requirements as solution matures through scenario-based maturity reviews

• Key Users to execute scenario-

based verification activities

• Gain further understanding of

solution and prepare for adoption

• Execute final user acceptance
• Ensure users and system

readiness for production deployment

• Complete learning delivery, and

document process impacts

• Maintain the solution
• Support users
• Monitor system health
• Verify the value delivered to the

business Business Adoption & Readiness

• Secure stakeholder support
• Define and communicate business value
• Assess business impact and ensure user readiness

*requirements-based variant

AdvantEdge Delivery Technical Approach

Entire spec including body Text Spec with Headings Only Spec Only Derived from SOW Table A

Not imported

Links to Specs Creation of Specs and mapping derived from SOW Table A Links to Paragraphs Para Titles and links derived from “Requirements Traceability with Dist D”

Links To the SOW

• The SOW has both defining and complying links

Links Between CDD-WSS

• Links between CDD-WSS were derived from “Requirements

Traceability with Dist D”

Solution: Document & Change Management

Document Request Received Document assigned to Document Owner for creation or revision, determines classification Technical Reviewer(s) review document Branch Lead reviews/ approves document Document Owner inputs changes, as required (CRM) Changes required? Changes required? Changes required? Document Owner inputs changes, as required (CRM) Document Owner provides document to PIT for submittal to PM for review/ signature Document Owner inputs changes, as required and works with PIT to ensure PM approval CMO prepares document for release Document released and uploaded into Document Library Document needs CCB Approval? Go through CCB Process Yes Yes Yes Yes No No No No 5.1 5.2 5.3 5.4 5.5 5.9 5.6 5.7 5.8 5.10 5.11 5.5 5.9 External Approval Required? Yes No Document provided to PIT for external signatures

From This: To This:

Initiate a Workflow

12

Change Management is controlled by a series of Workflows covering all Approvals and changes

Workflow Visualization

13

The Workflow continues to run until all Tasks are completed. 1

Thank you

Questions? Comments? POC: larry.uchmanowicz@siemensgovt.com
