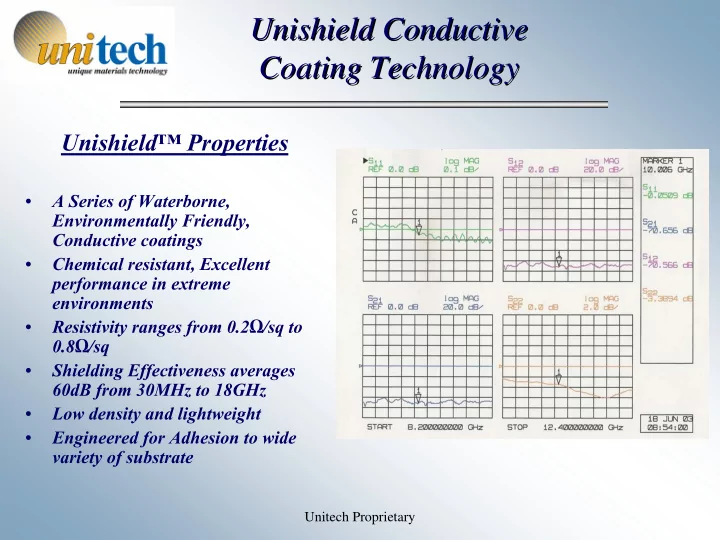

Unishield™ Properties

• A Series of Waterborne,

Environmentally Friendly, Conductive coatings

• Chemical resistant, Excellent

performance in extreme environments

• Resistivity ranges from 0.2Ω/sq to

0.8Ω/sq

• Shielding Effectiveness averages

60dB from 30MHz to 18GHz

• Low density and lightweight
• Engineered for Adhesion to wide

variety of substrate

Unitech Proprietary

Unishield Evaluations Unishield Evaluations

• NASA Langley Electromagnetic

NASA Langley Electromagnetic Research Branch Research Branch

• National Security Agency

National Security Agency

• U.S. Department of State

U.S. Department of State

• Sandia National Labs

Sandia National Labs

• NAWCAD Patuxent River

NAWCAD Patuxent River

• Naval Surface Warfare Center Dahlgren

Naval Surface Warfare Center Dahlgren

• Naval Surface Warfare Center Carderock

Naval Surface Warfare Center Carderock

• Dow Chemical

Dow Chemical

Unitech Proprietary

Unishield EMI Shielding for Unishield EMI Shielding for Military Applications Military Applications EMI Shielding For EMI Shielding For… …

• Electronic Enclosures

Electronic Enclosures

• Secure Rooms / SCIF Applications

Secure Rooms / SCIF Applications

• Motorized Manned or Unmanned

Motorized Manned or Unmanned Military Platforms Military Platforms

• Combatant craft applications

Combatant craft applications

Unishield Coating System Adapted for SCI F Applications

Unitech Proprietary

Mobile, Quick Deploy Shielded Mobile, Quick Deploy Shielded Enclosures with Unishield Technology Enclosures with Unishield Technology

Unishield “flex version” is being prototyped in tent m aterial to create a shielded com m and unit.

• Unishield Fabric Based

Reverberation Chamber

Cham ber dim ensions: 1 6 ’x2 0 ’x1 0’

Unitech Proprietary

EMI Shielding for Portable Facilities EMI Shielding for Portable Facilities

Unishield Unishield™ ™ applied to mobile platforms for applied to mobile platforms for effective RF shielding effective RF shielding

Lightning Control Van - Unishield w as applied to a fiberglass trailer to m ake a low cost shielded test van to protect equipm ent from a near by lightning pulser. No special EMI shield doors w ere used. Shielding w as m easured by placing the van under the EMP pulser and m easuring the fields inside and outside sim ultaneously. The results indicated approxim ately 2 7 dB of Magnetic Shielding Effectiveness.

Unitech Proprietary

Unishield Applications for Unishield Applications for Marine Environments Marine Environments

Unishield has been approved for m ultiple shielding applications for the EFV ( Expeditionary Fighting Vehicle) Developed by General Dynam ics U.S. Navy Approval of Unishield from NSW CDD for Northrop Grum m an DDX Program

Unitech Proprietary

Unishield Conductive Coating For EMI Shielding

• Coatings used as “liquid” shielding material
• Adaptation of Architectural design
• Easy to apply, uses conventional paint

application systems such as brush, spray or roll

• Can be applied to all types of construction

materials such as: Drywall / Sheetrock Plaster, Concrete, Block, Brick Wood, Particle board, Plastics

Unitech Proprietary

Unishield for SCIF Applications

• Ability to form a SCIF from virtually

any structural surface

• The Unitech SCIF was constructed from

Wood 2x4’s, sheetrock and plywood

• Unitech SCIF has been tested by NSA,

U.S. State Department, Air Force Space Command

• Quick installation, most rooms can be

completed in several days

• Excellent for Retrofit and New

Construction

• Low Maintenance / Easily Repairable
• Saves Time and labor costs

Unitech Proprietary

Unishield Conductive Unishield Conductive Coating Technology Coating Technology

Customers for the Unishield SCIF Coating System

Computer Science Corporation, Hanover MD Central Intelligence Agency Boeing EVI, Columbia MD Johns Hopkins Applied Physics Labs Embedded Systems Inc., Hanover MD Army Reserve Intelligence Center, Orlando FL U.S. Department of State, Washington DC Oracle, Reston VA CISCO Systems
