Understanding monsoon precipitation representation in climate models: process-based diagnostics H. Annamalai IPRC, University of Hawaii hanna@hawaii.edu CMIP3 MMM GPCP JJAS - Precipitation (mm/day) CMIP5 MMM GPCP (Sperber, Annamalai

slide-1
SLIDE 1

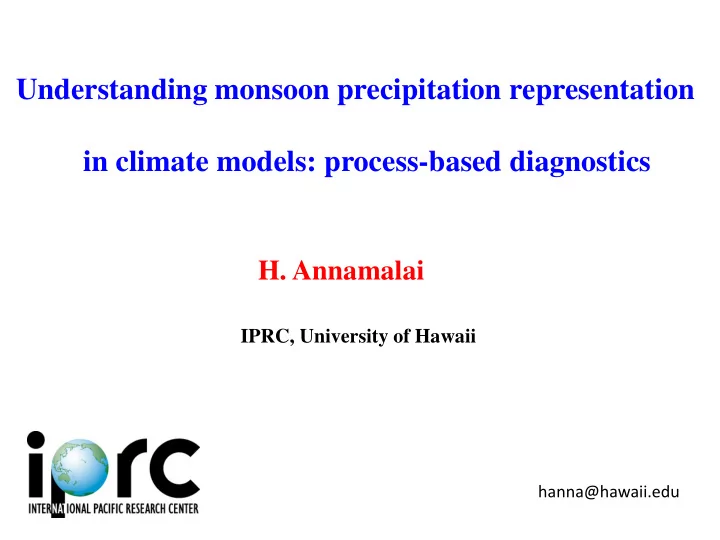

Understanding monsoon precipitation representation in climate models: process-based diagnostics

  • H. Annamalai

IPRC, University of Hawaii

hanna@hawaii.edu

slide-2
SLIDE 2

CMIP3 MMM – GPCP CMIP5 MMM – GPCP

(Sperber, Annamalai et al. 2012)

JJAS - Precipitation

(mm/day)

  • 1. +ve rainfall errors along the path of

cross-equatorial flow

  • 2. Errors persist thru’ AC

“multiple sources”

slide-3
SLIDE 3

Jan Mar May Jul Sep Nov CMIP5 MMM minus ERA_INT (3oS-3oN; 40o-100oE) Compared to climatology: In May 40-45% weaker and in November 70% weaker

Δτ

a measure of Bjerkens’ feedback in the Equatorial Indian Ocean

Δτ

slide-4
SLIDE 4

3oS-3oN – surface currents Observations 3oS-3oN – surface currents CMIP5 MMM

  • 1. Weak eastward WJs
  • 2. Unrealistic westward currents
  • 3. Pile-up of warm waters WEIO

(cm/s)

slide-5
SLIDE 5

Precip / wind 850hPa CMIP5 bias – Precip / wind stress

mm/day mm/day

EXP2 minus CTL

Annamalai et al. (2017, J. Climate – revised) Misrepresentation of EIO coupled processes lead to systematic errors in monsoon precipitation

slide-6
SLIDE 6

Processes involved in organizing convection over the Bay of Bengal? During the annual cycle:

When does spatially organized convection develop and how?

and/or What are the processes that anchor onset of self-aggregation of convection

slide-7
SLIDE 7

Precipitation averaged over Bay of Bengal (80o-100oE; 10o-20oN) May - range April “Onset” of convective organization occurs during the month of May over Bay of Bengal Quasi-steady state during June - August

slide-8
SLIDE 8

Overview of key physics from cloud-resolving models

  • 1. Held et al. (1993); Tompkins and Craig (1998)
  • 2. Bretherton et al. (2005) J. Atmos. Sci., *
  • 3. Muller and Held (2012) J. Atmos. Sci., *
  • 4. Emanuel and Khairoutdinov (2010). AMS Conf.,*

*System for atmospheric modeling developed by Khairoutdinov and Randall (2003)*

slide-9
SLIDE 9

CRM simulations for a homogenized SST forcing – Day 20

Bretherton et al (2005) initiate convection – perturbations in the low-level MSE Instability of convection-water vapor – radiation feedbacks: systematically dry and moist

slide-10
SLIDE 10

CRM simulations for a homogenized SST forcing – Day 50

Bretherton et al (2005) “decrease in radiative cooling due to anvil cirrus clouds” “increase in THF due gustiness” “mesoscale circulations flux MSE out of dry column”

slide-11
SLIDE 11

Muller and Held (2012) (near-surface Temperature) Convective self-aggregation : sensitivity to domain size Low-level clouds –LW radiative cooling

slide-12
SLIDE 12

Raymond (2000) and Stephens et al. (2008)…. Emphasized the role of convection – radiation feedbacks in self-aggregation i.e., differential radiative heating and cooling drives mesoscale circulation that fluxes MSE out of dry column “This feedback is a consequence of convection itself “

slide-13
SLIDE 13

Processes that could anchor onset of self-aggregation….

  • 1. Moisture-convection feedbacks (dry regions become more drier and moist regions

become more moist) Meso-scale circulations flux MSE out of the dry column and feed the moist column

  • 2. Radiation-convection feedbacks (differential radiative heating and cooling drives the

mesoscale circualtions) This feedback is a consequence of convection itself

  • 3. Surface fluxes (Emanuel 1986; Raymond et al. 2009)
  • 4. Sea surface temperature (Emanuel and Khairoutdinov)
  • 5. Stratiform convective instability (Mapes 2000)
slide-14
SLIDE 14

m = CpT + gz + Lq

Representation of interaction between cumulus convection and large-scale circulation [Quasi-equilibrium concept of Arakawa and Shubert (1979) ] requires consideration of moisture and temperature, represented by MSE (m) Vertically integrated MSE tendency – conserved in convective processes Neelin and Held 1987 Raymond et al. 2009 Bretherton et a. 2005 Su and Neelin 2005

  • 1. Deep tropics – above PBL – no horizontal T variations
  • 2. Entropy forcing: LH, SH, LW, SW, moisture variations

“adiabatic terms” “diabatic terms” “storage”

slide-15
SLIDE 15

Precipitation averaged over Bay of Bengal (80o-100oE; 10o-20oN) May - range April “Onset” of convective organization occurs during the month of May over Bay of Bengal Quasi-steady state during June - August

slide-16
SLIDE 16

1. April end – mid/high level ascent 2. May early – Upwards of 650 hPa – ascent 1. April – descent – entire troposphere 2. May early – ascent – entire troposphere 3. Low-level clouds 4. Mid-higher level clouds

“stratiform induced top-heavy profile – exports more MSE per unit mass flux

slide-17
SLIDE 17
  • “vertical velocity is not observed but is assimilated: depends on model physics”
  • In data void regions (such as the monsoons), model prejudices inject errors
  • In moist convective regions, vertical profile of vertical velocity is determined by

latent heating and radiative cooling

  • In dry regions, vertical profile of vertical velocity is determined by

radiative cooling

  • Vertical velocity represents large-scale circulation – mass convergence
  • Top versus bottom heavy – exports or imports moist static energy

Vertical profile of vertical velocity……………..

slide-18
SLIDE 18

A Conceptual model based on vertically integrated MSE budget dry southern Indian Ocean and moist Bay of Bengal moisture-convection and cloud-radiative feedbacks Charging of MSE during late spring and early summer - Surface fluxes and radiative warming

Four reanalysis products (MERRA, JRA-25, ERA-I and NCEP) 33+ CMIP5 models

Diagnostics performed on………..

slide-19
SLIDE 19

Storage term (dh/dt) over the Bay of Bengal (80o-100oE; 10o-20oN) Jan Mar May Jul Sep Nov Charging of MSE during March-April and discharging starts during May – indicate convective onset

slide-20
SLIDE 20
slide-21
SLIDE 21

ERA-Interim MSE budget – Southern Indian Ocean (50-95oE; 30o-20oS) Horizontal and vertical advection of MSE - sharp increase in May

slide-22
SLIDE 22

Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov

LHF – Bay of Bengal

  • 1. Increase begins in April (SST)
  • 2. Peaks in June
  • 3. Semi-annual cycle
  • 4. MERRA LHF is weak
  • 5. JRA-25 LHF is high

LHF – Southern IO

  • 1. Increase begins in April
  • 2. Maximum June-August
  • 3. MERRA LHF is weak
  • 4. JRA-25 LHF is high

Southern IO Bay of Bengal “despite similar SST in the reanalyses”

slide-23
SLIDE 23

Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov

Bay of Bengal Southern IO Frad - - Bay of Bengal

  • 1. Sharp rise in May
  • 2. Quasi-steady state in JJA
  • 3. MERRA – Increase in April itself
  • 4. JRA-25 weak (despite higher rainfall)

Frad --- Southern IO

  • 1. Increased radiative cooling – March onwards
  • 2. Quasi-steady state JJA
  • 3. JRA-25 weakest (despite higher rainfall over

Bay of Bengal)

slide-24
SLIDE 24

LW component (cloud-radiative feedbacks) – Bay of Bengal JRA – weakest OLR ~ 240 W/m2 (JJAS)

slide-25
SLIDE 25
slide-26
SLIDE 26

“all-models have cold SST bias in the northern Indian Ocean” Surface fluxes instability for convective aggregation in JRA-25 (GISS)

slide-27
SLIDE 27

“cloud-radiative feedback instability in MERRA”

slide-28
SLIDE 28

CCSM4 GFDL_CM3 CESM1

slide-29
SLIDE 29

Multi – Reanalysis – Mean (precipitation) minus TRMM “no errors in SST”

slide-30
SLIDE 30

Concluding remarks

Monsoon convective organization over the Bay of Bengal begins in May – (a) Surface fluxes and cloud-radiative feedbacks (diabatic MSE sources) Consistent with CRM results – onset of convective aggregation (b) JRA-25 – surface fluxes instability dominate (c) MERRA – cloud-radiative instability dominates (d) CMIP5 models – cold SST bias over the northern Indian Ocean under estimate surface fluxes Monsoon convection during JJA (quasi-steady state): dibatic terms balance adiabatic terms Need in-situ observations to constrain reanalysis and climate models

slide-31
SLIDE 31

Extra slides

slide-32
SLIDE 32

MSE terms for BoB / SIO (one reanalysis) MERRA - SIO

slide-33
SLIDE 33

ERA-Interim

CRH versus precipitation Bay of Bengal

JRA-25 MERRA

slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36

I II III

Precipitation and SST

QuickSCAT

1. Regional rainfall zones 2. High-SST/Orography 3. Different SST threshold (tropospheric T/CRH) Shear vorticity A/C circulation (dynamic not thermodynamic Control)

E-W asymmetry NIO SST – upwelling RW dynamics Jet axis EEIO – Annual cycle SST-precipitation relationship?

slide-37
SLIDE 37

TRMM-based precipitation climatology April May June

(mm/day) Convective organization over Bay of Bengal Transition from April to May

slide-38
SLIDE 38

(i) Slowly, due to surface heating and attendant sensible heat flux, shallow low-pressure forms over land (ii) This low, gradually generates low-level wind inflow that draws moisture from the ocean to the south (iii) The moisture is carried upward by the convection, condenses, and warms the upper troposphere, where an anticyclone forms

slide-39
SLIDE 39

Near-surface wind climatology April May

slide-40
SLIDE 40
slide-41
SLIDE 41

Muller and Held (2012)

slide-42
SLIDE 42

Stephens et al. (2008)

slide-43
SLIDE 43

CRM simulations for a homogenized SST forcing – Day 10

Bretherton et al (2005)

slide-44
SLIDE 44

TRMM-based precipitation climatology April May June

(mm/day) Convective organization over the Bay of Bengal Transition from April to May

slide-45
SLIDE 45
slide-46
SLIDE 46

L = 198 km PW L = 510 km PW L = 198 km OLR L = 510 km OLR Muller and Held (2012)

slide-47
SLIDE 47

Jan Mar May Jul Sep Nov

  • “time-window” in the Annual Cycle – Errors develop over western EIO during May
