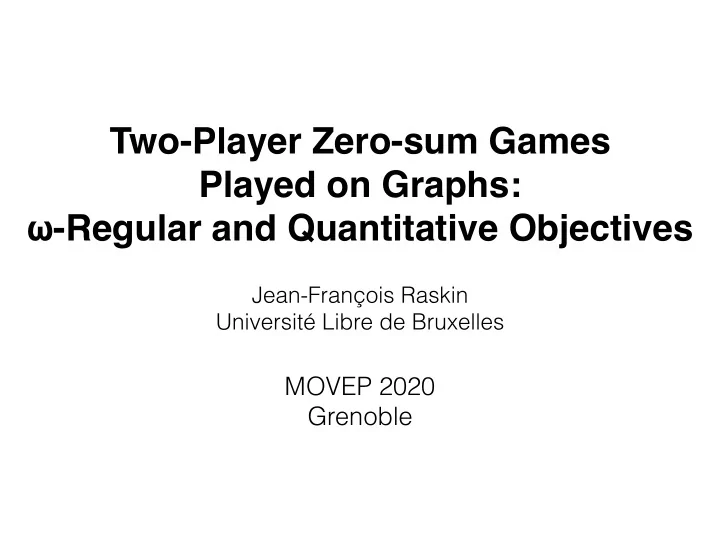

Two-Player Zero-sum Games Played on Graphs: -Regular and - - PowerPoint PPT Presentation

Jean-François Raskin Université Libre de Bruxelles

MOVEP 2020 Grenoble

Two-Player Zero-sum Games
 Played on Graphs:
 ω-Regular and Quantitative Objectives

Introduction: Motivations and
 Basic Definitions

The Basic Model

Two-player games
 played on graphs

(Finite) directed graph Two types of vertices (states)
 (Player 1 and Player 2)

1 3 4

2 5

How to play ? One token is placed on initial state Players play ω rounds: in each round: the player that owns the state moves the token to an adjacent state Outcome=ω-path

1 3 4

2 5

Two-player games
 played on graphs

1 3 4

2 5

1

1 3 4

2 5

1 ➞ 2

1 3 4

2 5

1 ➞ 2 ➞ 1

1 3 4

2 5

1 ➞ 2 ➞ 1 ➞ 4

1 3 4

2 5

1 ➞ 2 ➞ 1 ➞ 4 ➞ 5

1 3 4

2 5

1 ➞ 2 ➞ 1 ➞ 4 ➞ 5 ➞ 3

1 3 4

2 5

1 ➞ 2 ➞ 1 ➞ 4 ➞ 5 ➞ 3 ➞ 4

1 3 4

2 5

1 ➞ 2 ➞ 1 ➞ 4 ➞ 5 ➞ 3 ➞ 4 ➞ 5

1 3 4

2 5

1 ➞ 2 ➞ 1 ➞ 4 ➞ 5 ➞ 3 ➞ 4 ➞ 5 ➞ 4 ➞ ...

Motivations

Reactive system synthesis
 as solving a game

☞ support the design process with automatic synthesis

?

⊨

ψ

ØSys is constructed by an algorithm ØSys is correct by construction ØUnderlying theory: 2-player zero-sum games ØEnv is adversarial (worst-case assumption) Winning strategy = Correct Sys

Env

||

Games for solving
 automata problems

Nondeterministic finite tree automata emptiness =two-player zero-sum reachability game

Language inclusion between
 non-deterministic Büchi automata =two-player zero-sum Parity game with imperfect information

… and many more …

Checking refinements between two systems

Spec A Implementation B

≽

Simulation ? Safety game between Prover and Spoiler Spoiler proposes moves in B Prover tries to match them in A Prover wins if he never fails to match the proposed moves

Model-checking
 Mu-Calculus

Sys ⊨? φ

The model-checking problem for the Mu-Calculus can be reduced to the problem of deciding the winner in a zero-sum two-player parity game

Controller synthesis with quantitative objectives

Embedded Control Parts of OS/Chipset Communica<on Protocols Security Protocols

In most of those examples, quantitative measures

• f performances are important : not only a matter of correctness !!!

Controller synthesis with quantitative objectives

?

⊨

ψ Env

||

both the model and the property exhibit quantities

Plan of the lectures

• Introduction - Motivations - Basic definitions
• Qualitative games
• Reachability and safety games
• Büchi, coBüchi and parity games
• Quantitative games
• Sup, Inf, LimSup, LimInf games
• Mean-payoff and energy games
• ne and multiple

dimensions

Part I: Qualitative Games

Basic Definitions

Game arena

A finite (turn-based) two-player game arena is a tuple A=(S1,S2,E,sinit) where:

• S1 is the finite set of states owned by Player 1 (the protagonist)
• S2 is the finite set of states owned by Player 2 (the antagonist)



 We write S for S1∪S2

• E ⊆ S1∪S2×S1∪S2 is the set of transitions. Unless otherwise

stated, we assume that E is total, i.e. ∀s∈S,∃s’∈S:(s,s’)∈E

• sinit ∈ S1∪S2 is the initial state of the game arena

Sometimes, we consider arena without designated initial states.

Plays and histories

• Let A=(S1,S2,E,sinit) be a two-player game arena
• A play in A is an infinite sequence of states ρ=s0 s1 … sn… ∈Sω


such that for all i≥0, (si,si+1) ∈ E

• A play ρ=s0 s1 … sn… is initial if s0=sinit
• Let ρ=s0 s1 … sn…, we use the following notations:
• ρ(i) for the state si
• ρ(i..j) for the infix si si+1… sj
• ρ(i..) for for the suffix sisi+1…sn…
• visit(ρ) is the set of states that appear along ρ
• inf(ρ) is the set of states that appear infinitely often along ρ

Plays and histories

• We denote by Play(A) and InitPlay(A) the set of

plays and the set of initial plays of A

• A history π=s0 s1 … sn ∈ S* is a finite sequence of

states, a history π=s0 s1 … sn belongs to Player 1 if its last state, noted last(π)=sn, is in S1, and to Player 2 if last(π)∈S2

• We note Hist1(A)=S*.S1 and Hist2(A)=S*.S2 the set
• f histories of Player 1 and Player 2 respectively

Rounds and play

• The two players play on the game arena as follows
• A game in A is played by the two players for an infinite number of
• rounds. Each round is as follows:
• at the start of a round, a token is on a state s of the arena, the

Player that owns the state s chooses a successor state s’ which is E-adjacent to s, i.e. (s,s’) ∈ E. The token is then moved to s’ and a new round is started from there

• initially, the token is on sinit
• This interaction generates a play ρ∈Play(A) which is initial if the

interaction is started from sinit

Strategies

• Player plays according to strategies
• A strategy for Player j, j ∈ {1,2}, is a function that

maps histories to states:

 λj : S*.Sj → S

 with the restriction that for all histories π ∈ Histj(A), (last(π),λj(π)) ∈ E, i.e. the strategy always proposes a (next) state that is E-adjacent to the last state of the history.

... ... ... ... ... ... Unfolding of the game graph

Strategies

Strategies

... ... ... ... ... ... ... ... ... ... ... ...

... ... ... ... ... ... ... ... ... ... ... ...

Strategies

... ... ... ... ... ... ... ... ... ... ... ...

Strategy for Player 1 = One choice in each node

• f Player I in tree unfolding

Strategies

Outcomes of a strategy

• A play ρ ∈ Sω is compatible with a strategy λj of Player j, if for all

i≥0 s.t. last(ρ(0..i)) ∈ Sj, ρ(i+1)= λj(ρ(0..i)), i.e. the position that follows a position that belongs to Player j is determined by λj.

• We note OutcomeA(s,λj) the set of plays starting in s that are

compatible with λj. We write OutcomeA(s,λ1,λ2) the unique play that starts in s and is both compatible with λ1 and λ2

• We omit A if clear from the context, and when s is omitted then it is

assumed to be equal to sinit, the initial state of A

Types of strategies

• A strategy λj : S*.Sj → S is memoryless if


for all histories π,π’ ∈ S*.Sj such that last(π)=last(π’), λj(π)=λj(π’), i.e. the strategy only depends on the last state of the history

• So a memoryless strategy is equivalent to a function λj : Sj → S
• A strategy λj : S*.Sj → S is finite memory if


there exists a equivalence relation ≈ on Histj(A) of finite index such that for all π,π’ ∈ S*.Sj s.t. π≈π’: λj(π)=λj(π’)

• If ≈ is computable by a finite state machine then a finite memory

strategy can be represented as a synchronous transducer

Memoryless strategy An example

1 3 4

2 5

1 3 4

2 5

A memoryless strategy for Player 1

Finite memory strategy An example

1 3 4

2 5

4 4 5 5 ε 4 3 4 5 5 ε 4 3 1

Strategy:

• in 1 always play 4
• in 4 always play 5
• in 3 play 4 every odd visit


and 1 every even visit

1 4

Winning objective

• A winning objective for player j Winj⊆Sω defines what

are the « good » plays for Player j

• A game (A,Win1,Win2) is specified by a game arena

and two winning objectives, one for each player

• A game is zero-sum if Win2=Sω\Win1. In this series of

lectures, we will only consider zero-sum games and we will most often leave the winning objective of Player 2 implicit, because in this case Win2=Sω\Win1

Winning strategy

• In a game (A,Win1,Win2), a strategy for Player j is a

winning strategy if OutcomeA(sinit,λj)⊆Winj

• Clearly, in a zero-sum game, a play is either

winning for one player or for the other

• But does a zero-sum game always have a winner,

i.e. one player that has a winning strategy ?

Determinacy

• Let A=(S1,S2,E,sinit) be a two-player turn based arena, and Win1 be the

winning objective for Player 1

• The game (A,Win1) is determined if


either there exists a strategy λ1 for Player 1 s.t. Outcome(λ1)⊆Win1,


• r there exists a strategy λ2 for Player 2 s.t. Outcome(λ2)⊆Sω\Win1=Win2
• Theorem[Martin 1975].


For all two-player turn based arenas A=(S1,S2,E,sinit) with a zero-sum winning condition, for all Borel definable objectives Win1, (A,Win1) is determined Borel set=is any set in a topological space that can be formed from open sets using countable union, countable intersection, and complement
 Rule of thumb: any reasonable set included in Sω that you can think of is a Borel set

Controllable Predecessors and Attractors

Controllable predecessors

• Let A=(S1,S2,E,sinit) be a two-player game arena.
• Let T⊆S be a set of states.
• CPre1(T)= { s∈S1 | ∃ s’∈T: (s,s’)∈E}


∪ { s∈S2 | ∀ s’∈T: (s,s’)∈E}

• CPre2(T)= { s∈S2 | ∃ s’∈T: (s,s’)∈E}


∪ { s∈S1 | ∀ s’∈T: (s,s’)∈E}

• if s∈CPrej(T) then from s, Player j has a strategy to

enforce the set T in one step

CPre1(T)

T

✔ ✕ ✕ ✔

CPre2(T)

T

✔ ✕ ✕ ✔

Attractors

• The attractor of T⊆S for Player j, j∈{1,2}, is defined as the limit
• f the following ⊆-increasing chain of sets:
• A0=T
• and for all i≥1, Ai=Ai-1 ∪ CPrej(Ai-1)
• As the sequence is ⊆-increasing and S is finite, the sequence

stabilizes in at most |S| steps, and we note A* the set on which the sequence stabilizes.

• We also note this set Attrj(T) and call it the attractor for

Player j of the set T.

Attractor - An example

G 1 2 3 4 5 A0=T={4} A1=A0∪CPre1(A0)={1,3,4} A2=A1∪CPre1(A1)={1,2,3,4} A3=A1∪CPre1(A1)={1,2,3,4}=A2 Attr1({4})={1,2,3,4} 6

Attractor properties

• Lemma. For all s∈Ai, there exists a memoryless strategy λj for Player

j, such that for all ρ∈Outcome(λj), there exists k, 0 ≤ k ≤ i, s.t. ρ(k)∈T, i.e. Ai is exactly the set of states from which Player j can force T in i steps or less.



• Proof. We define a memoryless strategy for Player j as follows: for

each state that belongs to Sj and Ai, either s∈T or let k, 0≤k≤i, be the minimal index such that s∈Ak, then for such s there exists a choice s’ s.t. (s,s’)∈E and s’∈Ak-1, the strategy in s always chooses s’. It is easy to see that this memoryless strategy forces T in i steps or less from all s∈Ai.

• Corollary. For all s∈A*, there exists a memoryless strategy λj for

Player j, such that for all ρ∈Outcome(λj), there exists k≥0 s.t. ρ(k)∈T.

Trap

• A trap for Player j, j∈{1,2}, is a set U⊆S s.t. for all

s∈U∩Sj, for all s’∈S s.t. (s,s’)∈E, s’∈U and for all s∈U∩S3-j, there exists s’∈S s.t. (s,s’)∈E and s’∈U. So a trap for Player j is a set of states from which this player cannot escape (and the other can keep staying there).

• Lemma. Let T⊆S, j∈{1,2}, S\Attrj(T) is a trap for

Player j.

• Exercise. Prove the lemma.

Trapping strategy

• Let U be a trap for Player j, a trapping strategy in U for

Player 3-j is a strategy that in a state s∈U∩S3-j always chooses a successor which is in U (such a successor exists by definition).

• Note that when there is a trapping strategy in U for Player j,

then there is a memoryless trapping strategy (which always chooses the same successors of s when entering state s of Player j).

• Lemma. For all s∉U=S\Attrj(T), there exists a memoryless

strategy of Player 3-j such that for all ρ∈Outcome(λj), for all 0 ≤ k: ρ(k)∉T.

Trap and sub-arena

• Let A=(S1,S2,E) and U⊆S, if for all s∈U, there exists

s∈U such that (s,s’)∈U then A[U] is the sub-arena A[U]=(S1∩U,S2∩U,E∩(U×U)) and it is total if A is total.

• Let A=(S1,S2,E) be a total arena and U⊆S be a trap,

then A[U] is a sub-arena.

Trap - An example

G 1 2 3 4 5 Attr1({4})={1,2,3,4} S\Attr1({4})={5,6} is a trap for Player 1 It define the sub-arena 6 5 6

Qualitative Games

Qualitative objectives

Let A=(S1,S2,E,sinit) be a two-player turn based arena

• a reachability objective is defined by a subset
• f states T ⊆ S that has to be reached:


reach(T)={ ρ∈Sω | visit(ρ) ∩ T ≠ ∅}

• a safety objective is defined by a subset of

states T ⊆ S to remain in forever:
 safe(T)={ ρ∈Sω | visit(ρ) ⊆ T }

Qualitative objectives

Let A=(S1,S2,E,sinit) be a two-player turn based arena

• a Büchi objective is defined by a subset of states T ⊆ S that has to be

visited infinitely often:
 Büchi(T)={ ρ∈Sω | inf(ρ) ∩ T ≠ ∅}

• a coBüchi objective defined by a subset of states T ⊆ S that has to be

reached eventually and never be left:
 coBüchi(T)={ ρ∈Sω | inf(ρ) ⊆ T }

• let d∈ℕ, a parity objective with d+1 priorities is defined by a priority

function p : S → {0,1,…,d} as the set of sequences in Sω s.t. the smallest priority visited infinitely often is even:
 parity(p)={ ρ∈Sω | min{ p(s) | s ∈ inf(ρ) } is even }.

Reachability and Safety Games

Reachability games Decision problem

Given a two-player game arena with a reachability

• bjective A=(S1,S2,E,sinit,reach(T)), decide if Player 1

has a winning strategy in this game, i.e. if there exists a strategy λ1 for Player 1 such that Outcome(λ1) ⊆ reach(T).

Illustrations - Reachability

G 1 2 3 4 5 6 What are the states from which Player 1 can force to reach T={4} ?

Attractor solution

• Clearly a reachability game can be solved by

computing an attractor.

• The following theorem is a direct consequence of

the existence of memoryless strategy in attractors.

• Theorem. Player 1 has a winning strategy from

state s∈S for the reachability objective reach(T) iff s∈Attr1(T). Furthermore, Player 1 has a winning strategy if and only if Player 1 has a memoryless winning strategy.

Illustrations - Reachability

G

1 4 3 4

5 6 A0=T={4} A1=A0∪CPre1(A0)={1,3,4} A2=A1∪CPre1(A1)={1,2,3,4} A3=A1∪CPre1(A1)={1,2,3,4}=A2 Attr1({4})={1,2,3,4}

Safety games Decision problem

Given a two-player game arena with a safety

• bjective A=(S1,S2,E,sinit,safe(T)), we want to decide

if Player 1 has a winning strategy in this game, i.e. if there exists a strategy λ1 for Player 1 such that Outcome(λ1) ⊆ safe(T).

Attractor solution

• We exploit here the duality between reachability and safety

games: safe(T)=Sω\reach(S\T)

• By determinacy of safety and reachability games, and the

duality between the two objectives, we get:



• Lemma. Let A=(S1,S2,E,sinit) be a two-player arena, for all

state s, Player 1 has a winning strategy from s in A for safe(T) if and only if Player 2 does not have a winning strategy from s in A for reach(S\T).

• Corollary. Player 1 has a winning strategy from state s∈S

for the safety objective safe(T) iff s∉Attr2(S\T).

Solution using CPre1

• Consider the following decreasing sequence
• U0=T
• for all i≥1, Ui=Ui-1∩CPre1(Ui-1)
• As the sequence of Ui is ⊆-decreasing and U0 contains at most |S|

elements, then the sequence stabilizes on the set U* after at most |S| steps.

• Lemma. For all s∈Ui, there exists a strategy λ1 for Player 1, such that for all

ρ∈Outcome(s,λ1), for all k, 0 ≤ k ≤ i, ρ(k)∈T, i.e. from all state s ∈ Ui , Player 1 has a strategy to stay within T for at least i steps.

• Corollary. U* is exactly the set of states from which Player 1 has a winning

strategy for the safety objective safe(T).

Memoryless determinacy of safety games

• Theorem. Player 1 has a winning strategy in the game

A=(S1,S2,E,sinit,safety(T)) if and only if Player 1 has a winning memoryless strategy in this game if and only if Player 2 has no winning memoryless strategy in this game.

• Proof. We know that U* is a trap contained in T. So, Player

1 has a memoryless strategy from all states s∈U* to stay within T. For all states that are not in U*, Player 2 has a memoryless strategy to reach an unsafe state in S\T as its

• bjective is a reachability objective and we know that

those objectives are memoryless determined.

Memoryless determinacy of reachability and safety games

The following theorem summarizes the previous results.

• Theorem. Player 1 has a winning strategy from state

s∈S for the reachability objective reach(T) iff he has a memoryless winning strategy. Player 2 has a winning strategy from s∈S for the safety objective safe(S\T)=Sω\reach(T) iff he has a memoryless winning strategy.

Büchi and coBüchi Games

Büchi games Decision problem

Given a two-player game arena with a safety

• bjective A=(S1,S2,E,sinit,Büchi(T)), decide if Player 1

has a winning strategy, i.e. if there exists a strategy λ1 for Player 1 such that Outcome(λ1) ⊆ Büchi(T).

A recursive algorithm

SolveBüchi
 input: A,T


• utput: W

if S=∅ then return W:=∅;
 Win1=Attr1(T);
 if Win1=S then return W:=Win1;
 else Lose1=Attr2(S\Win1);
 return W:=SolveBüchi(A[S\Lose1],T\Lose1)

Correctness of the recursive algorithm

• Theorem. The procedure SolveBüchi returns the set of states from which Player

1 has a winning strategy for the objective Win1=Büchi(T).



• Proof. (1) If Attr1(T)=S. In this case, Player 1 can force a visit to T from all states

s∈S. His strategy to win Büchi(T) is as follows: play the attractor strategy up to a first visit in T (which exists from all states in S), and repeat.

 (2) If Attr1(T)≠S. Then for all states s∈S\Attr1(T), Player 2 has a strategy to always avoid T (as S\Attr1(T) is a trap for Player 1). So, Player 1 should avoid at all cost to enter a state in S\Attr1(T). Clearly Player 2 also win in Attr2(S\Attr1(T)). So, we remove all states in this set and call recursive the procedure SolveBüchi on the sub-arena A[S\Attr2(S\Attr1(T))] with target states T\Attr2(S\Attr1(T)) which gives us, by induction, the set of states from which Player 1 can win.

Memoryless determinacy of Büchi and coBüchi games

• Theorem. Player 1 has a winning strategy from state s∈S for the Büchi objective

Büchi(T) iff he has a memoryless winning strategy. Player 2 has a winning strategy from s∈S for the coBüchi(T)=Sω\Büchi(T) iff he has a memoryless winning strategy.



• Proof. We have shown in the correctness proof that Player 1 simply plays repeatedly

an attractor strategy to reach T. Such a strategy can be chosen to be memoryless. To prove the existence of optimal memoryless strategies for Player 2, we reason by induction: if s has been removed at the first call to the procedure SolveBüchi then s belongs to a trap that does not contain any states in T. A trapping strategy for Player 2 can be assumed to be memoryless. Otherwise, s has been removed at call number

• i. For states that has been removed at any call j<i, we make the induction hypothesis

that there exists from those states a memoryless strategy that wins the objective coBüchi(T). Now in state s, Player 2 plays an attractor strategy to reach a state that has been removed at an earlier round. Such an attractor strategy can be chosen to be memoryless.
