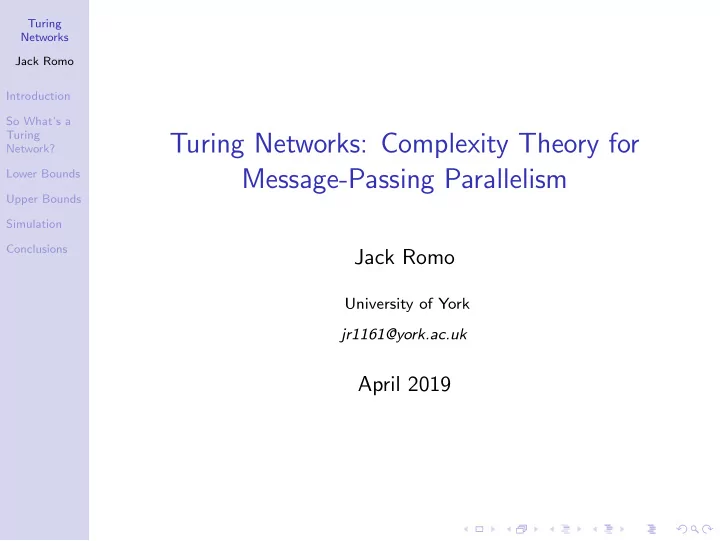

Turing Networks: Complexity Theory for Message-Passing Parallelism

Jack Romo

University of York jr1161@york.ac.uk

April 2019

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Overview

1 Introduction 2 So What’s a Turing Network? 3 Lower Bounds 4 Upper Bounds 5 Simulation 6 Conclusions

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Complexity Theory

• The study of resource requirements to solve problems
• eg. Time, memory, ...
• Alternatively, the study of complexity classes, ie. sets of

problems with the same computational overhead

• How are they related?
• eg. P ⊆ NP
• Usually studied in context of Turing Machines
• Large amount of theory developed here over the last

century

• Would be ideal to reuse it in other problems
• Parallel complexity theory?

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Parallel Complexity Theory

• Complexity of parallel computations are extremely

nontrivial

• Turing Machines to parallelism: Parallel Turing Machines
• Same, but can create new identical read-write heads at any

step

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Parallel Complexity Theory

• Complexity of parallel computations are extremely

nontrivial

• Turing Machines to parallelism: Parallel Turing Machines
• Same, but can create new identical read-write heads at any

step

• However, this models shared memory only, not message

passing

• Other models can emulate message passing parallelism,

but do not connect to classical complexity theory

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Parallel Complexity Theory

• Complexity of parallel computations are extremely

nontrivial

• Turing Machines to parallelism: Parallel Turing Machines
• Same, but can create new identical read-write heads at any

step

• However, this models shared memory only, not message

passing

• Other models can emulate message passing parallelism,

but do not connect to classical complexity theory

• This is a problem!

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Modelling Message-Passing Parallelism

We would like a model that...

1 Intuitively emulates a network of communicating

processors.

2 Allows for substantial complexity analysis. 3 Relates classical complexity classes to its own parallel ones. 4 Can simulate other models of parallelism with good

complexity.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Network topologies

• Take a simple undirected graph G = V , E of constant

degree, 1 ∈ V ⊆ N, E ⊆ V × V symmetric relation

• Choose a vertex, index its neighbors from 1 to n; do this

for every vertex

• Call this the graph’s orientation, φ : V × N

→ V

• Call a pair G = G, φ a network topology

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Network topologies

• Take a simple undirected graph G = V , E of constant

degree, 1 ∈ V ⊆ N, E ⊆ V × V symmetric relation

• Choose a vertex, index its neighbors from 1 to n; do this

for every vertex

• Call this the graph’s orientation, φ : V × N

→ V

• Call a pair G = G, φ a network topology
• eg. Linked List
• V = N
• E = {(v, v + 1) | v ∈ V }’s symmetric closure
• φ(1, 1) = 1
• φ(n + 1, 1) = n,

φ(n + 1, 2) = n + 2, n ∈ N

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Communicative Turing Machines

• Each vertex is a Turing Machine
• However, need some capacity to communicate
• Add ’special transitions’ to send/receive a character
• Index neighbors to commune with by orientation
• Two start states, a ’master’ state for vertex 1 and ’slave’

state for the rest

• Slaves must start by waiting for a message

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Communicative Turing Machines

Definition (Communicative Turing Machine)

A Communicative Turing Machine, or CTM, is a 10-tuple T = Q, Σ, Γ, qm, qs, ha, hr, δt, δs, δr where Q, Σ are nonempty and finite, Σ ∪ {Λ} ⊂ Γ, qm, qs, ha, hr ∈ Q, and δt : Q × Γ → Q × Γ × {L, R, S} δs : Q × Γ → N × Γ × Q2 δr : Q → N × Q are partial functions, where δt(qs, x), δs(qs, x) are undefined ∀ x ∈ Γ.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Turing Networks

Definition (Turing Network)

A Turing Network is a pair T = G, T, such that G is a network topology and T is a Communicative Turing machine.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Defining Computations

• Define a configuration of one CTM and a transition
• Extend to a configuration/transition of a TN
• Derivation sequences
• Computations as terminating derivation sequences

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Configurations

Definition (CTM Configuration)

A CTM configuration of a CTM T is a 4-tuple of the form C ∈ Γ∗ × Γ × Q × Γ∗. We name the set of all CTM configurations for the CTM T C(T). We say, for CTM configurations Cn = rn, sn, qn, tn, n ∈ N, a network topology G = V , E and v1, v2 ∈ V , C1 ⊢ C2 ⇔ C1 transitions to C2 as TM configs C1, C2 ⊢v2

v1 C3, C4 ⇔ v1 in config C1 sends a char to v2 in

config C2, transitioning to C3 and C4 C1 v1 C2 ⇔ v1 sends to a nonexistent neighbor

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Configurations

Definition (TN Configuration)

A TN configuration of a TN T is a function of the form Ω : V → C(T). We say, for CTM configurations Ωn, n ∈ N of a Turing network T and v1, v2 ∈ V , Ω1 ⊢v1 Ω2 ⇔ Ω1 |V \{v1}= Ω2 |V \{v1} ∧ (Ω1(v1) ⊢ Ω2(v1) ∨ Ω1(v1) v1 Ω2(v1)) Ω1 ⊢v2

v1 Ω2 ⇔ Ω1 |V \{v1}= Ω2 |V \{v1}

∧ Ω1(v1), Ω1(v2) ⊢v2

v1 Ω2(v1), Ω2(v2)

Ω1 ⊢ Ω2 ⇔ (∃ v ∈ V • Ω1 ⊢v Ω2) ∨ (∃ v1, v2 ∈ V • Ω1 ⊢v2

v1 Ω2)

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Initial and Final States

Definition (Initial State)

An initial state of a TN T is a configuration ΩS for some S ∈ Σ∗ where ΩS(1) = λ, Λ, qm, S ΩS(n + 1) = λ, Λ, qs, λ ∀ n ∈ N

Definition (Final State)

A final state of T is a configuration Ωh where Ωh(1) = A, b, q, C where q ∈ {ha, hr}. The output string is AbC with all characters not in Σ deleted. We say Ωh is accepting if q = ha and rejecting otherwise.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Computations

Definition (Derivation Sequence)

A derivation sequence Ψ = {Ωn}n∈X is a sequence of indexed configurations of T where X ⊆ N and for any n, m ∈ X, Ωn ⊢ Ωm if m is the least element of X greater than n. Say that, for two derivation sequences of T , Ψ1, Ψ2, Ψ1 < Ψ2 if the former is a prefix of the latter as a sequence.

Definition (Computation)

We say a derivation sequence Ψ is a computation if it starts with an initial state and ends with a final state.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Acceptance, Rejection and Computing Functions

Definition (Acceptance and Rejection)

We say T accepts a string S ∈ Σ∗ if every derivation sequence starting with ΩS is less than an accepting computation and all rejecting computations are greater than an accepting

• computation. We say it rejects if there exists a rejecting

computation not greater than some accepting computation.

Definition (Computing Functions)

Say T computes a function f : Σ∗ → Σ∗ if, for every input string s ∈ dom(f ), every computation of T with input string s has a final state with output string f (s).

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Our Time Function

• Insufficient to analyze length of computations; things

happen in parallel!

• Define parallel sequences
• Analyze number of parallel sequences a computation is

itself a sequence of

• τ : Σ∗ → N gives longest parallel time of any computation

starting with an input string

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Our Time Function

Definition (Parallel Derivation Sequence)

A parallel derivation sequence of a Turing network T is a derivation sequence Ψ = {Ωn}n∈X where for all i, j ∈ X, i = j and vn ∈ V , Ωi ⊢v1 Ωx ∧ Ωj ⊢v2 Ωy ⇒ v1 = v2 Ωi ⊢v2

v1 Ωx

∧ Ωj ⊢v3 Ωy ⇒ v1 = v2, v3 Ωi ⊢v2

v1 Ωx

∧ Ωj ⊢v4

v3 Ωy

⇒ v1, v2 = v3, v4 where x, y ∈ X are the successors of i, j in X, if they exist.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Our Time Function

Definition (Parallel Time Function)

The parallel time of a derivation is the smallest number of parallel derivation sequences it is a concatenated sequence of. The time function τ : Σ∗ → N of a Turing network T is a mapping from input strings to the longest parallel time of any accepting computation starting with said string as input the Turing network is capable of.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Complexity Theory

We now have a time function; time to begin analyzing complexities!

Definition (Parallel Complexity)

For any given function f : N0 → N0 and network topology G, PARTIMEG(f (n)) = {g | g : Σ∗ → Σ∗ computable by some TN T with topology G and τT (n) = O(f (n))}

Definition (Polynomial Parallel Time)

For a given network topology G, PparG =

d∈N PARTIMEG(nd)

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Simple Results

Theorem

For any given function f : N0 → N0 and network topologies G, H, DTIME(f (n)) ⊆ PARTIMEG(f (n)) (1) H ≃ G ⇒ PARTIMEH(f (n)) = PARTIMEG(f (n)) (2)

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

The Parallel Computation Thesis

• The time taken to compute a function in parallel is

polynomially related to the space taken sequentially.

• Not all models satisfy this! (eg. Parallel Turing Machines)
• Inspiration for a complexity class relation?
• Investigate when PSPACE ⊆ PparG
• Prove by deciding QBF in polynomial parallel time
• a PSPACE-complete problem

Definition

For the alphabet Σ = {∀, ∃, •, ∧, ∨, ¬, (, ), ⊤, ⊥, a}, QBF = {α ∈ Σ∗ : α is a satisfiable Boolean formula}

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Deciding QBF in Binary Trees

Assume a single CTM is capable of computing the following in polynomial time:

• Check whether a string is a valid Boolean formula.
• Converting a formula to Prenex Normal Form.
• Replacing all occurrences of a variable with ’true’/’false’.
• Checking whether any variables are left in a formula.
• Evaluating a formula with no variables.

Theorem (Parallel Computation Thesis, Binary Trees)

PSPACE ⊆ PparB

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Deciding QBF Generally

Definition (Neighborhood and Growth)

For a given network topology G, the neighborhood function NG : N → P(V ) is defined as NG(n) = {v ∈ V : ∃ path in G from 1 to v of length ≤ n} and the growth function γG : N → N is defined as γG(n) = |NG(n)|

Theorem (Parallel Computation Thesis)

For any network topology G where γG(n) = Ω(2n), PSPACE ⊆ PparG.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Lower Bounds

• We have a substantial lower bound, ie. a set of problems

that can definitely be made tractable by parallelism

• What about an upper bound, ie. problems which can

definitely NOT be made tractable?

• Solution: simulate a TN on a sequential Turing machine!
• See whiteboard for explanation cuntz

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Analyzing Our Simulation

Before we go further, we need to capture name size:

Definition (Name Complexity)

For any network topology G, the name growth function κG : N → N is defined as κG(n) = max(NG(n)) First tape, with input string of length x after n simulated transitions, has size O(x + γG(n)(κG(n) + n)) Second tape similarly has size O(γG(n)(κG(n) + ∆κG(n + 1))), where topology has maximum degree ∆.

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Analyzing Our Simulation

After some magic, we have that transition n takes time t(n) = O((h(n) + k(n))2 + max

v∈NG (n+1),m∈N

tφ(v, m)) where tφ : V × N → N is the time taken to compute φ. Adding together all the transitions, we have (by more magic!) tT (x) = O(γ2

G(τT (x))τ 2 T (x)((x + γG(τT (x))κG(τT (x) + 1))2

+ γ2

G(τT (x))Φ(τT (x))))

where Φ(n) = max

v∈NG (n+1),m∈N

tφ(v, m).

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

What About PparG?

• What upper bound can we get on this with our tT ?
• Now τT (n) = O(nd)
• Note also γG(n) = O(2n), as network topologies have

constant degree

• So, tT (n) = O(2O(nd)(κG(O(nd)) + Φ(O(nd)))2)
• Contributing factors left are κG and tφ

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

What About PparG?

• Best we can hope for is an EXPTIME upper bound, since

2O(nd) in expression

• Need κG(n) = O(2nk); is possible!
• Note tφ(n, m) = O(f (n)) ∀ m means Φ(n) = O(f (κG(n)))
• Hence, need f (O(2nd)) = O(2nh)
• Nontrivial to find biggest possible f ; however,

quasi-polynomials, or f (n) = O(2logc n), work!

• f (n) = O(2n) is in fact too big, would get a 2-EXPTIME

upper bound instead; upper bound between these two...

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Our Upper Bound

Theorem

For any network topology G such that κG(n) = O(2nd) and tφ(v, n) = O(2logc v), PparG ⊆ EXPTIME

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Implications

• This means a problem outside of EXPTIME can only be

made tractable by encoding hard computations in the network topology

• eg. Presburger arithmetic cannot be made tractable by

any polynomial-time computable network topology

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Simulation

We have covered the first three goals of our model; the last was ”simulate other models of parallelism with good complexity.” Will try and simulate BSP and Boolean Circuits.

• BSP is a practical model of parallelism
• Boolean Circuits connect to parallelism in a theoretically

important way

Turing Networks Jack Romo Introduction So What’s a Turing Network? Lower Bounds Upper Bounds Simulation Conclusions

Conclusions

• Overall, have created a model of message-passing

parallelism which meets all of our requirements

• Have shown how to connect Turing machines to this form
• f parallelism
• Our model is limited by a static network of constant

degree; beyond the scope of this project
