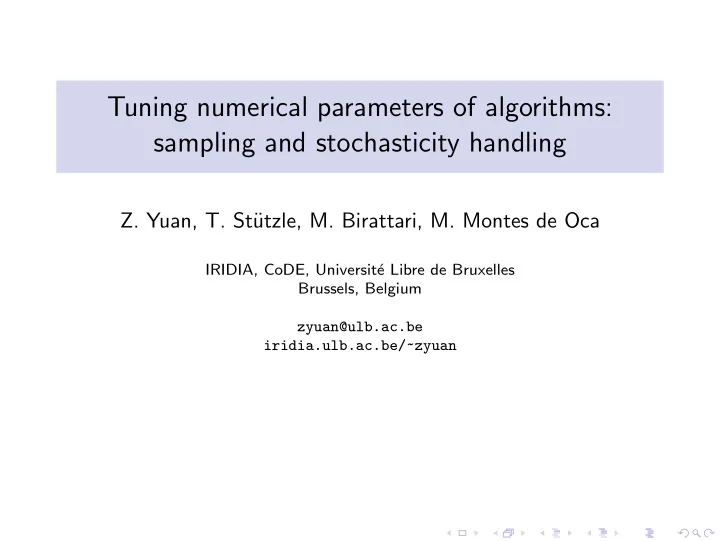

Tuning numerical parameters of algorithms: sampling and stochasticity handling

• Z. Yuan, T. St¨

utzle, M. Birattari, M. Montes de Oca

IRIDIA, CoDE, Universit´ e Libre de Bruxelles Brussels, Belgium zyuan@ulb.ac.be iridia.ulb.ac.be/~zyuan

Outline

• 1. The tuning problem
• 2. Tuning algorithm

Sampling in parameter space Budget allocation for ranking and selection: F-Race Combine F-Race with Sampling method

Iterated F-Race (Birattari et al. 2010) Post-selection mechanism

• 3. Experimental results

Outline

• 1. The tuning problem
• 2. Tuning algorithm

Sampling in parameter space Budget allocation for ranking and selection: F-Race Combine F-Race with Sampling method

Iterated F-Race (Birattari et al. 2010) Post-selection mechanism

• 3. Experimental results

Configuration of parameterized algorithms

Algorithm components

◮ categorical parameters

◮ choice of neighborhood in local search ◮ choice of crossover and mutation in EAs ◮ type of perturbation in iterated local search

◮ numerical parameters (real-valued or integer)

◮ crossover and mutation rates ◮ tabu list length ◮ perturbation strength

Importance of the tuning problem

◮ improvement over default settings, manual tuning ◮ reduction of development time and human intervention ◮ empirical studies, comparisons of algorithms ◮ support for end users of algorithms

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

◮ Θ: set of candidate configurations.

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

◮ Θ: set of candidate configurations. ◮ I: set of instances. PI: probability measure over I.

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

◮ Θ: set of candidate configurations. ◮ I: set of instances. PI: probability measure over I. ◮ c(θ, i): random variable representing the cost measure of a

configuration θ ∈ Θ on instance i ∈ I

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

◮ Θ: set of candidate configurations. ◮ I: set of instances. PI: probability measure over I. ◮ c(θ, i): random variable representing the cost measure of a

configuration θ ∈ Θ on instance i ∈ I

◮ C ⊂ ℜ: range of c. PC: probability measure over the set C.

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

◮ Θ: set of candidate configurations. ◮ I: set of instances. PI: probability measure over I. ◮ c(θ, i): random variable representing the cost measure of a

configuration θ ∈ Θ on instance i ∈ I

◮ C ⊂ ℜ: range of c. PC: probability measure over the set C. ◮ C(θ) = C(θ|Θ, I, PI, PC): performance expectation:

C(θ) = EI,C[c] =

• c dPC(c|θ, i)dPI(i),

(1)

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

◮ Θ: set of candidate configurations. ◮ I: set of instances. PI: probability measure over I. ◮ c(θ, i): random variable representing the cost measure of a

configuration θ ∈ Θ on instance i ∈ I

◮ C ⊂ ℜ: range of c. PC: probability measure over the set C. ◮ C(θ) = C(θ|Θ, I, PI, PC): performance expectation:

C(θ) = EI,C[c] =

• c dPC(c|θ, i)dPI(i),

(1)

◮ The objective is to find a performance optimizing

configuration ¯ θ: ¯ θ = arg min

θ∈Θ C(θ)

(2)

Tuning problem: formal definition (Birattari et al. 2002)

The tuning problem can be defined as a tuple Θ, I, PI, PC, C

◮ Θ: set of candidate configurations. ◮ I: set of instances. PI: probability measure over I. ◮ c(θ, i): random variable representing the cost measure of a

configuration θ ∈ Θ on instance i ∈ I

◮ C ⊂ ℜ: range of c. PC: probability measure over the set C. ◮ C(θ) = C(θ|Θ, I, PI, PC): performance expectation:

C(θ) = EI,C[c] =

• c dPC(c|θ, i)dPI(i),

(1)

◮ The objective is to find a performance optimizing

configuration ¯ θ: ¯ θ = arg min

θ∈Θ C(θ)

(2)

◮ Analytical solution not possible, hence estimate expected cost

in a Monte Carlo fashion

Tuning problem is an optimization problem

Variables:

mixed discrete-continuous, conditional variables

Objective:

◮ black-box ◮ stochastic

◮ due to stochasticity of the algorithm ◮ due to sampling of instances

Outline

• 1. The tuning problem
• 2. Tuning algorithm

Sampling in parameter space Budget allocation for ranking and selection: F-Race Combine F-Race with Sampling method

Iterated F-Race (Birattari et al. 2010) Post-selection mechanism

• 3. Experimental results

Solving tuning problem: Our approach

◮ sampling in parameter space ◮ budget allocation for ranking and selection under

stochasticity: F-Race

◮ combine budget allocator with sampling methods

Open question: trade-off in allocating budget to sampling new points or evaluation of sampled points.

Sampling in parameter space

◮ focus on numerical parameters ◮ usually low dimension, low budget ◮ sampling in established tuners: ad-hoc, factorial design,

Kriging approximation

◮ our work studies state-of-the-art derivative-free optimizers:

BOBYQA, CMA-ES, and MADS (Yuan et al. 2010, 2012a)

2 3 4 5 6 1 2 3 4 5

Average rank of algorithms across numbers of parameters in MMAS

Number of parameters Average rank CMAES MADS IRS URS BOBYQA 2.0 2.5 3.0 3.5 4.0 4.5 5.0 1 2 3 4 5

Average rank of algorithms across numbers of parameters in cPSO

Number of parameters Average rank CMAES MADS IRS URS BOBYQA

F-Race (Birattari et al. 2002)

Θ i

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

◮ . . . repeat until a winner is selected

• r until computation budget is consumed

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

◮ . . . repeat until a winner is selected

• r until computation budget is consumed

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

◮ . . . repeat until a winner is selected

• r until computation budget is consumed

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

◮ . . . repeat until a winner is selected

• r until computation budget is consumed

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

◮ . . . repeat until a winner is selected

• r until computation budget is consumed

F-Race (Birattari et al. 2002)

Θ i

◮ start with a set of initial candidates ◮ consider a stream of instances ◮ sequentially evaluate candidates ◮ discard statistically worse candidates

as detected by Friedman test

◮ . . . repeat until a winner is selected

• r until computation budget is consumed

Open question: What is the power and actual type I error of sequential hypothesis testing?

Outline

• 1. The tuning problem
• 2. Tuning algorithm

Sampling in parameter space Budget allocation for ranking and selection: F-Race Combine F-Race with Sampling method

Iterated F-Race (Birattari et al. 2010) Post-selection mechanism

• 3. Experimental results

Iterated F-Race

◮ sample configurations iteratively ◮ in each iteration, use F-Race to rank and select the best

configurations to bias the sampling

◮ I/F-Race is devised in Birattari et al. 2010, which tunes

numerical parameters, categorical parameters, and conditional parameters.

◮ F-Race is also hybridized with existing sampling methods, such

as MADS/F-Race and CMAES/F-Race (Yuan et al. 2012a)

◮ increase the probability of type I error (incumbent protection,

(Yuan et al. 2012a)

◮ what if the sampling method does not need ranking and

selection, e.g. response surface methodologies

Post-selection (Yuan et al. 2012a, 2012b)

◮ use few instances during the sampling phase to identify a

number of elite configurations

◮ in the final post-selection phase, use F-Race to carefully select

the best from the set of elite configurations

◮ can be applied together with iterated F-Race

Outline

• 1. The tuning problem
• 2. Tuning algorithm

Sampling in parameter space Budget allocation for ranking and selection: F-Race Combine F-Race with Sampling method

Iterated F-Race (Birattari et al. 2010) Post-selection mechanism

• 3. Experimental results

Experimental setup

◮ case studies of tuning numerical parameters of MMAS: α, β,

ρ, m, γ, nn, q0

◮ 3 case studies of each of 2 to 6 parameters being tuned,

resulting in 3 · 5 = 15 case studies

◮ in each case study, 7 budget levels are studied, ranging from

tens to thousands

Repeated evaluation: case studies in URS

◮ fixed number of repetition nr ∈ {1, 3, 5, 10, 20, 40} ◮ takes uniform random sampling for study, include U/F-Race ◮ best nr differs a lot depending on budget levels ◮ U/F-Race outperforms fixed number of repeated evaluations

1 2 3 4 5 6 7 1 2 3 4 5 6 7 Average rank of algorithms across budget levels Budget level Average rank of algorithm U1 U3 U5 U10 U20 U40 UF

Post-selection: case studies in MADS

◮ Post-selection with low nr outperforms repeated evaluation ◮ Post-selection with nr = 1 results in best performance ◮ Post-selection with nr = 1 outperforms F-Race hybrid M1 M3 M5 M10 M20 M40 MP1 MP3 MP5 MP10 MP20 MP40 2 4 6 8 10 12

1 2 3 4 5 6 7 1.0 1.5 2.0 2.5 3.0 3.5 4.0

MP1 MP3 MP5 MF

Comparisons of all tuners

◮ BOBYQA, CMA-ES, and MADS uses post-selection and

nr = 1

◮ includes also I/F-Race and U/F-Race for comparison ◮ BOBYQA with post-selection and nr = 1 appears to be the

best setting

BP1 CP1 MP1 IF UF 1 2 3 4 5

2 3 4 5 6 1 2 3 4 5 Average rank of algorithms across numbers of parameters Number of parameters Average rank of algorithm BP1 CP1 MP1 IF RF

Conclusions and future work

Conclusions

◮ state-of-the-art derivative-free optimizers e.g. BOBYQA,

CMA-ES show good performance in sampling in parameter space

◮ post-selection using F-Race is a simple and effective

mechanism for stochasticity handling

Future work

◮ further investigation into post-selection mechanism ◮ a detailed survey of derivative-free continuous optimizers and

statistical ranking and selection techniques

◮ sampling techniques also for categorical parameters ◮ better understand and address the trade-off in allocating

budget to sampling new configurations or evaluation of sampled evaluations

Some References

◮ Birattari, M., St¨

utzle, T., Paquete, L., Varrentrapp, K. (2002): A racing algorithm for configuring metaheuristics. In Langdon, W.B., et al., eds.: GECCO 2002, 11–18.

◮ Birattari, M., Yuan, Z., Balaprakash, P., St¨

utzle, T. (2010):F-Race and iterated F-Race: An overview. In Bartz-Beielstein, T., et al., eds.: Experimental Methods for the Analysis of Optimization Algorithms. Springer, Berlin, Germany 311–336.

◮ Yuan, Z., Montes de Oca, M., Birattari, M., St¨

utzle, T. (2012): Continuous optimization algorithms for tuning real and integer parameters

• f swarm intelligence algorithms. Swarm Intelligence 6(1), 49–75.

◮ Yuan, Z., St¨

utzle, T., Montes de Oca, M., Birattari, M. (2012): An analysis of a post-selection mechanism for handling stochasticity in tuning numerical parameters of MAX–MIN Ant System. Technical Report TR/IRIDIA/2012-007, IRIDIA, ULB, Brussels, Belgium, 2012.
