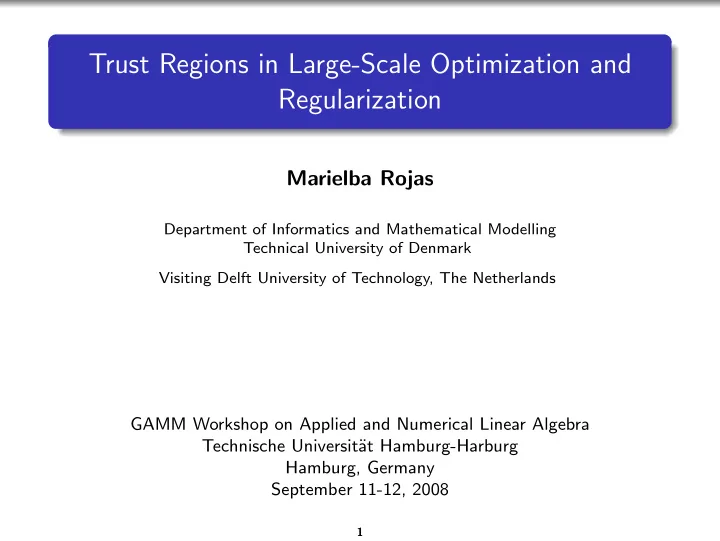

Trust Regions in Large-Scale Optimization and Regularization

Marielba Rojas

Department of Informatics and Mathematical Modelling Technical University of Denmark Visiting Delft University of Technology, The Netherlands

GAMM Workshop on Applied and Numerical Linear Algebra Technische Universit¨ at Hamburg-Harburg Hamburg, Germany September 11-12, 2008

1

Part of this work is joint with Sandra A. Santos, Campinas, Brazil Danny C. Sorensen, Rice, USA Thanks Wake Forest University, CERFACS, and T.U. Delft.

2

Outline

Trust Regions in Optimization Trust Regions in Regularization The Trust-Region Subproblem (TRS) Methods for the large-scale TRS Comparisons Applications Concluding Remarks

3

Trust Regions in Optimization

4

Unconstrained Optimization

min f (x)

x∈I Rn

where f (x) is a nonlinear, twice continuously-differentiable function.

5

Unconstrained Optimization

min f (x)

x∈I Rn

where f (x) is a nonlinear, twice continuously-differentiable function. Most methods for this problem generate a sequence of iterates x0, x1, . . . , xk such that f (xk+1) < f (xk). Each xk minimizes a simple (linear, quadratic) model of f .

6

Unconstrained Optimization

min f (x)

x∈I Rn

where f (x) is a nonlinear, twice continuously-differentiable function. Most methods for this problem generate a sequence of iterates x0, x1, . . . , xk such that f (xk+1) < f (xk). Each xk minimizes a simple (linear, quadratic) model of f . Two strategies to move from xk to xk+1 = xk + d: Line Search and Trust Region.

7

Unconstrained Optimization

min f (x)

x∈I Rn

where f (x) is a nonlinear, twice continuously-differentiable function. Most methods for this problem generate a sequence of iterates x0, x1, . . . , xk such that f (xk+1) < f (xk). Each xk minimizes a simple (linear, quadratic) model of f . Two strategies to move from xk to xk+1 = xk + d: Line Search and Trust Region. Consider the following quadratic model of f at xk qk(d) = f (xk) + ∇f (xk)Td + 1

2d THd,

where H is a symmetric matrix.

8

Unconstrained Optimization

Line Search Methods:

9

Unconstrained Optimization

Line Search Methods:

Find the minimizer dk of the convex quadratic qk(d). Search along dk for a suitable step length α. αdk is the step. Require positive definite H.

10

Unconstrained Optimization

Line Search Methods:

Find the minimizer dk of the convex quadratic qk(d). Search along dk for a suitable step length α. αdk is the step. Require positive definite H.

Trust-Region Methods:

11

Unconstrained Optimization

Line Search Methods:

Find the minimizer dk of the convex quadratic qk(d). Search along dk for a suitable step length α. αdk is the step. Require positive definite H.

Trust-Region Methods:

Find a minimizer of qk in {d ∈ I Rns.t.d ≤ ∆k, ∆k > 0}. {d ∈ I Rns.t.d ≤ ∆k} is the trust region: a region where we trust the model qk to be a good representation of f . ∆k is the trust-region radius. dk is the step. Do not require positive definite H.

12

Unconstrained Optimization

Remarks:

13

Unconstrained Optimization

Remarks: Line Search and Trust Region are globalization techniques: transform local methods into global ones, ie methods that converge to a stationary point or to a local minimizer from any starting point.

14

Unconstrained Optimization

Remarks: Line Search and Trust Region are globalization techniques: transform local methods into global ones, ie methods that converge to a stationary point or to a local minimizer from any starting point. Trust-Region Methods are slightly more robust.

15

Unconstrained Optimization

Remarks: Line Search and Trust Region are globalization techniques: transform local methods into global ones, ie methods that converge to a stationary point or to a local minimizer from any starting point. Trust-Region Methods are slightly more robust. The Levenberg-Marquardt Method (1944, 1963) for nonlinear least squares problems is considered as the first trust-region method (Mor´

e 1978).

16

Trust-Region Methods

Given x0 and ∆0 begin k := 1; ∆ := ∆0; repeat set dk as a solution to min qk(d) s.t. d ≤ ∆; ̺ := f (xk)−f (xk+1)

qk(0)−qk(dk) ;

% gain factor if ̺ > 0.75 ∆ := 2 ∗ ∆; end if ̺ < 0.25 ∆ := ∆/3; end if ̺ > 0 xk := xk−1 + dk; end k := k + 1; until convergence end

17

Trust-Region Methods

Main calculation per iteration: Trust-Region Subproblem (TRS) min

1 2d THd + g Td

s.t. d ≤ ∆ where: g = ∇f (xk). H is a symmetric matrix, usually an approximation to ∇2f (xk). ∆ > 0.

18

Trust Regions in Regularization

19

Regularization: Linear

Tikhonov Regularization: min 1 2Ax − b2

2 + λx2 2 x∈I Rn

A ∈ I Rm×n, m ≥ n large, from ill-posed problems. b ∈ I Rm, containing noise, and ATb = 0. λ > 0 is the Tikhonov regularization parameter.

20

Regularization: Linear

Tikhonov Regularization: min 1 2Ax − b2

2 + λx2 2 x∈I Rn

A ∈ I Rm×n, m ≥ n large, from ill-posed problems. b ∈ I Rm, containing noise, and ATb = 0. λ > 0 is the Tikhonov regularization parameter.

is equivalent to (see Eld´

en 1977)

21

Regularization: Linear

Tikhonov Regularization: min 1 2Ax − b2

2 + λx2 2 x∈I Rn

A ∈ I Rm×n, m ≥ n large, from ill-posed problems. b ∈ I Rm, containing noise, and ATb = 0. λ > 0 is the Tikhonov regularization parameter.

is equivalent to (see Eld´

en 1977)

min 1 2Ax − b2

2

(TRS) s.t.

x2≤∆

where ∆ > 0, plays the role of the regularization parameter.

22

Regularization: Nonlinear, Constrained

min f (x) + λg(x)

x∈S

where f , g are nonlinear functions, S ⊂ I Rn, and λ is a regularization parameter.

23

Regularization: Nonlinear, Constrained

min f (x) + λg(x)

x∈S

where f , g are nonlinear functions, S ⊂ I Rn, and λ is a regularization parameter. Example 1: min F(x)2

2 + λx2 2 s.t. x ∈ I

Rn, F : I Rn → I Rm.

24

Regularization: Nonlinear, Constrained

min f (x) + λg(x)

x∈S

where f , g are nonlinear functions, S ⊂ I Rn, and λ is a regularization parameter. Example 1: min F(x)2

2 + λx2 2 s.t. x ∈ I

Rn, F : I Rn → I Rm. Could be solved with a trust-region method:

25

Regularization: Nonlinear, Constrained

min f (x) + λg(x)

x∈S

where f , g are nonlinear functions, S ⊂ I Rn, and λ is a regularization parameter. Example 1: min F(x)2

2 + λx2 2 s.t. x ∈ I

Rn, F : I Rn → I Rm. Could be solved with a trust-region method: Google returns 11,600 hits for “Levenberg-Marquardt nonlinear regularization” (all words), and 10,800 for “trust region nonlinear regularization” (all words).

26

Regularization: Nonlinear, Constrained

min f (x) + λg(x)

x∈S

where f , g are nonlinear functions, S ⊂ I Rn, and λ is a regularization parameter. Example 1: min F(x)2

2 + λx2 2 s.t. x ∈ I

Rn, F : I Rn → I Rm. Could be solved with a trust-region method: Google returns 11,600 hits for “Levenberg-Marquardt nonlinear regularization” (all words), and 10,800 for “trust region nonlinear regularization” (all words). Example 2: min

1 2Ax − b2 s.t. x2 ≤ ∆, x ≥ 0.

Could be solved with a trust-region-based method (R & Steihaug 2002).

27

TRS in Optimization and Regularization

Optimization Regularization Several TRS Linear: One TRS Nonlinear, Constrained: Several TRS (potential) Hard Case (potential) Hard Case (Near HC) not common likely

28

The Trust-Region Subproblem

29

The Trust-Region Subproblem (TRS)

min 1 2x THx + g Tx s.t.

x≤∆

H ∈ I Rn×n, H = HT, n large. g ∈ I Rn, g = 0. ∆ > 0. · is the Euclidean norm.

30

The Trust-Region Subproblem (TRS)

min 1 2x THx + g Tx s.t.

x≤∆

H ∈ I Rn×n, H = HT, n large. g ∈ I Rn, g = 0. ∆ > 0. · is the Euclidean norm. In optimization: H ≈ ∇2f (xk), g = ∇f (xk).

31

The Trust-Region Subproblem (TRS)

min 1 2x THx + g Tx s.t.

x≤∆

H ∈ I Rn×n, H = HT, n large. g ∈ I Rn, g = 0. ∆ > 0. · is the Euclidean norm. In optimization: H ≈ ∇2f (xk), g = ∇f (xk). In (linear) regularization: H = ATA, g = −ATb.

32

Characterization of solutions. Gay 1981, Sorensen 1982.

x∗ with x∗ ≤ ∆ is a solution of TRS with Lagrange multiplier λ∗, if and only if

(i) (H − λ∗I)x∗ = −g. (ii) H − λ∗I positive semidefinite. (iii) λ∗ ≤ 0. (iv) λ∗ (x∗ − ∆) = 0

33

Characterization of solutions. Gay 1981, Sorensen 1982.

x∗ with x∗ ≤ ∆ is a solution of TRS with Lagrange multiplier λ∗, if and only if

(i) (H − λ∗I)x∗ = −g. (ii) H − λ∗I positive semidefinite. (iii) λ∗ ≤ 0. (iv) λ∗ (x∗ − ∆) = 0

Remark: x − ∆ = 0 is the secular equation.

34

Solutions to TRS

Notation:

δ1 ≤ δ2 ≤ . . . ≤ δn are the eigenvalues of H. S1 is the eigenspace associated with δ1, the smallest eigenvalue of H.

35

One Interior Solution (standard case)

36

One Interior Solution (standard case)

H positive definite and ∆ > H−1g.

37

One Interior Solution (standard case)

H positive definite and ∆ > H−1g. Solution is x = −H−1g, λ = 0.

38

One Interior Solution (standard case)

H positive definite and ∆ > H−1g. Solution is x = −H−1g, λ = 0. λ = 0 ⇒ constraint is not active.

39

One Interior Solution (standard case)

H positive definite and ∆ > H−1g. Solution is x = −H−1g, λ = 0. λ = 0 ⇒ constraint is not active.

40

One Boundary Solution (standard case)

41

One Boundary Solution (standard case)

H positive definite and ∆ ≤ H−1g, or

42

One Boundary Solution (standard case)

H positive definite and ∆ ≤ H−1g, or H indefinite or positive semidefinite and singular, and ∆ ≤ (H − δ1I)†g.

43

One Boundary Solution (standard case)

H positive definite and ∆ ≤ H−1g, or H indefinite or positive semidefinite and singular, and ∆ ≤ (H − δ1I)†g. Solution is x = −(H − λI)−1g, λ < δ1.

44

One Boundary Solution (standard case)

H positive definite and ∆ ≤ H−1g, or H indefinite or positive semidefinite and singular, and ∆ ≤ (H − δ1I)†g. Solution is x = −(H − λI)−1g, λ < δ1. λ satisfies secular equation g T(H − λI)−2g − ∆2 = 0.

45

One Boundary Solution (standard case)

H positive definite and ∆ ≤ H−1g, or H indefinite or positive semidefinite and singular, and ∆ ≤ (H − δ1I)†g. Solution is x = −(H − λI)−1g, λ < δ1. λ satisfies secular equation g T(H − λI)−2g − ∆2 = 0.

46

Multiple Boundary Solutions (hard case)

47

Multiple Boundary Solutions (hard case)

H indefinite, g ⊥ S1, and ∆ > (H − δ1I)†g.

48

Multiple Boundary Solutions (hard case)

H indefinite, g ⊥ S1, and ∆ > (H − δ1I)†g. Solutions are x = −(H − δ1I)†g + z, λ = δ1, with z ∈ S1 such that x = ∆.

49

Multiple Boundary Solutions (hard case)

H indefinite, g ⊥ S1, and ∆ > (H − δ1I)†g. Solutions are x = −(H − δ1I)†g + z, λ = δ1, with z ∈ S1 such that x = ∆. g ⊥ S1: potential hard case.

50

Multiple Boundary Solutions (hard case)

H indefinite, g ⊥ S1, and ∆ > (H − δ1I)†g. Solutions are x = −(H − δ1I)†g + z, λ = δ1, with z ∈ S1 such that x = ∆. g ⊥ S1: potential hard case.

51

Multiple Interior and Boundary Solutions (hard case)

52

Multiple Interior and Boundary Solutions (hard case)

H positive semidefinite and singular, g ⊥ S1, and ∆ > H†g.

53

Multiple Interior and Boundary Solutions (hard case)

H positive semidefinite and singular, g ⊥ S1, and ∆ > H†g. Solutions are x = −H†g + z, λ = 0, with z ∈ S1 such that x ≤ ∆.

54

Multiple Interior and Boundary Solutions (hard case)

H positive semidefinite and singular, g ⊥ S1, and ∆ > H†g. Solutions are x = −H†g + z, λ = 0, with z ∈ S1 such that x ≤ ∆.

55

Linear Ill-Posed Problems: potential (near) HC (g ≈⊥ S1)

Problem heat from P.C. Hansen’s Regularization Tools. m = n = 1000; ◦ QTg; * δi.

56

Methods for Large-Scale TRS

57

Characterization of solutions. Gay 1981, Sorensen 1982.

x∗ with x∗ ≤ ∆ is a solution of TRS with Lagrange multiplier λ∗, if and only if

(i) (H − λ∗I)x∗ = −g. (ii) H − λ∗I positive semidefinite. (iii) λ∗ ≤ 0. (iv) λ∗ (x∗ − ∆) = 0.

Remark: x − ∆ = 0 is the secular equation.

58

Methods for Large-Scale TRS

59

Methods for Large-Scale TRS

Approximate:

60

Methods for Large-Scale TRS

Approximate:

Steihaug 1983. GLTR: Gould et al. 1999. SSM: Hager 2001. Return a point on the boundary of the trust region.

61

Methods for Large-Scale TRS

Approximate:

Steihaug 1983. GLTR: Gould et al. 1999. SSM: Hager 2001. Return a point on the boundary of the trust region.

Nearly-Exact:

62

Methods for Large-Scale TRS

Approximate:

Steihaug 1983. GLTR: Gould et al. 1999. SSM: Hager 2001. Return a point on the boundary of the trust region.

Nearly-Exact:

Mor´ e and Sorensen 1983: Newton’s method on 1 xλ2 − 1 ∆2 = 0. Golub and von Matt 1991. Moments, quadrature, Lanczos bidiagonalization to compute lower and upper bounds for xλ

2, ∆ < H†g.

Sorensen 1997. SDP: Rendl and Wolkowicz 1997, Fortin and Wolkowicz 2004. LSTRS: R, Santos and Sorensen 2000, 2008. Rational interpolation + parameterized eigenvalue problems.

63

Secular Functions and Equations

Let H = Q diag(δ1, δ2, . . . , δn) QT and γ = QTg.

64

Secular Functions and Equations

Let H = Q diag(δ1, δ2, . . . , δn) QT and γ = QTg. Suppose x ∈ I Rn such that (H − λI)x = −g.

65

Secular Functions and Equations

Let H = Q diag(δ1, δ2, . . . , δn) QT and γ = QTg. Suppose x ∈ I Rn such that (H − λI)x = −g. Define φ(λ) = −g Tx =

n

• i=1

γ2

i

δi − λ

66

Secular Functions and Equations

Let H = Q diag(δ1, δ2, . . . , δn) QT and γ = QTg. Suppose x ∈ I Rn such that (H − λI)x = −g. Define φ(λ) = −g Tx =

n

• i=1

γ2

i

δi − λ Then φ′(λ) = x Tx.

67

Secular Functions and Equations

Let H = Q diag(δ1, δ2, . . . , δn) QT and γ = QTg. Suppose x ∈ I Rn such that (H − λI)x = −g. Define φ(λ) = −g Tx =

n

• i=1

γ2

i

δi − λ Then φ′(λ) = x Tx. Secular Equation: φ′(λ) = ∆2.

68

Secular Equations - standard case

φ′(λ) φ(λ)

69

Secular Equations - hard case

φ′(λ) φ(λ)

70

Potential (near) hard case: g ≈⊥ S1

71

Ill-posed problems: g ≈⊥ Si, i = 1, 2, . . . , k

72

LSTRS - standard case

−4 −3.5 −3 −2.5 −2 −1.5 −1 −0.5 0.5 −2 −1 1 2 3 4 5

α*−λ φ(λ) φ(λ*) + ∆2λ

λ*

λ φ(λ), α−λ

73

LSTRS - (near) hard case

−4 −3.5 −3 −2.5 −2 −1.5 −1 −0.5 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

λ φ(λ), α−λ

λk λk−1 λk+1

αk+1−λ φ(λ) φ(λ)

74

Comparisons

SSM - Sequential Subspace Method. Hager 2001. SDP - Semidefinite Programming approach. Rendl and Wolkowicz 1997, Fortin and Wolkowicz 2004. GLTR - Generalized Lanczos Trust Region method. Gould, Lucidi, Roma, and Toint 1999. LSTRS. R, Santos and Sorensen 2000, 2008.

75

Comparisons

SSM - Sequential Subspace Method. Hager 2001. SDP - Semidefinite Programming approach. Rendl and Wolkowicz 1997, Fortin and Wolkowicz 2004. GLTR - Generalized Lanczos Trust Region method. Gould, Lucidi, Roma, and Toint 1999. LSTRS. R, Santos and Sorensen 2000, 2008. All: matrix-free. LSTRS, SDP, SSM: limited-memory.

76

Average results for 2-D Laplacian, n = 1024. Easy Case.

METHOD MVP STORAGE

(H − λ I)x+g g

LSTRS 127.1 10 2.32 ×10−6 SSM 67.3 10 9.53×10−7 SSMd 67.3 10 9.53×10−7 SDP 595 10 3.17×10−5 GLTR 81.6 41.3 8.56×10−6

77

Average results for 2-D Laplacian, n = 1024. Hard Case.

METHOD MVP STORAGE

(H − λ I)x+g g

LSTRS 252.6 10 6.91 ×10−6 SSM 377.9 10 1.42×10−6 SSMd 377.9 10 1.42×10−6 SDP 2023.8 10 5.76×10−2 GLTR 151.8 76.4 8.37×10−6

78

Inverse Heat Equation, n = 1000. Mildly Ill-Posed.

METHOD MVP STORAGE

(H − λ I)x+g g x−xIP xIP

LSTRS 265 8 9.12×10−6 6.13×10−4 SSM 700 8 2.99×10−9 2.41×10−4 SSMd 649 8 2.74×10−9 4.57×10−4 SDP 5700 8 2.73×10−7 3.63×10−4

79

Inverse Heat Equation, n = 1000. Severely Ill-Posed.

METHOD MVP STORAGE

(H − λ I)x+g g x−xIP xIP

LSTRS 552 8 7.05×10−6 5.49×10−2 SSM 512 8 1.81×10−7 3.75×10−2 SSMd 215 8 2.04×10−7 2.25×10−2 SDP 4600 8 2.27×10−4 2.08×10−1

80

Applications (LSTRS)

81

Inverse Interpolation: Bathymetry of the Sea of Galilee

−45 −40 −35 −30 −25 −20 −15 −10 −5 198 200 202 204 206 208 210 212 235 240 245 250 255 x y

Dimension: 40401. Vectors: 5. MVP: 206.

82

Image Restoration

50 100 150 200 250 50 100 150 200 250 50 100 150 200 250 50 100 150 200 250

True image Blurred and noisy image

50 100 150 200 250 50 100 150 200 250

Dimension:

65536

Vectors:

7

MVP:

201

LSTRS restoration

Using function blur from P.C. Hansen’s Regularization Tools.

83

Other applications

Large-scale non-negative regularization (R & Steihaug 2002). Confidence intervals for solutions of large-scale discrete ill-posed problems (Eld´

en, Hansen & R 2005).

84

Other applications

Large-scale non-negative regularization (R & Steihaug 2002). Confidence intervals for solutions of large-scale discrete ill-posed problems (Eld´

en, Hansen & R 2005).

Large-scale computer vision. Kahl and collaborators, Lund University, Sweden. 3D electrical impedance tomography. Soleimani and collaborators, University of Bath, U.K.

85

Concluding Remarks

Trust regions yield efficient methods for solving general nonlinear optimization problems, and for both linear and nonlinear regularization problems. TRS is the main calculation in trust-region methods. The special features of the TRS in regularization problems influence the design of methods. There exist efficient methods for solving large-scale TRS arising in general optimization problems and in regularization.

86

REFERENCES

Trust-Region Methods: A.R. Conn, N.I.M. Gould, and Ph.L. Toint. Trust-Region Methods, SIAM, Philadelphia, 2000.

• J. Nocedal and S.J. Wright. Numerical Optimization.

Springer, New York, 2nd. ed., 2006. Trust Regions and Regularization, LSTRS: Thesis, Papers and Software can be downloaded from: http://www.imm.dtu.dk/∼mr

87
