Transparent Parallelization of Binary Code Benot Pradelle Alain Ketterlin Philippe Clauss Universit de Strasbourg INRIA (CAMUS team, Centre Nancy Grand-Est) CNRS (LSIIT, UMR 7005) First International Workshop on Polyhedral Compilation

slide-1

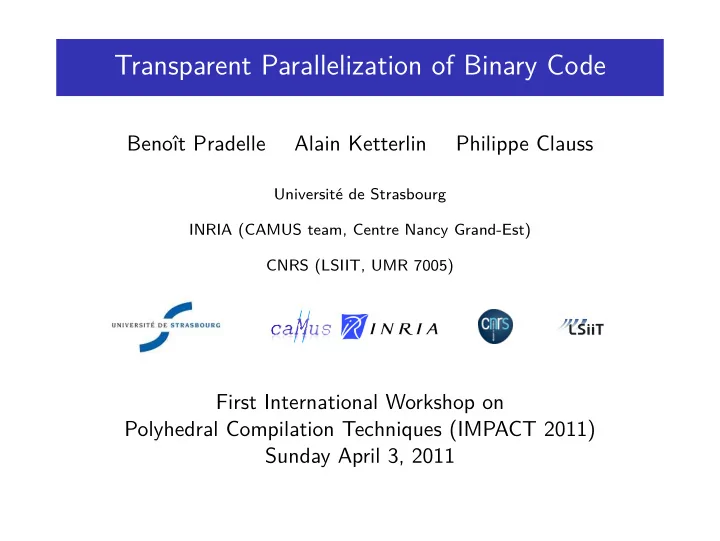

SLIDE 1

Transparent Parallelization of Binary Code

Benoît Pradelle Alain Ketterlin Philippe Clauss

Université de Strasbourg INRIA (CAMUS team, Centre Nancy Grand-Est) CNRS (LSIIT, UMR 7005)

First International Workshop on Polyhedral Compilation Techniques (IMPACT 2011) Sunday April 3, 2011

slide-2
SLIDE 2

Overview Raising Parallelizing Lowering Results Conclusion

Overview

Original binary sequential program Intermediate form Parallel form Parallel executable

raising transform/

  • ptimize

lowering

  • 1. Bring the (x86-64) code into “something usable”
  • 2. Apply parallelizing transformations
  • 3. Translate back into “something executable”
  • 4. Empirical evaluation
slide-3
SLIDE 3

Overview Raising Parallelizing Lowering Results Conclusion

Raising / Decompiling x86-64

  • 1. Rebuild CFG
  • 2. Natural loops
  • 3. Points-to to discriminate

◮ current stack frame ◮ “outer” memory

→ track stack slots

  • 4. SSA
  • 5. Slicing/symbolic analysis

◮ memory addresses ◮ branch conditions

  • 6. Induction variables

→ normalized counters

  • 7. Control dependence

◮ trip-counts ◮ block constraints

  • 8. Loop selection

interp_ 0x4039f2.1 (exit) 0x403a99.1 0x4041ea.1 0x403b9f.1 0x403bdf.1 0x403bef.1 0x403c10.1 0x403c2d.1 0x403c5a.1 0x403c74.1 0x403c6b.1 0x403d18.1 0x403d2e.1 0x403d5b.1 0x403d87.1 0x403dc6.1 0x403def.1 0x403de6.1 0x404213.1 0x403e24.1 0x403e38.1 0x403e8c.1 0x403ea2.1 0x403ecf.1 0x403efa.1 0x403f39.1 0x403f63.1 0x403f5a.1 0x404031.1 0x404062.1 0x4040a1.1 0x404104.1 0x404168.1 0x4041b0.1 0x4041a5.1 0x403e2f.1

×2

slide-4
SLIDE 4

Overview Raising Parallelizing Lowering Results Conclusion

Raising / Decompiling x86-64

  • 1. Rebuild CFG
  • 2. Natural loops
  • 3. Points-to to discriminate

◮ current stack frame ◮ “outer” memory

→ track stack slots

  • 4. SSA
  • 5. Slicing/symbolic analysis

◮ memory addresses ◮ branch conditions

  • 6. Induction variables

→ normalized counters

  • 7. Control dependence

◮ trip-counts ◮ block constraints

  • 8. Loop selection

mov [rsp+0xe8], 0x2 ; -> _V_42.0 L1: _V_42.1 = φ(_V_42.0,_V_42.2) ; @ [rsp1 - 0x2e0] = 2 + I ... mov rax29, [rsp+0xf0] L2: rax30 = φ(rax29,rax31) = ... + J*0x8 ... addsd xmm1, [rax30] ; @ ... + 8192*I + 8*J ... add rax31

30, 0x8

jmp L2 add [rsp+0xe8], 0x1 ; -> _V_42.2 ... jmp L1

slide-5
SLIDE 5

Overview Raising Parallelizing Lowering Results Conclusion

Raising / Decompiling x86-64

→ affine loop nests over a single array M

xor ebp, ebp mov r11, rbp for (t1 = 0; -1023 + t1 <= 0; t1++) for (t2 = 0; -1023 + t2 <= 0; t2++) { mov M[23371872 + 8536*t1 + 8*t2], 0x0 mov M[rsp.1-0x30], r11 movsd xmm1, M[rsp.1-0x30] // <- 0. for (t3 = 0; -1023 + t3 <= 0; t3++) { movsd xmm0, M[6299744 + 8296*t1 + 8*t3] mulsd xmm0, M[14794848 + 8*t2 + 8376*t3] addsd xmm1, xmm0 } movsd M[23371872 + 8536*t1 + 8*t2], xmm1 }

→ almost directly usable

slide-6
SLIDE 6

Overview Raising Parallelizing Lowering Results Conclusion

Parallelizing / Adapting to the tools...

◮ Outlining: exact instructions do not matter, shown as ⊙ ◮ Array reconstruction: split memory into disjoint pieces

Note: parametric bounds would lead to runtime checks (not really needed anymore...)

◮ Forward substitution of scalars ◮ The previous example becomes

for (t1 = 0; -1023 + t1 <= 0; t1++) for (t2 = 0; -1023 + t2 <= 0; t2++) { A2[t1][8*t2] = 0 xmm1 = 0 for (t3 = 0; -1023 + t3 <= 0; t3++) xmm1 = xmm1 ⊙ ( A1[t1][8*t3] ⊙ A3[t3][8*t2] ) A2[t1][8*t2] = xmm1 }

slide-7
SLIDE 7

Overview Raising Parallelizing Lowering Results Conclusion

Parallelizing / Removing scalars

◮ Scalar expansion, then transformation? ◮ We don’t want this! for (t1 = 0; t1 <= 1023; t1++) for (t2 = 0; t2 <= 1023; t2++) xmm1[t1][t2] = 0; for (t1 = 0; t1 <= 1023; t1++) for (t2 = 0; t2 <= 1023; t2++) for (t3 = 0; t3 <= 1023; t3++) xmm1[t1][t2] = xmm1[t1][t2] ⊙ (A1[t1][8*t3] ⊙ A3[t3][8*t2]); for (t1 = 0; t1 <= 1023; t1++) for (t2 = 0; t2 <= 1023; t2++) A2[t1][8*t2] = xmm1[t1][t2];

slide-8
SLIDE 8

Overview Raising Parallelizing Lowering Results Conclusion

Parallelizing / Removing scalars

◮ Instead we do “backward substitution”: A2[t1][8*t2] = 0 xmm1 = 0 for (t3 = 0; -1023 + t3 <= 0; t3++) xmm1 = xmm1 ⊙ (A1[t1][8*t3]⊙A3[t3][8*t2]) A2[t1][8*t2] = xmm1

becomes

A2[t1][8*t2] = 0 for (t3 = 0; -1023 + t3 <= 0; t3++) A2[t1][8*t2] = A2[t1][8*t2] ⊙ (A1[t1][8*t3]⊙A3[t3][8*t2]) [ xmm1 = A2[t1][8*t2] ] ◮ Restrictions:

◮ no data dependence (we use isl) ◮ no complex mixing with other registers

◮ If we can’t back-substitute, we need to “freeze” the fragment

slide-9
SLIDE 9

Overview Raising Parallelizing Lowering Results Conclusion

Parallelizing / PLUTO

run PLUTO

slide-10
SLIDE 10

Overview Raising Parallelizing Lowering Results Conclusion

Lowering / Restoring semantics

◮ Identifying statements (note: some have been moved, some

duplicated... — we do not tolerate fusion/splitting)

◮ Thanks PLUTO for providing stable numbering

◮ The resulting nest(s) is(are) made of abstract statements

◮ acting on memory cells, with address expressions ◮ using registers for intermediate results

→ generating C is simpler than reusing the original code

slide-11
SLIDE 11

Overview Raising Parallelizing Lowering Results Conclusion

Lowering / Restoring semantics

◮ Identifying statements (note: some have been moved, some

duplicated... — we do not tolerate fusion/splitting)

◮ Thanks PLUTO for providing stable numbering

◮ The resulting nest(s) is(are) made of abstract statements

◮ acting on memory cells, with address expressions ◮ using registers for intermediate results

→ generating C is simpler than reusing the original code

◮ Memory addresses are cast into pointers:

(void*)(23371872+8536*t4+8*t5)

◮ Loads and stores use intrinsic functions

xmm0 = _mm_load_sd((double*)(6299744+8296*t4+8*t7)); _mm_store_sd((double*)(23371872+8536*t4+8*t5), xmm1);

◮ Basic operations use intrinsics as well:

xmm1 = _mm_add_sd(xmm1, xmm0);

slide-12
SLIDE 12

Overview Raising Parallelizing Lowering Results Conclusion

Lowering / Restoring semantics

#pragma omp parallel for private(t2,t3,t4,t5) for (t2=0; t2<=1023/32; t2++) for (t3=0; t3<=1023/32; t3++) for (t4=32*t2; t4<=min(1023,32*t2+31); t4++) for (t5=32*t3; t5<=min(1023,32*t3+31); t5++) { void *tmp0 = (void*)(23371872 + 8536*t4 + 8*t5); asm volatile("movq $0, (%0)":: "r"(tmp0)); } #pragma omp parallel for private(t2,t3,t4,t5,xmm0,xmm1) for (t2=0; t2<=1023/32; t2++) for (t3=0; t3<=1023/32; t3++) for (t4=32*t2; t4<=min(1023,32*t2+31);t4++) for (t5=32*t3;t5<=min(1023,32*t3+31);t5++) { double tmp1 = 0.; xmm1 = _mm_load_sd(&tmp1); for (t7=0; t7<=1023; t7++) { xmm0 = _mm_load_sd((double*)(6299744 + 8296*t4 + 8*t7)); __m128d tmp2 = _mm_load_sd((double*)(14794848 + 8*t5 + 8376*t7)); xmm0 = _mm_mul_sd(xmm0, tmp2); xmm1 = _mm_add_sd(xmm1, xmm0); } _mm_store_sd((double*)(23371872 + 8536*t4 + 8*t5), xmm1); }

slide-13
SLIDE 13

Overview Raising Parallelizing Lowering Results Conclusion

Lowering / Monitoring execution

◮ Transformed/parallelized loop nests

◮ are compiled as functions with gcc ◮ and placed in a shared library

◮ We use run-time monitoring to replace a loop nest

◮ the monitoring process ptrace-s the child ◮ the child process runs the original executable ◮ breakpoints are set at loop entry ◮ and loop exit ◮ the monitor redirects (parallelized) loop executions

◮ If you think this is too complex... you’re right

(we have a hidden agenda)

slide-14
SLIDE 14

Overview Raising Parallelizing Lowering Results Conclusion

Results / Coverage

◮ On polybench 1.0, compiled with gcc -O2 (4.4.5)

Benchmark Parallelized In source Rate 2mm 7 7 100% 3mm 10 10 100% atax 2 2 100% bicg 2 2 100% correlation 3 5 60% doitgen 3 3 100% gemm 4 4 100% gemver 3 4 75% gramschmidt 1 2 50% lu 1 2 50% Sum 36 41 87.8%

slide-15
SLIDE 15

Overview Raising Parallelizing Lowering Results Conclusion

Results / Speedup

1 2 3 4 5 6 7 8 2 m m 3 m m a t a x b i c g c

  • r

r e l a t i

  • n

d

  • i

t g e n g e m m g e m v e r g r a m s c h m i d t l u source binary

slide-16
SLIDE 16

Overview Raising Parallelizing Lowering Results Conclusion

Results / Speedup

◮ Intel Xeon W 3520, 4 cores

1 2 3 4 5 6 7 8 2 m m 3 m m a t a x b i c g c

  • r

r e l a t i

  • n

c

  • v

a r i a n c e d

  • i

t g e n g e m m g e m v e r g r a m s c h m i d t j a c

  • b

i

  • 2

d

  • i

m p e r l u source/OpenMP source/PLuTo binary/PLuTo

slide-17
SLIDE 17

Overview Raising Parallelizing Lowering Results Conclusion

Conclusion

What about “real” programs?

◮ Parameters everywhere:

◮ loop bounds ◮ access functions ◮ block constraints

→ conservative dependence analysis, and runtime-tests

◮ Address expressions like:

0x8 + 8*rbx.3 + 8*rdx.3 + 1*rsi.1 + 8*K + 8*rbx.3*J + 8*rdx.3*I

◮ “Fake” non-static control (on floating point values)

→ what exactly is a statement?

slide-18
SLIDE 18

Shameless advertisement!

Benoît PRADELLE (b.pradelle@gmail.com) Expert in:

◮ Runtime selection of parallel schedules ◮ Parallelization of binary code ◮ and more

Will graduate December 2011 Available January 2012 for a post-doc position
