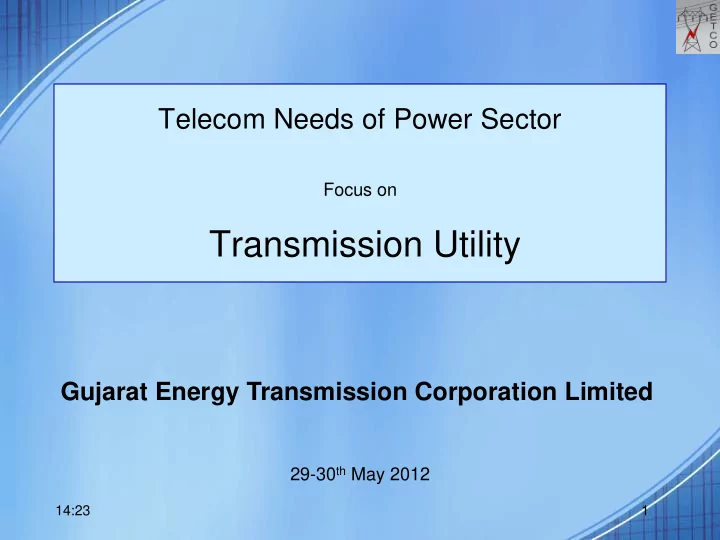

Telecom Needs of Power Sector

Focus on

Transmission Utility

29-30th May 2012

14:23 1

Gujarat Energy Transmission Corporation Limited

2

Contents

 Gujarat Power Network  Telecom Technologies

• Development, Utilization & Experience

 Tomorrow’s Needs  GETCO Telecom Plan and Strategy  Expectations from the Telecom solution providers

14:23 2

Total installed capacity of Gujarat: 18394MW*

(* including Wind farm capacity 2884 MW, Solar capacity 664 MW, Biomass capacity 31 MW)

14:23 3

4

GETCO Network

Sr. No. Voltage Class Substations (Nos.) Transmission Lines (cKM) 1 400 KV 11 3187 2 220 KV 79 14852 3 132 KV 49 4808 4 66 KV / 33 KV 1131 22177 Total 1270 45024

Transmission Elements Overview

14:23 4

5

Telecom Technologies – Development, Utilization & Experience

• Genesis for need of Telecom Technologies
• How it evolved?
• Where & which technologies we utilized?
• What is our experience?

14:23 5

6

Power Station Receiving Substation Transmission Sub Station Distribution Substation Distribution Grid Transmission Grid Sub Transmission Grid 14:23 Consumers

7

Transmission Sub Station Distribution Substation Transmission Grid Sub Transmission Grid 14:23

Electricity

Distribution Grid Power Station Receiving Substation Consumers

8

Power Station Receiving Substation Transmission Sub Station Distribution Substation Transmission Grid Sub Transmission Grid 14:23

Information Electricity

Distribution Grid Consumers

Consumers

9

Transmission Grid Sub Transmission Grid 14:23 Distribution Grid

Telephony PSTN* PLCC^

• Load Management
• Outages
• Talks on Operational events

Power Station Transmission Sub Station Distribution Substation * - Public Switched Telecom Network ^ - Power Line Carrier Communication

Distribution Substation Consumers

10

Transmission Grid Sub Transmission Grid 14:23 Distribution Grid Power Station Transmission Sub Station

Tele Printing PLCC

• Outage Messages
• Generation data
• Important & urgent

directives Load Dispatch Centre

Consumers

11

Distribution Substation Sub Transmission Grid 14:23 Distribution Grid Load Dispatch Centre Power Station Transmission Grid Receiving Substation Transmission Sub Station

Tele Protection PLCC

Carrier Inter trip

• Permissive trip
• Direct Trip

Consumers Distribution Grid

12

Distribution Substation Transmission Grid Sub Transmission Grid 14:23 Power Station Receiving Substation

• Power System data

Tele Metering PLCC

Load Dispatch Centre Transmission Sub Station

Consumers

13

Receiving Substation Transmission Sub Station Distribution Substation Transmission Grid Sub Transmission Grid 14:23 Distribution Grid Load Dispatch Centre Power Station Power Station Distribution Substation

• Communication with

Isolated locations

Telephony VHF HF Radio Satellite phone Micro waves

Load Dispatch Centre Distribution Substation Wind Farm

Consumers Distribution Grid

14

Power Station Transmission Grid Sub Transmission Grid 14:23 Receiving Substation Transmission Sub Station Distribution Substation

• Automated Energy

meter data pooling

DAS* PSTN Copper lines DAS*

Nodal Centre

Load Dispatch Centre Distribution Substation * - Data Acquisition System

GSM

Consumers

15

Transmission Grid Sub Transmission Grid 14:23 Power Station Receiving Substation Transmission Sub Station Distribution Substation

e-Urja

Corporate Data Centre

• Integration of

Organization functional activities

ERP* Leased Copper lines Micro Waves

Distribution Grid Load Dispatch Centre Distribution Substation * - Enterprise Resource Planning

Development of Telecom Technology - Summary

14:23 PTN PLCC VHF HF Radio Satellite Phone Micro Wave Micro Wave

Telephony Tele Printing Tele Protection Tele Metering DAS ERP

PSTN / Leased Copper line Cellular Mobiles 1st Generation 2nd Generation PSTN GSM

GETCO Experience

14:23

Public Switched Telecom Network

• The only source at that time
• Dependent on service provider
• Costlier

PLCC

• Dedicated & safe
• Part of Utilities own transmission

network

• No dependence on

service provider

• Ruled for years
• Now digital PLCC,

but same core technology

• Frequency congestion
• Limited band width

– Restricted data transmission

GETCO Experience

14:23

HF Radio

• Useful for long distance
• Disaster Management

(Massive earthquake in Kutch)

• Requires license

VHF

• Helped in natural calamities

(Massive earthquake in Kutch)

• Open mode
• No network jam
• No dependence on

service provider

• Simultaneous contact to many

users

• Very useful in Distribution System

for load management

• Requires license
• Up to limited distance

GETCO Experience

14:23

Micro waves

• Relatively low cost
• Wide bandwidth
• Requires License
• Requires Line of sight
• Weather dependent

Satellite Phone

• Disaster Management

(Massive earthquake in Kutch and flood in Surat)

• Useful for long distance
• Requires License
• Costlier

Leased copper lines

• Wide bandwidth
• More reliable
• Dependent on service provider

Tomorrow's Needs: Applications

14:23

Transmission Sub Station Distribution Substation Distribution Substation Consumers

21

Distribution Substation Transmission Grid Sub Transmission Grid 14:23 Distribution Grid Load Dispatch Centre Power Station

• Remote meter readings
• AMR* for ABT^ meters

Load Dispatch Centre * - Automatic Meter Reading ^ - Availability Based Tariff Receiving Substation Transmission Sub Station Consumers Solar Power Plant Wind Farm

Consumers Load Dispatch Centre

22

Distribution Substation Transmission Grid Sub Transmission Grid 14:23 Distribution Grid Load Dispatch Centre Power Station Distribution Substation

• Remote Control of Sub Stn
• Sub Stn Automation and

SCADA*

Distribution Substation * - Supervisory Control And Data Acquisition Transmission Sub Station Receiving Substation

Distribution Substation Distribution Substation Consumers

23

Distribution Substation Transmission Grid Sub Transmission Grid 14:23 Distribution Grid Load Dispatch Centre

• Monitoring Power System

health

• WAMS*

Load Dispatch Centre * Wide Area Monitoring System Receiving Substation Power Station Transmission Sub Station

Receiving Substation Transmission Sub Station Distribution Substation Distribution Substation Consumers

24

Distribution Substation Transmission Grid Sub Transmission Grid 14:23 Distribution Grid Load Dispatch Centre Power Station Solar Power Plant

• Monitoring Renewable

Energy

• Renewable Energy Integration

Load Dispatch Centre Wind Farm

Distribution Grid Power Station Consumers

25

Transmission Grid Sub Transmission Grid 14:23 Receiving Substation Transmission Sub Station Distribution Substation

Intra net

Corporate Data Centre

• Internal mass

communication

• Monitoring
• Daily Reports
• maintenance data
• Project Progress
• Online exam, etc

Intra Net

Load Dispatch Centre Distribution Substation

Distribution Grid Power Station Consumers

26

14:23 Receiving Substation Transmission Sub Station Distribution Substation

GIS*

Corporate Data Centre

• Long term benefits for
• maintenance,
• laying new lines and
• interface with other

agencies

GIS Mapping

Load Dispatch Centre Distribution Substation Transmission Grid Sub Transmission Grid * Geographical Information System

Tomorrow's Needs: Applications - Summary

14:23

Telephony Tele Printing Tele Protection Tele Metering DAS ERP

• Automatic Meter Reading for ABT meters
• Intra net
• Sub Station Automation & Remote Control of Sub station (i.e.

SCADA)

• Wide Area Monitoring System (WAMS)
• Renewable energy integration
• Video Conferencing, Operational Surveillance
• Geographical Information System (GIS) Mapping
• Distribution Automation (DA)
• SCADA
• Advanced metering infrastructure (AMI)
• Demand Response (DR)

+

Smart Grid Applications in Transmission Smart Grid Applications in Distribution

28

Tomorrow’s Needs - Features

14:23 28

Bulk data – Higher Band-width High Speed – Low latency High Reliability and Dependability Immune to EMI Data transmission over long distance Secure Redundancy Cost effective

Tomorrow's Needs: Solution

14:23

Telephony Tele Printing Tele Protection Tele Metering DAS ERP

• Automatic Meter Reading for ABT meters
• Intra net
• Sub Station Automation & Remote Control of Sub station

(i.e. SCADA)

• Wide Area Monitoring System (WAMS)
• Video Conferencing
• Geographical Information System (GIS) Mapping
• Enterprise Resource Planning (ERP)
• Distribution Automation (DA)
• SCADA
• Advanced metering infrastructure (AMI)
• Demand Response (DR)

+

3rd Generation Fiber Optics - FO cables in Ground wire OPGW

• No limitation in band-width –

huge transmission capacity

• Part of Transmission line -

Utilities own network

• Immune to interference
• No dependence on service provider
• Provides sufficient reserve capacity

to accommodate future expansion

30

GETCO Telecom Plan and Strategy

• Phasing out 1st & 2nd generation with 3rd generation technologies
• Installing OPGW on all new 400KV lines for Communication,

Protection, Control and SCADA (Digital Sub stations).

• Installing OPGW on strategic transmission network to provide

business opportunities.

• Developing communication network for WAMS
• Ownership basis
• Hiring basis.
• Going for GPRS connectivity for remote ABT meter reading.
• Opportunities from the transmission assets & business (consolidating

transmission assets into business units)

• Offering fiber and bandwidth on lease basis

14:23 30

31

Expectations from the telecom solution providers

• More manufacturers and suppliers should participate.
• It must be scalable.
• Modular design.
• IEC 61850 based Tele protection unit.
• Inter operability.
• Cost Effective

14:23 31
