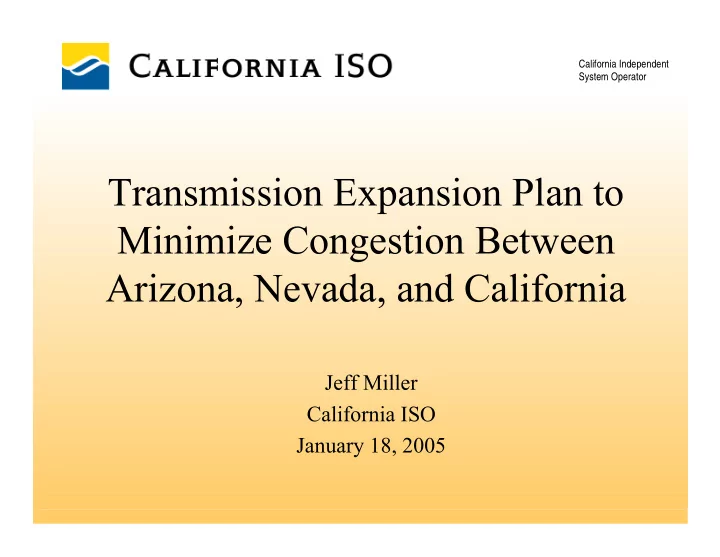

California Independent System Operator Transmission Expansion Plan to Minimize Congestion Between Arizona, Nevada, and California Jeff Miller California ISO January 18, 2005 California Independent System Operator Methodology PLEXOS

slide-1
SLIDE 1

California Independent System Operator

Transmission Expansion Plan to Minimize Congestion Between Arizona, Nevada, and California

Jeff Miller California ISO January 18, 2005

slide-2
SLIDE 2

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

2

Methodology

  • PLEXOS Production Cost Program

– Conducts an hour by hour simulation for an entire year – Models the full network using a DC powerflow

  • Assumes that the nonlinear system is linear
  • No vars, just MW so all ratings are in MW
  • Voltage and stability limits have to be translated to MW limits

– Goal is to minimize production cost (fuel and variable O&M)

  • Many simplifying assumptions - no wheeling rates, no

losses, no unit commitment

  • To ease analysis, chronological line flows are reordered by

magnitude to create flow duration curves

slide-3
SLIDE 3

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

3

What Can We Learn From Flow Duration Curves

  • Able to view an entire year of operation rather

than a snapshot like in a power flow case

  • Provides useful insight into the ratings that

planners study and achieve

  • Provides useful insights into the interaction

between different projects and different interfaces (i.e., the effect on WOR of an increase in EOR)

  • Useful for planning projects (line ratings, series

comp levels, etc.)

  • Helps in understanding economic study results
slide-4
SLIDE 4

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

4

Northern California IPP DC DC Intertie

DC 500 kV 345 kV 230 kV

Mexico Nevada Arizona Southern California

Palo Verde West West

  • f

River East

  • f

River

slide-5
SLIDE 5

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

5

Assumptions

  • 2008 SSG-WI assumptions with increased

renewables in California

  • Path 49 Upgrades

– Palo Verde-Devers #1 Series Capacitors Upgraded – Hassayampa-North Gila-Imperial Valley Series Capacitors Upgraded – 2nd Devers 500/230 kV Transformer added – SVC added at Devers

  • Miguel-Mission 230 kV line added
  • East of River limited to 8,055 MW
  • West of River Unconstrained
slide-6
SLIDE 6

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

6

Assumptions (continued)

  • Palo Verde West limited to 3600 MW
  • All 500 kV line ratings are respected
  • Mohave out of service
  • Mountainview, Palomar, and Otay Mesa in-

service

  • Additional renewables in California to meet

Renewable Portfolio Standard of 20%

slide-7
SLIDE 7

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

7

Sequence Studied

  • Step 1: Add EOR 9000 project (Mead-

Perkins and Navajo-Crystal Upgrade)

  • Step 2: Add Moenkopi-Eldorado series

capacitor upgrade

  • Step 3: Add Palo Verde-Devers #2
slide-8
SLIDE 8

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

8

Northern California IPP DC DC Intertie

DC 500 kV 345 kV 230 kV

Mexico Nevada Arizona Southern California

Palo Verde West West

  • f

River East

  • f

River Today’s Limits

slide-9
SLIDE 9

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

9

Northern California IPP DC DC Intertie

DC 500 kV 345 kV 230 kV

Mexico Nevada Arizona Southern California

Palo Verde West West

  • f

River East

  • f

River June 2006 Limits After Path 49 Upgrades

slide-10
SLIDE 10

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

10

Step 1 - Implement EOR 9000

  • Increased capability of Mead-Perkins from

1238 MW to 1905 MW

  • Increased capability of Navajo-Crystal from

1411 MW to 1808 MW

  • Increased East of River path rating from

8055 MW to 9300 MW

slide-11
SLIDE 11

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

11

EOR Flow - Before and After Upgrade

1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

East of River

slide-12
SLIDE 12

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

12 WOR Flow - Before and After Upgrade

2000 4000 6000 8000 10000 12000 14000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

West of River

slide-13
SLIDE 13

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

13 PV West & PV Devers Flow - Before and After Upgrade

500 1000 1500 2000 2500 3000 3500 4000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Palo Verde West

slide-14
SLIDE 14

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

14 Perkins to Mead Flow - Before and After Upgrade

  • 500

500 1000 1500 2000 2500 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Perkins-Mead 500 kV

slide-15
SLIDE 15

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

15 Navajo to Crystal Flow - Before and After Upgrade

200 400 600 800 1000 1200 1400 1600 1800 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Navajo-Crystal 500 kV

slide-16
SLIDE 16

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

16 Moenkopi to Eldorado Flow - Before and After Upgrade

200 400 600 800 1000 1200 1400 1600 1800 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Moenkopi-Eldorado 500 kV

slide-17
SLIDE 17

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

17

W ith u p g ra d e

  • S

C IT v s . E O R

2 4 6 8 1 1 2 1 4 1 6 1 8 1 2 3 4 5 6 7 8 9 1 E a s t o f R iv e r Southern California Import

SCIT Nomogram Flows

slide-18
SLIDE 18

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

18

EOR 9000 Observations

  • EOR flows increase by approximately 1000 MW

to 9000 MW

  • WOR reaches 11,800 MW
  • PV West is heavily congested (30% of the time)
  • Perkins-Mead remains congested even after the

upgrade to 1905 MW (8% of the time)

  • Moenkopi-Eldorado is heavily congested (35% of

the time)

slide-19
SLIDE 19

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

19

Northern California IPP DC DC Intertie

DC 500 kV 345 kV 230 kV

Mexico Nevada Arizona Southern California

Palo Verde West East

  • f

River 2008 Limits After EOR 9000

slide-20
SLIDE 20

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

20

Step 2 – Upgrade Moenkopi-Eldorado

  • Increase capability of Moenkopi-Eldorado

from 1645 MW to 2000 MW

slide-21
SLIDE 21

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

21 Moenkopi to Eldorado Flow - Before and After Upgrade

500 1000 1500 2000 2500 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Moenkopi-Eldorado 500 kV

slide-22
SLIDE 22

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

22 EOR Flow - Before and After Upgrade

1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

East of River

slide-23
SLIDE 23

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

23 WOR Flow - Before and After Upgrade

2000 4000 6000 8000 10000 12000 14000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

West of River

slide-24
SLIDE 24

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

24 PV West & PV Devers Flow - Before and After Upgrade

500 1000 1500 2000 2500 3000 3500 4000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Palo Verde West

slide-25
SLIDE 25

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

25 Perkins to Mead Flow - Before and After Upgrade

  • 500

500 1000 1500 2000 2500 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Perkins-Mead 500 kV

slide-26
SLIDE 26

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

26

W ith u p g ra d e

  • S

C IT v s . E O R

2 4 6 8 1 1 2 1 4 1 6 1 8 1 2 3 4 5 6 7 8 9 1 E a s t o f R iv e r Southern California Import

SCIT Nomogram Flows

slide-27
SLIDE 27

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

27

Moenkopi-Eldorado Upgrade Observations

  • EOR flows increased from 9000 MW to

9300+ MW

  • WOR not significantly changed (11,800

MW)

  • Palo Verde West is heavily congested (35%
  • f the time)
  • Perkins-Mead is heavily congested (20% of

the time)

slide-28
SLIDE 28

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

28

Northern California IPP DC DC Intertie

DC 500 kV 345 kV 230 kV

Mexico Nevada Arizona Southern California

Palo Verde West East

  • f

River 2008 Limits After Moenkopi- Eldorado Upgrade

slide-29
SLIDE 29

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

29

Step 3 – Add Palo Verde-Devers #2

  • Add project line with 2338 MW rating and

associated upgrades

  • Increased EOR path rating by 1200 MW

(from 9300 MW to 10,500 MW)

  • Increased PV West by 1800 MW (from

3600 MW to 5400 MW)

slide-30
SLIDE 30

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

30 EOR Flow - Before and After Upgrade

2000 4000 6000 8000 10000 12000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

East of River

slide-31
SLIDE 31

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

31 WOR Flow - Before and After Upgrade

2000 4000 6000 8000 10000 12000 14000 16000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

West of River

slide-32
SLIDE 32

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

32 PV West & PV Devers Flow - Before and After Upgrade

1000 2000 3000 4000 5000 6000 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Palo Verde West

slide-33
SLIDE 33

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

33 Perkins to Mead Flow - Before and After Upgrade

  • 500

500 1000 1500 2000 2500 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% % hours above Flow Flow (MW) No Upgrade With Upgrade

Perkins-Mead 500 kV

slide-34
SLIDE 34

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

34

W ith u p g ra d e

  • S

C IT v s . E O R

2 4 6 8 1 1 2 1 4 1 6 1 8 2 2 4 6 8 1 1 2 E as t o f R iv e r Southern California Import

SCIT Nomogram Flows

slide-35
SLIDE 35

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

35

Palo Verde-Devers #2 Observations

  • EOR flows increased from 9300+ MW to

10,500+ MW

  • EOR congestion increases from 5% to 10%
  • f the time even after rating increase
  • Palo Verde West is no longer congested
  • Perkins-Mead congestion is reduced (15%

to 20% of the time)

slide-36
SLIDE 36

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

36

Northern California IPP DC DC Intertie

DC 500 kV 345 kV 230 kV

Mexico Nevada Arizona Southern California

Palo Verde West East

  • f

River 2009 Limits After Palo Verde- Devers #2

slide-37
SLIDE 37

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

37

Overall Observations

slide-38
SLIDE 38

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

38

EOR 9000 Project Observations

  • The EOR 9000 project should be expanded to include the

upgrade of the Moenkopi-Eldorado 500 kV line

– Without this addition, the Moenkopi-Eldorado line would be very heavily congested – Without this addition, the economic studies indicate that an EOR rating of approximately 9000 MW could be utilized – With this addition, the economic studies indicate that an EOR rating of approximately 9500 MW could be utilized

  • The EOR 9000 project should investigate the potential for

increasing the capability of the Perkins-Mead line beyond the present plan for 1905 MW (2200 amperes)

slide-39
SLIDE 39

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

39

Palo Verde-Devers #2 Project Observations

  • The PVD2 project could potentially increase the utilization
  • f the EOR path by more than the proposed 1200 MW

rating increase (potentially as much as 2000 MW).

– Double line outage concerns (PV-Devers 1&2) may reduce PV West capability from 5400 MW to as low as 4500 MW and make this infeasible

  • The EOR 9000 project and the Palo Verde-Devers #2

project are complimentary and function well together

  • The addition of both the PVD2 project and the EOR 9000

project would eliminate the majority of the major path congestion in the STEP/SWAT area.

slide-40
SLIDE 40

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

40

EOR Path Rating Observations

  • A 9,000 MW EOR rating appears to be an

appropriate objective after the EOR 9000 project

  • With the addition of the Moenkopi-Eldorado

upgrade to the EOR 9000 project, a 9,500 MW EOR rating appears to be an appropriate objective

  • With the addition of the PVD2 project, a 11,500

MW EOR rating appears to be an appropriate

  • bjective(a 2,000 MW increase)
  • Qualification -- Achieving these path ratings may

prove to be technically infeasible or uneconomic

slide-41
SLIDE 41

California Independent System Operator

\CAISO\jmiller MSC Meeting, 1/18/2005

41

WOR Path Rating Study Observations

  • After the addition of the Path 49 upgrades, a 11,800 MW

WOR rating appears to be an appropriate objective (a 1,682 MW increase from the current 10,118 MW)

  • This 11,800 MW WOR path rating would also be

sufficient after the addition of the EOR 9000 project (with

  • r without the Moenkopi-Eldorado upgrade)
  • With the addition of the PVD2 project, a 13,800 MW

WOR rating appears to be an appropriate objective (a 2,000 MW increase from 11,800 MW)

  • Achieving these path ratings may prove to be technically

infeasible or uneconomic

slide-42
SLIDE 42

California Independent System Operator

Questions?
