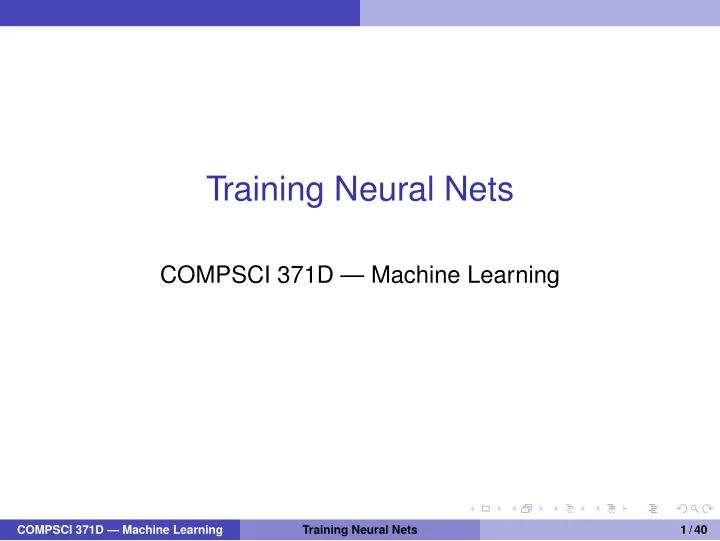

SLIDE 1

Training Neural Nets

COMPSCI 371D — Machine Learning

COMPSCI 371D — Machine Learning Training Neural Nets 1 / 40

SLIDE 2

Outline

1 The Softmax Simplex 2 Loss and Risk 3 Back-Propagation 4 Stochastic Gradient Descent 5 Regularization 6 Network Depth and Batch Normalization 7 Experiments with SGD

COMPSCI 371D — Machine Learning Training Neural Nets 2 / 40

SLIDE 3

The Softmax Simplex

Neural-net classifier: ˆ

y = h(x) : Rd → Y

The last layer of a neural net used for classification is a

soft-max layer p = σ(z) =

exp(z) 1T exp(z)

The net is p = f(x, w) : X → P
The classifier is ˆ

y = h(x) = arg max p = arg max f(x, w)

P is the set of all nonnegative real-valued vectors p ∈ Re

whose entries add up to 1 (with e = |Y|): P

def

= {p ∈ Re : p ≥ 0 and

e

i=1

pi = 1} .

COMPSCI 371D — Machine Learning Training Neural Nets 3 / 40

SLIDE 4

The Softmax Simplex

P

def

= {p ∈ Re : p ≥ 0 and e

i=1 pi = 1}

p

1

p

2

1 1 1/2 1/2

1/3 1/3 1/3 1 1 1 p

3

p

1

p

2

Decision regions are polyhedral:

Pc = {pc ≥ pj for j = c} for c = 1, . . . , e

A network transforms images into points in P

COMPSCI 371D — Machine Learning Training Neural Nets 4 / 40

SLIDE 5

Loss and Risk

Loss and Risk (D´ ej` a Vu)

Ideal loss would be 0-1 loss on network output ˆ

y

0-1 loss is constant where it is differentiable!
Not useful for computing a gradient
Use cross-entropy loss on the softmax output p as a proxy

loss ℓ(y, p) = − log py

Non-differentiability of ReLU or max-pooling is minor

(pointwise), and typically ignored

Risk, as usual:

LT(w) = 1

N

n=1 ℓn(w)

where ℓn(w) = ℓ(yn, f(xn, w))

We need ∇LT(w) and therefore ∇ℓn(w)

COMPSCI 371D — Machine Learning Training Neural Nets 5 / 40

SLIDE 6

Back-Propagation

(1)

f f (2) f (3) w(1) w(2) w(3)

(1)

x

(2)

x

(3)

x = p

(0)

xn x = l n

n

y l

We need ∇LT(w) and therefore ∇ℓn(w) = ∂ℓn

∂w

Computations from x to ℓn form a chain
Apply the chain rule
Every derivative of ℓn w.r.t. layers before k goes through x(k)

∂ℓn ∂w(k) = ∂ℓn ∂x(k) ∂x(k) ∂w(k) ∂ℓn ∂x(k−1) = ∂ℓn ∂x(k) ∂x(k) ∂x(k−1)

(recursion!)

Start:

∂ℓn ∂x(K) = ∂ℓ ∂p

COMPSCI 371D — Machine Learning Training Neural Nets 6 / 40

SLIDE 7

Back-Propagation

Local Jacobians

(1)

f f (2) f (3) w(1) w(2) w(3)

(1)

x

(2)

x

(3)

x = p

(0)

xn x = l n

n

y l

Local computations at layer k:

∂x(k) ∂w(k)

and

∂x(k) ∂x(k−1)

Partial derivatives of f (k) with respect to layer weights and

input to the layer

Local Jacobian matrices, can compute by knowing what the

layer does

The start of the process can be computed from knowing the

loss function,

∂ℓn ∂x(K) = ∂ℓ ∂p

Another local Jacobian
The rest is going recursively from output to input, one layer

at a time, accumulating

∂ℓn ∂w(k) into a vector ∂ℓn ∂w

COMPSCI 371D — Machine Learning Training Neural Nets 7 / 40

SLIDE 8

Back-Propagation

The Forward Pass

(1)

f f (2) f (3) w(1) w(2) w(3)

(1)

x

(2)

x

(3)

x = p

(0)

xn x = l n

n

y l

All local Jacobians,

∂x(k) ∂w(k)

and

∂x(k) ∂x(k−1), are computed

numerically for the current values of weights w(k) and layer inputs x(k−1)

Therefore, we need to know x(k−1) for training sample n and

for all k

This is achieved by a forward pass through the network:

Run the network on input xn and store x(0) = xn, x(1), . . .

COMPSCI 371D — Machine Learning Training Neural Nets 8 / 40

SLIDE 9

Back-Propagation

Back-Propagation Spelled Out for K = 3

(1)

f f (2) f (3) w(1) w(2) w(3)

(1)

x

(2)

x

(3)

x = p

(0)

xn x = l n

n

y l

∂ℓn ∂w(k) = ∂ℓn ∂x(k) ∂x(k) ∂w(k) ∂ℓn ∂x(k−1) = ∂ℓn ∂x(k) ∂x(k) ∂x(k−1)

(after forward pass)

∂ℓn ∂x(3) = ∂ℓ ∂p ∂ℓn ∂w(3) = ∂ℓn ∂x(3) ∂x(3) ∂w(3) ∂ℓn ∂x(2) = ∂ℓn ∂x(3) ∂x(3) ∂x(2) ∂ℓn ∂w(2) = ∂ℓn ∂x(2) ∂x(2) ∂w(2) ∂ℓn ∂x(1) = ∂ℓn ∂x(2) ∂x(2) ∂x(1) ∂ℓn ∂w(1) = ∂ℓn ∂x(1) ∂x(1) ∂w(1)

∂ℓn

∂x(0) = ∂ℓn ∂x(1) ∂x(1) ∂x(0)

∂ℓn

∂w =

     

∂ℓn ∂w(1) ∂ℓn ∂w(2) ∂ℓn ∂w(3)

     

(Jacobians in blue are local, those in red are what we want eventually)

COMPSCI 371D — Machine Learning Training Neural Nets 9 / 40

SLIDE 10

Back-Propagation

Computing Local Jacobians

∂x(k) ∂w(k) and ∂x(k) ∂x(k−1)

Easier to make a “layer” as simple as possible
z = Vx + b is one layer (Fully Connected (FC), affine part)
z = ρ(x)

(ReLU) is another layer

Softmax, max-pooling, convolutional,...

COMPSCI 371D — Machine Learning Training Neural Nets 10 / 40

SLIDE 11

Back-Propagation

Local Jacobians for a FC Layer

z = Vx + b

∂z

∂x = V (easy!)

∂z

∂w: What is ∂z ∂V ? Three subscripts: ∂zi ∂vjk .

A 3D tensor?

For a general package, tensors are the way to go
Conceptually, it may be easier to vectorize everything:

V = v11 v12 v13 v21 v22 v23

, b =

b1 b2

→

w = [v11, v12, v13, v21, v22, v23, b1, b2]T

∂z

∂w is a 2 × 8 matrix

With e outputs and d inputs, an e × e(d + 1) matrix

COMPSCI 371D — Machine Learning Training Neural Nets 11 / 40

SLIDE 12

Back-Propagation

Jacobianw for a FC Layer

z1 z2

=

w1 w2 w3 w4 w5 w6   x1 x2 x3   + w7 w8

Don’t be afraid to spell things out:

z1 = w1x1 + w2x2 + w3x3 + w7 z2 = w4x1 + w5x2 + w6x3 + w8

∂z ∂w =

∂z1

∂w1 ∂z1 ∂w2 ∂z1 ∂w3 ∂z1 ∂w4 ∂z1 ∂w5 ∂z1 ∂w6 ∂z1 ∂w7 ∂z1 ∂w8 ∂z2 ∂w1 ∂z2 ∂w2 ∂z2 ∂w3 ∂z2 ∂w4 ∂z2 ∂w5 ∂z2 ∂w6 ∂z2 ∂w7 ∂z2 ∂w8

∂z

∂w =

x1 x2 x3 1 x1 x2 x3 1

Obvious pattern: Repeat xT, staggered, e times
Then append the e × e identity at the end

COMPSCI 371D — Machine Learning Training Neural Nets 12 / 40

SLIDE 13

Stochastic Gradient Descent

Training

Local gradients are used in back-propagation
So we now have ∇LT(w)
ˆ

w = arg min LT(w)

LT(w) is (very) non-convex, so we look for local minima
w ∈ Rm with m very large: No Hessians
Gradient descent
Even so, every step calls back-propagation N = |T| times
Back-propagation computes m derivatives ∇ℓn(w)
Computational complexity is Ω(mN) per step
Even gradient descent is way too expensive!

COMPSCI 371D — Machine Learning Training Neural Nets 13 / 40

SLIDE 14

Stochastic Gradient Descent

No Line Search

Line search is out of the question
Fix some step multiplier α, called the learning rate

wt+1 = wt − α∇LT(wt)

How to pick α? Cross-validation is too expensive
Tradeoffs:
α too small: Slow progress
α too big: Jump over minima
Frequent practice:
Start with α relatively large, and monitor LT(w)
When LT(w) levels off, decrease α
Alternative: Fixed decay schedule for α
Better (recent) option: Change α adaptively

(Adam, 2015)

COMPSCI 371D — Machine Learning Training Neural Nets 14 / 40

SLIDE 15

Stochastic Gradient Descent

Manual Adjustment of α

Start with α relatively large, and monitor LT(wt)
When LT(wt) levels off, decrease α
Typical plots of LT(wt) versus iteration index t:

risk

COMPSCI 371D — Machine Learning Training Neural Nets 15 / 40

SLIDE 16

Stochastic Gradient Descent

Batch Gradient Descent

∇LT(w) = 1

N

n=1 ∇ℓn(w) .

Taking a macro-step −α∇LT(wt) is the same as

taking the N micro-steps − α

N ∇ℓ1(wt), . . . , − α N ∇ℓN(wt)

First compute all the N steps at wt, then take all the steps
Thus, standard gradient descent is a batch method:

Compute the gradient at wt using the entire batch of data, then move

Even with no line search, computing N micro-steps is still

expensive

COMPSCI 371D — Machine Learning Training Neural Nets 16 / 40

SLIDE 17

Stochastic Gradient Descent

Stochastic Descent

Taking a macro-step −α∇LT(wt) is the same as

taking the N micro-steps − α

N ∇ℓ1(wt), . . . , − α N ∇ℓN(wt)

First compute all the N steps at wt, then take all the steps
Can we use this effort more effectively?
Key observation: −∇ℓn(w) is a poor estimate of −∇LT(w),

but an estimate all the same: Micro-steps are correct on average!

After each micro-step, we are on average in a better place
How about computing a new micro-gradient after every

micro-step?

Now each micro-step gradient is evaluated at a point that is
n average better (lower risk) than in the batch method

COMPSCI 371D — Machine Learning Training Neural Nets 17 / 40

SLIDE 18

Stochastic Gradient Descent

Batch versus Stochastic Gradient Descent

sn(w) = − α

N ∇ℓn(w)

Batch:
Compute s1(wt), . . . , sN(wt)
Move by s1(wt), then s2(wt), . . . then sN(wt)

(or equivalently move once by s1(wt) + . . . + sN(wt))

Stochastic (SGD):
Compute s1(wt), then move by s1(wt) from wt to w(1)

t

Compute s2(w(1)

t

), then move by s2(w(1)

t

) from w(1)

t

to w(2)

t

. . .

Compute sN(w(N−1)

t

), then move by sN(w(N−1)

t

) from w(N−1)

t

to w(N)

t

= wt+1

In SGD, each micro-step is taken from a better (lower risk)

place on average

COMPSCI 371D — Machine Learning Training Neural Nets 18 / 40

SLIDE 19

Stochastic Gradient Descent

Why “Stochastic?”

Progress occurs only on average
Many micro-steps are bad, but they are good on average
Progress is a random walk

https://towardsdatascience.com/ COMPSCI 371D — Machine Learning Training Neural Nets 19 / 40

SLIDE 20

Stochastic Gradient Descent

Reducing Variance: Mini-Batches

Each data sample is a poor estimate of T: High-variance

micro-steps

Each micro-step take full advantage of the estimate, by

moving right away: Low-bias micro-steps

High variance may hurt more than low bias helps
Can we lower variance at the expense of bias?
Average B samples at a time: Take mini-steps
With bigger B,
Higher bias
Lower variance
The B samples are a mini-batch

COMPSCI 371D — Machine Learning Training Neural Nets 20 / 40

SLIDE 21

Stochastic Gradient Descent

Mini-Batches

Scramble T at random
Divide T into J mini-batches Tj of size B
w(0) = w
For j = 1, . . . , J:
Batch gradient:

gj = ∇LTj(w(j−1)) = 1

B

jB

n=(j−1)B+1 ∇ℓn(w(j−1))

Move:

w(j) = w(j−1) − αgj

This for loop amounts to one macro-step
Each execution of the entire loop uses the training data
nce
Each execution of the entire loop is an epoch
Repeat over several epochs until a stopping criterion is met

COMPSCI 371D — Machine Learning Training Neural Nets 21 / 40

SLIDE 22

Stochastic Gradient Descent

Momentum

Sometimes w(j) meanders around in shallow valleys

200 400 600 800 1000 1200 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

No α adjustment here

α is too small, direction is still promising
Add momentum

v0 = 0 v(j+1) = µ(j)v(j) − α∇LT(w(j)) (0 ≤ µ(j) < 1) w(j+1) = w(j) + v(j+1)

COMPSCI 371D — Machine Learning Training Neural Nets 22 / 40

SLIDE 23

Regularization

The capacity of deep networks is very high: It is often

possible to achieve near-zero training loss

“Memorize the training set”

⇒

verfitting
All training methods use some type of regularization
Regularization can be seen as inductive bias: Bias the

training algorithm to find weights with certain properties

Simplest method: weight decay, add a term λw2 to the

loss function: Keep the weights small (Tikhonov)

Many proposals have been made
Not yet clear which method works best, a few proposals

follow

COMPSCI 371D — Machine Learning Training Neural Nets 23 / 40

SLIDE 24

Regularization

Early Termination

Terminating training well before the LT is minimized is

somewhat similar to “implicit” weight decay

Progress at each iteration is limited, so stopping early keeps

us close to w0, which is a set of small random weights

Therefore, the norm of wt is restrained, albeit in terms of

how long the learner takes to get there rather than in absolute terms

A more informed approach to early termination stops when

a validation risk (or, even better, error rate) stops declining

This is arguably the most widely used regularization method

COMPSCI 371D — Machine Learning Training Neural Nets 24 / 40

SLIDE 25

Regularization

Dropout

Dropout inspired by ensemble methods (random forests):

Regularize by averaging multiple predictors

Key difficulty: It is too expensive to train an ensemble of

deep neural networks

Efficient (crude!) approximation:
Before processing a new mini-batch, flip a coin with

P[heads] = p (typically p = 1/2) for each neuron

Turn off the neurons for which the coin comes up tails
Restore all neurons at the end of the mini-batch
When training is done, multiply all weights by p
This is very loosely akin to training a different network for

every mini-batch

Multiplication by p takes the “average” of all networks
There are flaws in the reasoning, but the method works

COMPSCI 371D — Machine Learning Training Neural Nets 25 / 40

SLIDE 26

Regularization COMPSCI 371D — Machine Learning Training Neural Nets 26 / 40

SLIDE 27

Regularization

Data Augmentation

Data augmentation is not a regularization method, but

combats overfitting

Make new training data out of thin air
Given data sample (x, y), create perturbed copies x1, . . . , xk
f x (these have the same label!)
Add samples (x1, y), . . . , (xk, y) to training set T
With images this is easy. The xis are cropped, rotated,

stretched, re-colored, . . . versions of x

One training sample generates k new ones
T grows by a factor of k + 1
Very effective, used almost universally
Need to use realistic perturbations

COMPSCI 371D — Machine Learning Training Neural Nets 27 / 40

SLIDE 28

Network Depth and Batch Normalization

Current Trend: Go Deeper

If the output of the last layer comes from a ReLU, it is

nonnegative

Therefore, an additional layer, even with ReLU, can

implement the identity by setting V = I and b = 0

Therefore, more layers give more capacity (expressive

power)

So, why not go deeper?
Two problems with greater capacity:
Overfitting
Vanishing or exploding gradients
Overfitting can be controlled by regularization

COMPSCI 371D — Machine Learning Training Neural Nets 28 / 40

SLIDE 29

Network Depth and Batch Normalization

Vanishing or Exploding Gradients

(1)

f f (2) f (3) w(1) w(2) w(3)

(1)

x

(2)

x

(3)

x = p

(0)

xn x = l n

n

y l

The recursion

∂ℓn ∂x(k−1) = ∂ℓn ∂x(k) ∂x(k) ∂x(k−1)

yields

∂ℓn ∂x(i) = ∂ℓn ∂x(K) ∂x(K) ∂x(K−1) . . . ∂x(i+1) ∂x(i) = ∂ℓn ∂x(K)JK · . . . · Ji+1

Feedback signal (gradient) from loss ℓn to layer i, and

therefore also

∂ℓn ∂w(i) = ∂ℓn ∂x(i) ∂x(i) ∂w(i), depends on the product

J(i) = JK · . . . · Ji+1 of layer Jacobians

det(J(i)) = det(JK) · . . . · det(Ji+1) determines (pun intended)

the magnitude of the gradient

Vanishing gradients choke information flow: No progress in

early layers

Exploding gradients cause instability during training

COMPSCI 371D — Machine Learning Training Neural Nets 29 / 40

SLIDE 30

Network Depth and Batch Normalization

Batch Normalization

Ideally, we would like the norms of all activations

x(0), . . . , x(K) to be equal (det(Ji) ≈ 1)

Suppose that we could interpose a layer βk between layers

k and k + 1 that subtracts the mean of all possible outputs x(k) from layer k and divides by their standard deviation: ˆ x(c)

k

=

x(c)

k

−µ(c)

k

σ(c)

k

for component c of xk

Then, layer k together with βk has normalized outputs
If we do this for all layers, all layers transform normalized

inputs to normalized outputs

Problem 1: We don’t know “all possible outputs x(k) from

layer k” because the network changes during training

Problem 2: We limit the expressive power of the network

COMPSCI 371D — Machine Learning Training Neural Nets 30 / 40

SLIDE 31

Network Depth and Batch Normalization

Batch Normalization

Normalize each activation by an estimate of its mean and

standard deviation

During training, compute the estimate over each mini-batch
During inference, use the the mean estimate over all

mini-batches

Let x be a scalar activation just before a non-linearity
Let µ, σ be the sample mean and standard deviation of x
ver the current mini-batch
Pass x through a Batch Normalization (BN) module that
Normalizes each component of x:

ˆ x = x−µ

σ

Computes z = γˆ

x + β

The learnable parameters γ and β restore the layer’s

expressive power

COMPSCI 371D — Machine Learning Training Neural Nets 31 / 40

SLIDE 32

Network Depth and Batch Normalization

Normalization and De-Normalization

Wait, what? What is the point of normalizing x to ˆ

x = x−µ

σ

and then let the network undo the normalization by z = γˆ x + β?

Why we must do this: If we don’t, we restrict the expressive

power of the layer

Why we can do this: The de-normalization is local
If, say, γ = 2 in layer k, then mini-batch inputs to layer k + 1

are twice as large, and will be normalized again by a σ that is also twice as big

BN in layer k accounts for all the γs in previous layers
The γs in different layers do not multiply

COMPSCI 371D — Machine Learning Training Neural Nets 32 / 40

SLIDE 33

Network Depth and Batch Normalization

Example

Only look at standard deviations for simplicity

(Similar considerations hold for means)

Start with γ1 = 1 in layer 1
Outputs of layer 2 have standard deviation σ2 before BN
Now change γ1 to γ′

1 = 2

Outputs from layer 2 now have σ′

2 = 2σ2 before BN

They are twice as big, but BN divides them by a standard

deviation that is twice as big as well

µ, σ statistics of the outputs from layer 2 are unchanged

after BN

Key point: γ1, β1 affect µ2, σ2

COMPSCI 371D — Machine Learning Training Neural Nets 33 / 40

SLIDE 34

Network Depth and Batch Normalization

Going Deeper

With batch normalization, gradients are tame
Need to compute BN Jacobians for back-propagation
Need to store estimates of µ, σ for inference
Everything else remains the same
Network depth is no longer a problem for training
Regularization reduces overfitting for deep networks
Networks with BN often have tens or hundreds of layers
A network with 1000 layers was shown to be trainable

Deep Residual Learning for Image Recognition, He et al., ArXiv, 2015

Of course, regularization and data augmentation are now

even more crucial

COMPSCI 371D — Machine Learning Training Neural Nets 34 / 40

SLIDE 35

Experiments with SGD

SGD is difficult to analyze because the risk depends on

many samples and in many dimensions: LT(w) = 1

N

n=1 ℓn(w)

Xing et al., A Walk with SGD, ArXiv, 2018, gives some

insights (optional reading)

Main (empirical) results:
SGD spends quite a bit of time bouncing between the walls
f descending canyons with debris at the bottom
A greater learning rate helps stay away from the bottom
Stochasticity from mini-batches helps move along, rather

than oscillating in place

COMPSCI 371D — Machine Learning Training Neural Nets 35 / 40

SLIDE 36

Experiments with SGD

Is the Risk Landscape a Wadi?

Full gradient, no momentum: wt+1 = wt − α∇LT(wt)
Plotted ten points of LT(w) between wt and wt+1
Parameter Distance is wt − w0

COMPSCI 371D — Machine Learning Training Neural Nets 36 / 40

SLIDE 37

Experiments with SGD

Reducing α Brings to the Bottom

Height over floor: ht = LT (wt)+LT (wt+1)

2

− minw∈[wt,wt+1] LT(w)

w

t t+1

w L (

T

) L (

T

) ht

Typical averages (see paper for variances):

α Epoch 1 Epoch 10 Epoch 25 0.1 0.0625 0.0199 0.0104 0.05 0.0102 0.0050 0.0035

Smaller α

⇒ More likely to get stuck in the debris

COMPSCI 371D — Machine Learning Training Neural Nets 37 / 40

SLIDE 38

Experiments with SGD

Stochasticity Reduces In-Place Oscillations

Minibatch Size N = 10, 000 Minibatch Size 100

CIFAR-10, α = 0.1
Many more variants in the paper, similar results

COMPSCI 371D — Machine Learning Training Neural Nets 38 / 40

SLIDE 39

Experiments with SGD

Flatter Minima Seem to Generalize Better

The spectral norm of a square positive semidefinite matrix

is the square root of its largest eigenvalue

A Hessian with large spectral norm indicates a deep

minimum (high curvature)

Spectral norm correlates negatively with validation accuracy
Shallow minima seem to generalize better
Caveat: Some literature shows that deep minima can

generalize well, too

COMPSCI 371D — Machine Learning Training Neural Nets 39 / 40

SLIDE 40

Experiments with SGD

Thoughts about Xing et al.

Much more analysis in the paper
Main points:
A large learning rate helps avoid local traps
Stochasticity from mini-batches prevents in-place oscillations
Flatter minima seem to generalize better
Experiments are done well, across datasets and with error

bars

Analysis combines landscape properties and SGD behavior
Separating these factors would be nice but hard, as there is

“too much space out there”

Empirical data are best used as observations to spark

theoretical conjectures

COMPSCI 371D — Machine Learning Training Neural Nets 40 / 40
