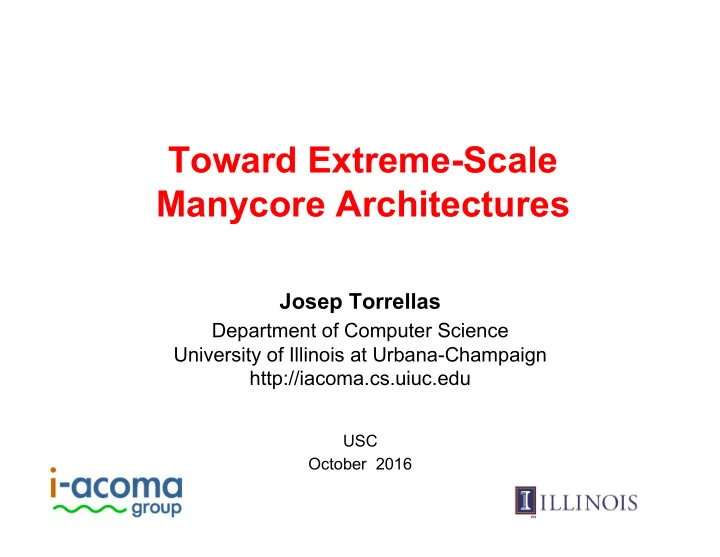

Toward Extreme-Scale Manycore Architectures

Josep Torrellas

Department of Computer Science University of Illinois at Urbana-Champaign http://iacoma.cs.uiuc.edu

USC October 2016

slide-2
SLIDE 2

2

Accelerated Progress in Transistor Integration

  • Large multicores for data centers

and cloud

Intel Xeon Phi 7290F (Oct 2016) 72 cores, 288 contexts, 260W Intel 3D Xpoint memory

  • 3D stacked chips

Micron’s Hybrid Memory Cube

slide-3
SLIDE 3

3

Research is Pushing Ever Farther Ahead

Heat ¡Sink Integrated ¡Heat ¡Spreader ¡(IHS) Thermal ¡Interface ¡Material ¡(TIM) Motherboard Processor ¡Silicon Processor ¡Frontside Metal ¡(Cu) DRAM ¡Frontside Metal ¡(Al) DRAM ¡Silicon Die ¡to ¡Die ¡(D2D) ¡Layer Through ¡Silicon ¡Vias (TSVs) C4 ¡pads

  • Research on stacking multiple

processor and memory dies

Runnemede prototype [HPCA-13]

  • More integration à 1,000 cores/chip
slide-4
SLIDE 4

Josep Torrellas Toward Extreme Scale… 4

Meanwhile: Power Wall… and Performance Wall

Performance: 11 PF Power: 6-11 MW (idle to loaded) 1MW = $1M per year electricity

  • University of Illinois Blue Waters Supercomputer

and Performance Wall

  • Technology improvements in speed

and power slowing down

Computer architecture innovations become strategic

à

slide-5
SLIDE 5

Josep Torrellas Toward Extreme Scale…

All at the same time

5

  • Very high energy efficiency
  • Faster communication and synchronization
  • Ease of programming

What We Need

slide-6
SLIDE 6

Josep Torrellas Toward Extreme Scale… 6

Today’s Discussion

  • Focus: Reducing the cost of basic primitives for parallelism
  • Flavor of other challenges: energy, programmability
slide-7
SLIDE 7

Josep Torrellas Toward Extreme Scale… 7

Quest

Making synchronization inexpensive

slide-8
SLIDE 8

Josep Torrellas Toward Extreme Scale… 8

Making Synchronization Inexpensive

  • Scalable concurrent priority queues

QueueHead node node node node

  • Breaking serialization in lock-free synchronization

x

Compare&Swap(CAS) CAS CAS CAS CAS [ISCA-13][ASPLOS-15][ASPLOS-16]

wr x rd z wr y rd x wr z rd y fence fence fence

  • Make memory fences free
slide-9
SLIDE 9

Josep Torrellas Toward Extreme Scale… 9

Making Synchronization Inexpensive

  • Make memory fences free (WeeFence)
  • Breaking serialization in lock-free synchronization
  • Scalable concurrent priority queues

wr x rd z wr y rd x wr z rd y fence fence fence

[ISCA-13]

slide-10
SLIDE 10

Josep Torrellas Toward Extreme Scale…

Fence: a Primitive for Parallelism

  • Instruction inserted by programmers or compilers
  • Prevents the compiler and HW from reordering memory accesses

10

Until these are finished

  • reads retired
  • writes retired + drained from write buffer

Cannot be observed by another processor

Write y Fence Read x Read z

Time

slide-11
SLIDE 11

Josep Torrellas Toward Extreme Scale…

take() Tail = … fence …= Head steal () Head = … fence …= Tail

11

Use of Fences (I)

Enforce the correct order between accesses

  • Programmers insert fences in codes with fine-grain sharing:

– Work-stealing algorithm in Cilk Worker dequeues from tail and checks head Thief takes from head and checks tail

slide-12
SLIDE 12

Josep Torrellas Toward Extreme Scale…

  • Compilers insert fences in C++:

– Programmer uses intentional data race for performance à declares variable as atomic – Compiler inserts fence after the access, does not reorder – Hardware does not reorder across fence

12

Use of Fences (II)

slide-13
SLIDE 13

Josep Torrellas Toward Extreme Scale… 13

If We Remove Fences: Incorrect Execution

With fences: t1=1, t0=1 or both=1 A0: x =1 A1: t0 = y B0: y = 1 B1: t1 = x x = y = 0 PA PB fence fence Unintuitive bug: Sequential Consistency(SC) Violation t0 = t1 = 0 A1 B0 B1 A0 Without fences:

wr x rd y PA PB wr y rd x

SC: execution appears as if accesses from multiple threads were interleaved in a uniprocessor A0 A1 B0 B1 B0 B1 A0 A1 A0 B0 A1 B1

write propagated to memory

slide-14
SLIDE 14

Josep Torrellas Toward Extreme Scale… 14

Fence Overhead

  • Naïve implementation: stall all memory operations following the fence

– The processor quickly stalls

slide-15
SLIDE 15

Josep Torrellas Toward Extreme Scale… 15

Modern Implementations: Perform Speculation

w2 f r w1 w2 f r w1

Reorder Buffer (ROB) WB (Write Buffer)

Write Fence Read

Time

Expensive: Fence in Xeon desktop stalls for 20—200 cycles. In a large MP?

  • Reads following fences can load data speculatively

– If no processor observes it, no problem – If coherence transaction received, rd is squashed and retried

  • Still: speculative reads cannot retire until the WB is drained

f r

slide-16
SLIDE 16

Josep Torrellas Toward Extreme Scale… 16

What if Fences Were Free?

  • Programmers could write faster fine-grained concurrent algorithms
  • C++/Java programmers would not have to worry about data races

– Declare all shared variables as atomic – Compiler puts many fences, hardware still runs fast – Guaranteed Sequential Consistency (SC)

slide-17
SLIDE 17

Josep Torrellas Toward Extreme Scale… 17

Proposal: WeeFence (or WFence)

  • Post-fence read retires before the pre-fence writes have drained

– “Skip” the fence

Substantial gains when write misses pile-up before the fence w2 f r w1

Spec execution

  • Goal: Eliminate any stall in the pipeline

[ISCA-13]

Write Fence Read

Time

w1 w2 f r

WB Reorder Buffer (ROB)

w2 f w1

slide-18
SLIDE 18

Josep Torrellas Toward Extreme Scale… 18

But… Not Stalling Can Cause Incorrect Execution

A0: x =1 A1: t0 = y B0: y = 1 B1: t1 = x x = y = 0 PA PB WeeFence

Solution: Allow the reorder, check for this case, and stall the read (B1)

WeeFence

What we want: not stall but avoid these SC violations

Write Fence Read

Time

write propagated to memory

slide-19
SLIDE 19

Josep Torrellas Toward Extreme Scale… 19

But… Not Stalling Can Cause Incorrect Execution

A0: x =1 A1: t0 = y B0: y = 1 B1: t1 = x x = y = 0 PA PB WeeFence

Solution: Allow the reorder, check for this case, and stall the read (B1)

WeeFence

What we want: not stall but avoid these SC violations Conventional fences always conservatively stall ßà Not WeeFence

Write Fence Read

Time

write propagated to memory

slide-20
SLIDE 20

Josep Torrellas Toward Extreme Scale…

WeeFence: The Idea

  • At a fence: record the thread’s incomplete writes in a HW structure
  • Allow post-fence reads to execute before pre-fence writes complete
  • Check post-fence reads (rd x) against HW structure to find conflicts

with other threads’ incomplete writes. – Conflict? Stall read – Else: Retire

20

rd y PA PB WeeFence wr y WeeFence rd x wr x

Prevent “rd x” retiring early if:

  • There is a concurrent fence
  • Accesses vars in opposite order
slide-21
SLIDE 21

Josep Torrellas Toward Extreme Scale… 21

(3) execute wr x rd y PA PB Wfence1 wr y rd x Wfence2

How WFence Works

PS: Pending Set BS: Bypass Set

rd y PA PB Wfence1 wr y Wfence2 rd x wr x (1) PS

x Table

(2)

slide-22
SLIDE 22

Josep Torrellas Toward Extreme Scale… 22

wr x rd y PA PB Wfence1 (1) (3)

PS

execute wr y

x

(5) local check stall (6)

How WFence Works

PS y

(4) Wfence2 rd x

PS: Pending Set BS: Bypass Set

wr x rd y PA PB Wfence1 wr y Wfence2 rd x

x Table

(2)

slide-23
SLIDE 23

Josep Torrellas Toward Extreme Scale… 23

(3) execute wr x rd y PA PB Wfence1 wr y wr x

y BS

(4)

How WFence Works (II)

(1) PS

x Table PS: Pending Set BS: Bypass Set

wr x rd y PA PB Wfence1 wr y wr x No fence present in x86 (2)

slide-24
SLIDE 24

Josep Torrellas Toward Extreme Scale… 24

wr x rd y PA PB Wfence1 (1) (3)

PS

execute

x

wr y wr x

y BS

(4)

How WFence Works (II)

Table PS: Pending Set BS: Bypass Set

wr x rd y PA PB Wfence1 wr y wr x No fence present in x86 (5) coherence stall (2)

slide-25
SLIDE 25

Josep Torrellas Toward Extreme Scale… 25

wr x rd y PA Wfence1 wr x rd y PA Wfence1 (1)

PS x

Summary: How WFence Works

z Table

(6) stall (4)

y BS

(5) execute & retire

z

(2) check (3)

PS: Pending Set BS: Bypass Set

slide-26
SLIDE 26

Josep Torrellas Toward Extreme Scale…

  • Cycles are rare: Wfence typically executes without stalling the processor
  • Works with cycles with any number of processors
  • No compiler support needed: Unmodified off-the shelf executable

26

WFence

wr x Wfence rd z wr y Wfence rd x PA PB wr z Wfence rd y PC

slide-27
SLIDE 27

Josep Torrellas Toward Extreme Scale…

Improving WeeFence

27

  • The Global State is expensive to maintain with many threads
  • Can we eliminate the Global State (Pending Set)
slide-28
SLIDE 28

Josep Torrellas Toward Extreme Scale… 28

wr x rd y PA PB Wfence1 wr y rd x

Eliminating the Global State

wr x rd y PA PB Wfence1 wr y rd x Wfence2 Wfence2

y

(1)

x

(2)

Deadlock…. Insight: no deadlock if one processor stalls at the fence and generates no BS

[ASPLOS-15]

(3) stall (4) stall

slide-29
SLIDE 29

Josep Torrellas Toward Extreme Scale… 29

Asymmetric Fences: Strong Fence + Weak Fences

[ASPLOS-15]

wr x rd z wr y rd x PA PB wr z rd y PC

x z

Conventional fence WeeFence Without PS – N-1 weak fences that allow reordering = WeeFences without PS

  • Given a conflict cycle with N processors:

– 1 strong fence (no BS ) = conventional fence

slide-30
SLIDE 30

Josep Torrellas Toward Extreme Scale… 30

Where to Put Strong Fence?

  • Work stealing algorithm in Cilk:

– Weak fences à workers – Strong fences à thiefs tmp->field = 10; fence1;

  • bj = tmp;

if (obj) { fence2; a = obj->field; PA PB Put strong fence in fence1, why? It only executes once, at initialization

  • Software transaction memory:

– Weak fences à reads – Strong fences à writes

slide-31
SLIDE 31

Josep Torrellas Toward Extreme Scale… 31

Results

Full apps: WFence reduces the overhead of fences-everywhere (hence guaranteeing SC) from 40% to 2% Kernels with fences: WFence eliminates >90% of the fence stall time

Baseline WFence

slide-32
SLIDE 32

Josep Torrellas Toward Extreme Scale… 32

Making Synchronization Inexpensive

  • Make memory fences free
  • Breaking serialization in lock-free synchronization (CASPAR)
  • Scalable concurrent priority queues

[ASPLOS-16]

x

Compare&Swap(CAS) CAS CAS CAS CAS

slide-33
SLIDE 33

Josep Torrellas Toward Extreme Scale… 33

Bottleneck: Many Processors Synch on Same Var

  • Operating systems, databases, language runtimes, mem allocators
  • Lock-free synchronization: Manipulates data using atomic instructions

instead of locks

if (mem[addr] == old) { mem[addr]=new } Compare&Swap(addr,old,new)

[ASPLOS-16]

slide-34
SLIDE 34

Josep Torrellas Toward Extreme Scale… 34

Simple Example Lock-Free Synchronization

x

CAS CAS CAS CAS CAS

if (mem[addr] == old) { mem[addr]=new } Compare&Swap(addr,old,new)

Everyone adds 1:

while (true) {

  • ld = x

new = old +1 if (CAS(mem, old, new)) return }

slide-35
SLIDE 35

Josep Torrellas Toward Extreme Scale… 35

Example: Pushing Nodes into Stack

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

top

node

PA PB

slide-36
SLIDE 36

Josep Torrellas Toward Extreme Scale… 36

Example: Pushing Nodes into Stack

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

top

node

PA PB

new new

slide-37
SLIDE 37

Josep Torrellas Toward Extreme Scale… 37

Example: Pushing Nodes into Stack

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

top

node

PA PB

  • ldA=top
  • ldB=top

new new

slide-38
SLIDE 38

Josep Torrellas Toward Extreme Scale… 38

Example: Pushing Nodes into Stack

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

top

node

PA PB

  • ldA=top
  • ldB=top

node

top

new new new new

slide-39
SLIDE 39

Josep Torrellas Toward Extreme Scale… 39

Example: Pushing Nodes into Stack

CAS failed

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

top

node

PA PB

  • ldA=top
  • ldB=top

node

top

node

top

new new new new new new

slide-40
SLIDE 40

Josep Torrellas Toward Extreme Scale… 40

Problem: Serialization

Time newA

PA PB PC

newB newC ld old CAS ld old CAS Waste

Waste

ld old ld old

. .

ld old CAS

. . . . . . . . . .

Our Goal: All processors perform a successful CAS at the same time, in parallel

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return } CAS … ld old … CAS …

ld old CAS

. .

ld old CAS

. .

slide-41
SLIDE 41

Josep Torrellas Toward Extreme Scale…

CASPAR: Main Idea

Two steps:

  • Queue the “ld old” requests in HW in the directory

– Provides efficient serialization: only one proc attempts the CAS at a time (others remain idle) – Similar to past work

  • Break serialization: Two new ideas:

– Eager forwarding – Parallel validation

41

slide-42
SLIDE 42

Josep Torrellas Toward Extreme Scale… 42

Directory

Queue “ld old” Requests in HW in Directory

PA PC PB ldPA ldPB ldPC PD ldPD

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

Similar to past work….

line CAS

slide-43
SLIDE 43

Josep Torrellas Toward Extreme Scale… 43

Directory

Basic Hardware: Queue of Requests in Directory

PA PC PB ldPA ldPB ldPC

Cache line

PD ldPD

slide-44
SLIDE 44

Josep Torrellas Toward Extreme Scale… 44

Directory

Basic Hardware: Queue of Requests in Directory

PA PC PB ldPB ldPC PD ldPD

CAS

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

slide-45
SLIDE 45

Josep Torrellas Toward Extreme Scale… 45

Directory

Basic Hardware: Queue of Requests in Directory

PA PC PB ldPB ldPC PD ldPD

slide-46
SLIDE 46

Josep Torrellas Toward Extreme Scale… 46

Directory

Basic Hardware: Queue of Requests in Directory

PA PC PB ldPC ldPD PD

CAS

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

slide-47
SLIDE 47

Josep Torrellas Toward Extreme Scale… 47

Directory

Basic Hardware: Queue of Requests in Directory

PA PC PB ldPC PD ldPD

slide-48
SLIDE 48

Josep Torrellas Toward Extreme Scale… 48

Directory

Basic Hardware: Queue of Requests in Directory

PA PC PB Completely serial execution ldPD PD

CAS

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

slide-49
SLIDE 49

Josep Torrellas Toward Extreme Scale… 49

Breaking Serialization (1): Eager Forwarding

Observation: In a proc, “new” does not depend on “old” “new” is ready well before CAS

ld old CAS Time newA

PA PB PC

newB newC ld old CAS ld old CAS Waste Waste ld old ld old

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

slide-50
SLIDE 50

Josep Torrellas Toward Extreme Scale… 50

Breaking Serialization (1): Eager Forwarding

ld old CAS Time newA

PA PB PC

newB newC ld old CAS ld old CAS Waste Waste ld old ld old

Predecessors: Eagerly forward “new” Successors: * Use “new” to satisfy “ld old” * Perform a successful CAS, * Continue speculatively like TM, no stall

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

slide-51
SLIDE 51

Josep Torrellas Toward Extreme Scale…

Predecessors: Eagerly forward “new” Successors: * Use “new” to satisfy “ld old” * Perform a successful CAS, * Continue speculatively like TM, no stall

51

Breaking Serialization (1): Eager Forwarding

ld old CAS Time newA

PA PB PC

newB newC ld old ld old CAS CAS

Speculative execution Speculative execution

* All CAS succeeded in parallel * All wasted time is eliminated * Execution continues; does not stop * Need a validation step to compare forwarded and real value

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

i1 i2 i3 i4 i1 i2 i3 i4 i5 i5

slide-52
SLIDE 52

Josep Torrellas Toward Extreme Scale… 52

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newA

ldPA ldPB ldPC

newB newC line

PD ldPD

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

slide-53
SLIDE 53

Josep Torrellas Toward Extreme Scale… 53

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newA

ldPA ldPB ldPC

newB newC line

PD ldPD

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

All procs decode CAS, find that “new” has been produced, and forward it to the directory in parallel

slide-54
SLIDE 54

Josep Torrellas Toward Extreme Scale… 54

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newA newB newC newA

ldPA ldPB ldPC

newB newC

PD ldPD

newD

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

newD

slide-55
SLIDE 55

Josep Torrellas Toward Extreme Scale… 55

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newA newB newC newA

ldPA ldPB ldPC

newB newC

PD ldPD

newD

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

newD

Proci uses newi-1 as the response to its “ld old” and proceeds speculatively in parallel

slide-56
SLIDE 56

Josep Torrellas Toward Extreme Scale… 56

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newA newB newC newA

ldPA ldPB ldPC

newB newC

PD ldPD

newD

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

newD

CAS CAS CAS

Parallel CAS

CAS Speculative

slide-57
SLIDE 57

Josep Torrellas Toward Extreme Scale… 57

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newA

ldPA ldPB ldPC

newB newC Cache line

PD ldPD

newD

slide-58
SLIDE 58

Josep Torrellas Toward Extreme Scale… 58

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newB

ldPB ldPC

newC Cache line

PD ldPD

newD

Validate

Validate: * Compare the final value of the line to newA forwarded earlier on * Commit speculative execution

slide-59
SLIDE 59

Josep Torrellas Toward Extreme Scale… 59

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newB

ldPB

Validate

PD ldPC

newC

ldPD

newD

slide-60
SLIDE 60

Josep Torrellas Toward Extreme Scale… 60

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newC

ldPC

Validate

PD ldPD

newD

slide-61
SLIDE 61

Josep Torrellas Toward Extreme Scale… 61

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newC

ldPC

Validate

PD ldPD

newD

slide-62
SLIDE 62

Josep Torrellas Toward Extreme Scale… 62

Directory

Breaking Serialization (1): Eager Forwarding

PA PC PB

newD

ldPD Still serial validation Parallel CAS execution PD

Validate

slide-63
SLIDE 63

Josep Torrellas Toward Extreme Scale… 63

Limitation of Eager Forwarding

ld old CAS Time newA

PA PB PC

newB newC

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

ld old ld old CAS CAS

Speculative execution Speculative execution

i1 i2 i3 i4 i1 i2 i3 i4 i5 i5

Long speculation increases the chances of squashing the threads

slide-64
SLIDE 64

Josep Torrellas Toward Extreme Scale… 64

Breaking Serialization (2): Parallel Validation

ld old CAS Time newA

PA PB PC

newB newC

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

ld old ld old CAS CAS

Speculative execution Speculative execution

i1 i2 i3 i4 i1 i2 i3 i4 i5 i5

Idea: Validate in the directory without ever sending line to cores How: Use newi stored in directory

slide-65
SLIDE 65

Josep Torrellas Toward Extreme Scale…

Idea: Validate in the directory without ever sending line to core How: Use newi stored in directory

65

Breaking Serialization (2): Parallel Validation

ld old CAS Time newA

PA PB PC

newB newC

Parallel validation DIRECTORY

Speculative execution reduced to a minimum Execution does not stop

new = malloc(); while (true) {

  • ld = top

newànext = old if (CAS(&top, old, new)) return }

ld old ld old CAS CAS

Speculative execution Speculative execution

i1 i2 i3 i1 i2 i3

slide-66
SLIDE 66

Josep Torrellas Toward Extreme Scale… 66

Directory

Breaking Serialization (2): Parallel Validation

PA PC PB

newA

ldPA ldPB ldPC

newB newC

PD ldPD

newD

CAS CAS CAS CAS Speculative

Parallel CAS

slide-67
SLIDE 67

Josep Torrellas Toward Extreme Scale… 67

Directory

Breaking Serialization (2): Parallel Validation

PA PC PB

Cache line

PD

newA

ldPA ldPB ldPC

newB newC

ldPD

newD

slide-68
SLIDE 68

Josep Torrellas Toward Extreme Scale… 68

Directory

Breaking Serialization (2): Parallel Validation

PA PC PB

newB

ldPB ldPC ldPD

newC newD

PD

Validate & Commit newB newC newD

Validate Validate Validate

Parallel CAS execution Parallel validation

slide-69
SLIDE 69

Josep Torrellas Toward Extreme Scale… 69

Summary

  • Full parallel synchronization

– Parallel successful CAS execution – Parallel validation

  • Large speedups for 64-core runs:

– Throughput of kernels increases by 80% avg – Execution time of application sections reduces by 60% avg

slide-70
SLIDE 70

Josep Torrellas Toward Extreme Scale… 70

Making Synchronization Inexpensive

  • WeeFence: Make memory fences free
  • CASPAR: Breaking the serialization in lock-free synchronization
  • Scalable concurrent priority queues

QueueHead node node node node

slide-71
SLIDE 71

Josep Torrellas Toward Extreme Scale… 71

Today’s Discussion

  • Focus: Reducing the cost of basic primitives for parallelism
  • Flavor of other challenges: energy, programmability

Energy-efficiency Performance Programmability

slide-72
SLIDE 72

Josep Torrellas Toward Extreme Scale… 72

QuickRec: A Prototype of Record and Replay (RnR)

  • Finds non-deterministic software bugs and security intrusions
  • Built FPGA platform with a Pentium multicore

[ISCA-13]

  • HW + OS record all non-

deterministic events, so that a parallel program can be replayed deterministically

slide-73
SLIDE 73

Josep Torrellas Toward Extreme Scale…

ScalCore: a Core for Voltage Scalability

73

[HPCA-16]

  • Decouple the Vdd of logic and storage structures in the pipeline

Enable Flow-through

HPMode

Latch

Storage Stage 2a

Latch

Storage Stage 2b

Latch CLK

Logic Stage 3

Latch

Logic Stage 1

Latch Vnom Vnom Vnom Vnom Latch

2a Latch

Latch CLK

Logic Stage 3

Latch

Logic Stage 1

Latch

2b

Vlogic Vlogic Vop Vop

Enable Flow-through

1

EEMode

  • Reconfigure pipeline to fuse the faster storage-intensive stages
slide-74
SLIDE 74

Josep Torrellas Toward Extreme Scale…

Control-Theoretic Energy/Performance Controllers

  • Design control-theoretic controllers that track multiple outputs

while actuating on multiple inputs

BIPS Ref

System Controller

BIPS Power Outputs (y) Inputs (u) Power Ref Cache size Freq ROB size

[ISCA-16]

  • Attains most efficient use of

resources to deliver highest performance

slide-75
SLIDE 75

Josep Torrellas Toward Extreme Scale… 75

Conclusion

  • Lots of room to innovate in computer architecture at this time
  • Many exciting interdisciplinary venues of research:

– Performance, energy-efficiency & programmability

Non-volatile memory Volatile memory Compute layer Volatile memory Non-volatile memory

Monolithic architecture 3D-stacked layers

slide-76
SLIDE 76

Toward Extreme-Scale Manycore Architectures

Josep Torrellas

Department of Computer Science University of Illinois at Urbana-Champaign http://iacoma.cs.uiuc.edu

USC October 2016
