Today and Tomorrow HEARING LOSS TECHNOLOGY TODAY AND TOMORROW - - PowerPoint PPT Presentation

Dec 06, 2022 240 likes •693 views

OPENING THE LINES OF COMMUNICATION Today and Tomorrow HEARING LOSS TECHNOLOGY TODAY AND TOMORROW Laura E. Plummer, MA, CRC, ATP Outreach Services WESP-DHH for the D~r a.nd ~rd of Hca r,n,1 OBJECTIVES Identify signaling and environmental

slide-1

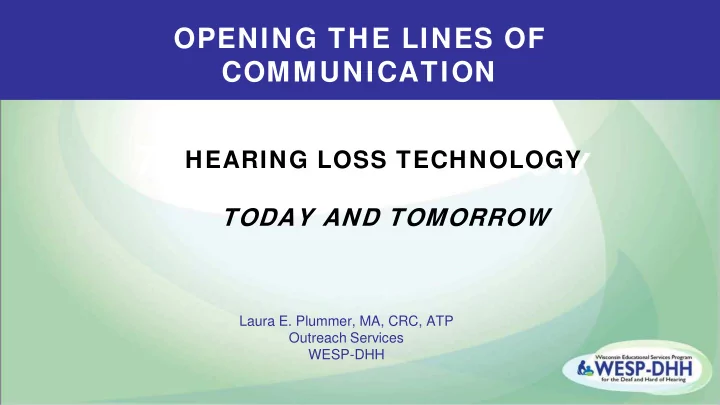

SLIDE 1

OPENING THE LINES OF COMMUNICATION

Today and Tomorrow

Laura E. Plummer, MA, CRC, ATP Outreach Services WESP-DHH

HEARING LOSS TECHNOLOGY TODAY AND TOMORROW

for the D~r a.nd ~rd of Hca r,n,1

slide-2
SLIDE 2

OBJECTIVES

Identify signaling and environmental awareness technology for Individuals who are deaf or hard of hearing Identify the functions of a telecoil, blue tooth and assistive listening devices Increased knowledge of technology used for education and employment for people who are deaf and hard of hearing

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-3
SLIDE 3

HEARING AIDS

  • Sizes or Styles
  • Features or Functions
  • Accessories

AzTap July 2018

DC HC.

lP

  • ~•ntfll l l:

TE

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-4
SLIDE 4

FEATURES / FUNCTIONS

  • TELECOIL
  • PROGRAMS
  • DIRECTIONAL MICROPHONE
  • BLUETOOTH

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-5
SLIDE 5

TELECOILS

Telecoil (t-coil) – A telecoil (or t-coil) is a small coil of wire inside a hearing aid that is designed to pick up a magnetic signal. Telecoil (T) Only: No other sounds Telecoil/Microphone (T/M): Telecoil and Microphone combined

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-6
SLIDE 6

TELECOILS

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-7
SLIDE 7

TELECOILS

  • Position Matters

(horizontal vs vertical)

  • “Most” hearing aids and

cochlear implants

  • Size Matters!
  • Activated by switch or

program button

  • “Doubles” what the

hearing aid can do

  • Also known a telephone
  • r t-switch

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-8
SLIDE 8

TELECOILS WORK WITH

  • Telephones
  • Neckloops
  • FM Systems
  • Looped Facilities

Must be in “manual mode” not automatic

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-9
SLIDE 9

TELECOIL MISHAPS

  • Not installed in the hearing aid = Some, but not all can

have it installed

  • Not activated by the audiologist or hearing instrument

specialist = If installed it can be activated

  • Automatic Setting = Can be reprogrammed to be manual
  • No training on what it can do = Get informed

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-10
SLIDE 10

BLUETOOTH

  • An option for some hearing

aids

  • Requires a “streamer” (in

most cases)

  • Pairs the hearing aid, via

streamer, to phones or audio devices

  • DOES NOT REPLACE THE

NEED FOR A TELECOIL

AzTap July 2018

INCHES

  • ---------~

30FE.ET I!!!!/

11on:a1s..-..c

..

.....,.,,.m =scon,~ Eo,o DH

H

&

WE~~:,dciHanng

for the Ou it

slide-11
SLIDE 11

STREAMERS

  • Remote control
  • A “go between”

device

  • Proprietary

connection to the hearing aid

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-12
SLIDE 12

PHONES AS STREAMERS

Smartphone App becomes the “streamer” for remote control functions and Bluetooth communication https://www.apple.com/accessibility/iphone/hearing/

AzTap July 2018

I

'

I -··

  • I

TRULINK

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-13
SLIDE 13

ASSISTIVE LISTENING

Personal amplifiers FM Systems Loop Systems Streamer ad-ons

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-14
SLIDE 14

EAR PIECES

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-15
SLIDE 15

NECKLOOPS

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-16
SLIDE 16

PERSONAL SOUND AMPLIFIERS

  • 15-28dB Amplification
  • “Over the counter”
  • Telecoil and BT models
  • Over-the-counter hearing

aids

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-17
SLIDE 17

ASSISTIVE LISTENING DEVICES – HARD WIRED

  • Single Unit listening device
  • Several headset options

(headphones, earbuds, neckloop)

  • One to one settings, in the car,

television

  • Pocket Talker
  • $15 - $425

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-18
SLIDE 18

ASSISTIVE LISTENING DEVICES – PERSONAL FM

  • Transmitter and Receiver
  • Can travel from room to room /

through walls

  • Wireless listening for churches,

schools, theaters

  • Loop and PA systems
  • Multiple microphone and

headphone options for the most flexibility

AzTap July 2018

dt

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-19
SLIDE 19

LOOP SYSTEMS

  • Entire area or room is looped
  • Telecoil mode in the hearing aid will pick up the sound signal
  • Telecoil users – no need for a receiver “box”
  • Non-telecoil users will need a receiver “box”

AzTap July 2018

HEARING LOOP INSTALLED Switch hearing aid to T-coil

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-20
SLIDE 20

ASSISTIVE LISTENING DEVICES – INFRARED

  • Consist of two parts – transmitter and receiver
  • Generally used for television or movie theaters
  • Must be in “direct line of sight”

AzTap July 2018

slide-21
SLIDE 21

APPS - LISTENING

AzTap July 2018

slide-22
SLIDE 22

COMMUNICATION OPTIONS

  • Handwritten notes
  • Typed notes (laptop, Ubiduo,

iPad)

  • Text Messages
  • Instant Messaging
  • Email
  • Fax
  • Apps
  • Sign Language Interpreting
  • CART Communication

Realtime Translation

  • Caption Services
  • Relay Services
  • Video Interpreting
  • Video Relay

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-23
SLIDE 23

TELEPHONE ACCESS

  • In-Line Amplification
  • Amplified Telephones
  • Voice Carry Over
  • Phone line extenders
  • Captel
  • Large Print Captel
  • Web / Mobil Captel
  • Telebraille
  • Cellular options

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-24
SLIDE 24

TELEPHONE ACCESS

  • Landline phones must be hearing aid compatible and they connect to

the telecoil when the receiver is placed next to the aid

  • Some need an added magnet to make the signal stronger (rare)
  • Neckloops can be plugged into landlines or cellphones
  • Bluetooth Neckloops can be paired with cell phones

AzTap July 2018

slide-25
SLIDE 25

·-

  • ·-
  • -..c-""•

..

!1....... CXMII"

.
  • .:c:...""'I:'""
  • SPEECH

8ASS M D TRE:8U:

tl.tltt

nP.lOIJl£hC''r 0DW,,_L14J.A.I~

ft

MA.JC

VOLUWi:

  • ""

I

You un .... toC..lff"

  • ,0

Re<td C~1.lOl'II ---

we..,;..""
  • ::::-

E3

t

..... ,

,

......

,

Caption Sorvlc.e

/

,/

.......

  • ·· -···

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-26
SLIDE 26

CAPTION PHONES

  • Analog only
  • Analog/Data

AzTap July 2018

slide-27
SLIDE 27

CAPTION SERVICES

  • Web based captions
  • Caption apps

AzTap July 2018

slide-28
SLIDE 28

RELAY SERVICES

  • Phone or internet

based services

  • Video Relay (VRS)
  • Free
  • Video Remote

Interpreting (VRI)

  • Fee based sign

language interpreting

AzTap July 2018

slide-29
SLIDE 29

1 • Deaf

usor s igns to lhv 11">1arpnilrair

  • • • • ,I"';"\
  • • •

.. - 1'\...:..,,) .. _

.

  • ~

""=-..

l""n'\

__ •••

  • ···-·~

... -·

:2. ln!Brpi"eter s_pea.k:s lo

tha hearing U$1JJ

  • ~

. ·····

  • · ~
  • _

...... -·

  • .. ~
  • ..
  • 41. lm orpelor Signs to ...-. ,

l"'"'7'\ _. •

  • ~

wsor

  • • • • - • ~

........

  • 3. H ~anng user

speaks lo

lnterpre1or-

W'11Konsrl EGIQOCMQl ~,u Provam

&WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-30
SLIDE 30

VRS VS VRI

Video Relay Services Video Remote Interpreting

  • Telecommunications Based
  • No Cost
  • Videophones, computer based or

smartphone/tablet apps

  • Used to make or receive

TELECOMMUNICATIONS from

  • ne location to another
  • Fee Based
  • Provides INTERPRETING services
  • Brings the interpreter into the room

Videophone, computer based

  • r smartphone/tablet access

AzTap July 2018

slide-31
SLIDE 31

ELECTRONIC COMMUNICATION

Cellular / Text Skype / IM / Hangouts Video Relay Video Interpreting

AzTap July 2018

slide-32
SLIDE 32

CART

Remote CART

AzTap July 2018

In-Person CART

slide-33
SLIDE 33

SIGNALING

  • Central Alert
  • Silent Call
  • Sonic Alert
  • Alertmaster

Telephones, doors, babies, motion, smoke, carbon monoxide, weather alerts, emergency vehicles, room noise

AzTap July 2018

W'11Konsrl EGIQOCMQl ~,u fll-osr,lm

& WESP-DHH

for the Oaf ilnd HMd ol Heanng

slide-34
SLIDE 34

"

I

,

slide-35
SLIDE 35

SMART TECHNOLOGY

AzTap July 2018

slide-36
SLIDE 36

COMPUTER ACCESS

Visual Alerts/Notifications Captions (instructions) Sound Settings Hearing Loss Tech Resources Microsoft Accessibility Guide Facetime iMessage Captions Screen Flash Sound Settings Apple Accessibility Guide Microsoft Accessibility Apple Accessibility

slide-37
SLIDE 37

COMPUTER ACCESS

Browser Extensions Captions Alerts/Notifications Hangouts Google Accessibility Guide Google Access Apps Outreach Apps Handout Tina Childress Handout

slide-38
SLIDE 38

APPS HANDOUT

slide-39
SLIDE 39

APPS

AzTap July 2018

slide-40
SLIDE 40

NOT TECHY TECH

slide-41
SLIDE 41

AzTap July 2018

'Indeeol, ·

1+'s almost cerf-otin +he phone

~ou ose ~ow is b •~~er ~If) the one ~ou used a de°"~e o~o.

Wl«o<1>"' Educauon>I SeM<H

""°Ir>"'

&

WESP-DHH

f

  • r

d

  • 0..,

and Hard a l H a " " C

slide-42
SLIDE 42

RESOURCES

http://hearingloss.org/content/loop-technology https://www.harriscomm.com (vendor site) http://www.hearingloop.org/ http://www.hlaabq.com/telecoils.html

AzTap July 2018

slide-43
SLIDE 43

QUESTIONS?

Laura Plummer, MA, CRC, ATP Technology Services Coordinator WESP-DHH Outreach WI Dept of Public Instruction Laura.plummer@wesp-dhh.wi.gov http://www.wesp-dhh.wi.gov/
