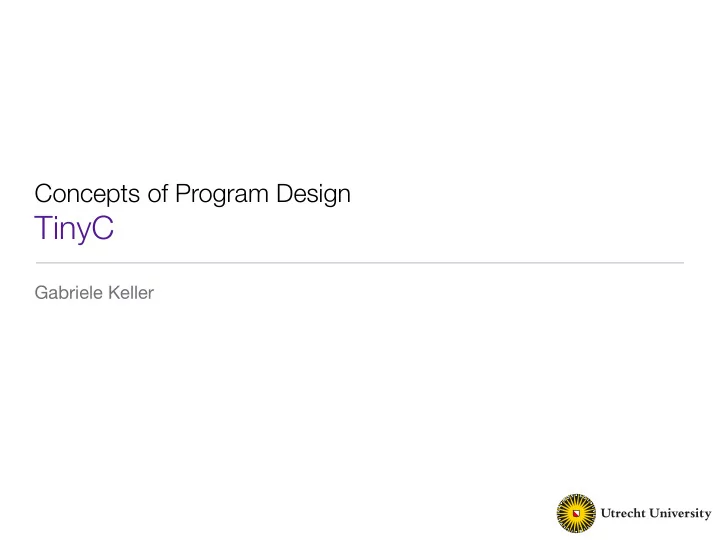

Concepts of Program Design

TinyC

Gabriele Keller

TinyC : The essence of imperative programming

• An imperative language with the following features:

★Global function declarations ★Global and local variables ★Assignment ★Iteration: while-loops ★Conditional: if-statements ★Only a single value type: int

TinyC : The essence of imperative programming

• EBNF:

prgm ::= gdecs stmt gdecs ::= | gdec gdecs gdec ::= fdec | vdec vdecs ::= | vdec vdecs vdec ::= int Ident = v; fdec ::= int Ident2 (arguments)stmt stmt ::= expr; | if expr then stmt1 else stmt2; | return expr; | { vdecs stmts } | while ( expr ) stmt stmts ::= | stmt stmts expr ::= Num | Ident | expr1 + expr2 | expr1 - expr2 | Ident = expr | Ident (exprs) arguments ::= | int Ident2 , arguments

Concrete Syntax

• Programs consist of
• a list of global variable and function declarations and
• a statement
• Function declarations
• Variable declarations

int f (int x1, int x2, ...) stmt int x = v;

Concrete Syntax

• Statements versus expressions

★statements are mainly about effects

• expr;
• if expr then stmt else stmt
• while (expr) stmt
• return (expr);
• {ldec stmts}: a block - local variable declarations followed by a

sequence of statements

★expressions are about values (but can also have effects)

• arithmetic expressions
• assignments: x = expr
• function calls: f (expr1, expr2, ..., exprn)
• variables, integer values

• Variables

★have to be initialised ★not true variables in the mathematical sense (MinHs’s are) ★for now, we assume that variables are not re-used within their scope

• Example program:

int result = 0; int div (int x, int y) { int res = 0; while (x > y) { x = x - y; res = res + 1; } return res; } result = div (16, 5);

Abstract Syntax

• We skip this step - we know how to do it
• We continue with the concrete syntax (readability!)

Static Semantics

• What kind of properties do we have to check?

★Are all variables and functions declared before use? ★Are functions called with the correct number of arguments? ★What about return statements in functions?

• could we check that every possible control flow in a function block

ends with a return statement?

• for now, we set the return value to the value of the last expression in the

block in case there is no explicit return statement

• What kind of structure do we need to maintain for these checks?

★Environment of variables: {x1, x2,....} ★Environment of functions with their arity: {f1: n1, f2:n2,....}

Static Semantics

• Two kinds of language components:

★ expressions and statements ★ declarations

• Two kinds of judgements:

★well-formed expressions and judgements (given both a variable

environment V and function environment F):

• V, F ⊢ expr ok
• V, F ⊢ stmt ok

★well-formed declarations (determining a variable and function environment)

• ⊢ gdecs decs V, F
• V, F ⊢ ldecs decs V’

★Note: we write ⊢ expr ok instead of ∅,∅ ⊢ expr ok given environments V and F, expr /stmt is well formed the global declarations gdecs are well formed and declare the environments V and F given V and F, the local decl. ldecs are well formed and declare the new environment V’

Static Semantics

• Given a program

gdecs stmt we have ⊢ gdecs stmt ok ⊢ gdecs decs V, F V,F ⊢ stmt ok That is, the program is well-formed if

• its global declarations are well-formed and declare variables V and

functions F

• and the body statement is well-formed with respect to those global

variables V and functions F

Static Semantics

• Well-formedness of statements: a statement is well-formed if all its

constituents are well-formed: V, F ⊢ while (expr) stmt ok V, F ⊢ expr ok V,F ⊢ stmt ok V, F ⊢ if (expr) then stmt1 else stmt2 ok V, F ⊢ expr ok V,F ⊢ stmt1 ok V,F ⊢ stmt2 ok

• Well-formedness of a block:

V, F ⊢ { ldecs stmts } ok V, F ⊢ ldecs decs V’ V’∪V,F ⊢ stmts ok

Static Semantics

• Well-formedness of expressions: an expression is well-formed if

★all of its variables and functions are declared and ★functions are called with the correct number of arguments

V, F ⊢ x ok x ∈ V V, F ⊢ x = expr ok V, F ⊢ expr ok x ∈ V V, F ⊢ f(expr1,...exprn) ok V, F ⊢ expri ok f:n ∈ F

Static Semantics

• Well-formedness of declaration sequences:

★o: empty sequence ★d ds : declaration d followed by sequence of declarations ds:

V, F ⊢ o decs V, F ⊢ d ds decs V, F ⊢ d decs V’, F’ V∪V’, F∪F’ ⊢ ds decs V’’, F’’ V’∪V’’, F’∪F’’ ∅,∅

Static Semantics

• Well-formedness of individual declarations:

★variable declarations ★function declarations

V, F ⊢ int x = v; decs x ∉ V V, F ⊢ int f (int x1,...,int xn) stmt decs xi ∉ V f ∉ F V ∪ {x1,... xn}, F ∪ {f:n} ⊢stmt ok {x}, ∅ ∅,{f:n}

Big Step Dynamic Semantics

• What information do we have to keep track of?

★the current statement ★the values of all variables

• Evaluation relations

★program execution gs⇓(g’, rv) ★statement execution: (g,s)⇓(g’, rv;) ★expression execution: (g,e)⇓(g’,v)

where v is a integer value, rv either a value or return(v)

Big Step Dynamic Semantics

• The environment is an ordered sequence associating

★variables with integer values ★function names with parameter list and body

• Operations on the environment:

★extension:

• add a new declaration to the environment: g.(int x = 4)

★lookup: g@x = 5

• x is currently bound to value 5
• if x occurs more than once, choose right most binding

★update: g@x← 5

• change value of x to 5
• environment g has to contain x already

(g’, s; while (e) s)⇓(g’’,rv;) (g, e)⇓(g’,v) (g, while (e) s)⇓ (g, while (e) s)⇓(g’’,rv;)

Dynamic Semantics

• if-statements:

(g, e)⇓(g’,0) (g’, s2)⇓(g’’,rv;)

• while-loops:

(g, if e then {s;while (e) s} else 0)⇓(g’’,rv;)

• alternatively, in terms of if-statements:

(g, if e then s1 else s2)⇓ (g, if e then s1 else s2)⇓ (g, e)⇓(g’,0) (g, while (e) s)⇓(g’’,rv;) (g’’,rv;) (g, e)⇓(g’,v) (g’, s1)⇓(g’’,rv;) (g’’,rv;) (g’,0;)

Dynamic Semantics

• Return statements:

(g, return(e))⇓(g’, return(v);)

• Blocks:

(g, {l ss})⇓ (g.l, ss)⇓(g’.l’,rv;) (g, e)⇓(g’,v) (g’, rv;)

add local variables with initial value temporarily into environment, only g is threaded through - the local environment l/l’ is discarded after the statements ss are executed

Dynamic Semantics

• Sequence of statements:

(g, o)⇓(g, 0;)

• Variables:

(g, x)⇓(g, v) g@x = v (g, x=e;)⇓ (g, s ss)⇓ (g, s)⇓(g’, return(v);) (g, s ss)⇓(g’’, v’;) (g, s)⇓(g’, v;) (g’, ss)⇓(g’’, v’;) (g, e)⇓(g’, v) (g’@x← v, v) (g’, return(v);)

Dynamic Semantics

• Function application:

(g, f (e1,...,en))⇓ (g’ {int x1 =v1;...;s})⇓(g’’, return(v)) g@f = int f (int x1,... int xn)s (g, (e1,...,en))⇓(g’, (v1,...,vn)) (g, f (e1,...,en))⇓(g’’, v) (g’, {int x1 =v1;...;s})⇓(g’’, v) g@f = int f (int x1,... int xn)s (g, (e1,...,en))⇓(g’, (v1,...,vn)) (g’’, v)
