The Water Issues Related To Hydrofracking In a Way People Can Understand it From Common Sense Don Siegel Syracuse University First, the Process.. Aquifer One Mile How Deep Will the Drilling Be? What is Injected. Concern over Losing Water

SLIDE 1

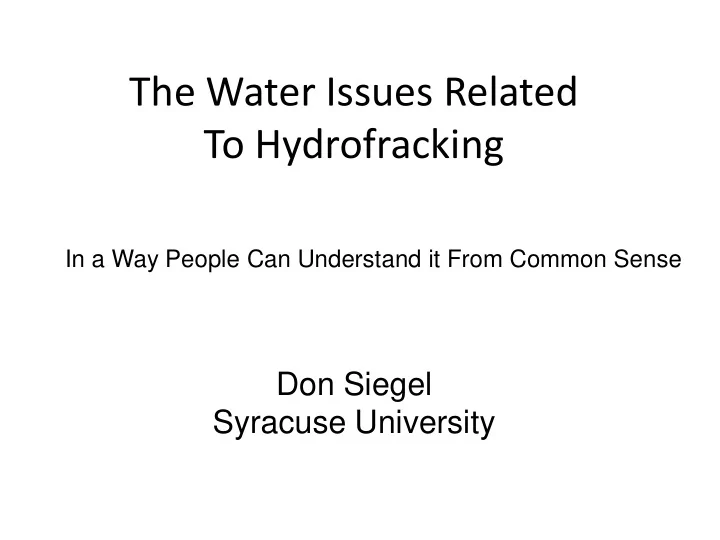

The Water Issues Related To Hydrofracking

Don Siegel Syracuse University

In a Way People Can Understand it From Common Sense

SLIDE 2

First, the Process..

SLIDE 3

Aquifer

One Mile

How Deep Will the Drilling Be?

SLIDE 4

What is Injected.

SLIDE 5

Concern over Losing Water Needed for Drinking and Ecosystems

SLIDE 6

Onondaga Creek

SLIDE 7

Multiple water intake (dolphins)

SLIDE 8

225 gal/s

225 gal/s =13,600 gallons per minute =19,400,000! gallons per day

Low Flow

SLIDE 9

Concern over Industrialization of Landscape

SLIDE 10

SLIDE 11

Gas Wells NOW ~ Ten Platforms per Square Mile.

SLIDE 12

With Horizontal drilling

SLIDE 13

Concern over Earthquakes and Fluids Migrating Upward During Fracking

SLIDE 14

Aquifer

One Mile

How Deep Will the Drilling Be?

SLIDE 15

Tiny micro-quakes

SLIDE 16

Richter Scale 2.0

Energy Released 200 to 20,000 times Smaller than Can be Felt

SLIDE 17

What About The Earthquakes?

New Madrid Fault Line

SLIDE 18

Injection Wells In Salt Water Filled AQUIFERS

SLIDE 19

Local Fractures In Mass of Solid Rock Injection Wells In Deep Aquifers

SLIDE 20

Pollution of Water

SLIDE 21

Constituent

1st Third 2nd Third Final Third Units Bromide 124 479 753MG/L Chloride 18,600 80,500 109,000 MG/L Sulfide <0.50 29.5 <2.5 MG/L

T. Dissolved Solids

34,578 133,620 192,000 MG/L Temperature 29.3 29.4 25.3Degrees C Barium 668 6,100 8,730 MG/L Iron, Total 23 31.3 71.9MG/L Magnesium 69.3 572 890 MG/L Gross Alpha 1,159 22.41 18,950 pCi/L Gross Beta 6,500 9.68 7,445 pCi/L Radium 226 33 2.58 4.67 pCi/L Radium 228 4.66 1.15 18.41 pCi/L Manganese, Total 0.73 1.8 2.79 MG/L Mercury, Total <0.0002 <0.0002 <0.0002 MG/L Molybdenum, Total 0.16 0.72 1.08 MG/L Nickel, Total 0.03 0.07 <0.01 MG/L Selenium, Total <0.02 <0.02 <0.02 MG/L Silver, Total <0.01 <0.01 <0.01 MG/L Thallium, Total <0.02 <0.02 0.1MG/L Titanium, Total 0.06 <0.01 <0.01 MG/L Zinc, Total 0.036 0.028 0.035 MG/L

FLOWBACK WATER

(From a well in SW Pennsylvania.)

Courtesy Bill Kappel, USGS

Yes, this is Very bad water.

Three Times as Salty as the Ocean!!!

SLIDE 22

SLIDE 23

Waste Storage In The Past

SLIDE 24

A MOOT POINT FOR THE FUTURE

Reused in Drilling

SLIDE 25

Finally: Concern Over Gas Coming

ut of wells after production.
