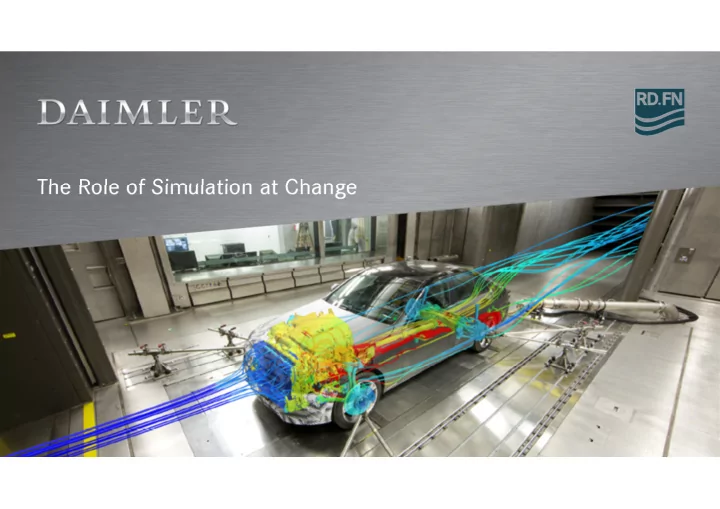

SLIDE 1
Daimler AG
Full Vehicle Thermal Management (VTM)
Seite 2 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
The Role of Simulation at Change Full Vehicle Thermal Management - - PowerPoint PPT Presentation
The Role of Simulation at Change Full Vehicle Thermal Management - - PowerPoint PPT Presentation
The Role of Simulation at Change Full Vehicle Thermal Management (VTM) Are simulation and testing equivalent ? What are the success factors of simulation of today? How is simulation integrated into the development process? Daimler AG The Role
SLIDE 2
SLIDE 3
Daimler AG
- ca. 400 000 cells
- 3 weeks of computation time
- 9 months for meshing
- Role of simulation: nice to have
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 3
First Generation of Simulation Model for Underhood (1990)
SLIDE 4
Daimler AG
- 1.4 Mio cells in total
- 1.0 Mio engine compartment
- 0.2 Mio underbody
- 0.2 Mio external region
- Role of simulation: treated more serious
Second Generation of Simulation Model for Underhood
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 4
SLIDE 5
Daimler AG
Latest Generation of Simulation Model for VTM
Seite 5 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
- 120 Mio cells (Hexahedral mesh)
- 40 Mio cells (Polyhedral mesh)
- Role of simulation: fully accepted
SLIDE 6
Daimler AG
- Vehicle components
- Exhaust system
- Heat exchange package
- engine
- Dynamic load cases
Reproduction of the time depend temperature behavior of all thermal relevant components
Latest Generation of VTM Physical Modeling
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 6
SLIDE 7
Daimler AG Seite 7 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
Load case vmax Load case up hill drive Load Cases - vmax, up hill drive, etc.
Full VTM Process Testing
Simulation - which boundary conditions ?
SLIDE 8
Daimler AG
8
Safety of Prediction Flexibility Efficiency
General Requirements on Full VTM Simulation
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 8
Omission of Vehicle Hardware Substitution by Simulation Shortening and Modifications of Development Process “Mass Production of VTM Simulation”
10 20 30 40 50 60 70
Duration of a CFD Simulation [days]
SLIDE 9
Daimler AG
Continuous Improvement Process for VTM Simulation
Source: M. Disch (upcoming Ph.D thesis, FKFS)
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 9 Dissertation Dr. Weidmann „Engine Soak“
- Dissertation Mario Disch
Simulation Transient Driving Up hill Dissertation Frau Michel „Transient Load Cases TAG E/E“ Dissertation Frau Urban „Water Separation“ Dissertation Herr Enriquez-Geppert „Modeling Full Exhaust System“
- 75
Dissertation Frau Pulz „Modeling Full Engine/Transmission“
SLIDE 10
Daimler AG Seite 10 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
Generic Digital Prototype Process
SLIDE 11
Daimler AG Seite 11 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
Full Vehicle Thermal Management Process
Evaluation Component Temperatures Digital E-Vehicle Evaluation Global Concept Digital Phase 1 Evaluation Local Concept Digital Phase 2 Digital B-Vehicle
E-Vehicle- Testing B-Vehicle- Validation
Start of Project SoP Optimization Component Temperatures
Digital Assessment Digital and Physical Assessment Tandem of simulation engineer and testing engineer is responsible for VTM
SLIDE 12
Daimler AG
VTM Co-Simulation
Seite 12
Thermal Convection Thermal Conduction Thermal Radiation
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
- Change from pure CFD
engineer towards VTM engineer
- Increase of the complexity
- f simulation
SLIDE 13
Daimler AG
Costs of VTM
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 13
Flow Mesh Generation Solid Mesh Generation Analysis Analysis Result Preparation Result Preparation
CoSim
CAD data preparation Result Assessment
License costs Engineer service costs ? Engineer service costs ? Reducing the number of physical prototypes increases costs for digital prototypes
SLIDE 14
Daimler AG
14
Efficient Full VTM Simulation Process
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 14
Pre-Processing
Tools used: TIG** , STAR-CCM+
- Need for Automation
- Investment in Software
CAD-Preparation
Tool used: Model Manager**
- Need for Automation
- Investment in Software
**Customized Software Tools for Daimler
Processing
Tools used: Event Manager,** STAR-CCM+
- Need for Automation
- Investment in Software
Post Processing
Tools used: Post Tools,** STAR-CCM+
- Need for Automation
- Investment in Software
2 4 6 8 10 12 14 Vehicle 1 Vehicle 2 Vehicle 3 Vehicle 4 Number of Referenz Vehicles per DPT Loop 1000 2000 3000 4000 5000 6000 7000 8000 2008 2009 2010 2011 2012 Number of Components per Vehicle
SLIDE 15
Daimler AG 15
Imprinting of adjacent Component Parts by means of LFE Tools
The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 / Seite 15
SLIDE 16
Daimler AG
Full VTM Post Processing
Seite 16 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
SLIDE 17
Daimler AG
Key Factors for successful VTM simulation
- Geometrical Data for Pre processing
- Powerful Simulation tool
- Post processing
- Simulation process
Robust and flexible Costs effective
- External Costs for VTM
- License Fee
- Engineering Services
- Software Development
Seite 17 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
SLIDE 18
Daimler AG
New Role of Full VTM Simulation
Simulation is
- dominating the development process
- accepted by the management
- under costs and time pressure more than ever
- comparable to testing
Simulation engineers have more responsibility
Seite 18 The Role of Simulation at Change/Walter Bauer RD/FNT / 01.06.2016 /
