The QuaSEFE Problem Patrizio Angelini, Henry F orster, Michael Hoffmann, Michael Kaufmann, Stephen Kobourov, Giuseppe Liotta, Maurizio Patrignani 27 th International Symposium on Graph Drawing and Network Visualization 2019 The QuaSEFE

slide-1
SLIDE 1

Patrizio Angelini, Henry F¨

  • rster, Michael Hoffmann, Michael Kaufmann,

Stephen Kobourov, Giuseppe Liotta, Maurizio Patrignani

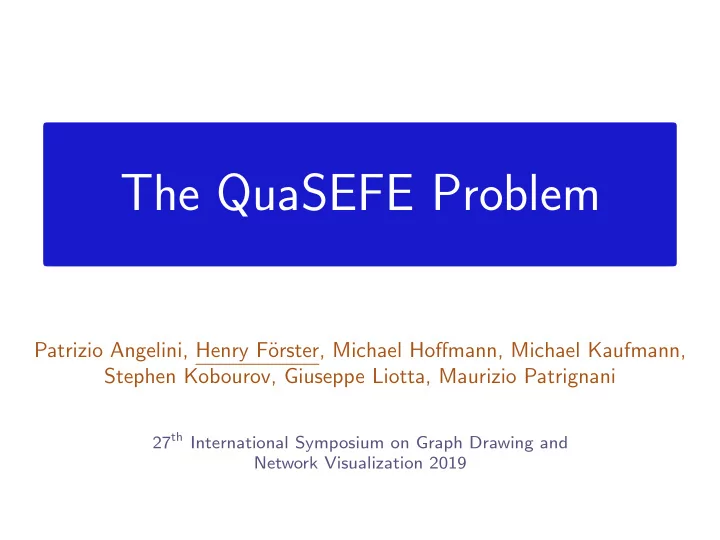

The QuaSEFE Problem

27th International Symposium on Graph Drawing and Network Visualization 2019

slide-2
SLIDE 2

The QuaSEFE Problem

QuaSEFE

slide-3
SLIDE 3

The QuaSEFE Problem

QuaSEFE

slide-4
SLIDE 4

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges

slide-5
SLIDE 5

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Input: Set of planar graphs with shared vertex set v1 v1 v2 v2 v3 v4 v4 v5 v5 v3

slide-6
SLIDE 6

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Input: Set of planar graphs with shared vertex set Output: Planar drawings for all graphs such that v1 v1 v2 v2 v3 v4 v4 v5 v5 v1 v5 v4 v2 v3 v3

slide-7
SLIDE 7

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Input: Set of planar graphs with shared vertex set Output: Planar drawings for all graphs such that vertices have the same position in all drawings (simultaneous drawings) v1 v1 v2 v2 v3 v4 v4 v5 v5 v1 v5 v4 v2 v3 v3

slide-8
SLIDE 8

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Input: Set of planar graphs with shared vertex set Output: Planar drawings for all graphs such that vertices have the same position in all drawings (simultaneous drawings) edges have the same representation in all drawings (fixed edges) v1 v1 v2 v2 v3 v4 v4 v5 v5 v1 v5 v4 v2 v3 v3

slide-9
SLIDE 9

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges

slide-10
SLIDE 10

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges

slide-11
SLIDE 11

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity

slide-12
SLIDE 12

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity Quasiplanar Embedding: No triple of edges crosses pairwise

slide-13
SLIDE 13

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity Quasiplanar Embedding: No triple of edges crosses pairwise forbidden

slide-14
SLIDE 14

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity Quasiplanar Embedding: No triple of edges crosses pairwise forbidden allowed (no triple)

slide-15
SLIDE 15

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity Quasiplanar Embedding: No triple of edges crosses pairwise forbidden allowed (no triple) Thickness two drawings (i.e. two-edge colorable drawings) are quasiplanar

slide-16
SLIDE 16

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity

slide-17
SLIDE 17

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity QuaSEFE Problem:

slide-18
SLIDE 18

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity QuaSEFE Problem: Input: Set of quasiplanar graphs with shared vertex set

slide-19
SLIDE 19

The QuaSEFE Problem

QuaSEFE

Simultaneous (Graph) Embedding with Fixed Edges Quasiplanarity QuaSEFE Problem: Input: Set of quasiplanar graphs with shared vertex set Output: Simultaneous quasiplanar drawings for all graphs with fixed edges

slide-20
SLIDE 20

Related Work

always positive instances for SEFE

slide-21
SLIDE 21

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06]

slide-22
SLIDE 22

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] a planar graph and a tree [Frati ’06]

slide-23
SLIDE 23

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] counterexamples for SEFE a planar graph and a tree [Frati ’06]

slide-24
SLIDE 24

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] counterexamples for SEFE three paths [Brass et al. ’06] a planar graph and a tree [Frati ’06]

slide-25
SLIDE 25

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] counterexamples for SEFE three paths [Brass et al. ’06] a planar graph and a tree [Frati ’06] two outerplanar graphs [Frati ’06]

slide-26
SLIDE 26

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] counterexamples for SEFE three paths [Brass et al. ’06] a planar graph and a tree [Frati ’06] two outerplanar graphs [Frati ’06] SEFE testable in O(n2) time for two biconnected planar graphs with connected intersection

[Bl¨ asius & Rutter ’16]

slide-27
SLIDE 27

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] counterexamples for SEFE three paths [Brass et al. ’06] Variants a planar graph and a tree [Frati ’06] two outerplanar graphs [Frati ’06] SEFE testable in O(n2) time for two biconnected planar graphs with connected intersection

[Bl¨ asius & Rutter ’16]

slide-28
SLIDE 28

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] counterexamples for SEFE three paths [Brass et al. ’06] Variants no fixed mapping between vertices [Brass et al. ’06] a planar graph and a tree [Frati ’06] two outerplanar graphs [Frati ’06] SEFE testable in O(n2) time for two biconnected planar graphs with connected intersection

[Bl¨ asius & Rutter ’16]

slide-29
SLIDE 29

Related Work

always positive instances for SEFE two caterpillars (in polynomial area) [Brass et al. ’06] counterexamples for SEFE three paths [Brass et al. ’06] Variants no fixed mapping between vertices [Brass et al. ’06] a planar graph and a tree [Frati ’06] two outerplanar graphs [Frati ’06] geometric simultaneous embedding (GSE) [Angelini et al. ’11, Di Giacomo et al. ’15] SEFE testable in O(n2) time for two biconnected planar graphs with connected intersection

[Bl¨ asius & Rutter ’16]

slide-30
SLIDE 30

Related Work - SEFE and Beyond Planarity

quasiplanar GSE

slide-31
SLIDE 31

Related Work - SEFE and Beyond Planarity

quasiplanar GSE a tree and a cycle [Didimo et al. ’12]

slide-32
SLIDE 32

Related Work - SEFE and Beyond Planarity

quasiplanar GSE a tree and a cycle [Didimo et al. ’12] a tree and an outerpillar [Di Giacomo et al. ’15]

slide-33
SLIDE 33

Related Work - SEFE and Beyond Planarity

quasiplanar GSE a tree and a cycle [Didimo et al. ’12] a tree and an outerpillar [Di Giacomo et al. ’15] not every two quasiplanar graphs [Di Giacomo et al. ’15]

slide-34
SLIDE 34

Related Work - SEFE and Beyond Planarity

quasiplanar GSE simultaneous RAC drawings [Argyriou et al. ’13, Bekos et al. ’16, Evans et al. ’16, Grilli ’18] a tree and a cycle [Didimo et al. ’12] a tree and an outerpillar [Di Giacomo et al. ’15] not every two quasiplanar graphs [Di Giacomo et al. ’15]

slide-35
SLIDE 35

Our Results

always positive instances for QuaSEFE

slide-36
SLIDE 36

Our Results

always positive instances for QuaSEFE two planar graphs and a tree

slide-37
SLIDE 37

Our Results

always positive instances for QuaSEFE two planar graphs and a tree a 1-planar graph and a planar graph

slide-38
SLIDE 38

Our Results

always positive instances for QuaSEFE two planar graphs and a tree a 1-planar graph and a planar graph planar graphs with restrictions on their intersection graphs

slide-39
SLIDE 39

Our Results

always positive instances for QuaSEFE two planar graphs and a tree a 1-planar graph and a planar graph planar graphs with restrictions on their intersection graphs counterexamples for QuaSEFE in two special settings

slide-40
SLIDE 40

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

slide-41
SLIDE 41

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

slide-42
SLIDE 42

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar
slide-43
SLIDE 43

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1

slide-44
SLIDE 44

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 v u1 v u1 u2 u2 u3 u3 u4 u4

slide-45
SLIDE 45

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 v u1 v u1 u2 u2 u3 u3 u4 u4 u4

slide-46
SLIDE 46

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 v u1 v u1 u2 u2 u3 u3 u4 u4

slide-47
SLIDE 47

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1

slide-48
SLIDE 48

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 remaining edges embedded planar

slide-49
SLIDE 49

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 remaining edges embedded planar

  • 3. Draw G3 quasiplanar
slide-50
SLIDE 50

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 remaining edges embedded planar

  • 3. Draw G3 quasiplanar

G3 \ G1 planar

slide-51
SLIDE 51

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 remaining edges embedded planar

  • 3. Draw G3 quasiplanar

G3 \ G1 planar

slide-52
SLIDE 52

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 remaining edges embedded planar

  • 3. Draw G3 quasiplanar

G3 \ G1 planar

slide-53
SLIDE 53

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 remaining edges embedded planar

  • 3. Draw G3 quasiplanar

G3 \ G1 planar thickness 2 ⇒ quasiplanar

slide-54
SLIDE 54

Two Planar Graphs and a Tree

  • 1. Draw G1 planar

G1 T2 G3

  • 2. Draw T2 planar

some edges fixed by G1 choose planar rotation system from G3 for edges in G3 \ G1 remaining edges embedded planar

  • 3. Draw G3 quasiplanar

G3 \ G1 planar thickness 2 ⇒ quasiplanar

slide-55
SLIDE 55

A 1-Planar Graph and a Planar Graph

  • 1. Decompose the 1-planar graph into a planar graph G1

and a forest T2 [Ackerman ’14]

slide-56
SLIDE 56

A 1-Planar Graph and a Planar Graph

  • 1. Decompose the 1-planar graph into a planar graph G1

and a forest T2 [Ackerman ’14]

  • 2. Apply the previous result (G1 and T2 are planar)
slide-57
SLIDE 57

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V

slide-58
SLIDE 58

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V H1 H2 H3 H1,2 H2,3 H H1,3

slide-59
SLIDE 59

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H H1,3

slide-60
SLIDE 60

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H H1,3

slide-61
SLIDE 61

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H H1,3

slide-62
SLIDE 62

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H H1,3

slide-63
SLIDE 63

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H H1,3

slide-64
SLIDE 64

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H Corollary: H1 = ∅ ⇒ QuaSEFE H1,3

slide-65
SLIDE 65

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H Corollary: H1 = ∅ ⇒ QuaSEFE H1,3

slide-66
SLIDE 66

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H Corollary: H1 = ∅ ⇒ QuaSEFE H1,3 Corollary: H1,2 is forest of paths ⇒ QuaSEFE

slide-67
SLIDE 67

Triples of Planar Graphs

Let G1, G2 and G3 planar graphs on V Theorem: If G1 \ G3, G2 \ G3 admits a SEFE, G1, G2, G3 admits a QuaSEFE. H1 H2 H3 H1,2 H2,3 H Corollary: H1 = ∅ ⇒ QuaSEFE H1,3 Corollary: H1,2 is forest of paths ⇒ QuaSEFE Theorem: If H is a forest of paths, G1, G2, G3 admits a QuaSEFE.

slide-68
SLIDE 68

Sunflower Instances

Sunflower Instance: Planar Graphs G1, . . . , Gk s.t. each edge is either in exactly one Gi or in all Gi (i.e. in H := Gi)

slide-69
SLIDE 69

Sunflower Instances

Sunflower Instance: Planar Graphs G1, . . . , Gk s.t. each edge is either in exactly one Gi or in all Gi (i.e. in H := Gi) Deciding if SEFE exists is NP-hard for k ≥ 3 [Angelini et al. ’15] [Schaefer ’13]

slide-70
SLIDE 70

Sunflower Instances

Sunflower Instance: Planar Graphs G1, . . . , Gk s.t. each edge is either in exactly one Gi or in all Gi (i.e. in H := Gi) Deciding if SEFE exists is NP-hard for k ≥ 3 [Angelini et al. ’15] [Schaefer ’13] Corollary: A sunflower instance with k = 3 planar graphs admits a QuaSEFE.

slide-71
SLIDE 71

Sunflower Instances

Sunflower Instance: Planar Graphs G1, . . . , Gk s.t. each edge is either in exactly one Gi or in all Gi (i.e. in H := Gi) Deciding if SEFE exists is NP-hard for k ≥ 3 [Angelini et al. ’15] [Schaefer ’13] Theorem: For any k, a sunflower instance with k planar graphs admits a QuaSEFE. Corollary: A sunflower instance with k = 3 planar graphs admits a QuaSEFE.

slide-72
SLIDE 72

Sunflower Instances

Sunflower Instance: Planar Graphs G1, . . . , Gk s.t. each edge is either in exactly one Gi or in all Gi (i.e. in H := Gi) Deciding if SEFE exists is NP-hard for k ≥ 3 [Angelini et al. ’15] [Schaefer ’13] Theorem: For any k, a sunflower instance with k planar graphs admits a QuaSEFE.

  • 1. Draw H planar

Corollary: A sunflower instance with k = 3 planar graphs admits a QuaSEFE.

slide-73
SLIDE 73

Sunflower Instances

Sunflower Instance: Planar Graphs G1, . . . , Gk s.t. each edge is either in exactly one Gi or in all Gi (i.e. in H := Gi) Deciding if SEFE exists is NP-hard for k ≥ 3 [Angelini et al. ’15] [Schaefer ’13] Theorem: For any k, a sunflower instance with k planar graphs admits a QuaSEFE.

  • 1. Draw H planar
  • 2. Draw each Gi \ H planar

Corollary: A sunflower instance with k = 3 planar graphs admits a QuaSEFE.

slide-74
SLIDE 74

Sunflower Instances

Sunflower Instance: Planar Graphs G1, . . . , Gk s.t. each edge is either in exactly one Gi or in all Gi (i.e. in H := Gi) Deciding if SEFE exists is NP-hard for k ≥ 3 [Angelini et al. ’15] [Schaefer ’13] Theorem: For any k, a sunflower instance with k planar graphs admits a QuaSEFE.

  • 1. Draw H planar
  • 2. Draw each Gi \ H planar

each Gi is drawn with thickness 2 Corollary: A sunflower instance with k = 3 planar graphs admits a QuaSEFE.

slide-75
SLIDE 75

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1.

slide-76
SLIDE 76

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 v1 v2 v15 v4 v14 v10 v8

slide-77
SLIDE 77

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-78
SLIDE 78

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-79
SLIDE 79

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-80
SLIDE 80

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-81
SLIDE 81

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-82
SLIDE 82

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-83
SLIDE 83

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-84
SLIDE 84

Drawn Matching and another Matching ✗

Theorem: There are two matchings M1 and M2 that do not admit a QuaSEFE for a fixed drawing of M1. v3 v5 v6 v7 v9 v11 v12 v13 v16 v17 v19 v18 v20 M2 = M1 \ {(v17, v18), (v19, v20)} ∪ {(v18, v20)} v1 v2 v15 v4 v14 v10 v8

slide-85
SLIDE 85

Open Problems

Do the following always admit a QuaSEFE?

slide-86
SLIDE 86

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs

slide-87
SLIDE 87

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs a quasiplanar graph and a matching

slide-88
SLIDE 88

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs a quasiplanar graph and a matching three outerplanar graphs

slide-89
SLIDE 89

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs a quasiplanar graph and a matching three outerplanar graphs four paths

slide-90
SLIDE 90

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs a quasiplanar graph and a matching three outerplanar graphs four paths What is the computational complexity of QuaSEFE?

slide-91
SLIDE 91

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs a quasiplanar graph and a matching three outerplanar graphs four paths What is the computational complexity of QuaSEFE? Extend to other beyond planar graph classes such as k-planar graphs.

slide-92
SLIDE 92

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs a quasiplanar graph and a matching three outerplanar graphs four paths What is the computational complexity of QuaSEFE? Extend to other beyond planar graph classes such as k-planar graphs. Main difficulty: find a similarly catchy name for the problem

slide-93
SLIDE 93

Open Problems

Do the following always admit a QuaSEFE? two 1-planar graphs a quasiplanar graph and a matching three outerplanar graphs four paths What is the computational complexity of QuaSEFE? Extend to other beyond planar graph classes such as k-planar graphs. Main difficulty: find a similarly catchy name for the problem

T h a n k y

  • u

f

  • r

y

  • u

r a t t e n t i

  • n

!
