The Power of Connected Infrastructure / OSIsoft Korea Presented by 1 2 Information Challenges + Tags Data Assets Processing Mining As time

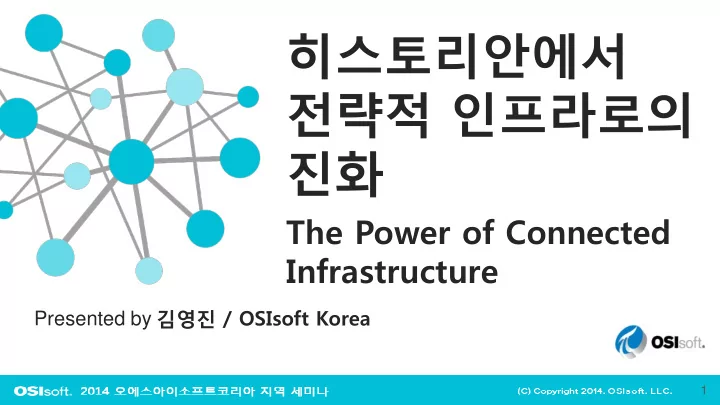

  1. 히스토리안에서 전략적 인프라로의 진화 The Power of Connected Infrastructure 김영진 / OSIsoft Korea Presented by 1

  2. 2

  3. 정보의 변화와 도전 Information Challenges

  4. + Tags Data Assets Processing Mining As time goes on, it’s HArder to find 10K 50K informAtion. Time Tags Tags 4

  5. I I I nfo rma tio n Challen nfo rma tio n Challen nfo rma tio n Challen “Homosapien Data Integration” enge enge enge ges ges ges Copy Paste Hard to Find Related Data Events & Process Data Are Not Integrated Increasing Data

  6. Why a Data Infrastructure Electrical Power Water Systems Transportation Communication Data Sustainable Reliable Accessible Enabling Organized 6

  7. 히스토리안의 진화 Evolution of Historian 7

  8. Best Record = Golden Batch, Operation Aryton Senna (1960~1994) 8

  9. 히스토리안의 진화 9

  10. PI System Infrastructure I need the big picture The pump is not of my wind turbines I need to be notified working. What’s the to understand what when this kind of problem? is going on. events happen. I need to analyze and compare turbines Information must be performance. shared across the enterprise through different business systems. We all want to know how the plant is performing in real-time. 10

  11. PI System Infrastructure The pump is not PI Interfaces working. What’s the problem? 11

  12. PI Interfaces • More than 450 interfaces • Support multiple protocols and data sources – OPC, Modbus, SNMP , Text File, ODBC • Robust and reliable 12

  13. PI System Infrastructure The pump is not PI Interfaces working. What’s the problem? PI Data Archive 13

  14. PI Data Archive • Optimized for real time data streams - TAGS TAG TIME VALUE STATUS TIC1001.PV 23-MAY-08 11:01:02 12.3 GOOD LIC30211.PV 23-MAY-08 11:01:03 198.4 GOOD … … … … • Designed to archive data for millions of tags and tens of years 14

  15. PI System Infrastructure The pump is not PI Interfaces working. What’s the problem? PI AF PI Data Archive 15

  16. PI Asset Framework (PI AF) • Organize your assets data in a hierarchical , scalable , secure , and extensible database • Model data from different PI Servers • Relate non time-series data sources • Integrate with analyses and notifications tools 16

  17. The Big Picture Analyses Time-series • Efficiency analysis • In-Flow • Key Performance • Pressure Indicators (KPI) • Vibration data Asset details Events • Name • Downtime • Model • Startup • Manufacturer • Failure External data Notifications • Performance curves • High speed • Last maintenance date • Rotor failure • Design documents • Low pressure • Best operating procedures 17

  18. PI System Infrastructure I need the big The pump is not I need to analyse We all want to know picture of my pumps PI Interfaces working. What’s the the plant performance and compare pumps to understand what in real-time. problem? performance. PI AF is going on. PI Data PI Visualization Archive Suite PI ProcessBook PI DataLink PI WebParts 18

  19. Visualization Landscape PI WebParts PI Coresight Collaboration and ad Composite web applications hoc analysis Explore Distribute PI Visualization Suite PI DataLink Reports and data Monit or Analyze analysis PI ProcessBook Authoring tool for process displays and trends 19

  20. PI System Infrastructure PI Analytics We all need to convert We all need to convert We all need to convert We all need to convert PI Interfaces real-time data into real-time data into real-time data into real-time data into PI AF actionable information! actionable information! actionable information! actionable information! PI Data PI Visualization Archive Suite PI ProcessBook PI DataLink PI WebParts 20

  21. Asset Based Analytics • Easy – empower users to build their own calculations • Reuse and standardize Clarity and correctness • • Rollup and summarize • Not just numbers, events too • Performance and scalability 21

  22. PI Analytics • Transforms operational data into actionable information • The analyses are: – Created by configuration or programming – Triggered periodically or on events – Consulted on-demand or historized 22

  23. PI System Infrastructure A specific recurring event might be PI Event Frames affecting overall performance. PI Analytics PI Interfaces PI AF PI Data PI Visualization Archive Suite PI ProcessBook PI DataLink PI WebParts 23

  24. Y our Data Info End Start myEvent 24

  25. PI E ve nt F ra me s E ve nts Sho rte n the T ime to I nsig ht Too High! Downtime Batches Your Data I nfo rma tio n Challen enge ges

  26. Simplify Data Analysis Perform Asset Comparisons myEvent Downtime Events for Product XYZ Name Temp.Max Product XYZ (1) (2) Downtime EF1 122.47 EF2 109.34 EF3 112.73 EF4 98.61 EF5 125.24 Perform Event Comparisons Discover Event Interrelationships 26

  27. PI E ve nt F r ame s Bookmarks for your Curtailment Real-Time Data Breaker Trip Downtime Y our Data Startup High Temperature Batch 27

  28. PI System Infrastructure PI Notifications PI Event Frames PI Analytics PI Interfaces PI AF I need to be notified PI Data PI Visualization Archive when this kind of Suite events happen. PI ProcessBook PI DataLink PI WebParts 28

  29. PI Notifications DELIVER Web Service 29

  30. PI System Infrastructure PI Notifications PI System LoB Access Systems PI Event Frames PI Analytics PI Interfaces PI Server Information must be PI AF shared across the enterprise through PI Data different business PI Visualization Archive Suite systems. PI ProcessBook PI DataLink PI WebParts 30

  31. Context “I am the energy efficiency expert . I need to analyze and compare truck performance for “An incident happened different mining sites located last night.” hundreds of miles from my office.” “I need data to assess the situation but it is not readily available.” 31

  32. 32

  33. …are we in the future yet? 33

  34. 34

  35. Name: Stan Prosowski Role: Sr. Plant Operator Name: Kevin Lee Role: PI System Administrator 35

  36. “As a senior plant operator, I want to record and visualize forecast data with our PI System, so we know in real-time how good is our actual production and anticipate both risks and opportunities .” “As a system administrator, I want built-in and flexible future data storage in our PI System, so that all data is safe, secure, and highly available , and custom retention policies can be easily implemented .” 36

  37. Stan Kevin 37

  38. System-Wide Future Data • PI Interfaces/Connectors – Data In • PI Server – AF and Analytics • Programmatic Access – PI AF SDK, Web API, … • Clients – PI DataLink, PI Coresight, … 38

  39. Summary 39

  40. Cloud Computing PI System Infrastructure PI Visualization Suite / PI System Access Windows Integrated Security PI Event PI Interfaces High Availability (HA) Frames for Health Monitoring PI Asset PI Notifications Framework 64-bit Architecture PI Data PI Analytics Archive Virtualisation PI Interfaces 40 40

  41. Summary The PI System infrastructure… … manages and stores time-series , assets , and events information regardless of the data sources. … is interoperable , extensible , and secure. … continues to evolve so you can unleash the Power of your Data! 41

  42. 김영진 rkim@osisoft.com 상무이사 OSIsoft Korea 42

  43. Brought to you by
