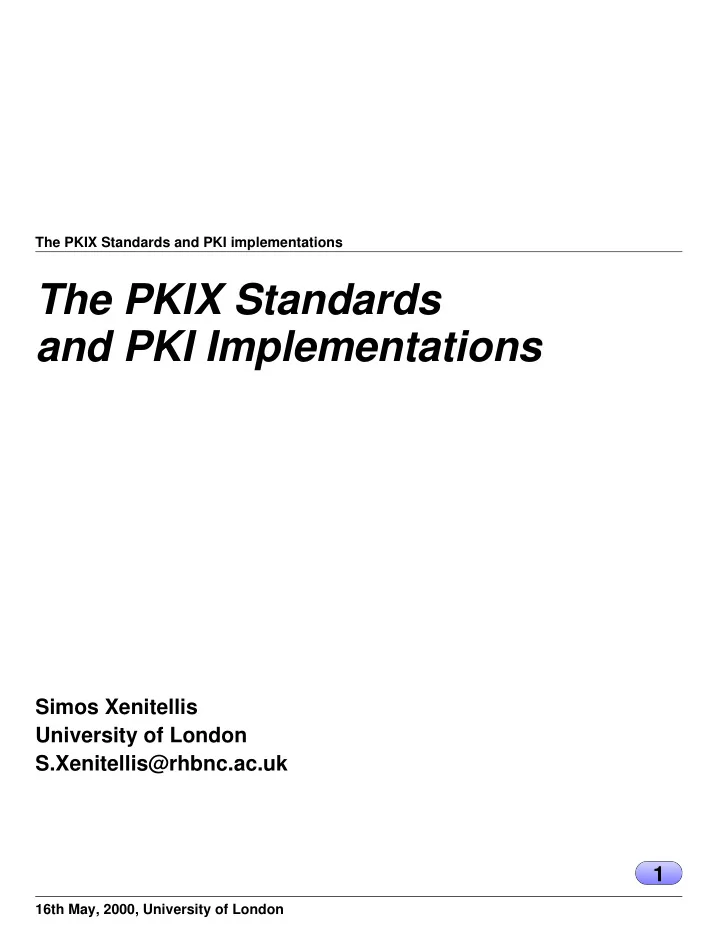

SLIDE 1

The PKIX Standards and PKI implementations

The PKIX Standards and PKI Implementations

Simos Xenitellis University of London S.Xenitellis@rhbnc.ac.uk 1

16th May, 2000, University of London

SLIDE 2

The PKIX Standards and PKI implementations

Agenda

We are going to discuss about

open-source software
public key cryptography
PKI functionality

about

the PKIX Standards

and finally about

PKI implementations

2

16th May, 2000, University of London

SLIDE 3

The PKIX Standards and PKI implementations

Open-source

is

a new trend
a new software development model
is based on the almost zero distribution costs
quick initial distribution
not expensive life-cycle

In short

availability of source code
covered by suitable unencumbered licence

3

16th May, 2000, University of London

SLIDE 4

The PKIX Standards and PKI implementations

Public Key Cryptography

Algorithms

RSA
El Gamal
Elliptic curves

can

encrypt/decrypt
sign/verify

4

16th May, 2000, University of London

SLIDE 5

The PKIX Standards and PKI implementations

Example of Public Key Cryptography: RSA

Setup

Find strong primes p and q.
Set n = p * q
Pick e co-prime with (p-1)(q-1)
and find d so that (d * e) mod ((p-1)(q-1)) = 1

the keys are

Public: n and e
Private: d

5

16th May, 2000, University of London

SLIDE 6

The PKIX Standards and PKI implementations

Creation of a Certification Authority

In the beginning, the CA

generates public/private key pair
generates certificate request
make a certificate out of the certificate request (sign)
gives that certificate, the root CA certificate to everyone
keeps private key very private

6

16th May, 2000, University of London

SLIDE 7

The PKIX Standards and PKI implementations

Client sign-up

Procedure

user creates own certificate request
sends over to RA to authorise
if RA says ok, sends over to CA
CA signs the request, thus creating a Certificate
CA sends Certificate back to RA
RA publishes it somehow
user gets Certificate

7

16th May, 2000, University of London

SLIDE 8

The PKIX Standards and PKI implementations

Why PKIs?

To improve Internet Security

S/MIME
TLS
IPSec

To provide

confidentiality
data integrity
data-origin authentication
non-repudiation

8

16th May, 2000, University of London

SLIDE 9

The PKIX Standards and PKI implementations

Historical Events

Everything started from X.500, circa 1984
X.500 was about directory services
became standard at end of 80s
defined the X.509 certificate format
X.509 too generic and untested in real applications
someone had to stand-up and define area of applicability

9

16th May, 2000, University of London

SLIDE 10

The PKIX Standards and PKI implementations

X.509 v2 ’93

X.500 revision in 1993 Two fields added in certificate

subjectUniqueIdentifier
issuerIniqueIdentifier

Support directory access control PEM made use of v2 10

16th May, 2000, University of London

SLIDE 11

The PKIX Standards and PKI implementations

X.509 v3 ’96

PEM implementation showed deficiences ISO/IEC/ITU and ANSI X9 standard Standard extensions

additional subject identification information
key attribute information
policy information
certification path constraints

11

16th May, 2000, University of London

SLIDE 12

The PKIX Standards and PKI implementations

Enter IETF

Still X.509 Certificates were lacking Formed PKIX Working Group (Oct95) Specified Internet PKI profile In detail

for X.509 v3 PKCs
for X.509 v2 CRLs

Gone through 11 drafts Now it official, RFC2459 12

16th May, 2000, University of London

SLIDE 13

The PKIX Standards and PKI implementations

PKIX Definitions

Certificate

Attribute Certificate
Public Key Certificate

Authority

Certification Authority
Attribute Authority
and maybe Registration Authority

End Entity 13

16th May, 2000, University of London

SLIDE 14

The PKIX Standards and PKI implementations

PKIX Definitions (cont’)

Infrastructures

Public Key Infrastructure (PKI)
Privilege Management Infrastructure (PMI)

Documents

Certificate Policy (CP)
Certification Practice Statement (CPS)

14

16th May, 2000, University of London

SLIDE 15

The PKIX Standards and PKI implementations

More PKIX

Profiles for Certs/CRLs
Management protocols
Operational protocols
Certificate Policy and Certification Practice Statement
Time-stamping and data-certification services

15

16th May, 2000, University of London

SLIDE 16

The PKIX Standards and PKI implementations

PKIX: Profiles

Basic Certificate Fields
Certificate extensions
CRL and CRL extensions
Certificate Path Validation
Algorithm support
plus ASN.1 structures and OIDs

16

16th May, 2000, University of London

SLIDE 17

The PKIX Standards and PKI implementations

PKIX: Management protocols

For on-line interactions of client with management entities Certificate Management Protocol (CMP)

CMP-TCP
CMP-HTTP

17

16th May, 2000, University of London

SLIDE 18

The PKIX Standards and PKI implementations

PKIX: Operational protocols

Delivery of Certs/CRLs/status to client systems Good to have variety here Currently

FTP
HTTP
OCSP
LDAPv2
LDAPv3

18

16th May, 2000, University of London

SLIDE 19

The PKIX Standards and PKI implementations

PKIX: CP and CPS

Addresses

physical and personal security
subject identification requirements
revocation policy
etc.

Has examples 19

16th May, 2000, University of London

SLIDE 20

The PKIX Standards and PKI implementations

PKIX: Time stamps (1/2)

Still draft, on 6th revision
Talks about TSA, the Time Stamp Authority

Simple (c)

Receives request
Appends current time
Signs
Sends back

Offers non-repudiation 20

16th May, 2000, University of London

SLIDE 21

The PKIX Standards and PKI implementations

PKIX: PKIX and DVCS

Data Validation and Certification Service What does it do?

certify existence
certifcy correctness
f
message
signature

Offers non-repudiation 21

16th May, 2000, University of London

SLIDE 22

The PKIX Standards and PKI implementations

PKIX: PKI Entities

Certificate/CRL Repository RA End entity CA CA Operational transactions and management transactions Publish certificate Publish CRL Management transactions PKI management entities Management transactions PKI users Publish Certificate

22

16th May, 2000, University of London

SLIDE 23

The PKIX Standards and PKI implementations

PKIX: AC Exchange

AC Issuer Server Server Lookup Repository Client Lookup AC "push" (part of app. protocol) Client Acquisition Server Acquisition Client

23

16th May, 2000, University of London

SLIDE 24

The PKIX Standards and PKI implementations

Implementations #1

pyCA and OpenCA

set of CGI scripts
OpenSSL for crypto needs
run ok on Unix/Unix-like
support Netscape
no strict compliance with PKIX
allow RAD testing/implementation

24

16th May, 2000, University of London

SLIDE 25

The PKIX Standards and PKI implementations

Implementations #2

OSCAR

Open Secure Certificate ARchitecture
comes from DTSC, Australia
good support for X.509v3, crypto, PKCS, PKIX
very good Netscape support
source code available, but can’t redistribute/sell freely
should open license

25

16th May, 2000, University of London

SLIDE 26

The PKIX Standards and PKI implementations

Implementaions #3

Mozilla Open Source PKI Projects Provides two libraries

NSS, Network Security Services
PSM, Personal Security Manager

Comments

For integration with Netscape/iPlanet products
License is MPL or GPL, you choose
Crypto still in trouble
No strict PKIX compliance
Crypto must get fixed, then go fast

26

16th May, 2000, University of London

SLIDE 27

The PKIX Standards and PKI implementations

Implementations #4

MISPC or Minimum Interoperability Specifications for PKI Components

Brought to you by NIST
CD-only distribution (still waiting for it)
Only for Windows
Has some PKIX support
No crypto for US, yet
Gloomy future

27

16th May, 2000, University of London

SLIDE 28

The PKIX Standards and PKI implementations

Implementations #5

Reference Implementation from IBM PKIX compliance with

RFC 2459 Profiles
RFC 2510 Management
RFC 2511 CRMF
LDAPv2 draft

Comments

no crypto for US
they verified the PKIX docs, found errata
uses CDSA
code needs clean-up, looks nice
is freeware, me says they changed their mind

28

16th May, 2000, University of London

SLIDE 29

The PKIX Standards and PKI implementations

Fin

We talked about

open-source software
public key cryptography
PKI functionality

about

the PKIX Standards

and finally about

PKI implementations

29
