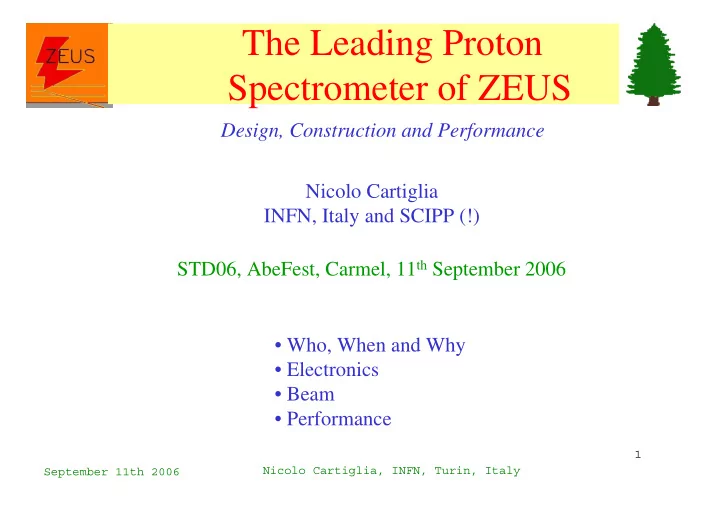

The Leading Proton Spectrometer of ZEUS

Design, Construction and Performance Nicolo Cartiglia INFN, Italy and SCIPP (!) STD06, AbeFest, Carmel, 11th September 2006

  • Who, When and Why
  • Electronics
  • Beam
  • Performance
slide-2
SLIDE 2

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 2

The Leading Proton Spectrometer Group

The LPS group was a collaboration of 3 Universities: Bologna, Turin and Santa Cruz for a total of more than 50

  • people. Santa Cruz designed and built the front-end
  • electronics. Many people from SC took part:
  • E. Barberis, N. Cartiglia, J. De Witt, D. Dorfan, T. Dubbs, A. Grillo,

B Hubbard, W. Lockman, J. Ng, K.O’Shaughnessy, D. Pitzl, J. Rahn,

  • B. Rowe, H.F.-W Sadrozinski, A. Seiden, E. Spencer, A. Webster, M.

Wilder, R. Wichmann, D. Williams, D. ZerZion

slide-3
SLIDE 3

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 3

We built the LPS in 1989-91

Intel CPU 486: 33 MHz. 1.25 M transistor Windows 3.0 was released in 1989 There was a wall in Berlin Abe was my professor of Q.M. Earthquake

slide-4
SLIDE 4

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 4

HERA Physics

The main goal of HERA is the study of electron – proton interaction both at high (DIS regime, Q2> 2-4 GeV2) and low (Photoproduction) momentum transfer.

slide-5
SLIDE 5

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 5

The ZEUS detector

The ZEUS detector is located

  • n the HERA collider in

Hamburg. It’s a general purpose detector:

  • Silicon vertex
  • Wire Chamber
  • Uranium calorimeter
  • Muon Chamber in the

return yoke

slide-6
SLIDE 6

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 6

ZEUS forward detectors

S1-S6: 6 LPS station, 24- 90 m Forward Neutron Calorimeter, 103 m S1-S3: horizontal bending S4-S6: vertical bending

slide-7
SLIDE 7

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 7

Forward Physics at ZEUS

In some events the proton remnant is characterized by the production of a leading baryon (proton or neutron) These LBs carry a very high fraction of the incoming proton beam momentum: xL = pz/p’z ~ 0.95-0.999

slide-8
SLIDE 8

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 8

Leading Proton Production

The production of leading protons differs depending on the value of xL : fragmentation, reggeon, pomeron. Note: these names are overlapping processes without a clear distinction

slide-9
SLIDE 9

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 9

The ZEUS LPS

  • Six detector stations
  • Each station: 6 single sided

Si detector planes

  • 115 um pitch (0 degree)
  • 115/sqrt(2) (+- 45 degree)
  • Inserted in Roman Pots

Total:

  • 54 detector planes
  • 50,000 channels
slide-10
SLIDE 10

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 10

The silicon plane

  • 300 um tick Si wafer, p

strips on n substrate

  • 3 manufacturing company:

CANBERRA, MICRON, EURSYS

  • Oval cut, precision on cut-
  • ut better than 100 um
  • Yield ~ 85%
  • Capacitance ~ 1.2 pF/cm
  • Depletion Voltage: 30-50 V
  • Mounted on a 6 layers

Cu-Invar support, water cooled

slide-11
SLIDE 11

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 11

The Front-end Electronics - I

The LPS detector required a low-noise, low-power, radiation hard front- end electronics: it had to work near the beam with very little space available for the electronics and its cooling. It was decided to use a binary read-out to simplify the signal to noise problem and implement it using a combination of two chips: an analog amplifier comparator chip, the TEKZ, and a digital memory chip, the

  • DTSC. Requirements:

Low Noise: S/N ~ 22 Low Power: < 2 mW/channel Narrow width to match the microstrip Pipelined operation Radiation hardness up to 3 Mrad and 1014 p/cm2

slide-12
SLIDE 12

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 12

The Front-end Electronics-II

  • DC Coupled to the detector
  • Shaping time = 32 ns
  • Gain = 150+-20 mV/fC
  • S/N ~ 22 with 11pF load
  • Power 2 mW/Channel
  • 72 um

The TEKZ bipolar chip The DTSC CMOS chip

  • DC Coupled to the TEKZ
  • Clock freq 10 MHz
  • L1 and L2 buffers
  • FLT pipeline 5 us length
  • Power 2 mW/Channel
  • 50,000 Transistor
  • 1.2 um technology
slide-13
SLIDE 13

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 13

Roman Pot

Beam pipe Detector Roman Pot: 3 mm with a 300 µm thick window 3 movements:

  • 1. Detector in/out
  • 2. Pot in/out
  • 3. Transverse

Resolver Position accuracy: 5 µm

slide-14
SLIDE 14

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 14

Roman Pot Motion

At filling time the pots are retracted Approaching the beam Full insertion for data taking

slide-15
SLIDE 15

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 15

A LPS station

Mechanical support Filters Detector TEKZ - DTSC Cooling pipe

slide-16
SLIDE 16

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 16

A real event

slide-17
SLIDE 17

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 17

Hit Maps

Empty band: dead DTSC chips

slide-18
SLIDE 18

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 18

Detector Performance

The LPS is a difficult detector to

  • perate: it can only be used with

perfect beam condition and no “creative” set-up

  • Noisy or dead channels < 2%
  • Measured plane efficiency > 99.5 %
  • Noise < 0.3 ch/plane firing per bunch

crossing 62 132 Lum (pb-1) 35 47 2000 10 36 1999 13 28 1997 11 1996 3.4 6.6 1995 0.9 3 1994 LPS ZEUS Year

slide-19
SLIDE 19

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 19

LPS Physics Reach

The LPS has been the used in many analysis:

(unexpectedly we found ourselves in the middle of a strong competition with H1 on the topic of ‘diffraction’)

  • Clean tag of diffractive events, both at low and high

mass

  • Measurement of the t- distribution in various processes

(vector mesons, diffraction, high and low Q2 processes)

  • Clean tag of double diffraction
  • Leading proton production spectra
slide-20
SLIDE 20

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 20

Leading Proton Spectrum

This plot shows the momentum spectrum of leading proton produced in e-p collision. It can be considered the summary

  • f the LPS operation…

Several models are also shown

slide-21
SLIDE 21

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 21

Conclusion

The LPS was the first roman pot system operated at DESY. It took data for 7 years with a ~ 60% efficiency and integrated a luminosity of 70 pb-1 The LPS used 50000 channels of single sided Si detector read-out by two VLSI chips that provide a digital output. The 2-chip architecture that was developed for the LPS is now widely used in other systems

slide-22
SLIDE 22

September 11th 2006 Nicolo Cartiglia, INFN, Turin, Italy 22

Personal Conclusion

It was and incredible occasion to witness the creation of a high tech lab: I arrived in Santa Cruz in 1989, before any probe station, chip analyzer or other sophisticated equipment. We had a rotary switch to change the gain on a amplifier…and we thought we should go and live in Texas. The lab was ‘the place to be’, long hours and a lot of new ideas. In one of my early day Abe asked me my favourite movies. Before I could come up with a really boring intellectual movie he said: I really like “The creature from the Black Lagoon”…and I understood I was in the right place! Thanks Abe, Thanks Hartmut!
