The Issues Facing CMAL Owns or old ferries, - PowerPoint PPT Presentation

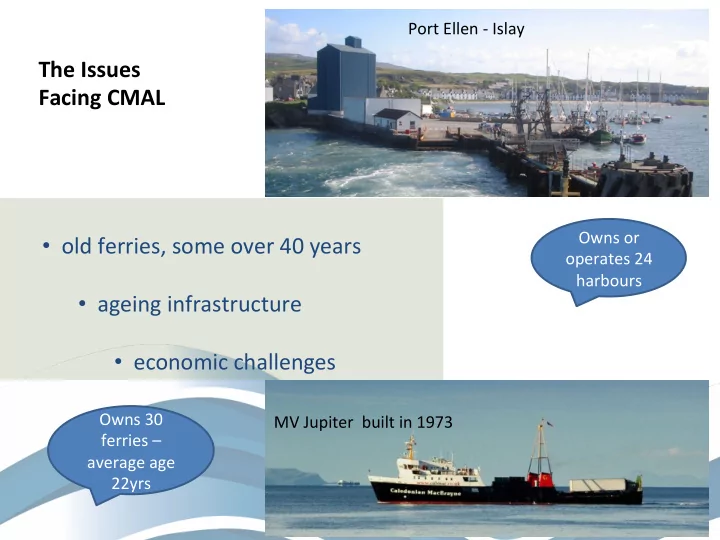

Port Ellen - Islay The Issues Facing CMAL Owns or old ferries, some over 40 years operates 24 harbours ageing


  1. Port ¡Ellen ¡-­‑ ¡Islay ¡ The ¡Issues ¡ ¡ Facing ¡CMAL ¡ ¡ Owns ¡or ¡ • ¡ ¡old ¡ferries, ¡some ¡over ¡40 ¡years ¡ ¡ operates ¡24 ¡ harbours ¡ ¡ • ¡ ¡ageing ¡infrastructure ¡ • ¡ ¡economic ¡challenges ¡ Owns ¡30 ¡ MV ¡Jupiter ¡ ¡built ¡in ¡1973 ¡ ¡ ferries ¡– ¡ average ¡age ¡ 22yrs ¡

  2. Where ¡CMAL ¡operates ¡-­‑ ¡ Routes ¡and ¡Ports ¡

  3. Reasons for Considering Hybrid Propulsion Greater redundancy Reduce fuel consumption Reduced impact of CO2 emissions and other pollutants Uncertainty of future fuel costs Insurance against increasing environmental regulation Noise reduction Possibility to operate in zero emission mode when vessel is at port Lower maintenance

  4. Lead Acid – Lithium Comparison Lead Acid Lithium Ion Depth of Discharge 50% 80% Cycle life at 50% 8000 1000 Depth of Discharge >3000 @ 80% DoD Energy Density 20 Wh/kg 100 Wh/kg Charge Efficiency 60% 95-99% Maintenance Maintenance required Maintenance Free

  5. Modes ¡of ¡OperaHon ¡ ) Generator Shore Hotel Supply Mode 1 - Generator Mode 2 - Generator + Battery Mode 3 - Battery AC Mode 4 - Battery charging Variable DC Battery Speed Drive DC AC Propulsion Motor

  6. Machinery Arrangement Aft Fwd Battery Battery Room Room Prop 2 G1 G3 M2 Converter Battery Bank 2 Battery Bank 1 G2 G4 Main Switchboard Converter M1 Prop 1 Aft Prop Aft Engine Fwd Engine Fwd Prop Room Room Room Room

  7. The ¡Future ¡-­‑ ¡Hybrid ¡Ferries ¡ Reasons ¡for ¡Hybrid ¡Propulsion ¡System ¡ • Reducing ¡Emissions ¡>20% ¡ • Possibly ¡zero ¡emissions ¡in ¡harbour ¡as ¡vessel ¡will ¡be ¡powered ¡by ¡baMeries ¡or ¡shore ¡ supply ¡while ¡in ¡harbour ¡mode ¡ • Energy ¡Savings ¡ • Fuel ¡Savings, ¡on ¡exisHng ¡vessels ¡there ¡are ¡periods ¡of ¡low ¡load ¡running, ¡which ¡can ¡ increase ¡SFOC ¡by ¡5-­‑10% ¡ • Reduced ¡OperaHng ¡Costs ¡ • Reduced ¡noise ¡when ¡operaHng ¡on ¡baMeries ¡ • Flexible ¡and ¡efficient ¡operaHon, ¡excellent ¡redundancy ¡ • Less ¡Installed ¡Power ¡by ¡opHmising ¡machinery ¡selecHon ¡ • The ¡baMeries ¡onboard ¡the ¡vessel ¡could ¡be ¡charged ¡overnight ¡from ¡a ¡shore ¡supply, ¡ could ¡be ¡a ¡wind ¡turbine ¡or ¡from ¡a ¡source ¡of ¡renewable ¡power ¡(Hydro ¡or ¡Wind ¡Farm). ¡
