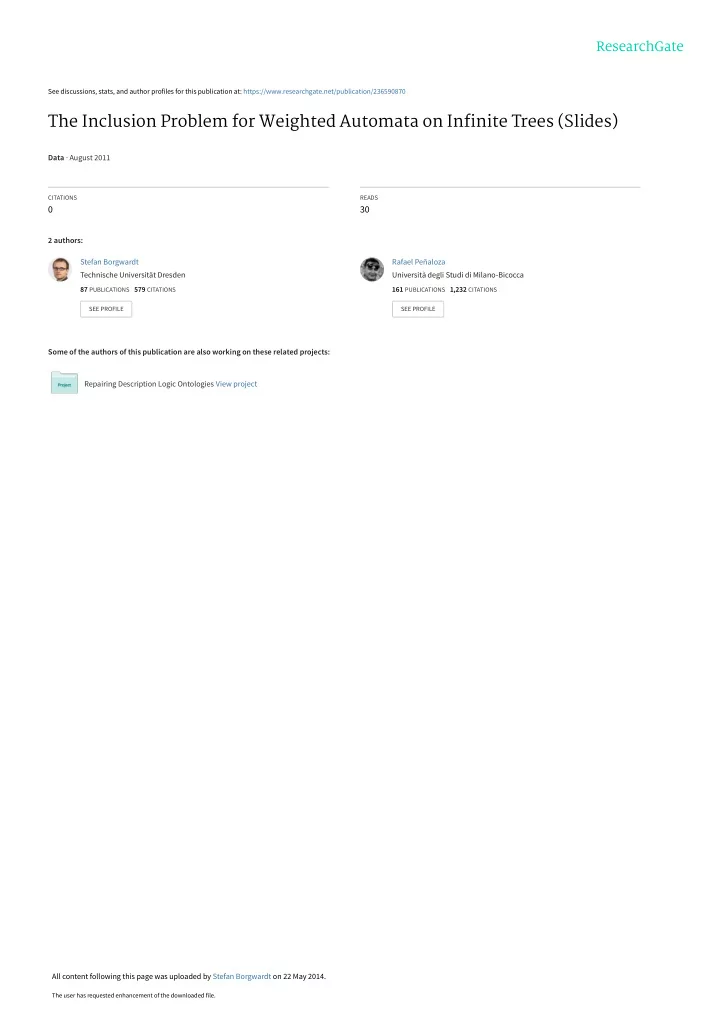

See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/236590870

The Inclusion Problem for Weighted Automata on Infinite Trees (Slides)

Data · August 2011

CITATIONS READS

30

2 authors: Some of the authors of this publication are also working on these related projects: Repairing Description Logic Ontologies View project Stefan Borgwardt Technische Universität Dresden

87 PUBLICATIONS 579 CITATIONS

SEE PROFILE

Rafael Peñaloza Università degli Studi di Milano-Bicocca

161 PUBLICATIONS 1,232 CITATIONS

SEE PROFILE

All content following this page was uploaded by Stefan Borgwardt on 22 May 2014.

The user has requested enhancement of the downloaded file.

Institute of Theoretical Computer Science Chair of Automata Theory

THE INCLUSION PROBLEM FOR WEIGHTED AUTOMATA ON INFINITE TREES

Stefan Borgwardt Rafael Pe˜ naloza

Debrecen, August 21, 2011

Introduction

• Automata on infinite trees can recognize tree-shaped models
• Emptiness test useful to decide satisfiability in logics
• Inclusion test could be used to decide entailment
• Here: generalization to lattice-weighted automata

Debrecen, August 21, 2011 Inclusion for Weighted Automata 2

Lattices

De Morgan lattice:

• Bounded distributive lattice L = (L, ⊕, ⊗, 0, 1)
• De Morgan negation − : L → L

1 x = 1 − x 1 b a c b a c

Debrecen, August 21, 2011 Inclusion for Weighted Automata 3

Trees

Infinite k-ary trees:

• Nodes are identified by their positions in K ∗, where K := {1, . . . , k}

ε 1 11 . . . . . . 12 . . . . . . 2 21 . . . . . . 22 . . . . . .

Debrecen, August 21, 2011 Inclusion for Weighted Automata 4

Trees

Infinite k-ary trees:

• Nodes are identified by their positions in K ∗, where K := {1, . . . , k}

ε 1 11 . . . . . . 12 . . . . . . 2 21 . . . . . . 22 . . . . . .

• A labeled tree t ∈ ΣK∗ is a function t : K ∗ → Σ

Debrecen, August 21, 2011 Inclusion for Weighted Automata 4

Automata

Tree automaton A = (Q, Σ, I, ∆, X):

• states Q
• input alphabet Σ
• initial state set I ⊆ Q
• transition relation ∆ ⊆ Q × Σ × Qk
• acceptance condition X ⊆ Qω

Debrecen, August 21, 2011 Inclusion for Weighted Automata 5

Automata

Tree automaton A = (Q, Σ, I, ∆, X):

• states Q
• input alphabet Σ
• initial state set I ⊆ Q
• transition relation ∆ ⊆ Q × Σ × Qk
• acceptance condition X ⊆ Qω

Successful run r ∈ succ(A) ⊆ QK∗: every path is in X

Debrecen, August 21, 2011 Inclusion for Weighted Automata 5

Automata

Tree automaton A = (Q, Σ, I, ∆, X):

• states Q
• input alphabet Σ
• initial state set I ⊆ Q
• transition relation ∆ ⊆ Q × Σ × Qk
• acceptance condition X ⊆ Qω

Successful run r ∈ succ(A) ⊆ QK∗: every path is in X Transition of r on t ∈ ΣK∗ at u ∈ K ∗: − − − → r(t, u) := (r(u), t(u), r(u1), . . . , r(uk))

Debrecen, August 21, 2011 Inclusion for Weighted Automata 5

Automata

Tree automaton A = (Q, Σ, I, ∆, X):

• states Q
• input alphabet Σ
• initial state set I ⊆ Q
• transition relation ∆ ⊆ Q × Σ × Qk
• acceptance condition X ⊆ Qω

Successful run r ∈ succ(A) ⊆ QK∗: every path is in X Transition of r on t ∈ ΣK∗ at u ∈ K ∗: − − − → r(t, u) := (r(u), t(u), r(u1), . . . , r(uk)) t ∈ L(A) iff

∃

r∈succ(A)

r(ε) ∈ I ∧ ∀

u∈K∗

− − − → r(t, u) ∈ ∆

Debrecen, August 21, 2011 Inclusion for Weighted Automata 5

Automata

Weighted tree automaton A = (Q, Σ, S, in, wt, X):

• states Q
• input alphabet Σ
• (finite) distributive lattice S
• initial distribution in : Q → S
• transition weight function wt : Q × Σ × Qk → S
• acceptance condition X ⊆ Qω

Successful run r ∈ succ(A) ⊆ QK∗: every path is in X Transition of r on t ∈ ΣK∗ at u ∈ K ∗: − − − → r(t, u) := (r(u), t(u), r(u1), . . . , r(uk)) t ∈ L(A) iff

∃

r∈succ(A)

r(ε) ∈ I ∧ ∀

u∈K∗

− − − → r(t, u) ∈ ∆

Debrecen, August 21, 2011 Inclusion for Weighted Automata 5

Automata

Weighted tree automaton A = (Q, Σ, S, in, wt, X):

• states Q
• input alphabet Σ
• (finite) distributive lattice S
• initial distribution in : Q → S
• transition weight function wt : Q × Σ × Qk → S
• acceptance condition X ⊆ Qω

Successful run r ∈ succ(A) ⊆ QK∗: every path is in X Transition of r on t ∈ ΣK∗ at u ∈ K ∗: − − − → r(t, u) := (r(u), t(u), r(u1), . . . , r(uk)) (A, t) =

• r∈succ(A)

in(r(ε)) ⊗

• u∈K∗

wt(− − − → r(t, u))

Debrecen, August 21, 2011 Inclusion for Weighted Automata 5

Automata

Weighted tree automaton A = (Q, Σ, S, in, wt, X):

• states Q
• input alphabet Σ
• (finite) distributive lattice S
• initial distribution in : Q → S
• transition weight function wt : Q × Σ × Qk → S
• acceptance condition X ⊆ Qω

Successful run r ∈ succ(A) ⊆ QK∗: every path is in X Transition of r on t ∈ ΣK∗ at u ∈ K ∗: − − − → r(t, u) := (r(u), t(u), r(u1), . . . , r(uk)) (A, t) =

• r∈succ(A)

in(r(ε)) ⊗

• u∈K∗

wt(− − − → r(t, u)) Acceptance conditions: looping, B¨ uchi, co-B¨ uchi, parity

Debrecen, August 21, 2011 Inclusion for Weighted Automata 5

Automata (2)

PTIME-problems for B¨ uchi automata:

• Infimum of two automata: (C, t) = (A, t) ⊗ (B, t)
• Supremum of two automata: (C, t) = (A, t) ⊕ (B, t)
• Computing the behavior

t∈ΣK∗ (A, t) [Baader, Pe˜

naloza 2010]

Debrecen, August 21, 2011 Inclusion for Weighted Automata 6

Description Logics

The description logic ALC Syntax concept name A ∈ NC role name r ∈ NR

Debrecen, August 21, 2011 Inclusion for Weighted Automata 7

Description Logics

The description logic ALC Syntax interpretation I = (·I, ∆I) concept name A ∈ NC AI ⊆ ∆I role name r ∈ NR rI ⊆ ∆I × ∆I

Debrecen, August 21, 2011 Inclusion for Weighted Automata 7

Description Logics

The description logic ALC Syntax interpretation I = (·I, ∆I) concept name A ∈ NC AI ⊆ ∆I role name r ∈ NR rI ⊆ ∆I × ∆I top concept ⊤ ∆I bottom concept ⊥ ∅ conjunction C ⊓ D CI ∩ DI disjunction C ⊔ D CI ∪ DI negation ¬C CI

Debrecen, August 21, 2011 Inclusion for Weighted Automata 7

Description Logics

The description logic ALC Syntax interpretation I = (·I, ∆I) concept name A ∈ NC AI ⊆ ∆I role name r ∈ NR rI ⊆ ∆I × ∆I top concept ⊤ ∆I bottom concept ⊥ ∅ conjunction C ⊓ D CI ∩ DI disjunction C ⊔ D CI ∪ DI negation ¬C CI existential restriction ∃r.C {x | ∃y : (x, y) ∈ rI ∧ y ∈ CI} universal restriction ∀r.C {x | ∀y : (x, y) ∈ rI → y ∈ CI}

Debrecen, August 21, 2011 Inclusion for Weighted Automata 7

Description Logics

The description logic ALC Syntax interpretation I = (·I, ∆I) concept name A ∈ NC AI ⊆ ∆I role name r ∈ NR rI ⊆ ∆I × ∆I top concept ⊤ ∆I bottom concept ⊥ ∅ conjunction C ⊓ D CI ∩ DI disjunction C ⊔ D CI ∪ DI negation ¬C CI existential restriction ∃r.C {x | ∃y : (x, y) ∈ rI ∧ y ∈ CI} universal restriction ∀r.C {x | ∀y : (x, y) ∈ rI → y ∈ CI} terminological axiom C ⊑ D CI ⊆ DI

Debrecen, August 21, 2011 Inclusion for Weighted Automata 7

Description Logics

The description logic ALC Syntax interpretation I = (·I, ∆I) concept name A ∈ NC AI ⊆ ∆I role name r ∈ NR rI ⊆ ∆I × ∆I top concept ⊤ ∆I bottom concept ⊥ ∅ conjunction C ⊓ D CI ∩ DI disjunction C ⊔ D CI ∪ DI negation ¬C CI existential restriction ∃r.C {x | ∃y : (x, y) ∈ rI ∧ y ∈ CI} universal restriction ∀r.C {x | ∀y : (x, y) ∈ rI → y ∈ CI} terminological axiom C ⊑ D CI ⊆ DI

• Consistency of a TBox T (set of axioms): Is there a model of T ?
• Satisfiability of C w.r.t. T : Is there a model I of T with CI = ∅?
• Subsumption C ⊑T D: Does CI ⊆ DI hold in all models I of T ?

Debrecen, August 21, 2011 Inclusion for Weighted Automata 7

Tree Models

• ALC has the tree model property
• Satisfiability of C w.r.t. T can be reduced to emptiness of AC,T

ë

Debrecen, August 21, 2011 Inclusion for Weighted Automata 8

Tree Models

• ALC has the tree model property
• Satisfiability of C w.r.t. T can be reduced to emptiness of AC,T
• Behavior computation can be used for axiom pinpointing

ë identifying the axioms of T that are responsible for a contradiction

Debrecen, August 21, 2011 Inclusion for Weighted Automata 8

Tree Models

• ALC has the tree model property
• Satisfiability of C w.r.t. T can be reduced to emptiness of AC,T
• Behavior computation can be used for axiom pinpointing

ë identifying the axioms of T that are responsible for a contradiction

• C ⊑T D iff C ⊓ ¬D is unsatisfiable

Debrecen, August 21, 2011 Inclusion for Weighted Automata 8

Tree Models

• ALC has the tree model property
• Satisfiability of C w.r.t. T can be reduced to emptiness of AC,T
• Behavior computation can be used for axiom pinpointing

ë identifying the axioms of T that are responsible for a contradiction

• C ⊑T D iff C ⊓ ¬D is unsatisfiable
• Inclusion test is useful for non-standard inferences

Debrecen, August 21, 2011 Inclusion for Weighted Automata 8

Inclusion and Complementation

Given two automata A, A′, does L(A′) ⊆ L(A) hold? Given an automaton A, construct an automaton A with L(A) = L(A).

Debrecen, August 21, 2011 Inclusion for Weighted Automata 9

Inclusion and Complementation

Given two automata A, A′, does L(A′) ⊆ L(A) hold? Given an automaton A, construct an automaton A with L(A) = L(A). Given two weighted automata A, A′, compute

t∈ΣK∗ (A′, t) ⊕ (A, t). Debrecen, August 21, 2011 Inclusion for Weighted Automata 9

Inclusion and Complementation

Given two automata A, A′, does L(A′) ⊆ L(A) hold? Given an automaton A, construct an automaton A with L(A) = L(A). Given two weighted automata A, A′, compute

t∈ΣK∗ (A′, t) ⊕ (A, t).

Given a weighted automaton A, construct a weighted automaton A with A = A.

Debrecen, August 21, 2011 Inclusion for Weighted Automata 9

Inclusion and Complementation

Given two automata A, A′, does L(A′) ⊆ L(A) hold? Given an automaton A, construct an automaton A with L(A) = L(A). Given two weighted automata A, A′, compute

t∈ΣK∗ (A′, t) ⊕ (A, t).

Given a weighted automaton A, construct a weighted automaton A with A = A. [Buhrke, Lescow, V¨

• ge 1996; Kupferman, Vardi 1998; Vardi, Wilke 2008]:

Inclusion is in EXPTIME for parity automata [Seidl 1989]: Inclusion is EXPTIME-hard for automata on finite trees

Debrecen, August 21, 2011 Inclusion for Weighted Automata 9

Glass-box Approach

Modify algorithms for unweighted complementation for weighted automata:

Debrecen, August 21, 2011 Inclusion for Weighted Automata 10

Glass-box Approach

Modify algorithms for unweighted complementation for weighted automata:

• [Miyano, Hayashi 1984; Muller, Schupp 1987]:

– Exponential constructions for complementing looping and co-B¨ uchi into B¨ uchi automata (powerset construction Q 2Q)

Debrecen, August 21, 2011 Inclusion for Weighted Automata 10

Glass-box Approach

Modify algorithms for unweighted complementation for weighted automata:

• [Miyano, Hayashi 1984; Muller, Schupp 1987]:

– Exponential constructions for complementing looping and co-B¨ uchi into B¨ uchi automata (powerset construction Q 2Q)

• Translation of the constructions and proofs to finite De Morgan lattices:

– from 2Q to SQ – from ∧ to ⊗ and ∨ to ⊕ – from ∀ to and ∃ to – from q ∈ I to in(q) and (. . . ) ∈ ∆ to wt(. . . ) – from x ⇒ y to x ⊕ y or x ≤ y

Debrecen, August 21, 2011 Inclusion for Weighted Automata 10

Glass-box Approach

Example: “If r is a successful run of A on t and rc is a successul run of A on t, then all paths p of length m have a node u ∈ p such that r(u) / ∈ rc(u). ”

Debrecen, August 21, 2011 Inclusion for Weighted Automata 11

Glass-box Approach

Example: “If r is a successful run of A on t and rc is a successul run of A on t, then all paths p of length m have a node u ∈ p such that r(u) / ∈ rc(u). ” r ∈ succ(A), rc ∈ succ(A) : r ∈ ∆(t) ∧ rc ∈ ∆c(t) ⇒

∀

p∈Path(K∗,m) ∃ u∈p

r(u) / ∈ rc(u)

Debrecen, August 21, 2011 Inclusion for Weighted Automata 11

Glass-box Approach

Example: “If r is a successful run of A on t and rc is a successul run of A on t, then all paths p of length m have a node u ∈ p such that r(u) / ∈ rc(u). ” r ∈ succ(A), rc ∈ succ(A) : r ∈ ∆(t) ∧ rc ∈ ∆c(t) ⇒

∀

p∈Path(K∗,m) ∃ u∈p

r(u) / ∈ rc(u) r ∈ succ(A), rc ∈ succ(A) : wt(t, r) ⊗ wtc(t, rc) ≤

• p∈Path(K∗,m)
• u∈p

rc(u)(r(u))

Debrecen, August 21, 2011 Inclusion for Weighted Automata 11

Glass-box Approach

Example: “If r is a successful run of A on t and rc is a successul run of A on t, then all paths p of length m have a node u ∈ p such that r(u) / ∈ rc(u). ” r ∈ succ(A), rc ∈ succ(A) : r ∈ ∆(t) ∧ rc ∈ ∆c(t) ⇒

∀

p∈Path(K∗,m) ∃ u∈p

r(u) / ∈ rc(u) r ∈ succ(A), rc ∈ succ(A) : wt(t, r) ⊗ wtc(t, rc) ≤

• p∈Path(K∗,m)
• u∈p

rc(u)(r(u)) Only correct for Boolean lattices

Debrecen, August 21, 2011 Inclusion for Weighted Automata 11

Black-box Approach

p ∈ S meet prime: a ⊗ b ≤ p implies a ≤ p or b ≤ p Every x ∈ S is equal to the infimum of all meet prime elements above x.

Debrecen, August 21, 2011 Inclusion for Weighted Automata 12

Black-box Approach

p ∈ S meet prime: a ⊗ b ≤ p implies a ≤ p or b ≤ p Every x ∈ S is equal to the infimum of all meet prime elements above x. Which meet prime elements of S are above

t∈ΣK∗ (A′, t) ⊕ (A, t)? Debrecen, August 21, 2011 Inclusion for Weighted Automata 12

Black-box Approach

p ∈ S meet prime: a ⊗ b ≤ p implies a ≤ p or b ≤ p Every x ∈ S is equal to the infimum of all meet prime elements above x. Which meet prime elements of S are above

t∈ΣK∗ (A′, t) ⊕ (A, t)?

• t∈ΣK∗ (A′, t) ⊕ (A, t) ≤ p

Debrecen, August 21, 2011 Inclusion for Weighted Automata 12

Black-box Approach

p ∈ S meet prime: a ⊗ b ≤ p implies a ≤ p or b ≤ p Every x ∈ S is equal to the infimum of all meet prime elements above x. Which meet prime elements of S are above

t∈ΣK∗ (A′, t) ⊕ (A, t)?

• t∈ΣK∗ (A′, t) ⊕ (A, t) ≤ p

iff ∃t ∈ ΣK∗ : (A′, t) ≥ p and (A, t) ≤ p

Debrecen, August 21, 2011 Inclusion for Weighted Automata 12

Black-box Approach

p ∈ S meet prime: a ⊗ b ≤ p implies a ≤ p or b ≤ p Every x ∈ S is equal to the infimum of all meet prime elements above x. Which meet prime elements of S are above

t∈ΣK∗ (A′, t) ⊕ (A, t)?

• t∈ΣK∗ (A′, t) ⊕ (A, t) ≤ p

iff ∃t ∈ ΣK∗ : (A′, t) ≥ p and (A, t) ≤ p iff ∃t ∈ ΣK∗ : t ∈ L(A′

≥p) and t /

∈ L(Ap)

Debrecen, August 21, 2011 Inclusion for Weighted Automata 12

Black-box Approach

p ∈ S meet prime: a ⊗ b ≤ p implies a ≤ p or b ≤ p Every x ∈ S is equal to the infimum of all meet prime elements above x. Which meet prime elements of S are above

t∈ΣK∗ (A′, t) ⊕ (A, t)?

• t∈ΣK∗ (A′, t) ⊕ (A, t) ≤ p

iff ∃t ∈ ΣK∗ : (A′, t) ≥ p and (A, t) ≤ p iff ∃t ∈ ΣK∗ : t ∈ L(A′

≥p) and t /

∈ L(Ap) iff L(A′

≥p) L(Ap) Debrecen, August 21, 2011 Inclusion for Weighted Automata 12

Black-box Approach

p ∈ S meet prime: a ⊗ b ≤ p implies a ≤ p or b ≤ p Every x ∈ S is equal to the infimum of all meet prime elements above x. Which meet prime elements of S are above

t∈ΣK∗ (A′, t) ⊕ (A, t)?

• t∈ΣK∗ (A′, t) ⊕ (A, t) ≤ p

iff ∃t ∈ ΣK∗ : (A′, t) ≥ p and (A, t) ≤ p iff ∃t ∈ ΣK∗ : t ∈ L(A′

≥p) and t /

∈ L(Ap) iff L(A′

≥p) L(Ap)

We need exponentially many inclusion tests between unweighted automata.

Debrecen, August 21, 2011 Inclusion for Weighted Automata 12

Conclusions

Summary:

• black-box (n2m) is faster and more general than this glass-box approach (2nm)
• optimizations of glass-box algorithm?

Debrecen, August 21, 2011 Inclusion for Weighted Automata 13

Conclusions

Summary:

• black-box (n2m) is faster and more general than this glass-box approach (2nm)
• optimizations of glass-box algorithm?

Applications:

• lattice-weighted automata for axiom pinpointing
• automata-based reasoning in fuzzy description logics

Debrecen, August 21, 2011 Inclusion for Weighted Automata 13

Thank You

Franz Baader and Rafael Pe˜ naloza: Automata-based axiom pinpointing.

• J. Autom. Reasoning, 45(2):91–129, 2010. Special Issue: IJCAR’08.

Stefan Borgwardt and Rafael Pe˜ naloza: Complementation and inclusion of weighted automata on infinite trees: Revised version. LTCS-Report 11-02, Technische Universit¨ at Dresden, 2011. See http://lat.inf.tu-dresden.de/research/reports.html. Stefan Borgwardt and Rafael Pe˜ naloza: Description logics over lattices with multi-valued ontologies. In Proc. IJCAI’11, pages 768–773. AAAI Press, 2011. Orna Kupferman and Yoad Lustig: Lattice automata. In Proc. VMCAI’07, volume 4349 of LNCS, pages 199–213. Springer, 2007 . Satoru Miyano and Takeshi Hayashi: Alternating finite automata on

• mega-words.
• Theor. Comput. Sci., 32:321–330, 1984.

David E. Muller and Paul E. Schupp: Alternating automata on infinite trees.

• Theor. Comput. Sci., 54(2-3):267–276, 1987

.

Debrecen, August 21, 2011 Inclusion for Weighted Automata 14

View publication stats View publication stats
