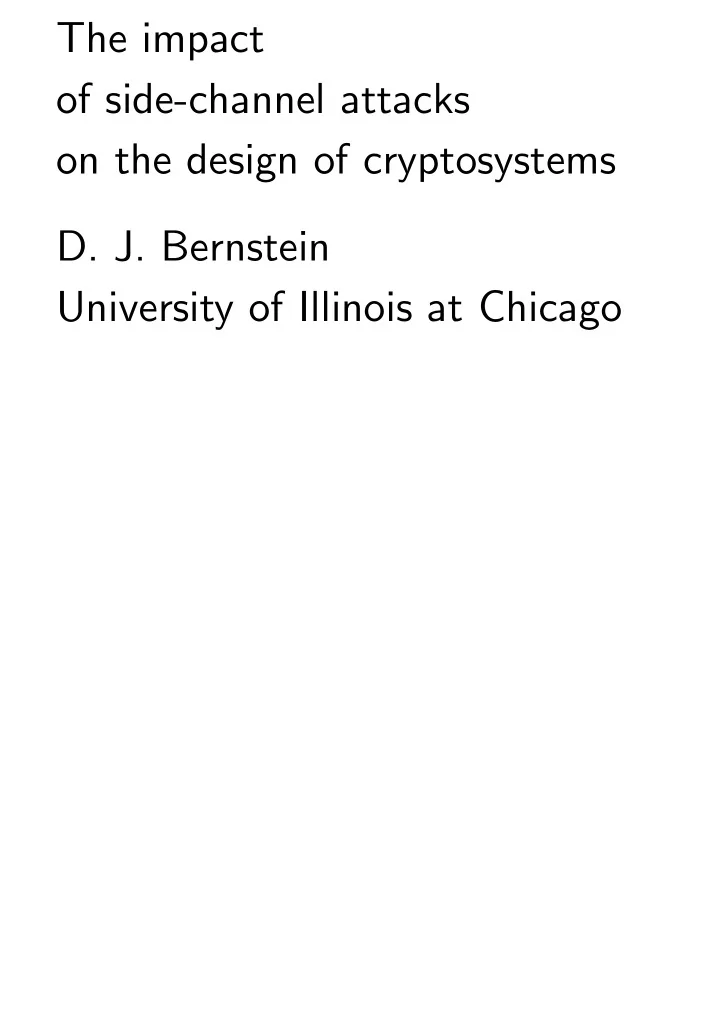

SLIDE 1 The impact
- f side-channel attacks
- n the design of cryptosystems
- D. J. Bernstein
University of Illinois at Chicago
SLIDE 2 The standard model of senders, receivers, attackers, etc.:
- 1. Parties perform computation,
send messages to other parties.
- 2. Parties receive all messages,
perform more computation, send messages to other parties.
Party’s local computation is not visible to other parties except via message contents. Each party’s behavior is completely determined by message contents and local data.
SLIDE 3 e.g. Diffie-Hellman using public elliptic-curve point
P:
- 1. Alice generates random
a,
computes
aP, sends aP.
Bob generates random
b,
computes
bP, sends bP.
- 2. Alice and attacker receive
bP.
Bob and attacker receive
aP.
Alice computes
a( bP) = abP.
Bob computes
b( aP) = abP.
Attacker tries to compute the secret
abP from his own data
and
aP and
attacker has no other inputs.
SLIDE 4
Traditional cryptography: Design and implement cryptographic systems in the standard model. Traditional cryptanalysis: Analyze security of cryptographic systems in the standard model. Build confidence that contents of messages don’t reveal keys, don’t allow forgeries, etc. Also aim for high speed.
SLIDE 5 In the real world, extra information is visible through “side channels”
- utside the standard model.
e.g. When did program finish computing outgoing message? Visible to network sniffer. e.g. When did program finish processing incoming message? Visible to the next program run by the same CPU. e.g. How much power is program using right now? Visible to power source.
SLIDE 6
Often this information depends on cryptographic keys (or similarly critical secrets). Can attacker now compute keys? In many cases: Yes. In many cases: Unclear. Can be difficult to analyze. Growing research area. Have built confidence in standard-model security, but do we have confidence in real-world security? No!
SLIDE 7
Strategy to regain confidence: Ensure that all information visible on side channels is independent of cryptographic keys etc. Independence guarantees that real-world attacks are as hard as standard-model attacks. “Side-channel-immune cryptographic implementation.” More difficult when there are more side channels. Extreme case: Hard to keep secrets in Pay-TV smartcards given to attackers.
SLIDE 8
This talk focuses on software side channels: load timing, branch timing, etc. Happy fact: Every cipher, every signature system, etc. can be implemented to keep keys safely away from all known software side channels. Replace “all known” with “all”? I think so, but can’t verify. Intel and AMD are hiding security-critical information. “Proprietary speed data.” Idiots. But let’s assume “all.”
SLIDE 9
Unhappy fact: For many cryptographic systems, side-channel-immune software is surprisingly slow. Happy fact: Some cryptographic systems achieve very high software speeds despite side-channel immunity. “Side-channel-immune cryptographic design”: In designing cryptosystems, aim for security and high speed of side-channel-immune software, not standard-model software.
SLIDE 10 Case study: string comparison 1970s: TENEX operating system compares user-supplied string against secret password
stopping at first difference. AAAAAA vs. SECRET: stop at 1. SAAAAA vs. SECRET: stop at 2. SEAAAA vs. SECRET: stop at 3. Attackers watch comparison time, deduce position of difference. A few hundred tries reveal secret password.
SLIDE 11
Objection: “Timings are noisy!” Answer #1: Even if noise stops simplest attack, does it stop all attacks? Need side-channel immunity to regain confidence.
SLIDE 12
Objection: “Timings are noisy!” Answer #1: Even if noise stops simplest attack, does it stop all attacks? Need side-channel immunity to regain confidence. Answer #2: Eliminate noise using statistics of many timings.
SLIDE 13
Objection: “Timings are noisy!” Answer #1: Even if noise stops simplest attack, does it stop all attacks? Need side-channel immunity to regain confidence. Answer #2: Eliminate noise using statistics of many timings. Answer #3, what the 1970s attackers actually did: Increase timing signal by crossing page boundary, inducing page faults.
SLIDE 14
2007: IPsec software uses memcmp to check authenticators! TENEX disaster redivivus. Exercise: Forge IPsec packets. Typical memcmp-style comparison: for (i = 0;i < 16;++i) if (x[i] != y[i]) return 0; return 1; Fix, side-channel immune: diff = 0; for (i = 0;i < 16;++i) diff |= x[i] ^ y[i]; return !diff;
SLIDE 15
Case study: Montgomery ladder Montgomery’s computation of ((2
n + b) P ; (2n + b + 1) P)
from (
P ; nP ; ( n + 1) P ; b)
inside fast scalar multiplication: if (secretbit == 1) { newnp = g(p,np,n1p); newn1p = f(n1p); } else { newn1p = g(p,np,n1p); newnp = f(np); }
SLIDE 16 Naive view: “This doesn’t leak secretbit. It takes the same time whether secretbit is 0 or 1.” Reality: Branch time is an extremely complicated function
- f secretbit, previous bits,
branch bits elsewhere in program, branch bits in other processes, et al. secretbit influences time for this computation, time for other computations, and time in other processes.
SLIDE 17
The obvious way to achieve branch-side-channel immunity: Never branch on secret bits. This is easily doable, and for Montgomery ladder it adds very little overhead. 2005: Bernstein “Curve25519” elliptic-curve Diffie-Hellman “avoids all input-dependent branches, all input-dependent array indices”; overhead is “about 6% of the total” time.
SLIDE 18
How can we do if (secretbit == 1) { foutput = f(n1p); } else { foutput = f(np); } without secret branches (or secret indices)? Answer: finput = ((secretbit-1)&np ) |(( -secretbit)&n1p); foutput = f(finput);
SLIDE 19
Full Montgomery, branchless: goutput = g(p,np,n1p); finput = ((secretbit-1)&np ) |(( -secretbit)&n1p); foutput = f(finput); newnp = goutput ^ ((foutput^goutput) & (secretbit-1)); newn1p = newnp ^ (foutput^goutput); Faster alternative: Merge flips across loops.
SLIDE 20 Case study: modular arithmetic General-purpose libraries for high-precision arithmetic
“skip leading 0” loops. Integers modulo
n are
n.
Length leaked by timings. Fix: Always process integers to the same length as
n.
Eliminating leading-0 tests normally saves time.
SLIDE 21
More branches in arithmetic? Kocher’s original target for timing attacks: a += b; if (a >= n) a -= n; Fix, side-channel immune: a += b; c = a - n; secretbit = signbit(c); c ^= a; a ^= ((secretbit-1)&c); Often acceptable alternative: a += b; /* that’s it! */
SLIDE 22 Exercise: Starting from extended-Euclid algorithm
- r simpler binary variant,
build side-channel-immune modular inversion. Replace branches by arithmetic, use known loop-count limit. Much simpler, often fast enough: compute
a 1 mod p
as
a p2 mod p.
One modular inversion, after elliptic-curve scalar mult using inversion-free coordinates, is not a big bottleneck.
SLIDE 23 Case study: AES AES code: y0 = T0[x0&255] Time depends on x0&255, a byte of plaintext
key.
Attacker can force selected table entries out of L2 cache,
Each cache miss creates timing signal, easily visible despite noise from other AES cache misses,
Repeat for many plaintexts, easily deduce key.
SLIDE 24 Partial fix: Eliminate all cache misses. Put AES software into
Disable interrupts. Disable hyperthreading etc. Read T0 etc. into cache. Wait for reads to complete. Encrypt some blocks of data. The bad news: Stopping cache misses isn’t enough. There are timing leaks in cache hits.
SLIDE 25
Load-after-store conflicts: On (e.g.) Pentium III, load from L1 cache is slightly slower if it involves same cache line modulo 4096 as a recent store. This timing variation happens even if all loads are from L1 cache!
SLIDE 26
Cache-bank throughput limits: On (e.g.) Athlon, can perform two loads from L1 cache every cycle. Exception: Second load waits for a cycle if loads are from same cache “bank.” Time for cache hit again depends on array index. No reason to think that these are the only effects.
SLIDE 27
The obvious way to achieve address-side-channel immunity: Never use secret addresses. To compute T0[secret]: Load T0[0], T0[1], T0[2],
: : :
and do appropriate arithmetic. Takes time to load all of T0. Parallel lookups in one table can save some time (asymptotic cost
O( n lg n)
for
n lookups in n-entry table),
but still quite expensive. Side-channel-immune AES is disappointingly slow.
SLIDE 28
Do cipher designers need secret table indices? Modern CPUs offer considerable parallelism: can compute several independent adds, xors, etc. each cycle. We can design ciphers with many parallel arithmetic operations, allowing implementors to exploit CPU capabilities. Do other operations achieve the same level of security at higher speed?
SLIDE 29
An AES table lookup mangles its input more thoroughly than an addition or xor. But it is slower and has a much smaller input. Side-channel-immune Salsa20 software is faster than side-channel-vulnerable AES software despite having a much larger security margin.
SLIDE 30
What’s safe? No known side channels in some operations on current CPUs: Loads from constant addresses. Stores to constant addresses. Constant-distance shifts. Constant-distance rotations. Logical operations: xor, or, etc. Can build all computations from these operations, just like building a circuit from individual gates.
SLIDE 31
And some more arithmetic: Additions, subtractions. No common CPU is believed to abort carry chains early. Integer multiplication, except that large inputs slow down some CPUs— CPU implicitly does, e.g., if (input < 65536) ... Particularly useful for RSA etc.: floating-point multiplication in normal exponent ranges, except that an input of 0 slows down a few CPUs.
SLIDE 32
Summary of the impact Maintaining confidence in security of cryptographic software, in a world of side-channel attacks, takes some implementation effort. Can avoid big slowdowns for typical public-key systems. Small effect on designer. Much larger slowdown for typical secret-key ciphers, except parallel-arithmetic ciphers. Much larger effect on designer.
