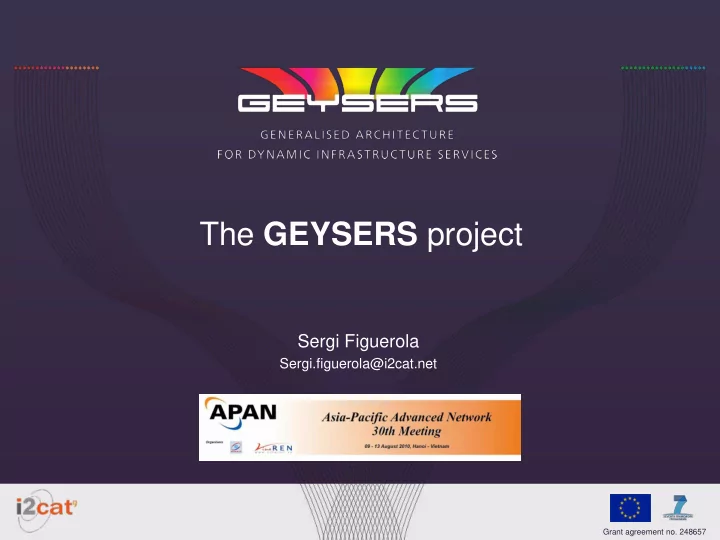

SLIDE 1

Grant agreement no. 248657

The GEYSERS project

Sergi Figuerola

Sergi.figuerola@i2cat.net

slide-2
SLIDE 2

APAN, 30th meeting, Hanoi, Vietnam August 2010

GEYSERS @ a glance

2

GEYSERS:

  • Generalized Architecture for Dynamic Infrastructure Services
  • Instrument: Collab. Project - Large Scale Integrated Project (IP)
  • Activity: ICT-2009.1.1 The Network of the Future, FP7 Call 4
  • Project duration: 36 months
  • Project start date: January 2010
  • Project budget: 10.433.205€ (7.035.000€ EC contribution)
  • Project resources: 947 person months
slide-3
SLIDE 3

APAN, 30th meeting, Hanoi, Vietnam August 2010

Background, Present & Future

3

Network Virtualisation

Virtual Infrastructures

slide-4
SLIDE 4

APAN, 30th meeting, Hanoi, Vietnam August 2010

What is GEYSERS about?

  • A novel architecture and tools for the composition of virtual

infrastructures, that share the same physical substrate.

  • An enhanced NCP (ASON/GMPLS + PCE) architecture and

protocols to use these logical infrastructures to provide advanced transport services coupled with IT services.

  • Business cases that impact infrastructure providers, network & IT
  • perators and application providers.
  • Provide an enabler for the integration of dynamic optical network

services in cloud computing scenarios.

  • Architecture definition, design, prototyping and validation

4

slide-5
SLIDE 5

APAN, 30th meeting, Hanoi, Vietnam August 2010

Our problem statement

  • New emerging applications with highly demanding network & IT

resource requirements, but still unable to exploit the potentialities of the current optical network technologies

  • Network layer unaware of applications’ dynamic requirements
  • Net & IT resources controlled separately without any integration
  • Optical infrastructure providers and network operators unable to

provide enhanced and customized network services

  • Today just simple connection services over generic optical network infrastructures
  • Generate opportunities for new business models:
  • Multiple virtual networks integrated with IT resource offered as a service
  • Use of latest advances in network virtualization, physical resource partitioning
  • Customized virtual networks supporting dynamic Optical Network + IT provisioning

services

5

slide-6
SLIDE 6

APAN, 30th meeting, Hanoi, Vietnam August 2010

Why Infrastructure Virtualisation?

6

  • It helps on de-ossifying the current network architectures.
  • It allows multiple virtual infrastructures to coexist over a shared

physical infrastructure.

  • It provides paths to the Future Internet approaches.
  • Allows the deployment of new business roles and players.
  • Reduced/shared cost of ownership.
  • It optimizes the resource (network and IT) usage.
  • It extends the concept of IaaS to the network sector.
  • It enables the creation of marketplaces of virtual resources

“The benefits of virtualization apply equally to carrier networks and enterprise data centers, both of which are undergoing complex consolidation efforts. The most salient benefits include simplification of architecture, consolidation of devices, reduction of operational complexity, and improvement in scale driven by efficient and dynamic partitioning of resources. These advantages play a central role in reducing TCO in both networking and IT environments.” Ref(2008. Yankee Group

Research, P. Marshall, M. Bieberich)

slide-7
SLIDE 7

APAN, 30th meeting, Hanoi, Vietnam August 2010

GEYSERS and Cloud Computing

Why Cloud Computing is relevant for GEYSERS:

  • The way in which Cloud computing services (application or infrastructure) are accessed

and used increases the criticality of network QoS.

  • Network infrastructure services could be offered and managed using similar ownership

models and enabling similar virtualization and elasticity capabilities.

  • The convergence of IT and Telco service

management is an important outcome for Cloud computing to reach a new level of critical mass.

  • As cloud computing increases in

popularity and scale, massive utilisation

  • f network infrastructure will be observed,

with single fibres potentially serving 1000's

  • f cloud customers and service providers

simultaneously

7

slide-8
SLIDE 8

APAN, 30th meeting, Hanoi, Vietnam August 2010

New Case study....

“Amazon cloud uses FedEx instead of the Internet to ship data”

The new Amazon Web Services Import/Export service (Provided by FedEX), which became generally available, is at once a convenient method of easing the pain caused by large data transfers and a recognition that the Internet as it stands today doesn't necessarily provide the unlimited, on-demand scalability that cloud computing providers like to promise. Is it more efficient? Less time consuming? Less expensive?...

– Optical networks connecting user premises are needed to improve capacity, reliability and reduce costs.

(http://www.networkworld.com/news/2010/061010-amazon-cloud-fedex.html?source=NWWNLE_nlt_daily_pm_2010-06-10)

8

slide-9
SLIDE 9

APAN, 30th meeting, Hanoi, Vietnam August 2010

GEYSERS reference model

9

Mixed Infrastructure (optical + IT) Mixed Infrastructure (optical + IIT) NIPS UNI

APPLICATION

Virtual Infrastructure Virtual Infrastructure IT Config. NET Config.

Service Middleware Layer

IT Service Mngr. IT Service Mngr.

CP CP CP CP CP CP CP CP CP CP

NIPS UNI

APPLICATION

Physical Infrastructure Providers Virtual Infrastructure Operators

App/Service Providers

Roles

Virtual Infrastructure Provider

slide-10
SLIDE 10

APAN, 30th meeting, Hanoi, Vietnam August 2010

GEYSERS Actors and Roles

10

Legacy Telcos & Carriers Infrastructure Provider & Management NET infrastructure

  • perator

Virtual Infrastructure Operator (VIO) Virtual Infrastructure Provider (VIP) Physical Infrastructure Provider (PIP) IT Service Providers IT infrastructure

  • perator

Current actors GEYSERS roles

slide-11
SLIDE 11

APAN, 30th meeting, Hanoi, Vietnam August 2010

Rationale

  • Four pillars for contextualising GEYSERS use cases

(RORA):

– Resources (net + IT) – Ownership (models) – Roles – Actors

ACTOR ROLE RESOURCE

OWNERSHIP PATTERN

…

11

slide-12
SLIDE 12

APAN, 30th meeting, Hanoi, Vietnam August 2010

RORA Model Basics

  • Actor and Role:
  • Actor: An entity taking part in a use case that may or may not interact with
  • ther entities that take one or several roles.
  • Role: Names a behaviour of an entity participating in a particular context.
  • Provider vs. Operator:
  • Provider: A role for offering a resource or a service.
  • Operator: A role for controlling a resource, commodity or service.
  • Requester: A role for requiring the usage of a resource.
  • Ownership (simplified)
  • Economical: rights for physically controlling the access to the resource.
  • Administrative: rights to configure or operate a resource.
  • Usage: utilisation rights of the resources for executing a workflow.

12

slide-13
SLIDE 13

APAN, 30th meeting, Hanoi, Vietnam August 2010

Roles and Capabilities

  • Physical Infrastructure Provider (PIP)
  • Owns economical rights over PHY resources
  • Virtual Infrastructure Provider (VIP)
  • Owns administrative rights for planning virtual infrastructures
  • Virtual Infrastructure Operator (VIO)
  • Owns administrative rights over virtual infrastructures
  • User/application/Service provider
  • Consumes Net+IT unified services (NIPS UNI) as resources

13

slide-14
SLIDE 14

APAN, 30th meeting, Hanoi, Vietnam August 2010

Workflow design process

14

ONGOING WORK

slide-15
SLIDE 15

APAN, 30th meeting, Hanoi, Vietnam August 2010

Layers: Service Management Layer (SML)

  • GEYSERS will provide an entity to coordinate the deployment of

network services and IT resources

– Awareness of constraints/SLAs – Delegation of network-related connection services to the NCP – Alignment of IT resource and network service allocation – Goal: Convergence of network and IT service management

  • Interaction with NCP for seamless “one-step” provisioning of network +

IT edge resources (NIPS)

  • Analyze the work done at standarization bodies and other projects

15

ONGOING WORK

slide-16
SLIDE 16

APAN, 30th meeting, Hanoi, Vietnam August 2010

Layers: Enhanced Network Control

Plane I

  • Enhanced transport network connection paradigms (assisted unicast,

restricted anycast, full anycast, scheduled connections)

  • Virtual infrastructure dynamic re-planning

– Enhanced TE in GMPLS/PCE to trigger underlying virtual infrastructure re- planning functionalities

  • Dynamic provisioning, monitoring and recovery functions

– Coordinated recovery escalation among LICL/NCP/[appl. layer]

  • Backward interoperability with std GMPLS/PCE for connection service

provisioning.

  • Cross-layer service monitoring and coordinated recovery escalation
  • Energy-aware and IT-aware path computation algorithms
  • Interaction with AA[A] frameworks for service provisioning

16

ONGOING WORK

slide-17
SLIDE 17

APAN, 30th meeting, Hanoi, Vietnam August 2010

  • GMPLS controllers - Routing Plane:

– Advertisement of parameters associated to Network and IT resources – IT resources information collected from the App. Layer (NIPS-UNI) – Network resources information collected from LICL – Required extensions to the Routing Plane for:

  • IT resources characterization and parameters describing energy consumption
  • scheduled (network + IT) resources
  • GMPLS controllers - Signalling Plane:

– Signalling extensions for:

  • Network + IT service provisioning requests
  • Immediate and scheduled reservations
  • Assisted unicast, Anycast connections
  • Escalation of recovery procedures and Combined authorization mechanisms

17

Layers: Enhanced Network Control

Plane II

ONGOING WORK

slide-18
SLIDE 18

APAN, 30th meeting, Hanoi, Vietnam August 2010

Layers: Logical Infrastructure

Composition Layer (LICL)

  • Partitioning of the physical optical network and IT resources through

resource virtualization:

  • Synchronization mechanisms to keep consistency (physical & virtual)
  • Resource monitoring functionalities and SLA support
  • Scheduling & allocation mechanisms for both, static & dynamic resources
  • Authorised and Authenticated access to information
  • Composition of network and IT resources from multiple providers
  • Dynamic creation of multiple isolated virtual infrastructures sharing the

same physical resources with energy efficiency consideration

  • Management of static and dynamic resource, and resource sharing

between infrastructure providers and network operators

18

ONGOING WORK

slide-19
SLIDE 19

APAN, 30th meeting, Hanoi, Vietnam August 2010

Expected Business impact

  • GEYSERS concepts will allow the development of new actors in the

ICT environment

  • GEYSERS approach will enable telcos to access new markets and

strongly impact new business models

– moving their business towards higher value application layers (IaaS) – E.g. allowing to dynamically compose network + IT edge resources

  • GEYSERS approach will overcome domain segmentation
  • GEYSERS tools will provide dedicated support of highly-IT reliant

distributed mission critical enterprise applications

  • Optimize the infrastructure usage (CAPEX and OPEX)

19

slide-20
SLIDE 20

APAN, 30th meeting, Hanoi, Vietnam August 2010

  • GEYSERS can contribute to the energy efficiency with the

augmented information about “green” metrics:

  • Circulating throughout the routing plane of each domain (enhanced OSPF)
  • Using the PCE+ to add energy-aware constrains to the path computation
  • Leverages on its position of control of both IT & Network resources to

add a control dimension: energy efficiency

– Minimizes the energy consumption metrics along its e2e path – Energy efficiency is not only a matter of optimized network routing, but also the selection of the most efficient IT endpoints

  • ...and due to the dynamic procedures for infrastructure re-planning:
  • GEYSERS Optimizes the release/acquisition of IT and network resources
  • GEYSERS Monitors energy consumption performance markers along with end-

users SLA fulfillment

20

GEYSERS impact on Green IT

slide-21
SLIDE 21

APAN, 30th meeting, Hanoi, Vietnam August 2010

GEYSERS global Energy efficiency Approach

21

GEYSER Energy efficiency/saving Approach Logical Infrastructure Composition Layer Partitioning and Virtualization Statistically sharing of resources Resource usage

  • ptimization

right-size infrastructure Energy-aware Scheduling Allocation Minimize the number of concurrent powered on resources power down unused infrastructure Enhanced Control Plane Energy-aware Routing (GMPLS+/PCE+) Power consumption ON + IT (metadata info) dissemination create awareness Energy efficient Routing and provisioning prefer energy efficient resources SLA service efficiency application to network Energy Efficient logical composition Promote Optical networking Considerable energy saving compare to IP routers traffic mapping

  • n hybrid

networks

slide-22
SLIDE 22

APAN, 30th meeting, Hanoi, Vietnam August 2010

GEYSERS Testbed

22

slide-23
SLIDE 23

APAN, 30th meeting, Hanoi, Vietnam August 2010

Preliminar Conclusions

  • GEYSERS will:
  • Facilitate the end-to-end service delivery with energy efficiency considerations
  • Provide a new business approach where actors can take new roles
  • Rely on partitioning infrastructures (optical + IT) to create specific virtual infrastructures
  • Each virtual infrastructure will be controlled by an enhanced NCP capable of

provisioning optical network and IT resources at the edges

  • The GEYER vision will be realised by implementation the following

technical objectives:

  • Definition and design of a new Logical Infrastructure Composition Layer (LICL)
  • Definition and design of an Enhanced Network Control Plane (NCP) architecture and

protocol extensions

  • Provide a cost-effective, proof-of-concept implementation of the LICL and NCP arch.
  • Deploy a distributed and multi-site validation test-bed

23

slide-24
SLIDE 24

Grant agreement no. 248657

Cảm ơn Moltes Gràcies

Sergi Figuerola

i2CAT Foundation GEYSERS Tech. Mng. (sergi.figuerola@i2cat.net)

www.geysers.eu
