slide-1
SLIDE 1

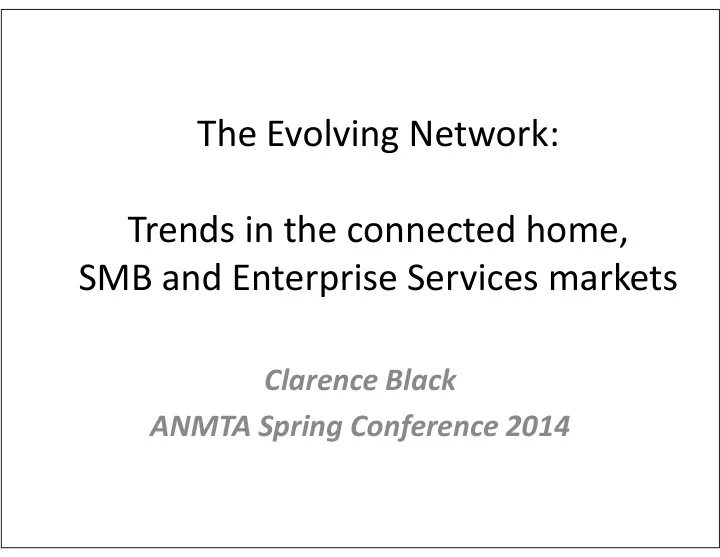

The Evolving Network: Trends in the connected home, SMB and Enterprise Services markets SMB and Enterprise Services markets

Clarence Black ANMTA Spring Conference 2014

slide-2
SLIDE 2

Introduction

Network Engineer with Plateau Telecommunications in Clovis, NM Just starting a website / IT blog: www.r66networks.com www.r66networks.com Future Training Sessions? Service Provider Metro Ethernet and MPLS Networks IPv6 Security

slide-3
SLIDE 3

First Key Takeaway - Wireless

  • Understanding Wireless networks and their impact on:

The connected home

  • IEEE 802.11 a/b/g/n/ac
  • IEEE 802.15.4 - Zigbee
  • ITU G.9959 – Z-Wave

Cellular Data Networks

  • 2G EDGE
  • 3G CDMA
  • 3.5G HSPA+
  • 4G LTE
  • 4G LTE

Small and Medium Business Networks

  • Multi Access point and Controller Based solutions

Enterprise

  • Authentication – 802.1x, AAA
  • Implementation of Network Admission control

Service Provider

  • Service Provider Wifi (walled garden, paywall, etc).
  • Applying this knowledge to understand the hardware capability of

Wireless devices

slide-4
SLIDE 4

Second Key Takeaway – Routers (RSGs)

Residential Gateway Routers have become advanced with Enterprise class features:

A look at all-in-one RSGs w/SFP fiber termination capability. capability.

We will review new features in these gateways that

  • ffer new Network capabilities for the home and SMB.

Live demo of router emulators.

slide-5
SLIDE 5

State of the AZ / NM Networks

Tier 1 Cellular providers showing up in rural areas. Fiber on the rise.

Although declining, copper is still a significant percentage (~50%?) of all plant.

Wi-Max or Fixed LTE supplements some ILEC/ CLEC markets. Wi-Max or Fixed LTE supplements some ILEC/ CLEC markets. No IPv6 in New Mexico or Arizona (?) [yet!] Stimulus networks now entering service – lots of DWDM. Metro-Ethernet interconnects with other Telcos are now more common at 1gbE or 10GbE.

slide-6
SLIDE 6

State of the Network, Continued…

For average bandwidth, NM and AZ are in the bottom 25% of the Class of 2013:

Source: http://www.akamai.com/stateoftheinternet/

slide-7
SLIDE 7

State of the Internet, Security and IPv6

  • Security:

Port 445 (Microsoft-DS) remained the most targeted port in the fourth quarter, growing to 30% of observed attacks.

  • IPv6
  • IPv6

Comcast in November 2013: “Today, over 25% (and growing) of Comcast’s Xfinity Internet customers are actively provisioned with native dualstack broadband Internet service. Native IPv6 support has been deployed to over 75% of our broadband network, and our goal is 100% in early 2014.” Google Fiber – all dual stack IPv4 and IPv6.

Google assigning a /56 IP address.

slide-8
SLIDE 8

Wireless data growing by Leaps and Bounds…

Based on traffic data collected by Ericsson, the volume of mobile data traffic increased by 70% from the fourth quarter of 2012 to the fourth quarter of 2013, and grew approximately 15% between the third and fourth quarters of 2013. third and fourth quarters of 2013.

Source: http://www.akamai.com/stateoftheinternet/

slide-9
SLIDE 9

Technologies:

Access Network Technology review

Physical mediums – a review of layer 1 Are NIDs having an identity crisis? The definition of MSAP - has the Multi-Service Access The definition of MSAP - has the Multi-Service Access Platform peaked?

slide-10
SLIDE 10

802.11, 3GPP

Wireless Networks

slide-11
SLIDE 11

Wireless Standards

Wireless Standard Frequency Throughput Year Ratified Technology Details 802.11 2.4ghz 2mbps 1997 DHSS legacy 802.11a 5.0ghz 54mbps 1999 OFDM Separate radio, lower distance distance than 2.4ghz 802.11b 2.4ghz 11mbps 1999 DSSS 802.11g 2.4ghz 54mbps 2003 FHSS 802.11n 2.4ghz + 5.0ghz 300 – 450mpbs 2008 MIMO-OFDM Dual band radios 802.11ac 5.0ghz only 1Gbps 2014 MU-MIMO (v2 spec) “VHT”

slide-12
SLIDE 12

Wireless Security

Open Authentication WEP (legacy) WPA/ WPA2 with either TKIP or AES

TKIP is WEP based TKIP is WEP based

Strongest –

WPA2/AES

slide-13
SLIDE 13

Wireless Mechanics

With 2.4ghz:

3 non overlapping channels. 40mhz channels are not possible.

At 5.0ghz: At 5.0ghz:

24 non overlapping channels at 20mhz, or 11 40mhz channels 4 channels for bonding 5ghz less congested. Bluetooth operates at 2.4ghz

slide-14
SLIDE 14

802.11 Wireless Networks

775mhz of free spectrum to use for wifi. Cellular carriers are implementing Wi-Fi offload due to limited and costly cellular spectrum, and abundance of free unlicensed spectrum. free unlicensed spectrum. Majority of devices today do not have a wired Ethernet connection. 2015 - # of networked devices equal 2x global population.

  • Source: Ruckus Wireless
slide-15
SLIDE 15

802.11 performance

Enterprise AP Residential Gateway iPad3 41d, 39u 36d, 32u iPhone 5 76d, 48u 41d, 37u Google Nexus 10 33.9d, 29d 63d, 29u Google Nexus 5 81d, 103u 44d, 51u

slide-16
SLIDE 16

802.11 Signal Strength

80dbm is about the threshhold for good signal strength. 65dbm is recommended for data intensive 65dbm is recommended for data intensive sessions.

slide-17
SLIDE 17

802.11n Terminology

Spatial multiplexing Beamforming. MIMO Dual band 2.4ghz/ 5ghz Spatial streaming - multiple streams of data are sent simultaneously, which increases throughput. sent simultaneously, which increases throughput. Requires more antennas.

Chart source: Ruckus Wireless

slide-18
SLIDE 18

802.11-AC

  • Called “VHT” – Very High Throughput
  • Operates on 5Ghz only, why?

More channels for bandwidth!

  • 80/160mhz channels with 802.11ac
  • 256 QAM, but at short distances.

There will be two releases of 802.11-AC. Current releases do not include MU-MIMO, which is the true gigabit Wifi spec. It is hardware, not software updates to get to the version 2 spec.

slide-19
SLIDE 19

Wireless Tools

Free:

Wifi Analyzer – iPhone or Android App.

Not the best antennas – vertical or horizontal polarity can be a factor.

Fing – Wifi Network scanning tool.

An enumeration tool An enumeration tool

Pro:

Air Magnet – Air PCAP and Wireshark output Channelizer Pro with Wi Spy spectrum analyzer.

slide-20
SLIDE 20

Mobile Wireless

Technology Description Throughput Comments 2G GSM Edge Up to 384kpbs Actual ~ 40kbps Quad Band GSM 850/900/1800/1900 MHz 3G CDMA 2mbps 3G (HSPA+) UMTS Voice - W/CDMA 42mbps Known as “4G” for ATT and T-Mobile W/CDMA ATT and T-Mobile subscribers. UMTS 850/900/1700/1900 /2100 MHz 4G LTE IMS Voice (VoLTE coming soon) 4G LTE data 80Mbps / Scalable to higher speeds LTE Primarily 700MHz

slide-21
SLIDE 21

IEEE 802.15.4 AND ITU G.9959

The Connected Home

slide-22
SLIDE 22

The Connected Home

PCs, Laptops, Printers Entertainment Mobility Home Automation

slide-23
SLIDE 23

Source: http://m.eet.com/media/1202350/F1large.jpg

slide-24
SLIDE 24

Two related Protocols

  • IEEE 802.15.4

Zigbee

  • ITU G.9959
  • Z-Wave

defines a set of guidelines for sub-1-GHz narrowband wireless devices.

  • Both ZigBee and Z-Wave are supporting mesh network topology, which is a

strong requirement towards the revolution of “internet of things”.

  • With a “Gateway” device, you can control any piece of equipment that has

a built-in Z-Wave or Zigbee device. This list includes security systems, Smart Thermostat, your automatic door locks, video surveillance lighting and small appliance controls.

slide-25
SLIDE 25

Z-Wave Kits

DYI models: Lowe's IRIS Lowe's IRIS

Bundles - $299 - SmartKit - gateway - $99, motion detector - $25, two door/window sensors - $20 each - range extender - $30, keypad - $50, smart plug - $30, thermostat - $299, $74 less than individual)

MiCasaVerde Vera

slide-26
SLIDE 26

Z-Wave

Z-Wave operates in the 900MHz band It is proprietary. Z-Wave product is limited to 232 devices Less interference at the lower frequency, and Less interference at the lower frequency, and a longer wavelength that more easily penetrates walls and objects. Control lights, electrical outlets, fans, shades, drapes, irrigation, thermostats, security systems, door locks

slide-27
SLIDE 27

Z-Wave

Low Powered RF Supports data rates up to 100Kbps AES encryption, IPv6, multichannel No broadband connection needed for local No broadband connection needed for local control Must have at least two devices to start http://www.z-wavealliance.org/

slide-28
SLIDE 28

Z-Wave

With Mesh Networking, the more devices that are added the better the network becomes.

Opposite of Wifi

As devices are added, they automatically join the mesh. mesh. They then create the most optimal pathways to send data, with each device able to act as a repeater for other devices. Should one device fail, the mesh self-heals, instantly creating a new transmission pathway.

slide-29
SLIDE 29

Z-Wave

Z-Wave Alliance was established in early 2005 by a group of control manufacturers Now has support from over 300 companies, including: including:

Honeywell, GE, Black & Decker Over 1000 devices supported

slide-30
SLIDE 30

Z-Wave compatibility

IRIS and ZWAVE compatibility

slide-31
SLIDE 31

Source: http://www.lowes.com/cd_Competitor+Comparison_593210683_

slide-32
SLIDE 32

http://www.lowes.com/cd_Services_9450173 24_

slide-33
SLIDE 33

iVera

https://home.getvera.com/users/login

Demo: Demo: UN: guest PW: guest

slide-34
SLIDE 34

Vera Packages

  • http://shop.getvera.com/SearchResults.asp?Cat=1837
slide-35
SLIDE 35

Zigbee

802.15.4

LR-WPANs – low rate wireless personal area networks. low cost, low speed low cost, low speed 30 feet range, 250Kbps Operates in the 2.4Ghz range A Standardized protocol with very good interoperability between Manufacturers No broadband connection needed for local control

slide-36
SLIDE 36

ZigBee

ZigBee networks can support 65,000 devices

slide-37
SLIDE 37

ZigBee

ZigBee

http://www.zigbee.org/About/UnderstandingZigBee.aspx

slide-38
SLIDE 38

Comparing Zwave and ZigBee

Home-area networks (HANs)

Source: http://electronicdesign.com/communications/what-s-difference-between-zigbee-and-z-wave

slide-39
SLIDE 39

Z vs. Z, cont…

Z vs. Z, cont…

http://edn.com/design/analog/4426050/2/The-future-of-home-automation---ZigBee-or-Z-Wave-

slide-40
SLIDE 40

Z vs. Z

What do ADT, ViVINT, AT&T, and Verizon use? Z-Wave! Z-Wave!

slide-41
SLIDE 41

The Walmart Selection

slide-42
SLIDE 42

IOS Devices

http://en.wikipedia.org/wiki/List_of_iOS_devi ces#iPad

http://en.wikipedia.org/wiki/List_of_iOS_devices#iPad

slide-43
SLIDE 43

Android Phones

http://en.wikipedia.org/wiki/Comparison_of_Google_Nexus_smartphones http://en.wikipedia.org/wiki/Comparison_of_Google_Nexus_tablets

slide-44
SLIDE 44

RESIDENTIAL SERVICES GATEWAYS

Routers

slide-45
SLIDE 45

RSGs do most everything

FTTP Access Gateways

All in one w/Voice

slide-46
SLIDE 46

Key RSG Features

Dual WAN failover mode (supports two ISPs) Gigabit WAN ports with VLAN capability. Gigabit LAN ports with VLAN capability. DMZ – advanced security. DMZ – advanced security. SNMPv2/ v3 Some Access control list capability. TR-69

slide-47
SLIDE 47

First Looks at RSGs

Let’s look at some Home routers and their features: http://ui.linksys.com http://ui.linksys.com

slide-48
SLIDE 48

SMB Router Feature Sets

Remote Access VPN Site to Site VPN Security Feature Set Load Balancing / WAN failover Load Balancing / WAN failover Let’s take a look at a SMB router emulator: http://www.tp-link.us/support/emulators/

slide-49
SLIDE 49

Comparing RSGs

Source: http://www.buffalotech.com/products/wireless

slide-50
SLIDE 50

Thank you!
