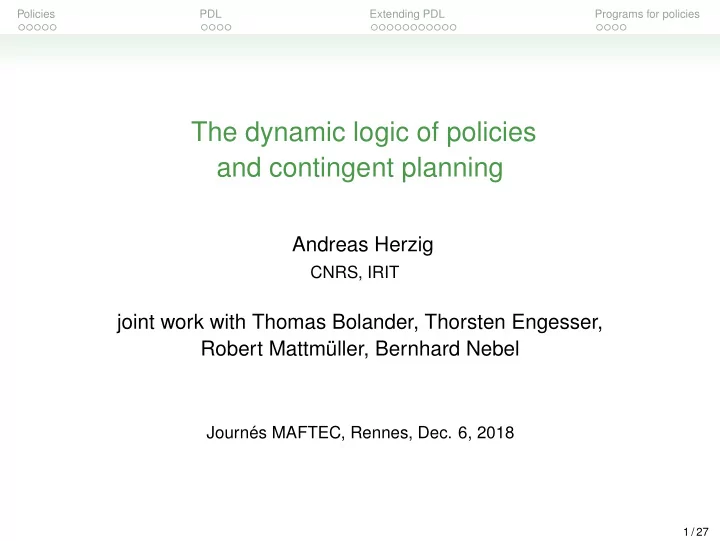

The dynamic logic of policies and contingent planning

Andreas Herzig

CNRS, IRIT

joint work with Thomas Bolander, Thorsten Engesser, Robert Mattm¨ uller, Bernhard Nebel

Journ´ es MAFTEC, Rennes, Dec. 6, 2018

1 / 27

Policies PDL Extending PDL Programs for policies

Motivation

understand policies standard concept in the planning literature

in the game theory literature: strategies central in contingent planning

• nly semantically defined

syntactic counterpart?

can we describe policies by PDL programs?

long-term aim: understand policies for epistemic planning

⇒ understand implicitly coordinated policies

2 / 27

Policies PDL Extending PDL Programs for policies

Action models

set of action names Act PDL model = triple MAct = (W, {Ra}a∈Act, V) where

W: non-empty set

(‘states’, ‘possible worlds’)

Ra ⊆ W × W

(‘action a’s transition relation’)

V : W −→ 2Prp

(‘valuation’)

3 / 27

Policies PDL Extending PDL Programs for policies

Outline

1

Planning tasks and strong policies

2

PDL: language and semantics

3

Extending PDL to account for policies

4

Programs for policies

4 / 27

Policies PDL Extending PDL Programs for policies

Planning tasks

(S0, γ, MAct)

where

S ⊆ W

(‘set of initial states’)

γ = boolean formula

(‘goal’)

MAct = PDL model

5 / 27

Policies PDL Extending PDL Programs for policies

Policies

policy = relation

Λ ⊆ W × (Act ∪ {stop})

• cf. ‘state-action table’ [Cimatti&Roveri 2003]

defined at set of states S ⊆ W iff for every s ∈ S: there is x ∈ Act ∪ {stop} such that (s, x) ∈ Λ strongly executable iff for every (s, a) ∈ Λ:

1

Ra(s) ∅

2

Λ is defined at Ra(s)

6 / 27

Policies PDL Extending PDL Programs for policies

Strong solutions to planning tasks

Stop(Λ) = {t ∈ W : (t, stop) ∈ Λ}

‘license to stop’

all ‘stop states’ must satisfy the goal (v.i.) if a policy contains (s, a) and (s, stop) then at s one may both to stop and perform a: both must lead to the goal necessary if we want nondeterministic policies

Λ is a strong solution of planning task (S0, γ, MAct) iff:

1

Λ acyclic, finite, strongly executable

2

Λ defined at S0

3

MAct, Stop(Λ) γ

example:

task = (S0, HaveFerrari, MAct) sequential plan = playLottery; buyFerrari

weak solution not a strong solution

7 / 27

Policies PDL Extending PDL Programs for policies

Properties

If Λ is a strong solution of (S, γ, MAct) then Λ is a strong solution of (Ra(S), γ, MAct) if Λ1 and Λ2 are both strong solutions to (S0, γ, MAct) and Λ1 ∪ Λ2 is acyclic then Λ1 ∪ Λ2 is a strong solution of (S0, γ, MAct)

8 / 27

Policies PDL Extending PDL Programs for policies

Outline

1

Planning tasks and strong policies

2

PDL: language and semantics

3

Extending PDL to account for policies

4

Programs for policies

9 / 27

Policies PDL Extending PDL Programs for policies

PDL: language

grammar of formulas ϕ and programs π:

ϕ ::= p | ¬ϕ | ϕ ∧ ϕ | πϕ | [π]ϕ π ::= a | π; π | π∪π | ϕ?

where p ∈ Prp and a ∈ Act

[π]ϕ = “ϕ true after every possible execution of π” πϕ = “ϕ true after some possible execution of π”

so: πϕ ↔ ¬[π]¬ϕ

N.B.: no Kleene star

10 / 27

Policies PDL Extending PDL Programs for policies

PDL: semantics

interpretation of programs: Rπ1;π2 = Rπ1 ◦ Rπ2 Rπ1∪

π2

= Rπ1 ∪ Rπ2 Rψ? =

{(s, s) : MAct, s ψ}

interpretation of formulas: MAct, s p iff p ∈ V(s) MAct, s ¬ϕ iff . . . MAct, s ϕ ∧ ψ iff . . . MAct, s πϕ iff MAct, t ϕ for some t ∈ Rπ(s) MAct, s [π]ϕ iff MAct, t ϕ for every t ∈ Rπ(s) iff MAct, Rπ(s) ϕ where:

Rπ(S) =

s∈S Rπ(s)

MAct, S ϕ iff MAct, s ϕ for every s ∈ S

11 / 27

Policies PDL Extending PDL Programs for policies

PDL: weak executability

inexecutability:

[π]⊥

= “⊥ true after every possible execution of π” = “π is inexecutable” executability: wx π

def

= ¬[π]⊥

def

= π⊤

= “π is weakly executable”

weak: I can get by with a little help from nature. . .

wx playLottery; buyFerrari

cannot account for strong solutions of planning tasks

12 / 27

Policies PDL Extending PDL Programs for policies

Outline

1

Planning tasks and strong policies

2

PDL: language and semantics

3

Extending PDL to account for policies

4

Programs for policies

13 / 27

Policies PDL Extending PDL Programs for policies

PDL: a new modality

when a is deterministic: “a guarantees outcome ϕ‘’ = aϕ when actions can be nondeterministic: “a guarantees outcome ϕ‘’ = a⊤ ∧ [a]ϕ

= wx a ∧ [a]ϕ

def

= ( [a] )ϕ

14 / 27

Policies PDL Extending PDL Programs for policies

PDL: a new modality (ctd.)

straightforward extension to sequential plans/programs: “a1; · · · ; an guarantees ϕ”

= “a1 guarantees (a2; · · · ; an guarantees ϕ)” = ( [a1] ) · · · ( [an] )γ

def

= ( [a1; · · · ; an] )ϕ

characterises strong sequential solutions to planning tasks: a1; · · · ; an strong solution of (S0, γ, MAct) iff MAct, S0 (

[a1; · · · ; an] )γ

example:

MAct, S0 playLottery; buyFerrariHaveFerrari

(weak)

MAct, S0 ( [playLottery; buyFerrari] )HaveFerrari

(not strong) 15 / 27

Policies PDL Extending PDL Programs for policies

PDL: strong executability

strong executability: sx a1; · · · ; an

def

= ( [a1; · · · ; an] )⊤ = ( [a1] ) · · · ( [an] )⊤ = a1⊤ ∧ [a1](( [a2] )· · ·( [an] )⊤) = . . . ↔ wx a1 ∧ [a1]wx a2 ∧ · · · ∧ [a1]· · ·[an−1]wx an = “a1; · · · ; an is strongly executable”

examples: sx playLottery = wx playLottery sx playLottery; buyFerrari = wx playLottery ∧

[playLottery]sx buyFerrari

16 / 27

Policies PDL Extending PDL Programs for policies

PDL: strong executability (ctd.)

( [π] )ϕ can be reduced to sx π: ( [a1; · · · ; an] )ϕ = ( [a1] ) · · · ( [an] )ϕ = a1⊤ ∧ [a1](( [a2] )· · ·( [an] )ϕ) = . . . ↔ wx a1 ∧ [a1]wx a2 ∧ · · · ∧ [a1]· · ·[an−1]wx an ∧ = [a1][a2]· · ·[an]ϕ = sx a1; · · · ; an ∧ [a1; · · · ; an]ϕ

strong executability of a nondeterministic composition? sx π1∪π2 = ???

17 / 27

Policies PDL Extending PDL Programs for policies

Extended PDL: language

formulas ϕ and programs π:

ϕ ::= p | ¬ϕ | ϕ ∧ ϕ | πϕ | [π]ϕ | ( [π] )ϕ π ::= a | π; π | π∪π | ϕ?

where p ∈ Prp and a ∈ Act

( [π] )ϕ = “π is strongly executable and guarantees ϕ”

nondeterministic choice π1∪π2:

nature chooses between (possible executions of) π1 and π2 can only choose πi that are weakly executable π1∪π2 equivalent to (wx π1?; π1)∪(wx π2?; π2) consequence: ( [π1∪π2] )ϕ ↔ (wx π1∪π2) ∧ (wx π1→( [π1] )ϕ) ∧ (wx π2→( [π2] )ϕ) cf. [π1∪π2]ϕ ↔ (wx π1∨wx π2)∧ (wx π1→[π1]ϕ) ∧ (wx π2→[π2]ϕ)

18 / 27

Policies PDL Extending PDL Programs for policies

Extended PDL: interpretation of formulas

MAct, s (

[a] )ϕ

iff Ra(s) ∅ and MAct, Ra(s) ϕ MAct, s (

[π1; π2] )ϕ

iff MAct, s (

[π1] )( [π2] )ϕ

MAct, s (

[π1∪π2] )ϕ

iff MAct, s π1⊤ or MAct, s π2⊤, and if MAct, s π1⊤ then MAct, s (

[π1] )ϕ, and

if MAct, s π2⊤ then MAct, s (

[π2] )ϕ

MAct, s (

[ψ?] )ϕ

iff MAct, s ψ ∧ ϕ

19 / 27

Policies PDL Extending PDL Programs for policies

Extended PDL: nondeterminism

two kinds of nondeterminism

1

atomic actions: nature chooses among possible executions

MAct, s |= ( [playLottery] )Rich

2

π1∪π2: nature chooses among (weakly) executable disjuncts

MAct, s |= ( [playLottery∪workHard] )Rich MAct, s |= ( [(playLottery; ⊥?)∪workHard] )Rich

20 / 27

Policies PDL Extending PDL Programs for policies

Axiomatics

axiomatics of dynamic logic reduction axioms for program operators:

( [ψ?] )ϕ ↔ ψ ∧ ϕ ( [π1; π2] )ϕ ↔ ( [π1] )( [π2] )ϕ ( [π1∪π2] )ϕ ↔ (π1⊤ ∨ π2⊤) ∧ (π1⊤ → ( [π1] )ϕ) ∧ (π2⊤ → ( [π2] )ϕ)

reduction axiom for atomic programs:

( [a] )ϕ ↔ a⊤ ∧ [a]ϕ

21 / 27

Policies PDL Extending PDL Programs for policies

Alternative axiomatisation

( [π] )ϕ can be reduced to sx π: ( [π] )ϕ ↔ sx π ∧ [π]ϕ

axiomatics of strong executability: sx a ↔ wx a sx ψ? ↔ ψ sx π1; π2 ↔ sx π1 ∧ [π1]sx π2 sx π1∪π2 ↔ (sx π1 ∧ sx π2) ∨

(sx π1 ∧ ¬wx π2) ∨ (¬wx π1 ∧ sx π2)

22 / 27

Policies PDL Extending PDL Programs for policies

Properties

some programs are no longer equivalent: |= sx toss ↔ sx (toss; Heads?)∪(toss; ¬Heads?)

reason: MAct, s wx toss; Heads? MAct, s sx toss; Heads?

however: |= sx toss ↔ sx toss; (Heads?∪¬Heads?)

23 / 27

Policies PDL Extending PDL Programs for policies

Outline

1

Planning tasks and strong policies

2

PDL: language and semantics

3

Extending PDL to account for policies

4

Programs for policies

24 / 27

Policies PDL Extending PDL Programs for policies

From programs to policies

given program π and set of states S, recursively define policy Pol

• S, π
• :

Pol

• S, a
• = (S × {a}) ∪ (Ra(S) × {stop})

Pol

• {s0}, playL
• = {(s0, playL), (swin, stop), (sloose, stop)}

Pol

• S, π1; π2
• = Pol
• S, π1

−stop ∪ Pol

• Stop(Pol
• S, π1
• ), π2
• Pol
• {s0}, playL; buyF
• = {(s0, playL), (swin, buyF)}

Pol

• S, π1∪π2
• = Pol
• S, π1
• ∪ Pol
• S, π2
• Pol
• {L, ¬L}, L?∪(¬L?; toggle)
• = {(L, stop), (¬L, toggle)}

Theorem

Let MAct be acyclic and finitely branching. Let S0 be finite. If MAct, S0 (

[π] )γ then Pol

• S0, π
• strong solution for (S0, γ, MAct).

25 / 27

Policies PDL Extending PDL Programs for policies

From policies to programs

for a finite model MAct such that valuations can be identified with states:

define a characteristic formula χs for each state s

MAct, s χt iff t = s

for finite and acyclic policy Λ: given set of states S0, recursively define program progΛ,S0

uses characteristic formulas χs well-defined because Λ is finite and acyclic

Theorem

Let MAct be such that V(s) = V(s′) implies s = s′. If Λ strong solution for (S0, γ, MAct) then MAct, S0 (

[progΛ,S0] )γ.

26 / 27

Policies PDL Extending PDL Programs for policies

Conclusion

logic of (

[π] ) when π is a complex program

difficulty: good semantics of nondeterministic choice

• cf. semantics of strong permission in deontic logic

characterisation of strong executability almost a normal modal operator

satisfies all principles but necessitation moreover satisfies axiom D: ¬( [a] )⊥

syntactical counterpart of policies: there is a strong solution of (S0, γ, MAct) iff there is a π such that MAct, S0 (

[π] )γ

perspective: implicitly coordinated policies

27 / 27
