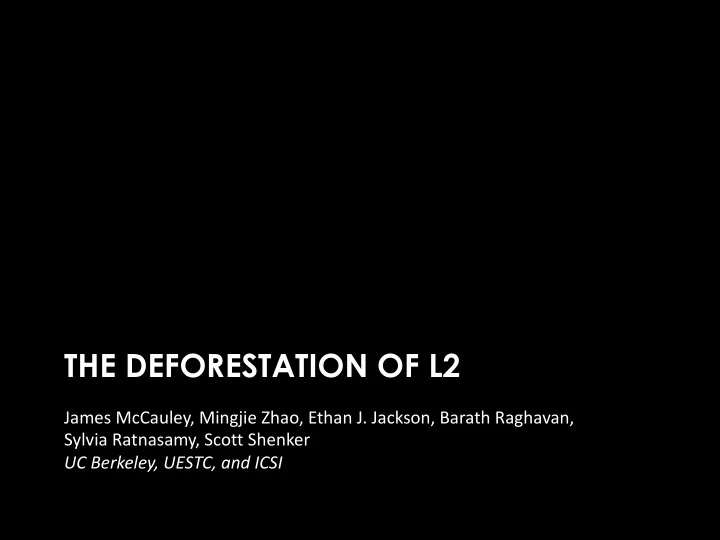

THE DEFORESTATION OF L2

James McCauley, Mingjie Zhao, Ethan J. Jackson, Barath Raghavan, Sylvia Ratnasamy, Scott Shenker UC Berkeley, UESTC, and ICSI

slide-2
SLIDE 2

The Talk

  • What is AXE?
  • Why look at this?
  • How does it work?
  • Really? This actually works?

2

slide-3
SLIDE 3

The What

  • An redesign of L2 to replace Ethernet and

Spanning Tree Protocol (and its variants)

  • Targets are “normal” enterprise networks,

machine rooms, small private DCs

– Not the Googles, Microsofts, Rackspaces – Not networks with incredibly highly utilization – Not managed by a full-time team of experts

3

slide-4
SLIDE 4

The What: Goals

  • Plug-and-play

– If not, might as well just use L3

  • Use all links for shortest paths

– Number one shortcoming of STP

  • Fast recovery from failure

– Number two shortcoming of STP?

4

slide-5
SLIDE 5

The What: Goals

  • Plug-and-play

– If not, might as well just use L3

  • Use all links for shortest paths

– Number one shortcoming of STP

  • Fast Packet-timescale recovery from failure

– Number two shortcoming of STP?

5

slide-6
SLIDE 6

The What: Assumptions

  • Failure detection can be fast

– Not traditionally the bottleneck

  • Control plane “hellos” were sufficient

– Need interrupt-driven LFS, BFD, etc.

  • There’s a market for flood-and-learn L2

– Flooding/learn has security implications – No heavy unidirectional traffic

  • No multi-access links

– Everything is point-to-point

6

slide-7
SLIDE 7

The Why: Is L2 still a problem?

  • Still many largely-unmanaged, small/med L2 networks!

– Two in our building in Berkeley!

  • There have been a few interesting developments…

– SPB, TRILL, SEATTLE, etc. – Provide various tradeoffs

  • AXE attempts to strike a different balance

– Focus on two key problems – Keeping things as simple as possible (no control plane)

7

slide-8
SLIDE 8

The Why: Context

8

Plug-and-play Shortest Paths Fast Recovery No Control Plane STP

✓

  • No STP (Tree)

✓ ✓

  • ✓

TRILL/SPB

✓ ✓

  • IP (L3)
  • ✓
  • Custom
  • ✓

?

  • AXE

✓ ✓ ✓ ✓

slide-9
SLIDE 9

The How: Extend Ethernet

  • Basic flood/learn Ethernet

– When you see a packet: learn – When you don’t know what to do: flood

  • But AXE does not need a tree to deal with loops

– Means flooding works for handling failures too

  • (because alternate paths are immediately available)

– Means that flood/learn finds short paths

  • (because you haven’t removed links)

9

slide-10
SLIDE 10

The How: Treeless flooding

  • How do you get around the loop problem?
  • Duplicate-packet-detection
  • Multiple ways of doing it
  • Our focus: hash-based deduplication filter

– In short: hash table where you replace upon collision – Straightforward – Amenable to hardware/P4 implementation

10

slide-11
SLIDE 11

The How: What changes?

  • Learning is more subtle

– Source address seen on multiple ports – Packets may even be going backwards!

  • Responding to failures is more subtle

– Means we have to unlearn (outdated) state

11

slide-12
SLIDE 12

The How: Extend Header

  • Extend the packet header between switches

– Nonce (per-switch sequence number)

  • Used for packet deduplication

– Hop count

  • Influences learning, also protects from loops

– Flooded flag: F

  • Tracks whether a packet is being flooded

– Learnable flag: L

  • Tracks whether packet can be learned from

12

slide-13
SLIDE 13

The How: Separate queues

  • Switches have flood queue and normal queue

– The Flooded flag in the header determines which – Flood queue has higher priority and is shorter – Normal queue sized… normally

  • Intuition:

– Delivering floods quickly stops flooding quickly – Deduplication only applies to floods, keeping fewer floods in flight makes dedup easier

13

slide-14
SLIDE 14

The How: Overview

  • Extend packet header

– Nonce, Hop Count, Flooded / Learnable flags

  • Learning/Unlearning Phase

– May learn port and HC to src – May unlearn path to dst if trouble was observed

  • Output Phase

– If packet is a duplicate: drop – If unknown-dst/path-failed/already-flooding: flood – Otherwise forward according to table

14

slide-15
SLIDE 15

The How: Example

  • A sends a packet to B (L:True)

– Destination B unknown; packet flooded from first hop (F:True)

  • All switches learn how to reach A
  • B sends to A (L:True)

– Direct path following table entries to A (F:False)

  • Switches along path learn how to reach B
  • Link fails
  • A sends another packet to B (L:True)

– Follows along path… (F:False) – .. until it hits failure (L:False F:True) – Switch floods packet out all ports (even backwards)

  • Flooded packet reaches B (Successful delivery!)
  • Another duplicate of flooded packet reaches A’s first hop; unlearn B
  • A sends another packet to B (L:True)

– Destination B unknown; packet flooded from first hop (F:True)

  • All switches learn how to reach A again

15

slide-16
SLIDE 16

0.00% 0.02% 0.04% 0.06% 0.08% 0.10% 0.12% 0.14% 0.16% 0.18% Campus Cluster

  • How much flooding do failures cause?
  • How big does the deduplication filter need to be?

– Less than 1,000 entries in our simulations

  • Does it recover from overload?

– Yes

Really? Preliminaries

16

*

slide-17
SLIDE 17

Really? Overview

  • Thinking back to that matrix…

– We want plug and play – We to support shortest paths using all links – We don’t want to have a control plane – Packet-timescale recovery from failures

17

slide-18
SLIDE 18

Really? Failure benchmark

  • Omniscient, randomized, shortest-path routing
  • Failure → Adjustable delay → Fix routes
  • Delay of zero is optimal routing / an upper bound
  • Nonzero delay meant to roughly simulate…

– OSPF, IS-IS, TRILL, SPB, etc. – .. without needing to model each one in detail

  • Random shortest-cost tree rooted at each destination
  • Note: we don’t compare ourselves to STP at all

18

slide-19
SLIDE 19

Really? Failure recovery - UDP

  • Send traffic on network

with high failure rate

  • Metric is unnecessary

delivery failures – packets that weren’t delivered even though

  • ptimal routing could

have delivered them

  • AXE has no unnecessary

delivery failures

19

0.00% 0.03% 0.05% 0.08% 0.13% 0.19% 0.27% 0.00% 0.05% 0.10% 0.15% 0.20% 0.25% 0.30% AXE 5ms 10ms 20ms 40ms 80ms 160ms 0.000% 0.002% 0.003% 0.005% 0.008% 0.011% 0.021% 0.000% 0.005% 0.010% 0.015% 0.020% 0.025% AXE 5ms 10ms 20ms 40ms 80ms 160ms

Delivery Failures (Campus) Delivery Failures (Cluster)

slide-20
SLIDE 20
  • Similar setup, but with TCP
  • Metric is number of flows

with significantly worse FCT than optimal routing

  • AXE has no significantly

worse FCTs

Really? Failure recovery - TCP

20

0% 0% 0.01% 0.06% 0.14% 0.11% 0.25% 0.0% 0.1% 0.1% 0.2% 0.2% 0.3% 0.3% AXE 5ms 10ms 20ms 40ms 80ms 160ms 0% 0.002% 0.007% 0.010% 0.015% 0.020% 0.036% 0.00% 0.01% 0.01% 0.02% 0.02% 0.03% 0.03% 0.04% 0.04% AXE 5ms 10ms 20ms 40ms 80ms 160ms

Delayed FCTs (Campus) Delayed FCTs (Cluster)

slide-21
SLIDE 21

The End: Not Mentioned Here

  • Multicast AXE

– On any change (failure; join), flood+dedup and prune – Flooded packets have all data needed to build tree

  • AXE with Hedera

– Use AXE for mice & recovery – Centralized SDN routing for elephant flows

  • P4 implementation

– AXE is expressible in P4 – Performance on real hardware is open question

21
