The Deep Underground Neutrino Experiment with an emphasis on astrophysics Outline I. Status of DUNE Design Collaboration Schedule, including ProtoDUNE II. Physics of DUNE Beam and atmospheric neutrinos Supernova

slide-1

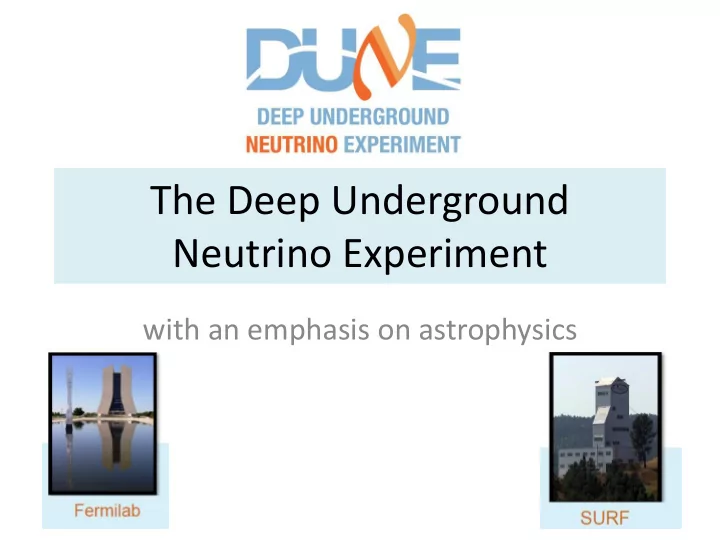

SLIDE 1

The Deep Underground Neutrino Experiment

with an emphasis on astrophysics

slide-2
SLIDE 2

Outline

I. Status of DUNE

– Design – Collaboration – Schedule, including ProtoDUNE

  • II. Physics of DUNE

– Beam and atmospheric neutrinos – Supernova neutrinos – Nucleon decay – Other

9 March 2019 Maury Goodman 2

slide-3
SLIDE 3

Overview

9 March 2019 Maury Goodman 3

slide-4
SLIDE 4

Anatomy of DUNE

15m x 15 m x 65 m

9 March 2019 Maury Goodman 4

slide-5
SLIDE 5

The growing collaboration

As of January 2019 1202 collaborators from 183 institutions in 31 countries

 648 faculty/scientist, 201 PDs, 119 engineers, 234 PhD students

9 March 2019 Maury Goodman 5

slide-6
SLIDE 6

Single Phase----------------Dual Phase

9 March 2019 Maury Goodman 6

slide-7
SLIDE 7

Strategy

The DUNE Collaboration is pursuing and prototyping two LAr TPC technologies, SP &DP The collaboration is planning for the 1st 10 kT module to be SP & 2nd DP (2+1+1 model with 3rd module SP and 4th ‘module of opportunity’) Sequencing (SP-DP-SP vs. SP-SP-DP) will depend on ProtoDUNE results & resources

9 March 2019 Maury Goodman 7

slide-8
SLIDE 8

PIP II

Proton Improvement Plan Phase 2 using superconducting cryomodules Groundbreaking Ceremony 15 March 2019

9 March 2019 Maury Goodman 8

slide-9
SLIDE 9

DUNE Schedule

 Physics TDR will be available soon  Detector 1 ready to start installation August 2024  Detector 1 ready for cool down August 2025  Detector 1 ready for physics late summer 2026  Detector 2 ready to start installation August 2025  Detector 2 ready for cool down August 2026  Detector 2 ready for physics late summer 2027

9 March 2019 Maury Goodman 9

slide-10
SLIDE 10

ProtoDUNE

9 March 2019 Maury Goodman 10

slide-11
SLIDE 11

Purity

 Drops in purity due to stop

  • f the liquid argon

recirculation (sometime planned and sometime not)

9 March 2019 Maury Goodman 11

slide-12
SLIDE 12

CERN Beam ProtoDUNE running

9 March 2019 Maury Goodman 12

slide-13
SLIDE 13

Events / future CERN plan

 2018 ProtoDUNE-SP run  Use cosmics through Oct 2020 for SP & DP  Upgrade SP Oct 2020- Sep 2021  more beam Apr-May 2022

9 March 2019 Maury Goodman 13

slide-14
SLIDE 14

Supernova neutrinos

9 March 2019 Maury Goodman 14

slide-15
SLIDE 15

n Signals in Liquid Ar

A LAr detector is primarily sensitive to neutrinos, as

  • pposed to water/scintillator sensitivity to antineutrinos

9 March 2019 Maury Goodman 15

slide-16
SLIDE 16

n distributions (t, En) before oscillations

Garching Model

9 March 2019 Maury Goodman 16

slide-17
SLIDE 17

Rates and distance

Rate versus distance

9 March 2019 Maury Goodman 17

At 10 kpc:

slide-18
SLIDE 18

SIMULATIONS MARLEY & SNOGLOBES

MARLEY

Model of Argon Reaction Low Energy Yields

SNOwGLoBES

A fast event rate computation tool for long-baseline experiments

9 March 2019 Maury Goodman 18

Energy smearing without/with drift correction

http://www.marleygen.org/ http://webhome.phy.duke.edu/~schol/snowglobes/

slide-19
SLIDE 19

Time details

9 March 2019 Maury Goodman 19

n/(cm2 ms 0.2MeV) neutronization accretion cooling ne ne nx

En t

slide-20
SLIDE 20

Michels from stopping m appropriate for calibration

Supernova spectrum in DUNE Michel Electron Spectrum

9 March 2019 Maury Goodman 20

slide-21
SLIDE 21

Stopping m in ProtoDUNE

9 March 2019 Maury Goodman 21

slide-22
SLIDE 22

Trigger challenge

 SN triggering is a challenge for a slow LArTPC  Sampling at 1.15 TB/s for 10 kT single phase  100 s of uninterrupted data if SN happens  Don’t want to miss any galactic SN  Very rough rates:  1 SN@LMC makes 50 events in 40 kT  13 events in 10 kT  Spread over ~10 s  13 events/10 s  1 Bq  For Background 4  10-8 Bq 1 fake per month

Need a fast & efficient trigger algorithm

9 March 2019 Maury Goodman 22

Background contributions

slide-23
SLIDE 23

Interpretation challenges

We can predict an En spectrum from a model, but how well can we point to a model based on a measured spectrum?

9 March 2019 Maury Goodman 23

We need theorists to be perfect!

slide-24
SLIDE 24

Tests using DUNE SN n

  • f Lorentz/CPT violation

9 March 2019 Maury Goodman 24

Slide from Kostolecky

slide-25
SLIDE 25

SN n’s in NOvA

  • Reconstructed e+ from 10kpc in 1 s:

299 for 27 M 87 for 9.6 M

SN distance NOvA can detect with e = 50%:

6.23 kpc for 9.6 M 10.58 kpc for 27 M

9 March 2019 Maury Goodman 25

slide-26
SLIDE 26

Solar neutrinos

9 March 2019 Maury Goodman 26

slide-27
SLIDE 27

Solar n’s in DUNE

 theoretical studies: A. Ioannisian et al., Phys.Rev. D96 (2017) no.3, 036005  newer paper-- arXiv:1808.08232

The key advantage of DUNE: event-by-event energy reconstruction, rather than n-e recoil spectrum

8B+hep, from

SNOwGLoBES w/smearing from Amoruso et al., 2003 [not DUNE smearing]

100 kt-year solar n interactions

9 March 2019 Maury Goodman 27

Solar signal without background

Slide from K. Scholberg

slide-28
SLIDE 28

Capozzi et al. paper presents intriguing sensitivity: BUT: makes very optimistic assumptions: (7% energy resolution, 25% angular resolution, modest bg, no systematics, ...these may not be achieved*)

 Triggering studies still needed (different issues than SNB)  Overall realistic sensitivity for solar ns still under study

From K. Scholberg

*~20% energy resolution more likely, e.g., mBooNE 1704.02927

A Dm2

21 sensitivity estimate

9 March 2019 Maury Goodman 28

slide-29
SLIDE 29

Nucleon decay

9 March 2019 Maury Goodman 29

slide-30
SLIDE 30

NDK sensitivity 400 kT-y

p →nK+ Comparable to Super-K n → e- K+ Improve by ~100 91 modes in 2014 RPP (Super-K had reported best limit for only 14, but probably could do better in most modes. DUNE could compete in ~ 20.)

9 March 2019 Maury Goodman 30

slide-31
SLIDE 31

Beam neutrinos

9 March 2019 Maury Goodman 31

slide-32
SLIDE 32

CP, Order, q23 sensitivity

9 March 2019 Maury Goodman 32

slide-33
SLIDE 33

Atmospheric neutrinos

9 March 2019 Maury Goodman 33

slide-34
SLIDE 34

3n oscillations with Atmospheric n’s

9 March 2019 Maury Goodman 34

slide-35
SLIDE 35

Lorentz & CPT violation

using Standard Model Extension (SME)

9 March 2019 Maury Goodman 35

Sensitivity from Kostolecky, no simulation

slide-36
SLIDE 36

Other

9 March 2019 Maury Goodman 36

slide-37
SLIDE 37

Additional topics

 Relic Supernova neutrinos  GUT monopoles  Light Dark Matter  Boosted Dark Matter  Neutrinos from DM annihilation in the sun  Solar neutrinos  CPT and Lorentz Violation  Sterile Neutrino searches Coincidences with GRB, gravitational waves

9 March 2019 Maury Goodman 37

slide-38
SLIDE 38

Thank you!

9 March 2019 Maury Goodman 38

slide-39
SLIDE 39

Backup

9 March 2019 Maury Goodman 39

slide-40
SLIDE 40

SN direction

  • Some promising work is taking place on

reconstructing the direction from ne elastics.

9 March 2019 Maury Goodman 40

slide-41
SLIDE 41

Run5203-Evt1290

proto SP Cosmic Muon Stopping and decay Michel Electron 7 GeV - Pion Interaction (beam) proton 7 GeV Cosmic Muon Stopping and decay Michel Electron

slide-42
SLIDE 42

SN signal (red) on background (blue) in NOvA FarDet

slide-43
SLIDE 43

SN signal versus distance for NOvA

The resulting detection e for 3 signal shapes vs. t.
