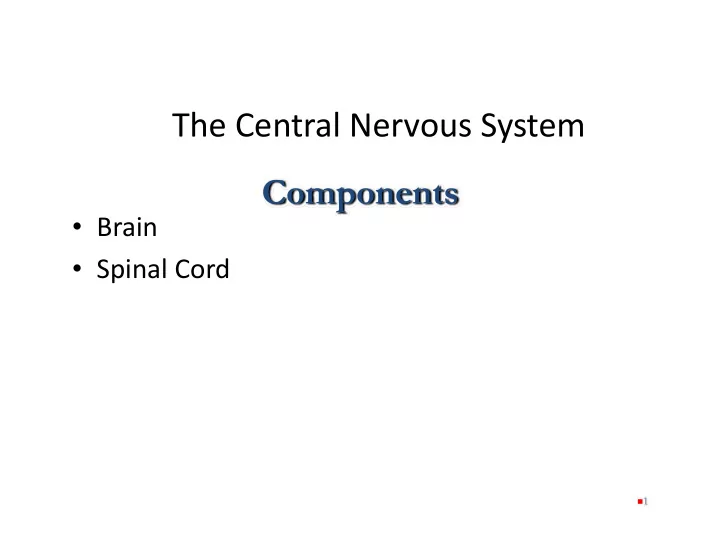

The Central Nervous System

• Brain
• Spinal Cord

1

Components

Protection of the Brain

• The brain is protected from injury by

– The skull – enough said! You already know this.

2

What else

protects your Brain?

Protection of the Brain – The Meninges

• Cover and protect the CNS
• Enclose and protect the vessels that

supply the CNS

• Contain the cerebrospinal fluid
• Consists of three layers

– Dura Mater – Arachnoid Layer – Pia Mater

3

The Meninges

4

Protection of the Brain – Cerebrospinal Fluid (CSF)

• Provides a liquid

cushion for the brain and spinal cord

• The brain “floats”

in CSF

• Formed in choroid

plexuses in the brain ventricles

5

Protection of the Brain – CSF

• Circulation of CSF

6

Protection of the Brain ‐ CSF

• Reabsorption of CSF

7

Protection of the Brain – Blood‐Brain Barrier

• Prevents most blood‐borne toxins

from entering the brain

– Impermeable capillaries, surrounded by astrocyte projections creating a double layer, throw in some tight junctions and it works pretty effectively!

• Not an absolute barrier

– Nutrients such as oxygen pass through – Allows alcohol, nicotine, and anesthetics through

8

Brain Ventricles

• Ventricles – General Information

– Expansions of the brain’s central cavity – Filled with cerebrospinal fluid – Lined with ependymal cells – Continuous (interconnected) with each

• ther
• Though flow of CSF is unidirectional

– Continuous with the central canal of the spinal cord

9

Brain Ventricles

• The brain’s ventricles and associated structures:

– Lateral ventricles – located in cerebral hemispheres

• Horseshoe‐shaped from bending of the cerebral

hemispheres

– Third ventricle – lies in diencephalon

• Connected with lateral ventricles by interventricular foramen

– Cerebral aqueduct – connects 3rd and 4th ventricles – Fourth ventricle – lies in hindbrain

• Connects to the central canal of the spinal cord
• Contains median and lateral aperatures

10

Brain Ventricles

11

Brain Components & Organization

• Brain is divided into four general regions:

– Cerebral hemispheres – Diencephalon – Brain stem – Cerebellum – All of which contains gray & white matter

12

Brain Components & Organization

• Organization of neural matter (gray vs.

white)

– Deeply (internally) located gray matter – Intermediately located white matter – Additional layer of gray matter superficial to white matter

• Due to groups of neurons migrating externally
• Forms the Cortices – outer layers of gray matter

– Formed from neuronal cell bodies – Located in cerebrum and cerebellum (the cerebral cortex & cerebellar cortex respectively)

13

The Cerebral Hemispheres

• General Information & Terminology

– Account for 83% of brain mass

• Superficial thin (1‐2 mm) cortex & a deep cortex
• Deep white matter with localized centers of gray matter

(basal ganglia)

– Fissures – deep grooves – separate major regions of the brain, generally have dura mater in the fissure

• Transverse fissure – separates cerebrum and cerebellum
• Longitudinal fissure – separates cerebral hemispheres

14

The Cerebral Hemispheres

– Sulci – shallow grooves on the surface of the cerebral hemispheres, does not contain dura mater in the sulci

• Several deep sulci define the lobes (which are named

according to the overlying skeletal structures)

– Central sulcus

» Separates the frontal and parietal lobes

– Parieto‐occipital sulcus

» Separates the occipital from the parietal lobe

– Lateral sulcus

» Separates temporal lobe from parietal and frontal lobes

15

The Cerebral Hemispheres

– Gyri – twisted ridges between sulci

• Important gyri
• Prominent gyri and sulci are

similar in all people

– Insula – deep region within the lateral sulcus

• Has it’s own cortex

16

The Cerebral Hemispheres

• Frontal section through

forebrain showing organization

• f gray and white matter

– Cerebral cortex – Cerebral white matter – Deep gray matter

• f the cerebrum

(basal nuceli/ ganglia)

17

The Cerebral Cortex

• Composed of gray matter

– Neuronal cell bodies, dendrites, and short axons, axon terminals, synapses

• Folds in cortex – triples its size

– Unfolded gives a surface about that of a pillowcase

• Approximately 40% of brain’s mass
• Brodmann areas – 52 structurally distinct

areas

18

Functional and Structural Areas of the Cerebral Cortex

19

Figure 13.11a

Functional and Structural Areas of the Cerebral Cortex

20

Figure 13.11b

The Cerebral Cortex Motor Areas – Primary Motor Cortex

• Controls motor functions
• Located in precentral gyrus (Brodmann area 4)
• Pyramidal cells – large neurons of primary

motor cortex

• Corticospinal tracts descend through

brainstem and spinal cord

– Axons signal motor neurons to control skilled movements – Contralateral – pyramidal axons cross over to

• pposite side of the brain

21

The Cerebral Cortex Motor Areas – Primary Motor Cortex

• Motor homunculus –

body map of the motor cortex

– Specific pyramidal cells control specific areas of the body – Face and hand muscles – controlled by many pyramidal cells

• Somatotopy – body is

represented spatially in many parts of the CNS

22

The Cerebral Cortex Sensory Areas Primary Somatosensory Cortex

• Located at/on/in the postcentral gyrus

– Corresponds to Brodmann areas 1‐3

• Involved with conscious awareness of general

somatic senses

• Spatial discrimination – precisely locates a

stimulus

23

Cerebral Cortex Sensory Areas – Primary Somatosensory Cortex

• Projection is

contralateral

– In that the cerebral hemispheres receive sensory input from the opposite side of the body

• Sensory homunculus

– a body map of the sensory cortex

24

25

Cerebral White Matter

26

Figure 13.13a

Deep Gray Matter of the Cerebrum

• Consists of:

– Basal forebrain nuclei (Meynert’s nucleus) – Basal nuclei (ganglia)

• Caudate nucleus
• Lentiform nucleus

– Putamen – Globus pallidus

• Claustrum

– Amygdala

• located in cerebrum

but is considered part of the of the limbic system

27

The Diencephalon

• Forms the center core of the

forebrain

• Surrounded by the cerebral

hemispheres

• Composed of three paired

structures:

– Thalamus, hypothalamus, and epithalamus

• Border the third ventricle
• Primarily composed of gray matter

28

The Diencephalon

29

The Diencephalon – The Thalamus

• Makes up 80% of the diencephalon
• Contains approximately a dozen major nuclei
• Send axons to regions of the cerebral cortex
• Nuclei act as relay stations for incoming sensory

messages

• Afferent impulses converge on the thalamus

– Synapse in at least one of its nuclei

• Is the “gateway” to the cerebral cortex
• Nuclei organize and amplify or tone down signals

30

The Thalamus

31

The Diencephalon – The Hypothalamus

• Lies between the optic

chiasm and the mammillary bodies

• Pituitary gland projects

inferiorly

• Contains approximately a

dozen nuclei

• Main visceral (autonomic)

control center of the body

32

The Diencephalon – The Epithalamus

• Forms part of the “roof” of the third ventricle
• Includes the pineal gland (pineal body)

– Secretes the hormone melatonin – Under influence of the hypothalamus

33

Epithalamus highlighted in red

The Brain Stem and Diencephalon

34

Figure 13.20a, b

The Brain Stem

• Includes the

– Midbrain – Pons – medulla oblongata

• Several general functions

– Produces automatic behaviors necessary for survival – Passageway for all fiber tracts running between the cerebrum and spinal cord – Heavily involved with the innervation of the face and head

• 10 of the 12 pairs of cranial nerves attach to it

35

The Brain Stem – The Midbrain

• Lies between the diencephalon and

the pons

• Central cavity – the cerebral aqueduct

with gray matter surrounding (periaqueductal gray matter)

• Cerebral peduncles located on the

ventral surface of the brain

– Contain pyramidal (corticospinal) tracts

• Superior cerebellar peduncles

– Connect midbrain to the cerebellum

• Corpora quadrigema –large nuclei

– Superior & Inferior colliculi

• visual and auditory reflex centers

36

The Brain Stem – The Pons

• Located between the

midbrain and medulla

• blongata
• Contains the nuclei of

cranial nerves V, VI, and VII

• Contains the

pneumotaxic and apneustic centers of respiration

37

The Brain Stem – The Medulla Oblongata

• Most caudal level of the brain stem

– Continuous with the spinal cord – Choroid plexus lies in the roof of the fourth ventricle – Pyramids of the medulla – lie on its ventral surface

• Decussation of the pyramids – crossing over of motor

tracts

– Cranial nerves VIII–XII attach to the medulla

38

The Brain Stem – The Medulla Oblongata

• The core of the medulla contains:

– Additional nuclei of the reticular formation

• Nuclei influence autonomic functions

– Cardiac center – Vasomotor center – The medullary respiratory center – Centers for hiccupping, sneezing, swallowing, and coughing

39

The Cerebellum

• Located dorsal to the pons and

medulla

• Consists of two cerebellar

hemispheres

• Surface folded into ridges called

folia

– Separated by fissures

• Hemispheres each subdivided

into:

– Anterior lobe – Posterior lobe – Flocculonodular lobe

• Functionally

– Smoothes and coordinates body movements – Helps maintain equilibrium & body posture

40

The Cerebellum – Cerebellar Peduncles

• Thick tracts connecting the cerebellum to the

brain stem

– Superior cerebellar peduncles – Middle cerebellar peduncles – Inferior cerebellar peduncles

• Fibers to and from the cerebellum are

ipsilateral

– Run to and from the same side of the body

41

The Spinal Cord

• Runs through the vertebral canal
• Extends from the foramen magnum

to the level of the vertebra L1 or L2

• Protected by bone, meninges, and

CSF

• Dura mater of the spinal cord
• The spinal dural sheath – only one

layer

42

The Spinal Cord

• Conus medullaris – the inferior end
• f the spinal cord
• Filum terminale – long filament of

connective tissue

– Attaches to the coccyx inferiorly

• Cervical and lumbar enlargements

– Where nerves for upper and lower limbs arise

• Cauda equina – collection of nerve

roots

43

The Spinal Cord

• Denticulate ligaments – anchor spinal cord to

vertebrae

• Two deep grooves run the length of the cord

– Posterior median sulcus – Anterior median fissure

44

Anatomy of the Spinal Cord

45

Figure 13.30a

Anatomy of the Spinal Cord

46

Figure 13.30b

Gray Matter of the Spinal Cord and Spinal Roots

• Shaped like the letter H, or a butterfly
• Gray commissure

– contains the central canal

• Anterior horns

– contain cell bodies of motor neurons

• Posterior & lateral horns

– consist of interneurons

• Gray matter

– divided according to somatic and visceral regions

47

Gray Matter of the Spinal Cord and Spinal Roots

48

Figure 13.32

White Matter of the Spinal Cord

• Composed of myelinated and unmyelinated

axons

• Three types of fibers

– Ascending, Descending & Commissural

49

Sensory and Motor Pathways

• Most motor pathways:

– Decussate at some point along their course – Consist of a chain of two or three neurons – Exhibit somatotopy

• Tracts arranged according to the body region they

supply

• All pathways are paired

– One of each on each side of the body

50

Ascending (Sensory) Pathways

• Conduct general somatic sensory impulses
• Chains of neurons composed of:

– First‐, second‐, and third‐order neurons

• Four main ascending pathways

– Dorsal column pathway – Spinothalamic pathway – Spinocerebellar Pathway

• Composed of anterior & posterior spinocerebellar

pathways

51

A s c e n d i n g P a t h w a y s

52

Descending (Motor) Pathways

• Deliver motor instructions from the brain to

the spinal cord

• Divided into two groups

– Pyramidal, or corticospinal, tracts – Other motor pathways

• Tectospinal tracts

– responsible for coordinating head and eye movements

• Vestibulospinal tract

– responsible for equilibrium and balance movements

• Rubrospinal tract

– responsible for large movements of the appendages (mostly in other primates – nearly absent in humans)

• Reticulospinal tract

– regulate muscle tone in the anti‐gravity muscles (postural)

53

D e s c e n d i n g P a t h w a y s

54

Neat Brain Atlas (real!)

• http://www.brainmaps.org

55
