Teflon Printed Microscopic Slides - screen-printed PTFE printed slides (hydrophobic or super-hydrophobic) - no cross-contamination - perfect wettable surface - homogeneous spreading of the antigens within the cell - Silane slide coating

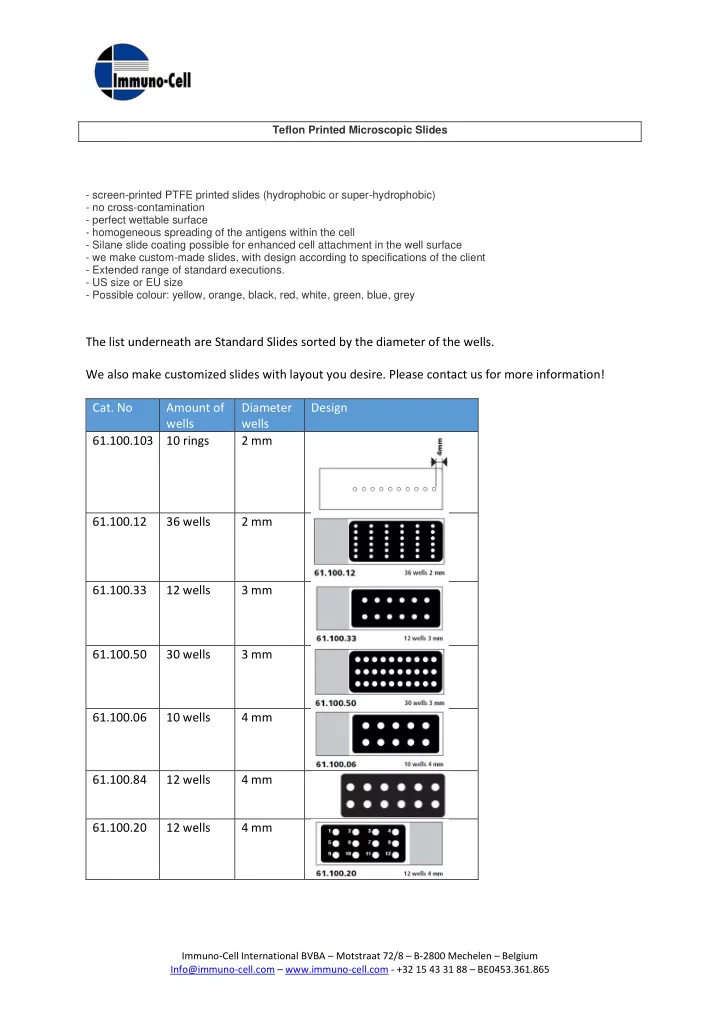

SLIDE 1

Immuno-Cell International BVBA – Motstraat 72/8 – B-2800 Mechelen – Belgium Info@immuno-cell.com – www.immuno-cell.com - +32 15 43 31 88 – BE0453.361.865 Teflon Printed Microscopic Slides

screen-printed PTFE printed slides (hydrophobic or super-hydrophobic)
no cross-contamination
perfect wettable surface
homogeneous spreading of the antigens within the cell
Silane slide coating possible for enhanced cell attachment in the well surface
we make custom-made slides, with design according to specifications of the client
Extended range of standard executions.
US size or EU size
Possible colour: yellow, orange, black, red, white, green, blue, grey

The list underneath are Standard Slides sorted by the diameter of the wells. We also make customized slides with layout you desire. Please contact us for more information!

Cat. No

Amount of wells Diameter wells Design 61.100.103 10 rings 2 mm 61.100.12 36 wells 2 mm 61.100.33 12 wells 3 mm 61.100.50 30 wells 3 mm 61.100.06 10 wells 4 mm 61.100.84 12 wells 4 mm 61.100.20 12 wells 4 mm

SLIDE 2

Immuno-Cell International BVBA – Motstraat 72/8 – B-2800 Mechelen – Belgium Info@immuno-cell.com – www.immuno-cell.com - +32 15 43 31 88 – BE0453.361.865

61.100.25 15 wells 4 mm 61.100.35 18 wells 4 mm 61.100.31 21 wells 4 mm 61.100.28 21 wells 4 mm 61.100.32 24 wells 4 mm 61.100.61 6 wells 5 mm 61.100.11 10 wells 5 mm 61.100.85 10 wells 5 mm 61.100.87 10 wells 5 mm 61.100.43 10 wells 5 mm Hep - 2 61.100.77 12 wells 5 mm 61.100.79 12 rings 5 mm 61.100.26 14 wells 5 mm

SLIDE 3

Immuno-Cell International BVBA – Motstraat 72/8 – B-2800 Mechelen – Belgium Info@immuno-cell.com – www.immuno-cell.com - +32 15 43 31 88 – BE0453.361.865

61.100.108 15 wells 5 mm 61.100.36 18 wells 5 mm 61.100.60 4 wells 6 mm 61.100.78 6 wells 6 mm 61.100.05 8 wells 6 mm 61.100.14 10 wells 6 mm 61.100.17 10 wells 6 mm 61.100.63 10 wells 6 mm 61.100.38 10 rings 6 mm 61.100.70 12 wells 6 mm 61.100.29 12 wells 6 mm 61.100.71 18 wells 6 mm 61.100.75 4 wells 7 mm

SLIDE 4

Immuno-Cell International BVBA – Motstraat 72/8 – B-2800 Mechelen – Belgium Info@immuno-cell.com – www.immuno-cell.com - +32 15 43 31 88 – BE0453.361.865

61.100.16 10 wells 7 mm 61.100.91 12 wells 7 mm 61.100.92 16 wells 7 mm 61.100.47 1 well 8 mm Chlamydia 61.100.00 1 well 8 mm 61.100.106 2 wells 8 mm Chlamydia 61.100.94 2 wells 8 mm Chlamydia 61.100.93 2 wells 8 mm 61.100.21 2 wells 8 mm 61.100.01 3 wells 8 mm 61.100.37 4 wells 8 mm 61.100.96 6 wells 8 mm 61.100.58 8 wells 8 mm

SLIDE 5

Immuno-Cell International BVBA – Motstraat 72/8 – B-2800 Mechelen – Belgium Info@immuno-cell.com – www.immuno-cell.com - +32 15 43 31 88 – BE0453.361.865

61.100.82 8 wells 8 mm 61.100.09 10 wells 8 mm 61.100.51 10 wells 8 mm 61.100.15 10 wells 8 mm 61.100.19 12 wells 8 mm 61.100.69 4 wells 9 mm 61.100.10 2 wells 10 mm 61.100.22 3 wells 10 mm 61.100.02 3 wells 10 mm 61.100.59 4 wells 10 mm 61.100.86 6 wells 10 mm 61.100.76 2 wells 11 mm 61.100.57 2 rings 11 mm

SLIDE 6

Immuno-Cell International BVBA – Motstraat 72/8 – B-2800 Mechelen – Belgium Info@immuno-cell.com – www.immuno-cell.com - +32 15 43 31 88 – BE0453.361.865

61.100.30 3 wells 11 mm 61.100.52 4 wells 11 mm 61.100.88 4 rings 11 mm 61.100.89 2 wells 12 mm 61.100.101 1 ring 13 mm 61.100.102 2 rings 13 mm 61.100.03 3 wells 12 mm 61.100.04 3 wells 14 mm 61.100.41 3 rings 14 mm 61.100.18 4 wells 14 mm 61.100.150 1 well 15 mm 61.100.95 1 well 15 mm 61.100.74 2 wells 15 mm

SLIDE 7

Immuno-Cell International BVBA – Motstraat 72/8 – B-2800 Mechelen – Belgium Info@immuno-cell.com – www.immuno-cell.com - +32 15 43 31 88 – BE0453.361.865

61.100.24 1 well 18 mm 61.100.81 2 wells 19 mm 61.100.109 1 well 20 mm 61.100.13 6 fields 16 x 10 mm 61.100.23 2 recangtular 25 x 20 mm 61.100.27 6 ovals 8 x 14 mm
