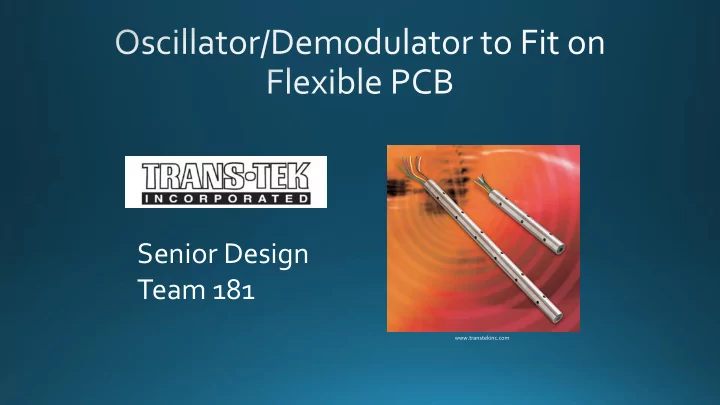

Senior Design Team 181 www.transtekinc.com Team: Ryan Williams (EE) Jonathan Wolff (EE) Damon Soto (EE) Jason Meyer (EE) Advisor: Helena Silva (ECE) Trans-Tek Contacts: Mark Bennett Jeffrey Gladu Trans-Tek Background


  1. Senior Design Team 181 www.transtekinc.com

  2. Team: • Ryan Williams (EE) • Jonathan Wolff (EE) • Damon Soto (EE) • Jason Meyer (EE) Advisor: Helena Silva (ECE) Trans-Tek Contacts: • Mark Bennett • Jeffrey Gladu

  3. • Trans-Tek Background • Linear Variable Differential Transformers (LVDTs) • Current Oscillator/Demodulator Models • Goals • Oscillator • Demodulator • Timeline • Budget

  4. • Founded in 1967 • Located in Ellington, CT • Leading manufacturer of Linear and Angular Displacement, and Linear Velocity Transducers • Use Linear Variable Differential Transformers (LVDTs) • Applications in position and velocity sensing

  5. • Consists of a 3-part transformer • Secondary coils wired in subtractive configuration • Position of core determines output voltage • Linear relationship between core position and output voltage http://upload.wikimedia.org/wikipedia/commons/0/07/Lvdt_how.gif

  6. www.transtekinc.com http://upload.wikimedia.org/wikipedia/commons/5/57/LVDT.png

  7. www.transtekinc.com

  8. www.transtekinc.com

  9. • Hardware circuit that converts a DC signal to an AC signal. • Frequency of the oscillator is determined by a RC combination, looking for a range of 1.5 to 12.5 kHz. • Output voltage determined by a resistor, looking for 1 to 6 VRMS. • Need to make an oscillator with almost no harmonic distortion. http://www.electronics-tutorials.ws/oscillator/osc22.gif

  10. • Can be performed using a hardware circuit or DSP • Hardware Circuit • No coding required • Same process used in current models • DSP • Easier to modify and tune • More accurate • No circuit components needed http://www.singer-instruments.com/sites/default/files/images/tutorials/how_lvdt_works_fig3.gif

  11. • Input impedance of 1M Ω or higher • 4 separate selectable output ranges • Ripple voltage less than 0.2% • Non-linearity less than 0.03% • Temperature coefficient best effort (± 1%)

  12. September October November December January February March April May Meet with Sponsor Project Statement Project Specs Proposal Presentations Research Parts Written Proposal Schematic Order Parts Protoboard Build Final Presentation Final Report Debug PCB Build

  13. • Flexible PCB • Microcontroller • LVDTs • Proto Board for experiments • 0.7 inch tubing • Component parts for the Ocillator/Demodulator • Other Parts TBD
