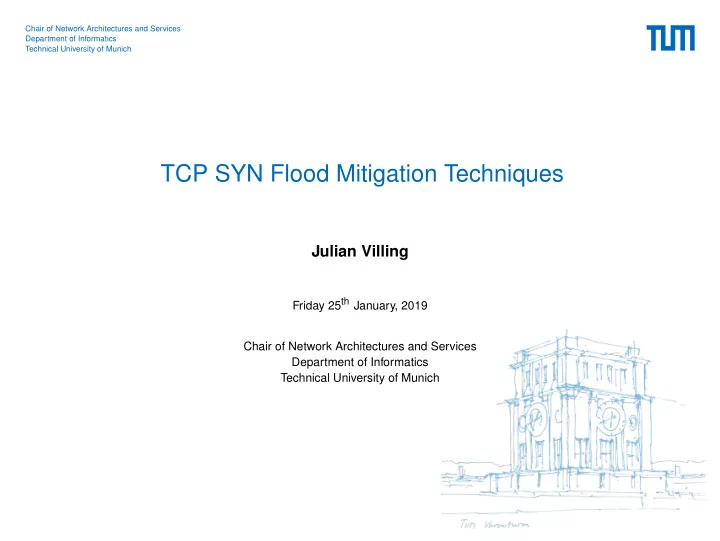

TCP SYN Flood Mitigation Techniques

Julian Villing

Friday 25th January, 2019 Chair of Network Architectures and Services Department of Informatics Technical University of Munich

Introduction

TCP Handshake Client Server

• 1. SYN SEQ=x
• 2. SYN-ACK SEQ=y ACK=x+1
• 3. ACK SEQ=x+1 ACK=y+1

Figure 1: TCP Handshake

• J. Villing — SYN Flood Mitigation

2

Introduction

TCP SYN Flood

• TCP connection states stored in thread control blocks (TCB) [1]
• TCBs saved in backlog until connection is established or a timeout occurs
• J. Villing — SYN Flood Mitigation

3

Introduction

TCP SYN Flood

• TCP connection states stored in thread control blocks (TCB) [1]
• TCBs saved in backlog until connection is established or a timeout occurs
• SYN Floods initiate countless connections without completing the handshake
• Many unncessary connections exhaust the servers backlog (DoS Attack)
• Free space required for connection establishment
• J. Villing — SYN Flood Mitigation

3

Introduction

TCP SYN Flood

• TCP connection states stored in thread control blocks (TCB) [1]
• TCBs saved in backlog until connection is established or a timeout occurs
• SYN Floods initiate countless connections without completing the handshake
• Many unncessary connections exhaust the servers backlog (DoS Attack)
• Free space required for connection establishment
• Issue addressed by mitigation techniques
• Examples: SYN Cookies, SYN Authentication, SYN Agent
• J. Villing — SYN Flood Mitigation

3

Mitigation Techniques

SYN Cookies

• Initial sequence number (ISN) can be chosen at random [1][5]
• Used to encode state (adresses, ports, client ISN, ...)
• Compared with clients’ response
• Connection allocated directly as established
• J. Villing — SYN Flood Mitigation

4

Mitigation Techniques

SYN Cookies

• Initial sequence number (ISN) can be chosen at random [1][5]
• Used to encode state (adresses, ports, client ISN, ...)
• Compared with clients’ response
• Connection allocated directly as established
• Advantage: No state is ever allocated in the backlog
• Disadvantage: Not compliant with the TCP specification
• Reason to use: Ready for immediate use
• J. Villing — SYN Flood Mitigation

4

Mitigation Techniques

SYN Authentication

• Handshake done with mitigation device [3]
• Replies with invalid SYN-ACK
• Client responds with TCP Reset (RST)
• Direct communication is allowed
• J. Villing — SYN Flood Mitigation

5

Mitigation Techniques

SYN Authentication

• Handshake done with mitigation device [3]
• Replies with invalid SYN-ACK
• Client responds with TCP Reset (RST)
• Direct communication is allowed
• Advantage: No unnecessary TCBs allocated
• Disadvantage: Handshake has to be done twice
• Reason to use: Follows the TCP specification
• J. Villing — SYN Flood Mitigation

5

Mitigation Techniques

SYN Agent

• Connection established with separate agent [2]
• Handshake either redone with server → SEQ translation needed
• Server is informed otherwise → no translation needed
• J. Villing — SYN Flood Mitigation

6

Mitigation Techniques

SYN Agent

• Connection established with separate agent [2]
• Handshake either redone with server → SEQ translation needed
• Server is informed otherwise → no translation needed
• Advantage: Server protected from the flood
• Disadvantage: Additional device required
• Reason to use: Protects the server under all circumstances
• J. Villing — SYN Flood Mitigation

6

Conclusion

Detection

• Techniques only active during a flood
• Difficult to detect
• Legitimate client required
• J. Villing — SYN Flood Mitigation

7

Conclusion

Detection

• Techniques only active during a flood
• Difficult to detect
• Legitimate client required
• SYN Cookies: ISN is a hash value, cannot be detected
• SYN Authentication: First SYN-ACK always invalid
• SYN Agent: Duplicates server, cannot be detected
• J. Villing — SYN Flood Mitigation

7

Conclusion

Comparison Technique Guarantee Memory Immunity Computing Immunity Robustness Good Performance SYN Cookies

• ×

×

• SYN Authentication
• ×

SYN Agent

• (fulfilled), × (not fulfilled)

This table is based on the one from [4] and extends it.

Table 1: Comparison of Mitigation Techniques

• J. Villing — SYN Flood Mitigation

8

Conclusion

Comparison Technique G.

• M. I.
• C. I.

R.

• G. P.

Filtering

• ×
• ×

Increased Backlog × × ×

• ×

Reduced Timeout

• ×
• Recycling
• SYN Cache
• ×
• ×

SYN Cookies

• ×

×

• SYN Authentication
• ×

SYN Agent

• Three Counters
• ×

×

• ×

Random Drop ×

• (fulfilled), × (not fulfilled), ◦ (depends on the attack)

This table is based on the one from [4] and extends it.

Table 1: Comparison of Mitigation Techniques

• J. Villing — SYN Flood Mitigation

9

Bibliography

[1]

• W. Eddy.

TCP SYN Flooding Attacks and Common Mitigations, 2007. https://tools.ietf.org/html/rfc4987. [2] P .-E. Liu and Z.-H. Sheng. Defending Against TCP SYN Flooding with a new kind of SYN-Agent. In Machine Learning and Cybernetics, 2008 International Conference on, volume 2, pages 1218–1221. IEEE, 2008. [3]

• R. Nagai, W. Kurihara, S. Higuchi, and T. Hirotsu.

Design and Implementation of an OpenFlow-Based TCP SYN Flood Mitigation. In Mobile Cloud Computing, Services, and Engineering (MobileCloud), 2018 6th IEEE International Conference on, pages 37–42, 2018. [4]

• L. Ricciulli, P

. Lincoln, and P . Kakkar. TCP SYN Flooding Defense. CNDS, 1999. [5]

• H. Salunkhe, S. Jadhav, and V. Bhosale.

Analysis and review of TCP SYN flood attack on network with its detection and performance metrics. IJERT, 6(1):250–256, 2017.

• J. Villing — SYN Flood Mitigation

10
