Task Superscalar: Using Processors as Functional Units Yoav Etsion Alex Ramirez Rosa M. Badia Eduard Ayguade Jesus Labarta Mateo Valero Yoav Etsion HotPar, June 2010 Senior Researcher Parallel Programming is Hard A few key

slide-1

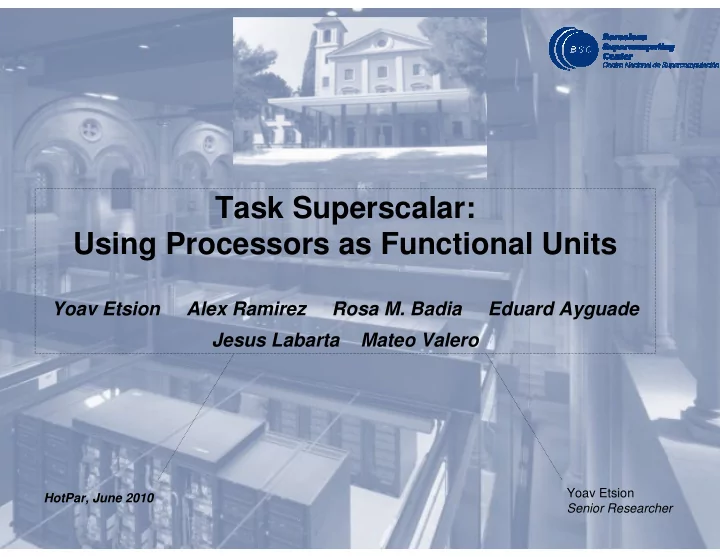

SLIDE 1

Yoav Etsion Senior Researcher

Task Superscalar: Using Processors as Functional Units

Yoav Etsion Alex Ramirez Rosa M. Badia Eduard Ayguade Jesus Labarta Mateo Valero

HotPar, June 2010

slide-2
SLIDE 2

Hot Topics in Parallelism, June 2010 2

Parallel Programming is Hard

  • A few key problems of parallel programming:
  • 1. Exposing operations that can execute in parallel
  • 2. Managing data synchronization
  • 3. Managing data transfers
  • None of these exist in sequential programming…
  • …but they do exists in processors executing sequential programs
slide-3
SLIDE 3

Hot Topics in Parallelism, June 2010 3

Sequential Program, Parallel Execution Engine

  • Out-of-Order pipelines automatically manage a parallel substrate
  • A heterogeneous parallel substrate (FP, ALU, BR…)
  • Yet, the input instruction stream is sequential

[Tomasulo’67][Patt’85]

  • The obvious questions:
  • 1. How do out-of-order processors manage parallelism?
  • 2. Why can’t ILP out-of-order pipelines scale?
  • 3. Can we apply the same principles to tasks?
  • 4. Can task pipelines scale?
slide-4
SLIDE 4

Hot Topics in Parallelism, June 2010 4

Outline

  • Recap: How do OoO processors uncover parallelism?
  • The StarSs programming model
  • A high-level view of the task superscalar pipeline
  • Can a task pipeline scale?
  • Conclusions and Future Work
slide-5
SLIDE 5

Hot Topics in Parallelism, June 2010 5

How Do Out-of-Order Processors Do it?

  • Exposing parallelism
  • Register renaming tables map consumers to producers
  • Observing an instruction window to find independent instructions
  • Data synchronization
  • Data transfers act as synchronization tokens
  • Dataflow scheduling prevents data conflicts
  • Data transfers
  • Broadcasts tagged data
  • Input is a sequential stream: complexities are hidden from programmer
slide-6
SLIDE 6

Hot Topics in Parallelism, June 2010 6

Can We Scale Out-of-Order Processors?

  • Building a large instruction window is difficult

(Latency related)

  • Timing constraints require a global clock
  • Broadcast does not scale, but latency cannot tolerate switched networks
  • Broadcasting tags yields a large associative lookup in the reservation stations
  • Utilizing a large instruction window
  • Control path speculation is a real problem, as

most in-flight instructions are speculated (Not latency related!)

  • Most available parallelism used to overcome

the memory wall, not exploit parallel resource (Back to latency…)

  • But what happens if we operate on tasks rather than instructions?
slide-7
SLIDE 7

Hot Topics in Parallelism, June 2010 7

Outline

  • Recap: How do OoO processors uncover parallelism?
  • The StarSs programming model: Tasks as abstract instructions
  • High-level view of the task superscalar pipeline
  • Can a task pipeline scale?
  • Conclusions and Future Work
slide-8
SLIDE 8

Hot Topics in Parallelism, June 2010 8

The StarSs Programming Model

  • Tasks as the basic work unit
  • Operational flow: a master thread spawns tasks, which are dispatched to

multiple worker processors (aka the functional units)

  • Runtime system dynamically resolves dependencies, construct the task graph,

and schedules tasks

  • Programmers annotate the directionality of operands
  • input, output, or inout
  • Operands can consist of memory regions, not only scalar values
  • Further extends the pipeline capabilities
  • Shameless plug: StarSs versions for SMPs and the Cell are freely available
slide-9
SLIDE 9

Hot Topics in Parallelism, June 2010 9

The StarSs Programming Model

  • Simple annotations
  • All effects on shared state are

explicitly expressed

  • Kernels can be compiled for

different processors

#pragma css task input(a, b) inout(c) void sgemm_t(float a[M][M], float b[M][M], float c[M][M]); #pragma css task inout(a) void spotrf_t(float a[M][M]); #pragma css task input(a) inout(b) void strsm_t(float a[M][M], float b[M][M]); #pragma css task input(a) inout(b) void ssyrk_t(float a[M][M], float b[M][M]);

Intuitively Annotated Kernel Functions

Example: Cholesky Decomposition

slide-10
SLIDE 10

Hot Topics in Parallelism, June 2010 10

The StarSs Programming Model

  • Code is seemingly sequential, and

executes on the master thread

  • Invoking kernel functions

generates tasks, which are sent to the runtime

  • s2s filter injects necessary code
  • Runtime dynamically constructs

the task dependency graph

  • Easier to debug, since execution is

similar to sequential execution

for (int j = 0; j<N; j++) { for (int k = 0; k<j; k++) for (int i = j+1; i<N; i++) sgemm_t(A[i][k], A[j][k], A[i][j]); for (int i = 0; i<j; i++) ssyrk_t(A[j][i], A[j][j]); spotrf_t(A[j][j]); for (int i = j+1; i<N; i++) strsm_t(A[j][j], A[i][j]); }

Seemingly Sequential Code

Example: Cholesky Decomposition

slide-11
SLIDE 11

Hot Topics in Parallelism, June 2010 11

The StarSs Programming Model

  • It is not feasible to have a programmer

express such a graph…

  • Out-of-order execution
  • No loop level barriers (a-la OpenMP)

Facilitates distant parallelism

  • Tasks 6 and 23 execute in parallel
  • Availability of data dependencies supports

relaxed memory models

  • DAG consistency

[Blumofe’96]

  • Bulk consistency

[Torrellas’09]

Resulting Task Graph (5x5 matrix)

slide-12
SLIDE 12

Hot Topics in Parallelism, June 2010 12

So Why Move to Hardware?

  • Problem: software runtime does not scale beyond 32-64 processors
  • Software decode rate is 700ns - 2.5us per task
  • Difference is between Intel Xeon and Cell PPU
  • Scaling therefore implies much longer tasks
  • Longer tasks imply larger datasets that do not fit in the cache
  • Hardware offers inherent parallelism
  • Vertical:

pipelining

  • Horizontal:

distributing load over multiple units

slide-13
SLIDE 13

Hot Topics in Parallelism, June 2010 13

Outline

  • Recap: How do OoO processors uncover parallelism?
  • The StarSs programming model: Tasks as abstract instructions
  • A high-level view of the task superscalar pipeline
  • Can a task pipeline scale?
  • Conclusions and Future Work
slide-14
SLIDE 14

Hot Topics in Parallelism, June 2010 14

Task Superscalar: a high-level view

  • Master processors send tasks to the pipeline
  • Object versioning table (OVTs) are used to map data consumers and producers
  • Combination of a register file and a renaming table
  • Task dependency graph is stored in multiplexed reservation stations
  • Heterogeneous backend
  • GPUs become equivalent to a vector unit found in many processors

P P P P

P

GPU

HW/SW Scheduler

Multiplexed Reservation Stations

P P

MRS MRS MRS MRS

Master Processors Task Dep. Decode

Nested Task Generation

... ...

Dispatch Decode Fetch Functional Units

OVT OVT OVT OVT

Task Decode Unit Processors Worker

...

P P

slide-15
SLIDE 15

Hot Topics in Parallelism, June 2010 15

Result: Uncovering Large Amounts of Parallelism

# of ready tasks Normalized execution time MatMul 4Kx4K FFT 256K Cholesky 4Kx4K Knn 50K samp. Jacobi 4Kx4K H264Dec 1 HD Fr. 100 200 300 400 500 600 700 800 900 1000

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

  • The figure shows the number of ready tasks throughout the execution
  • Parallelism can be found even in complex dependency structures
  • Cholesky, H264, Jacobi
slide-16
SLIDE 16

Hot Topics in Parallelism, June 2010 16

Outline

  • Recap: How do OoO processors uncover parallelism?
  • The StarSs programming model: Tasks as abstract instructions
  • A high-level view of the task superscalar pipeline
  • Can a task pipeline scale?
  • Conclusions and Future Work
slide-17
SLIDE 17

Hot Topics in Parallelism, June 2010 17

Overcoming the limitations of ILP pipelines

  • Task window timing
  • No need for a global clock – we can afford crossing clock

domains

  • Building a large pipeline
  • Multiplex reservation stations into a single structure
  • Relaxed timing constraints on decodes facilitates the creation of

explicit graph edges

  • Eliminates the need for associative MRS lookups
  • We estimate storing tens-of-thousands of in-flight tasks
slide-18
SLIDE 18

Hot Topics in Parallelism, June 2010 18

Overcoming the limitations of ILP pipelines

  • Utilizing a large window
  • Tasks are non-speculative
  • We can afford to wait for branches to be resolved
  • Overcoming the memory wall
  • Explicit data dependency graph facilitates data scheduling
  • Overlap computation with communications
  • Schedule work to exploit locality
  • Already done on the Cell B.E. version of StarSs
  • StarSs runtime tolerates memory latencies of thousands of cycles
slide-19
SLIDE 19

Hot Topics in Parallelism, June 2010 19

Outline

  • Recap: How do OoO processors uncover parallelism?
  • The StarSs programming model: Tasks as abstract instructions
  • A high-level view of the task superscalar pipeline
  • Can a task pipeline scale?
  • Conclusions and Future Work
slide-20
SLIDE 20

Hot Topics in Parallelism, June 2010 20

Conclusions

  • Dynamically scheduled out-of-order pipelines are very effective in

managing parallelism

  • The mechanism is effective, but limited by timing constraints
  • Task-based dataflow programming models uncover runtime parallelism
  • Utilize an intuitive task abstraction
  • Intel RapidMind [McCool’06], Sequoia [Fatahalian’06], OoOJava [Jenista’10]
  • Combine the two: Task Superscalar
  • A task-level out-of-order pipeline using cores as functional units
  • We are currently implementing a task superscalar simulator
  • Execution engine for high-level models: Ct, CnC, MapReduce
slide-21
SLIDE 21

Hot Topics in Parallelism, June 2010 21

Future Work

  • Explore locality-based scheduling algorithms
  • HW/SW scheduling interface
  • Scheduling for a heterogeneous backend
  • Automatic grouping of tasks to GPU warps
  • Combining both dynamic and static dependency analysis
  • Explore the effectiveness of known out-of-order optimizations
  • Lazy renaming already shown to work in StarSs
slide-22
SLIDE 22

Hot Topics in Parallelism, June 2010 22

Thank You

slide-23
SLIDE 23

Hot Topics in Parallelism, June 2010 23

Related Work

  • Thread-Level Speculation (TLS)
  • Multiscalar [Sohi’95], Trace Procs. [Rotenberg’97], Hydra [Hammond’98]
  • Dataflow
  • Intermittent work in the 1970s, 1980s, 1990s
  • [Dennis, Watson, Arvind, Culler, Papadopoulos, …]
  • TRIPS [Sankaralingam’06], WaveScalar [Swanson’03]
  • Other task-level dataflow models
  • CellSs [Bellens’06], RapidMind [McCool’06],

Sequoia [Fatahalian’06], OoOJava [Jenista’10]

  • Hardware support for Tasks
  • Carbon [Kumar’07], ADM [Sanchez’10], MLCA [Karim’04]
