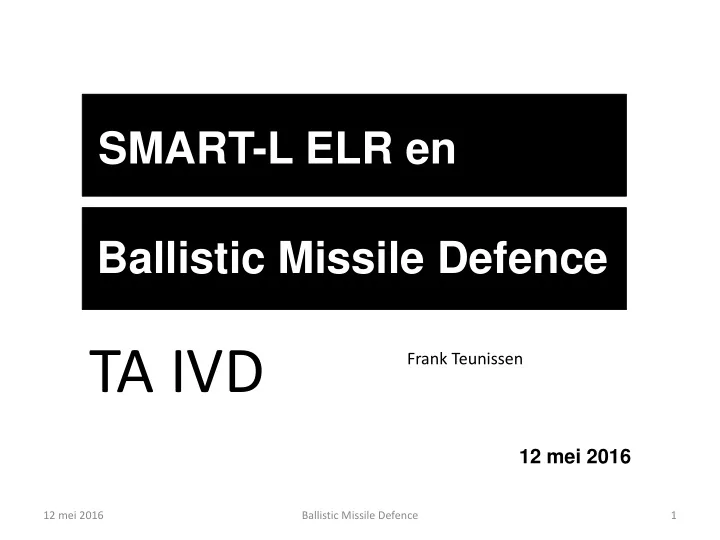

SLIDE 1
12 mei 2016
Ballistic Missile Defence SMART-L ELR en
TA IVD
12 mei 2016 1 Ballistic Missile Defence
Frank Teunissen
Zeven Provinciën klasse LCF
12 mei 2016 2 Ballistic Missile Defence
SMART-L Antenne APAR
VLS Mk41
TA IVD Frank Teunissen 12 mei 2016 12 mei 2016 Ballistic Missile - - PowerPoint PPT Presentation
TA IVD Frank Teunissen 12 mei 2016 12 mei 2016 Ballistic Missile - - PowerPoint PPT Presentation
SMART-L ELR en Ballistic Missile Defence TA IVD Frank Teunissen 12 mei 2016 12 mei 2016 Ballistic Missile Defence 1 Zeven Provincin klasse LCF TA IVD APAR SMART-L Antenne VLS Mk41 12 mei 2016 Ballistic Missile Defence 2 TA IVD
SLIDE 2
SLIDE 3
Het Wapensysteem
12 mei 2016 3 Ballistic Missile Defence VLS-Mk41
SM2 ESSM
APAR SMART-L
Range 400km Range 2000km
TA IVD
SLIDE 4
The Extended Long Range Waveform
12 mei 2016 4 Ballistic Missile Defence
Extended Long Range waveform time time Standard waveform
Not to scale single transmit pulses small listening times sets of transmit pulses long listening times
TA IVD
Problemen: Range en Doppler Aliasing, Nyquist Sampling Criterion De oplossing:
SLIDE 5
SMART-L ELR Main Modes
LCF kan AAW en BMD tegelijk
12 mei 2016 5 Ballistic Missile Defence
AAW Only BMD Staring AAW/BMD Mixed
BM Search Sector BM Search Sector BM Search Sector FLS BLS Stabilizing Time-on-Target Dynamic Sector Size
TA IVD
SLIDE 6
12 mei 2016 6 Ballistic Missile Defence
Royal Netherlands Navy
6
Introduction BMD
2000 3500
Notional representations for comparative purposes based on open source data
Patriot Thaad SM-3
TA IVD
Huidige Situatie BMD in Europa
SLIDE 7
NLD-DEU-DNK- ESP
Notional representations for comparative purposes
12 mei 2016 7 Ballistic Missile Defence
TA IVD Nagestreefde Situatie Europa
2000 3500
SLIDE 8
AT Sea Demonstration 2015 De Doelwitten
12 mei 2016 8 Ballistic Missile Defence
TA IVD
Ballistic Missile Drone: Terrier Orion Air Breathing Threat Drone: Mirach
SLIDE 9
At Sea Demonstration oktober 2015 Alleen BMD
Demonstrate interim BMD Early Warning Capability
a. NLD ADCF as NATO BMD sensor cueing a BM to USA Aegis BMD unit. b. Validate NATO BMD BLOS TDL architecture.
NLD ADCF USA BMD DDG
LIVE SM-3 ENGAGEMENT CUE
12 mei 2016 9 Ballistic Missile Defence
TA IVD
SLIDE 10
Initial IAMD capability during a live fire event at sea
a. NLD ADCF as BMD sensor cueing a BM to USA BMD Aegis unit, whilst simultaneously: b. Defending NOR and CAN unit through Force ASMD firings against Air Breathing targets. c. Validate (NATO BMD) BLOS TDL architecture in IAMD setting.
NLD ADCF USA BMD DDG
LIVE SM-2 & ESSM ENGAGEMENT SIM SM-3 ENGAGEMENT CUE
12 mei 2016 10 Ballistic Missile Defence
At Sea Demonstration oktober 2015 AAW en BMD Simultaan
TA IVD
SLIDE 11
Egypt Yemen Libya
Iran
Pakistan North Korea India Ukraine Syria Turkmenistan Kazakhstan Belarus Rusland China
12 mei 2016 11 Ballistic Missile Defence
TA IVD De Dreiging: Staten met BMs
SLIDE 12
– Huffington Post: “The public acknowledgment by the Obama administration that Moscow has
indeed violated the 1987 Intermediate Nuclear Forces (INF) Treaty comes amidst a serious deterioration of U.S.-Russia relations primarily related to the Russian annexation of Crimea and continuing intervention in Ukraine.”
– Congressional Research Service: The U.S. State Department, in the 2014, 2015, and
2016 editions of its report Adherence to and Compliance with Arms Control, Non-Proliferation, and Disarmament Agreements and Commitments, stated that the United States has determined that “the Russian Federation is in violation of its obligations under the [1987 Intermediate-range Nuclear Forces] INF Treaty not to possess, produce, or flight-test a ground-launched cruise missile (GLCM) with a range capability of 500 km to 5,500 km, or to possess or produce launchers of such missiles.”
– Arms Control Association: “The U.S. government has determined that Russia has
violated the 1987 Intermediate-Range Nuclear Forces (INF) Treaty by testing a prohibited ground-launched cruise missile (GLCM). So far, the Russian government has simply denied any violation and refused to engage the United States in constructive discussions on the issue.”
– Etc.
Schendt Rusland het INF verdrag?
12 mei 2016 12 Ballistic Missile Defence
TA IVD
SLIDE 13
En dan nog dit:
12 mei 2016 13 Ballistic Missile Defence
TA IVD
Eastern Launch Point Western Launch Point AEGIS Ashore Poland AEGIS Ashore Romania
Boost Phase Ballistic Trajectory
Russian ICBMs launched towards U.S. travel on Polar trajectories and are too fast for deployed SM-3 to intercept either ICBM itself or reentry vehicle
