slide-1
SLIDE 1

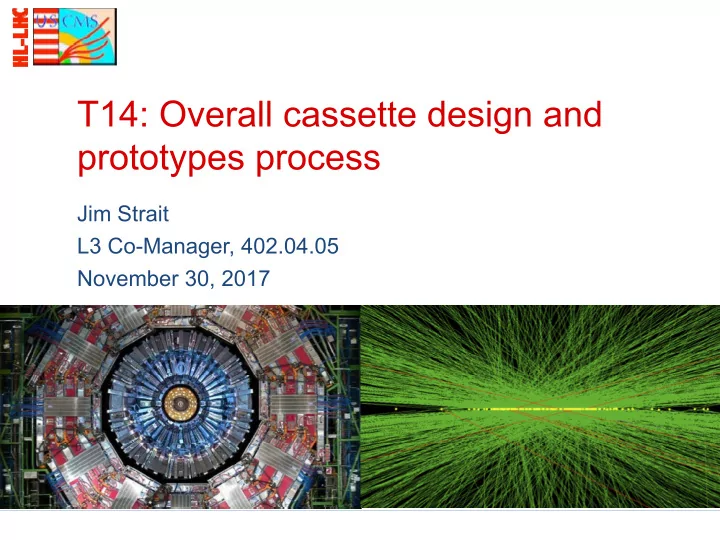

T14: Overall cassette design and prototypes process

Jim Strait L3 Co-Manager, 402.04.05 November 30, 2017

slide-2
SLIDE 2
  • Scope of WBS 402.4.5 – Cassettes
  • Cassette conceptual design
  • Requirements
  • Conceptual design
  • Different types of cassettes
  • Interfaces
  • Safety and Hazards
  • R&D and Engineering
  • Institutions and personnel
  • Prototyping program
  • Risks
  • Value Engineering
  • Milestones
  • Guide to the talks in this session

2

Outline

T14: Cassette design

  • J. Strait, 2017 November 30
slide-3
SLIDE 3

402.4.5 – Cassettes

402.4.5.1 – Cassette Components 402.4.5.1.1 – Cooling Plates

Cassette cooling plates and covers.

402.4.5.1.2 – Silicon-module motherboards*

Motherboards to service the silicon modules.

402.4.5.1.3 – Cassette Interface and Cables

Cassette interfaces and all HV and LV cables and fibers that run between the interface and the motherboards.

402.4.5.2 – Cassette Mechanics and Tooling

The equipment, tooling, fixtures, and facilities needed for the assembly, testing and shipping of the cassettes

402.4.5.3 – Cassette Assembly, Testing and Shipping

Assembly and testing of prototype and production cassettes and shipment of production cassettes to CERN.

___________________________________________________________________________

*Scintillator-module motherboards are covered under 402.4.6 – Scintillator System

3

Scope: WBS 402.4.5 – Cassettes

T14: Cassette design

  • J. Strait, 2017 November 30
slide-4
SLIDE 4

The Endcap Calorimeter system requires the following types and numbers of cassettes

  • 168 Double-sided, 60° wide, all-silicon cassettes for the CE-E
  • 192 Single-sided, 30° wide, all-silicon cassettes for the CE-H
  • 384 Single-sided, 30° wide, mixed silicon/scintillator cassettes for

the CE-H

USCMS is responsible for building a subset of these:

  • 192 Single-sided, 30° wide, all-silicon cassettes for the CE-H
  • 168 Single-sided, 30° wide, mixed silicon/scintillator cassettes for

the CE-H

  • Plus 1 spare of each type and size (30 total)

CMS Management requests that all cassette assembly sites be able to make any type of cassette.

  • We plan to provide space but not all tooling to meet this request.

4

Scope: WBS 402.4.5 – Cassettes

T14: Cassette design

  • J. Strait, 2017 November 30
slide-5
SLIDE 5

Conceptual Design

5

T14: Cassette design

  • J. Strait, 2017 November 30
slide-6
SLIDE 6
  • Cassettes are complete, self-contained detector sub-

assemblies, which are assembled into the HGCAL mechanical structure to form the Endcap Calorimeters.

  • The cassettes must:
  • Combine silicon and scintillator modules and their respective

motherboards into an integrated detector, ready to be read out.

  • Provide a mechanism to maintain the temperature of the active

detectors (silicon sensors and SiPMs) at a stable temperature  -30°C

  • Provide interfaces to the services necessary to test and operate the

detectors:

  • HV to bias the sensors
  • LV to power the on-detector electronics
  • Fibers to read out the data and send control signals
  • Refrigeration fluid

6

Requirements (1)

T14: Cassette design

  • J. Strait, 2017 November 30
slide-7
SLIDE 7
  • The cassettes must:
  • Provide a robust mechanical structure for the active detectors

elements

  • Conform to the endcap geometry, which is set by
  • rmin and rmax = f(z) (interface with the rest of CMS)
  • defined sampling structure of the calorimeter
  • Be of minimal thickness to maximize the density of the calorimeter
  • Be of manageable size and weight to facilitate
  • Handling during assembly and testing
  • Shipping from cassette assembly site to CERN/CMS
  • Handling during insertion into the endcap mechanical structure
  • Minimize the complexity of requirements placed on the detector

elements that are integrated into the cassette.

7

Requirements (2)

T14: Cassette design

  • J. Strait, 2017 November 30
slide-8
SLIDE 8

8

Cassette Conceptual Design

T14: Cassette design

  • J. Strait, 2017 November 30
slide-9
SLIDE 9

9

Three types of cassettes

T14: Cassette design

  • J. Strait, 2017 November 30

CE‐E Double sided Silicon Sensors CE‐H Single sided Silicon + Scint/SiPM Sensors CE‐H Single sided Silicon Sensors

slide-10
SLIDE 10

10

Cassette Type Characteristics

T14: Cassette design

  • J. Strait, 2017 November 30

The US deliverables are:

  • All CE-H (Silicon) cassettes: 192 + 16 spares
  • 7 layers of CE-H (Mixed) cassettes: 168 + 14 spares

=> 360 cassettes + 30 spares = 390 total

# Full # Partial CE‐E 2 91 ‐ 102 4 ‐ 13 60° 1.56 ‐ 1.67 1.24 ‐ 1.32 220 ‐ 250 168 CE‐H (Silicon) 1 26 ‐ 33 2 ‐ 5 30° 0.87 ‐ 0.97 1.33 ‐ 1.47 56 ‐ 68 192 CE‐H (Mixed) 1 5 ‐ 19 1 ‐ 4 3 ‐ 12 30° 1.00 ‐ 1.39 1.54 ‐ 2.17 74 ‐ 144 384 Length (m) Mass (kg) # in CMS Cassettte Type Active sides # Scint Tile Modules Width (°) Width (m) Silicon Modules

slide-11
SLIDE 11

11

CE-E Cassette

T14: Cassette design

  • J. Strait, 2017 November 30
slide-12
SLIDE 12

12

CE-H Cassette – Silicon Section

T14: Cassette design

  • J. Strait, 2017 November 30

cassette cover silicon modules motherboard cooling plate Further details in M. Alyari’s talk

slide-13
SLIDE 13

13

Cooling Plate

T14: Cassette design

  • J. Strait, 2017 November 30

Cassette design details and cooling calculations in E.Voirin’s talk. Cooling plate fabrication in M.Alyari’s talk.

Main functions:

  • Cool sensors and electronics
  • Position and support the detector

elements

  • Attachment to external support

structure

slide-14
SLIDE 14

14

Mounting Silicon Modules

T14: Cassette design

  • J. Strait, 2017 November 30

Further details in M. Alyari’s talk

slide-15
SLIDE 15

15

Silicon Modules and Motherboards

T14: Cassette design

  • J. Strait, 2017 November 30

silicon modules motherboard Details in E.Frahm’s talk.

slide-16
SLIDE 16

16

Mixed Silicon-Scintillator Cassettes

T14: Cassette design

  • J. Strait, 2017 November 30

Scintillator/SiPM Tile‐Module Details in T.Kolberg’s talk.

slide-17
SLIDE 17

17

Mixed Cassette Cross-Section

T14: Cassette design

  • J. Strait, 2017 November 30

Cassette edge with SiPM motherboard and cassette interface

slide-18
SLIDE 18
  • The cassettes are the major detector integration unit:
  • Silicon modules and Scintillator/SiPM tile modules
  • Motherboards for silicon and SiPM detectors
  • Services connections between on-detector electronics and the
  • utside world
  • Low-voltage power (digital and analog) for the electronics
  • High-voltage to bias the sensors
  • Optical connections for trigger, data and detector control
  • Instrumentation for cryogenics and environmental control
  • Cooling for the active elements
  • Mechanical support and precise positioning within the absorber

structure

18

Interfaces

T14: Cassette design

  • J. Strait, 2017 November 30
slide-19
SLIDE 19
  • Standard industrial hazards:
  • Lifting heavy objects (cooling plates)
  • Ergonomics of cassette assembly: e.g. leaning to install modules

in the middle of a cooling plate, repetitive motions, etc.

  • Potentially sharp edges of components
  • …
  • High voltage
  • Cryogenic (-30°) operations
  • Possible ODH from CO2 coolant or dry nitrogen.

(Very large leaks would be required to generate an ODH condition.) No extraordinary hazards – all within the capabilities of Fermilab / SiDet to safely control.

19

Safety and Hazards

T14: Cassette design

  • J. Strait, 2017 November 30

Further discussion of hazards in Z. Gecse’s talk

slide-20
SLIDE 20

R&D and Engineering

20

T14: Cassette design

  • J. Strait, 2017 November 30
slide-21
SLIDE 21
  • Fermilab

M.Alyari (postdoc), P.Rubinov (eng), S.Timpone (eng), E.Voirin (eng), H.Cheung (sci), Z.Gecse (sci), J.Strait (sci), S.Tkaczyk (sci)

  • Minnesota

M.Revering (student), E.Frahm (eng), J.Mans (prof), R.Rusack (prof)

  • Brown

Greg Landsberg (prof)

  • Alabama

Conor Henderson (prof)

  • Collaboration with LLR/CERN on cassette design

LLR: C.Ochando (sci), T.Pierre-Emile (eng), G.Fayolle (eng), M.Roy (tech) CERN: H.Gerwig (eng), S.Surkov* (eng)

* Formally U. of Wisconsin

21

Institutional and Personnel Involvement

T14: Cassette design

  • J. Strait, 2017 November 30
slide-22
SLIDE 22

The cassette prototype program proceeds in 3 phases…

  • Thermo-electro-mechanical mockup
  • In process now … milestone to complete by Aug 2018
  • See presentation by M. Alyari
  • Prototype series #1
  • Fully functional prototypes using first complete front-end chip version

and development version of the motherboard

  • Design work to start this spring … milestone to complete by May 2019
  • Prototype series #2
  • Prototype with (near) final front-end and motherboard electronics
  • Design work to start in 2019 … milestone to complete by Sep 2020

… leading to the start of cassette production in summer 2021

22

Cassette Prototyping Program

T14: Cassette design

  • J. Strait, 2017 November 30
slide-23
SLIDE 23

8” sensors and modules do not exist yet => build a mockup to learn key features of cassette design and assembly with dummy modules and motherboards.

  • 30° cooling plate with CO2 cooling loop of

size ~ largest CE-H all-silicon cassette

  • 8 in. “dummy” modules with passive silicon

wafers, prototype baseplates, simplified PCB to simulate electronics heating and test high- speed data transmission

  • Corresponding simplified motherboard.
  • Extensive array of temperature measurements

23

Thermo-electro-mechanical mockup

T14: Cassette design

  • J. Strait, 2017 November 30
slide-24
SLIDE 24

Goals:

  • Test assembly techniques and understand tolerances
  • Validate thermal and thermo-mechanical performance
  • Test high-speed data transmission between

module and motherboard through several candidate low-profile connectors.

Plan:

  • First assembly with modules early next year.
  • Full set of tests during winter-spring
  • Follow up with mixed cassette mockups
  • Milestone for completion: 28 Aug 2018.

See presentation by M. Alyari for details.

24

Thermo-electro-mechanical mockup

T14: Cassette design

  • J. Strait, 2017 November 30
slide-25
SLIDE 25
  • Real 8” silicon modules and scintillator/SiPM tile-

modules.

  • Active 8” silicon sensors
  • Fully active front-end PCB (“hexaboard”)
  • Tile-modules with full array of scintillator tiles and SiPMs
  • Front-end electronics based on first fully-functional version of the

front-end chip “HGROC-DV1”

  • Fully functional motherboards
  • Function of concentrator may be provided by FPGAs
  • Prototype cassette interface
  • Fully realistic cooling plate design –
  • Two 30° cassettes to form a 60° “insertion unit”

25

Prototype Series #1

T14: Cassette design

  • J. Strait, 2017 November 30
slide-26
SLIDE 26

26

Prototype Series #1

T14: Cassette design

  • J. Strait, 2017 November 30

Goals:

  • Develop assembly and testing methods with real detectors
  • Validate thermal and thermo-mechanical performance of

cassette with real modules

  • Test of all detector elements to the extent possible with first

round electronics.

Plan:

  • Design development to start in parallel with mockup tests.
  • All-silicon cassette assembled as soon as modules are

available (spring 2019)

  • Milestone “HGCROC-DV1 Cassette tested” 30 May 2019
  • Follow with mixed cassette prototype test by Sep 2019
slide-27
SLIDE 27
  • 8” silicon modules and scintillator/SiPM tile-modules of

(nearly) final design.

  • Front-end electronics based on (nearly) final front-end chip

“HGROC-DV2”

  • Both full and partial modules available
  • Motherboards of (nearly) final design
  • Concentrator ASIC V2
  • “Final” cassette interface
  • Include all three cassette variants and size ranges
  • Silicon and mixed single-sided CE-H cassettes, including a

prototype of the largest ones (CE-H layers 18-24)

  • CE-E double-sided cassette (to be built at assembly Site #2,

probably CERN)

27

Prototype Series #2

T14: Cassette design

  • J. Strait, 2017 November 30
slide-28
SLIDE 28

28

Prototype Series #2

T14: Cassette design

  • J. Strait, 2017 November 30

Goals:

  • Develop and validate final assembly and testing

procedures (see talk by Z. Gecse)

  • Full validation of final cassette design including

performance of final module and electronics elements

  • Provide requirements for final iterations of all designs

Plan:

  • Design development to start in parallel with series #1

testing.

  • Prototype built at both assembly sites spring-summer 2020
  • Milestone “HGCROC-DV2 Cassette validated” 17 Sep

2020.

slide-29
SLIDE 29

29

Cassette Development and Production Schedule

T14: Cassette design

  • J. Strait, 2017 November 30

Cassette design / development milestones Cassette assembly facility milestones

slide-30
SLIDE 30

30

Cassette Prototyping Schedule

T14: Cassette design

  • J. Strait, 2017 November 30
slide-31
SLIDE 31

Risks from (draft) HGCAL Risk Register

  • Cooling Plate fabrication fails specification in term of flatness,

location of features, cooling tube performance.

  • Motherboard and Interface Board fabrication fails mechanical or

electrical specifications with adequate reliability -- larger than expected failure rate identified during cassette production.

  • Damage or loss of cassettes during assembly or shipping. A

single cassette or batch of cassettes is damaged or lost when handling cassettes during assembly, testing or shipping to CERN. Risks from (draft) US CMS HL-LHC Project Risk Register

  • Cassette is damaged during assembly
  • Damaging 10 cassettes during cold testing
  • Batch of 20 cassettes are damaged in shipping

Straightforward mitigation strategies can minimize these risks.

31

Cassette Risks

T14: Cassette design

  • J. Strait, 2017 November 30
slide-32
SLIDE 32
  • A complete conceptual design is documented in the

US CDR and the CMS-HGCAL TDR.

  • US groups have been very active participants in developing this

design.

  • The first thermo-electro-mechanical mockup is under

construction.

  • The first fully operational prototype will be assembled

and tested in FY2019.

  • No major hazards or risks.

32

Conclusion and Outlook

T14: Cassette design

  • J. Strait, 2017 November 30
slide-33
SLIDE 33
  • Cooling Plates – Erik Voirin
  • Cooling plate design details
  • Modeling of the thermal performance of the cassettes
  • Motherboards – Erich Frahm
  • Design, construction, and testing of the silicon motherboards
  • Motherboards for the mockup and prototypes
  • Cassette Assembly – Zoltan Gecse
  • Tools and clean room facility for cassette assembly
  • Development of assembly and test procedures and plans
  • Mockup Cassette – Maral Alyari
  • Status and plans for construction and test of the mockup cassette
  • Many details about the evolving cassette design

33

Guide to the talks that follow

T14: Cassette design

  • J. Strait, 2017 November 30
