LIST OF DRAWINGS T-000.00 COVER SHEET A-100.00 SITE PLAN, VIEW CORRIDOR, AND HISTORIC PHOTOGRAPHS A-101.00 EXISTING PANORAMIC VIEWS- EAST 73RD ST A-102.00 EXISTING CONDITIONS PHOTOGRAPHS A-103.00 STUCCO DETERIORATION PHOTOGRAPHS

slide-1
SLIDE 1

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

COVER SHEET

T-000.00

01

LIST OF DRAWINGS T-000.00 COVER SHEET A-100.00 SITE PLAN, VIEW CORRIDOR, AND HISTORIC PHOTOGRAPHS A-101.00 EXISTING PANORAMIC VIEWS- EAST 73RD ST A-102.00 EXISTING CONDITIONS PHOTOGRAPHS A-103.00 STUCCO DETERIORATION PHOTOGRAPHS A-104.00 BLOCK HISTORICAL REFERENCE PHOTOGRAPHS A-105.00 BLOCK EXISTING REFERENCE PHOTOGRAPHS A-106.00 PRECEDENT PHOTOGRAPHS A-107.00 EXISTING AND PROPOSED SOUTH ELEVATION SHOWING ADJACENT PROPERTIES A-108.00 EXISTING AND PROPOSED SOUTH ELEVATION AND SECTION A-109.00 EXISTING AND PROPOSED AREAWAY PLANS AND SECTIONS A-110.00 PROPOSED FACADE DETAILS A-111.00 EXISTING AND PROPOSED WINDOW ELEVATIONS A-112.00 PROPOSED MATERIALS

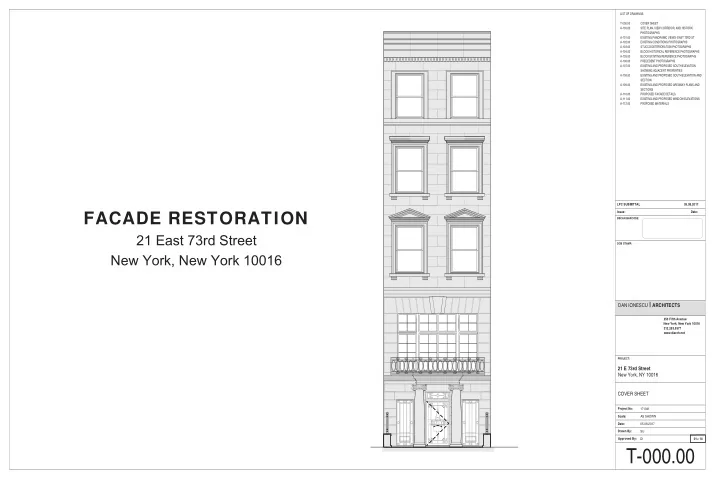

FACADE RESTORATION

21 East 73rd Street New York, New York 10016

slide-2
SLIDE 2

AREA OF WORK

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

SITE PLAN, VIEW CORRIDOR, AND HISTORIC PHOTOGRAPHS

A-100.00

02

SITE LOCATION PLAN

Scale: NTS

1 B

NORTH

VIEW LOOKING WEST A VIEW LOOKING EAST B A LPC DESIGNATION PHOTO

Scale: NTS

3 EXISTING CONDITIONS

Scale: NTS

4

21 EAST 73RD STREET 21 EAST 73RD STREET

1940 TAX LOT PHOTO

Scale: NTS

2

slide-3
SLIDE 3

FIFTH AVENUE MADISON AVENUE EAST 73RD STREET FIFTH AVENUE MADISON AVENUE

16'

21 E 73rd St. EAST 73RD STREET

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

EXISTING PANORAMIC VIEWS- EAST 73RD STREET

A-101.00

03

PANORAMIC VIEW SOUTH SIDE EAST 73RD ST

Scale: NTS

1

Scale: NTS

2 PANORAMIC VIEW NORTH SIDE EAST 73RD ST

slide-4
SLIDE 4

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

EXISTING CONDITIONS PHOTOGRAPHS

A-102.00

04

EXISTING WINDOWS

Scale: NTS

2 EXISTING PEDIMENT

Scale: NTS

3 EXISTING WINDOWS

Scale: NTS

4 EXISTING CORNICE

Scale: NTS

5 EXISTING AREAWAY

Scale: NTS

1 EXISTING AREAWAY

Scale: NTS

6

slide-5
SLIDE 5

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

STUCCO DETERIORATION PHOTOGRAPHS

A-103.00

05 Scale: NTS

2

Scale: NTS

3

Scale: NTS

4

Scale: NTS

5 STUCCO DETERIORATION

Scale: NTS

1

Scale: NTS

6 STUCCO DETERIORATION STUCCO DETERIORATION STUCCO DETERIORATION STUCCO DETERIORATION STUCCO DETERIORATION

slide-6
SLIDE 6

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

BLOCK HISTORICAL REFERENCE PHOTOGRAPHS

A-104.00

06

1940 TAX LOT PHOTO: SHOWING 25-29 E 73RD ST

Scale: NTS

1 PULITZER MANSION C. 1903: SHOWING 7-19 EAST 73RD ST

Scale: NTS

2 29 EAST 73RD ST, EXISTING CONDITIONS

Scale: NTS

3

slide-7
SLIDE 7

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

BLOCK EXISTING REFERENCE PHOTOGRAPHS

A-105.00

07

ENCLOSED AREAWAY

4-10 EAST 73RD STREET

1 ENCLOSED AREAWAY & GRANITE PAVERS

10 EAST 73RD STREET

2 WINDOW PEDIMENT DETAILS

26 EAST 73RD STREET

3

slide-8
SLIDE 8

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

PRECEDENT PHOTOGRAPHS

A-106.00

08

PRECEDENT: 113 EAST 64TH STREET

Scale: NTS

1 PRECEDENT: 113 EAST 64TH STREET

Scale: NTS

2

slide-9
SLIDE 9 ROOF +60'-1"

#19 #23

STREET LEVEL (BASEMENT) +0'-0" 1ST FLOOR +9'-7" 2ND FLOOR +24'-1" 3RD FLOOR +36'-1" 4TH FLOOR +48'-1" ROOF +60'-1" SIDEWALK +1'-9 1/2"

#21 EXISTING FACADE STREET VIEW WITH FENCE EAST 73RD STREET

REMOVE EXISTING STUCCO FACADE (TYP.) TO ALLOW FOR NEW CLADDING REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS EXISTING COLUMNS AND PORTICO TO BE REPLACED EXISTING ORNAMENTAL WROUGHT IRON WORK TO REMAIN EXISTING WROUGHT IRON FENCE TO BE REPLACED W/ NEW EXISTING WROUGHT IRON RAILING TO BE REPAIRED AND PAINTED REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS EXISTING PAINTED METAL CORNICE TO BE REPLACED W/ NEW LIMESTONE CORNICE EXISTING ORNAMENTAL RAILING TO BE REMOVED

#19 #23 #21 PROPOSED FACADE STREET VIEW WITH FENCE EAST 73RD STREET

NEW WROUGHT IRON FENCE AND GATE NEW LIMESTONE FACADE (TYP.) REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS NEW LIMESTONE COLUMNS AND PORTICO EXISTING ORNAMENTAL WROUGHT IRON WORK TO REMAIN NEW LIMESTONE PEDIMENT NEW WROUGHT IRON FENCE EXISTING WROUGHT IRON RAILING TO BE REPAIRED AND PAINTED REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS NEW LIMESTONE CORNICE ROOF +60'-1" STREET LEVEL (BASEMENT) +0'-0" 1ST FLOOR +9'-7" 2ND FLOOR +24'-1" 3RD FLOOR +36'-1" 4TH FLOOR +48'-1" ROOF +60'-1" SIDEWALK +1'-9 1/2"

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

EXISTING AND PROPOSED SOUTH ELEVATION SHOWING ADJACENT PROPERTIES

A-107.00

09 Scale: 3/16"=1'-0"

1 EXISTING SOUTH ELEVATION

Scale: 3/16"=1'-0"

1 PROPOSED SOUTH ELEVATION

slide-10
SLIDE 10

1 FL +0'-0" 2 FL +9'-7" 3 FL +24'-1" 4 FL +36'-1" 5 FL +48'-1" ROOF +60'-1" EXISTING STUCCO OVER BROWNSTONE FACADE TO BE REMOVED. PREP FOR NEW LIMESTONE FACADE (TYP.). EXISTING COLUMNS TO BE REPLACED AND REPLACED IN KIND SIDEWALK +1'-9 1/2" EXISTING ORNAMENTAL WROUGHT IRON WORK TO REMAIN EXISTING WROUGHT IRON FENCE TO BE REPLACED TYP. REMOVE EXISTING STUCCO FACADE (TYP.) REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS EXISTING COLUMNS AND PORTICO TO BE REPLACED EXISTING FENCE TO BE REPLACED TYP. EXISTING WROUGHT IRON RAILING TO BE REPAIRED AND PAINTED REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS EXISTING PAINTED METAL CORNICE TO BE REPLACED W/ LIMESTONE CORNICE EXISTING ORNAMENTAL RAILING TO BE REMOVED NEW LIMESTONE COLUMNS AND PORTICO EXISTING ORNAMENTAL WROUGHT IRON WORK TO REMAIN NEW WROUGHT IRON FENCE NEW LIMESTONE FACADE (TYP.) REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS NEW LIMESTONE COLUMNS AND PORTICO NEW LIMESTONE PEDIMENT EXISTING RAILING TO BE REPAIRED AND PAINTED REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS REPLACE ALL EXISTING WINDOWS W/ NEW TO MATCH EXISTING OPERATION AND DETAILS NEW LIMESTONE CORNICE NEW WROUGHT IRON POSTS AND FENCE 1 FL +0'-0" 2 FL +9'-7" 3 FL +24'-1" 4 FL +36'-1" 5 FL +48'-1" ROOF +60'-1"

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

A-108.00

EXISTING SOUTH ELEVATION

Scale: 1/4"=1'-0"

2 SECTION (EXISTING CONDITIONS)

Scale: 1/4"=1'-0"

1 PROPOSED SOUTH ELEVATION

Scale: 1/4"=1'-0"

4 SECTION (PROPOSED WORK)

Scale: 1/4"=1'-0"

3

EXISTING AND PROPOSED SOUTH ELEVATION AND SECTION

10

slide-11
SLIDE 11

EXISTING WROUGHT IRON FENCE TO BE REPLACED EXISTING COLUMNS AND PORTICO TO BE REPLACED EXISTING BRICK STEPS TO BE REPLACED DOWN EXISTING CAPSTONE TO BE REPLACED EXISTING DRAIN TO BE RELOCATED EXISTING GRILL TO BE REPLACED BLUESTONE PAVERS (TYP.) NEW STEPS W/ BLUESTONE TREADS AND RISERS FLOOR DRAINS NEW WROUGHT IRON FENCE NEW WROUGHT IRON FENCE POST TYP. REPLACE GRILLE LEVEL w/ NEW FINISH FLOOR EQ DOWN 4/ A-105 3/ A-105 ℄ CURB EQ EQ ℄ CURB 5'-4" ±11'-0" ℄ CURB EQ EQ 16'-0" 12" TYP. EXISTING CAPSTONE TO BE REPLACED W/ BLUESTONE NEW (2) 2'-6 x 3'-0 GATES ±2'-4" ±1'-2" NEW WROUGHT IRON FENCE BLUESTONE TREADS AND RISERS NEW FENCE POST REPLACE w/ NEW BLUESTONE CAP STONE TYP. 2'-10" ±13'-11" 7'-4" 5'-6" NEW (2) 2'-6 x 3'-0 GATES 3/ A-105 NEW FENCE POST NEW WROUGHT IRON FENCE BLUESTONE TREADS AND RISERS REPLACE w/ NEW BLUESTONE CAP STONE TYP. 4/ A-105 ENTRY w/ NEW FACADE

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

EXISTING AND PROPOSED AREAWAY PLANS AND SECTIONS

A-109.00

11

AREAWAY PLAN (EXISTING CONDITIONS)

Scale: 1/2"=1'-0"

1 AREAWAY PLAN (PROPOSED WORK)

Scale: 1/2"=1'-0"

2 SECTION

Scale: 1/2"=1'-0"

4 SECTION

Scale: 1/2"=1'-0"

3

NOTES:

  • 1. WORK MAY ONLY TAKE PLACE WHEN THE EXTERIOR TEMPERATURE

REMAINS A CONSTANT 45 DEGREES OR ABOVE FOR A 72-HOUR PERIOD FROM THE COMMENCEMENT OF WORK.

slide-12
SLIDE 12

LIMESTONE CAP LAP NEW WATERPROOFING AT EXISTING ROOF WATERPROOFING TUBE STEEL SUPPORT FRAME FASTENED TO MASONRY WALL LIMESTONE CLADDING EXISTING MASONRY WALL TO REMAIN EXISTING ROOF FRAMING TO REMAIN WALL CLIP TYP. DOWEL, TYP. STEEL ANGLE TYP. STONE SURROUND NEW WINDOW TO REPLACE EXISTING DENTILS NEW CONTINUOUS FLASHING 25 8" 1'-01 2" 55 8" 1'-03 4" 1'-03 4" 77 8" 1'-51 8" 53 4" NEW WINDOW TO REPLACE EXISTING NEW SILL TO REPLACE EXISTING STEEL ANGLE TYP. WALL CLIP TYP. DOWEL, TYP. EXISTING MASONRY WALL TO REMAIN EXISTING FLOOR FRAMING TO REMAIN STONE SURROUND NEW WINDOW TO REPLACE EXISTING LIMESTONE STILL/ STRING COURSE STONE SURROUND LIMESTONE CLADDING 91 2" 1'-61 2" 10" 91 4" 53 4" NEW WINDOW TO REPLACE EXISTING NEW SILL TO REPLACE EXISTING STEEL ANGLE TYP. WALL CLIP TYP. DOWEL, TYP. EXISTING MASONRY WALL TO REMAIN EXISTING FLOOR FRAMING TO REMAIN STONE SURROUND NEW WINDOW TO REPLACE EXISTING LIMESTONE STILL/ STRING COURSE STONE SURROUND LIMESTONE CLADDING 81 4" 11" 9" 23 4" 21 4" 4" 1'-11 4" 61 2" NEW WINDOW TO REPLACE EXISTING NEW SILL TO REPLACE EXISTING STEEL ANGLE TYP. WALL CLIP TYP. DOWEL, TYP. EXISTING MASONRY WALL TO REMAIN EXISTING FLOOR FRAMING TO REMAIN NEW WINDOW TO REPLACE EXISTING LIMESTONE STILL/ STRING COURSE STONE SURROUND LIMESTONE CLADDING LIMESTONE CLADDING 93 8" 1'-23 4" 1'-37 8" 2'-77 8" NEW WINDOW TO REPLACE EXISTING NEW SILL TO REPLACE EXISTING STEEL ANGLE TYP. WALL CLIP TYP. DOWEL, TYP. EXISTING MASONRY WALL TO REMAIN EXISTING FLOOR FRAMING TO REMAIN EXISTING DOOR & ORNAMENTAL METAL GATE TO REMAIN STONE SURROUND LIMESTONE CLADDING REPLACE EXISTING COLUMN AND CAPITAL REFINISH & REINSTALL EXISTING DECORATIVE RAILING DENTILS NEW STRUCTURAL LINTEL 8" 4" 51 4" 45 8" 1'-1"

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

PROPOSED FACADE DETAILS

A-110.00

12

1

ELEVATION AT CORNICE

3

ELEVATION AT UPPER WINDOWS

2

DETAIL THROUGH CORNICE STONE WORK

4

DETAIL THRU UPPER WINDOWS

5

ELEVATION AT PEDIMENT

7

ELEVATION AT STONE REVEAL

6

DETAIL THRU PEDIMENT

8

DETAIL THRU STONE REVEAL

7

ELEVATION AT PORTICO

8

DETAIL THRU PORTICO

slide-13
SLIDE 13

LIMESTONE SURROUND (VARIES PER WINDOW) LIMESTONE CLADDING BLOCKING JAMB SWING-IN TYPE CASEMENT WINDOWS WOOD SILL LIMESTONE SILL (VARIES PER WINDOW) LIMESTONE CLADDING STEEL ANGLE 8'-11" 12'-21 2" EQ

W4 W3 W2 W1

7'-3" 4' EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ 7'-1" 4' EQ EQ 6'-8" 3'-101 2" EQ EQ LIMESTONE CLADDING SEALANT LIMESTONE SURROUND (VARIES PER WINDOW) WALL CLIP WATER-PROOFING BLOCKING WINDOW JAMB WOOD WINDOW TRIM AND CASING WOOD WINDOW SILL LIMESTONE WINDOW SILL ASTRAGAL SWING-IN TYPE WOOD CASEMENT WINDOWS EXTERIOR FRAMED OPENING

E4 E3 E2 E1

8'-11" 12'-21 2" EQ 7'-3" 4' EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ 7'-1" 4' EQ EQ 6'-8" 3'-101 2" EQ EQ

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

EXISTING AND PROPOSED WINDOW ELEVATIONS

A-111.00

13

TYPE EXISTING PROPOSED* DIFFERENCE WINDOW DIMINUTION CALCULATIONS *ALL WINDOWS BEING REPLACED WITH NEW WINDOWS OF THE SAME SIZE.

A-109 4 A-109 4 A-109 4 A-109 4 A-109 3

Scale: 1/2"=1'-0"

2 PROPOSED WINDOW TYPES

Scale: 1/2"=1'-0"

1 EXISTING WINDOW TYPES

Scale: 1-1/2"=1'-0"

3 WINDOW JAMB, HEAD, AND SILL DETAIL

Scale: 1-1/2"=1'-0"

4 WINDOW JAMB DETAIL

3,652 SQ IN NO CHANGE 3 3,564 SQ IN NO CHANGE 2 3,230 SQ IN NO CHANGE 1 3,652 SQ IN 3,564 SQ IN 3,230 SQ IN 11,408 SQ IN NO CHANGE 4 11,408 SQ IN

slide-14
SLIDE 14

171041 Project No: Scale: Date: Drawn By: Approved By: SU DI

21 E 73rd Street New York, NY 10016

05.08.2017

PROJECT:

  • f 14

AS SHOWN

DAN IONESCU | ARCHITECTS

253 Fifth Avenue New York, New York 10016 212.253.5577 www.diarch.net Issue: Date:

BSCAN BARCODE: DOB STAMP:

LPC SUBMITTAL 05.08.2017

PROPOSED MATERIALS

A-112.00

14 BENJAMIN MOORE, BLACK, MATTE (FENCE & GATE)

1 WINDOW, FENCE, & GATE PAINT

INDIANA BUFF LIMESTONE

1 FACADE CLADDING

BLUESTONE

2 AREAWAY PAVER TILES
