Supporting Users to Manage Breaking and Unresolvable Changes in Coupled Evolution Dipartimento di Ingegneria e Scienze Alfonso Pierantonio dellInformazione e Matematica joint work with Universit degli Studi dellAquila Davide Di Ruscio,

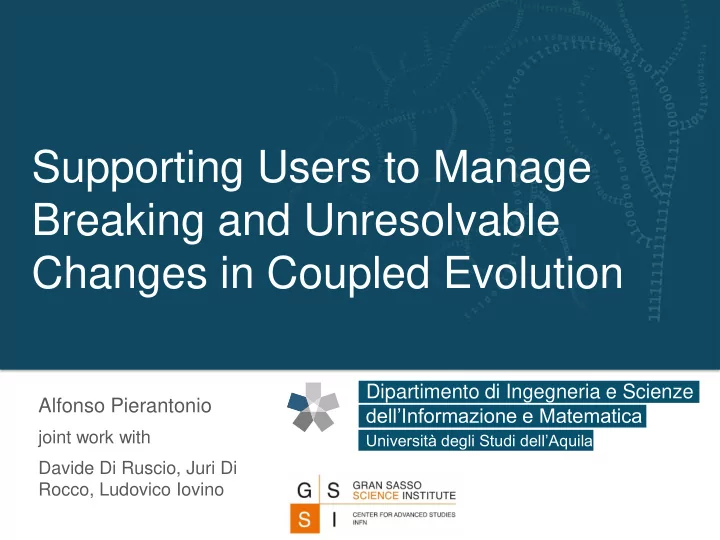

SLIDE 1

Dipartimento di Ingegneria e Scienze

Università degli Studi dell’Aquila

dell’Informazione e Matematica

Supporting Users to Manage Breaking and Unresolvable Changes in Coupled Evolution

Alfonso Pierantonio

joint work with Davide Di Ruscio, Juri Di Rocco, Ludovico Iovino

SLIDE 2

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 2

Introduction

Metamodels play a key role in any metamodeling ecosystem since they underpin the development of a wide range of modeling artifacts.

Similarly to any software component metamodels

are expected to evolve

It is necessary to deal with the coupled evolution

problem, also called co-evolution

Co-evolution involves all the artifacts co-existing in

the ecosystem, e.g. models, model transformations, textual and graphical editors, and code generators.

SLIDE 3

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 3

Introduction

Metamodel changes can be classified as:

non-breaking (NBC)
breaking and resolvable (BRC)
breaking and unresolvable (BUC)

depending on their impact In the last case, user intervention is important to provide additional information, which cannot be inferred or derived.

SLIDE 4

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 4

Existing approaches (selection)

Over the last years, co-evolution has been largely investigated and different approaches have been proposed: Model co-evolution:

[1] A. Cicchetti, D. Di Ruscio, R. Eramo, and A. Pierantonio. Automating co-evolution in model-driven

engineering. In Procs.of EDOC 2008, pages 222–231. IEEE Computer So- ciety, 2008.

[2] F. Mantz, Y. Lamo, and G. Taentzer. Co-transformation of type and instance graphs supporting merging of types with retyping. ECEASST, (61), 2013. [3] F. Mantz, G. Taentzer, and Y. Lamo. Customizing model migrations by rule schemes. In Procs. IWPSE’13, pages 1– 10. ACM, 2013.

Model transformations co-evolution:

[4] J. Di Rocco, D. Di Ruscio, L. Iovino, and A. Pierantonio. Dealing with the coupled evolution of metamodels and model- to-text transformations. In ME’14 at MoDELS 2014, 2014. [5] Levendovszky, D. Balasubramanian, A. Narayanan, and G. Karsai. A Novel Approach to Semi- automated Evolution of DSML Model Transformation. In Procs. SLE’10, volume 5969 of LNCS, pages 23–41. Springer, 2010.

Other kind of artifacts co-evolution:

[6] D. Di Ruscio, L. Iovino, and A. Pierantonio. Managing the coupled evolution of metamodels and textual concrete syntax specifications. In SEAA’13, pages 114–121, Sept 2013. [7] A. Kusel, J. Etzlstorfer, E. Kapsammer, P. Lange, W. Rets- chitzegger, J. Schoenboeck, W. Schwinger, and M. Wimmer. A Systematic Taxonomy of Metamodel Evolution Impacts on OCL Expressions. In ME’14 at MoDELS 2014, Sept. 2014.

SLIDE 5

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 5

Existing approaches

All these approaches aim at automating the management of non-breaking, and breaking and resolvable changes The management of breaking and unresolvable changes is still a challenging and error-prone activity

– they are usually managed by applying default migration actions according to predefined heuristics

SLIDE 6

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 6

Proposal

In order to overcome the uncertainty or lack of information during the automated consistency restoring process, we propose a human-in-loop approach The user is interactively asked to contribute with the missing information in order to complete the adaptation process

SLIDE 7

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 7

Motivating scenario

SLIDE 8

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 8

Motivating scenario

SLIDE 9

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 9

Motivating scenario

SLIDE 10

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 10

Motivating scenario

SLIDE 11

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 11

Motivating scenario

SLIDE 12

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 12

Motivating scenario

SLIDE 13

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 13

Metamodel Evolution

Applied changes in the motivating scenario:

1. split attribute
2. change reference type
3. extract metaclass

evolution

1 1 2 2 3 3

SLIDE 14

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 14

Split attribute co-evolution

The expression [binding.url] has to be migrated, however it is uncertainty whether to be replaced by

– [binding.requestUrl], or – [binding.requestCookies]

Metamodel evolution Corrupted excerpt of the code generator

SLIDE 15

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 15

Change Reference Type co-evolution

The template generateViewData cannot be invoked

n elements with type Data anymore (because of the

reference type change)

Metamodel evolution Corrupted excerpt of the code generator

SLIDE 16

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 16

Extract Metaclass co-evolution

The expression [aTemplate.style] cannot be evaluated anymore, consistency can be restored with:

– [aTemplate.style.src] – [aTemplate.style.href]

Metamodel evolution Corrupted excerpt of the code generator

SLIDE 17

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 17

Proposed Adaptation Approach

The adaptation process relies on an extension of EMFMigrate realized by means of the epsilon platform

D. Wagelaar, L. Iovino, D. Ruscio, and
A. Pierantonio. T

ranslational semantics of a co- evolution specific language with the EMF transformation virtual machine. In Theory and Practice of Model T ransformations, ICMT 2012, LNCS 7307, 192–207.

SLIDE 18

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 18

Proposed Adaptation Approach

The adaptation flow is formalized by the following sequence diagram

SLIDE 19

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 19

Proposed Adaptation Approach

EMFMigrate is a co-evolution language for EMF- based artifact migration

– It consists of migration rules applied on a given artifact A conforming to a metamodel MM – EMFMigrate has been extended to generate Epsilon programs

SLIDE 20

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 21

Migration Programs

A (automatically generated) ANT specification
rchestrates the control-flow above
Whenever necessary the user is prompt for

necessary information, which permits to resolve uncertainty points

SLIDE 21

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 22

Split attribute co-evolution

The expression [binding.url] has to be migrated, however it is uncertainty whether to be replaced by

– [binding.requestUrl], or – [binding.requestCookies]

Metamodel evolution Corrupted excerpt of the code generator

SLIDE 22

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 23

Change Reference Type co-evolution

The template generateViewData cannot be invoked

n elements with type Data anymore (because of the

reference type change)

Metamodel evolution Corrupted excerpt of the code generator

SLIDE 23

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 24

Extract Metaclass co-evolution

The expression [aTemplate.style] cannot be evaluated anymore, consistency can be restored with:

– [aTemplate.style.src] – [aTemplate.style.href]

Metamodel evolution Corrupted excerpt of the code generator

SLIDE 24

Workshop on Domain-Specific Modeling – 27 OCT 2015, Pittsburgh, Pennsylvania, United States 25

Conclusions

– An approach has been proposed to pragmatically address the adaptation of artifacts affected by BUCs – A general adaptation process has been proposed with the ability to interact with the user in case of BUCs with finite resolution options – Although it has been demonstrated on Acceleo templates, the approach is ready to be applied to any EMF-based artifact – Future works include a off-the-shelf catalog of migration programs in accordance with the refactorings catalog http://www.metamodelrefactoring.org/
