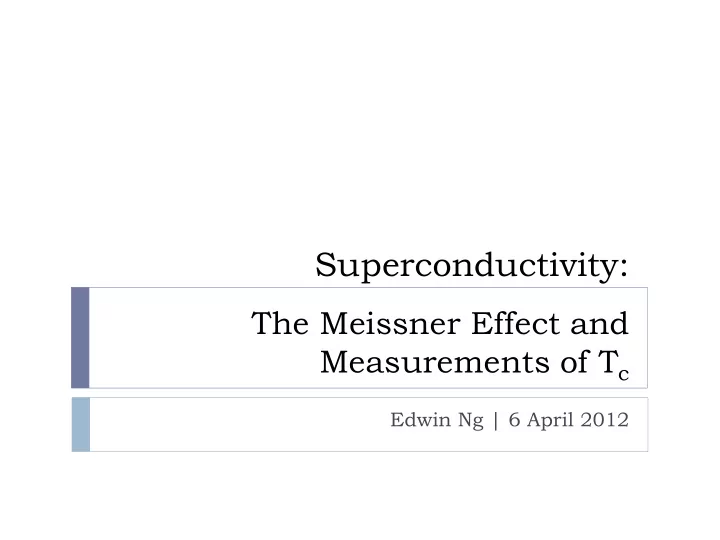

Superconductivity: The Meissner Effect and Measurements of T c Edwin Ng | 6 April 2012 Properties of Superconductors A material with zero resistance Exhibits the Meissner Effect: B sc = 0 B ~ 0 past London penetration depth L
SLIDE 2
SLIDE 3
Properties of Superconductors (cont.)
When B = 0, SC phase transition at Tc When B ≠ 0, transition occurs when (T, B)
satisfies
B0 is the limiting critical field at T = 0
SLIDE 4
BCS Theory of Superconductivity
Bardeen, Cooper, and Schrieffer (1957) At low temperature, electrons couple into
Cooper pairs through vibrations (phonons) in the material lattice
The Cooper pairs condense into a mutual
ground state where currents can flow without resistance
SLIDE 5
Meissner Effect: Tc Measurements
Put an SC into an AC driven solenoid and
measure the induced EMF at test coil
When T > Tc, get full flux of test coil When T < Tc, get no flux in SC region Can measure Tc by monitoring test coil flux
SLIDE 6
Meissner Effect: Persistent Currents
Set up B ≠ 0 at T > Tc for a hollow cylinder of
SC material
After T < Tc, surface currents set up to cancel
field in material and B in cylinder
Field inside persists even after B is turned off Field inside quenches once T > Tc
SLIDE 7
Overview of Probe I
SLIDE 8
Tc Transition Curves: Vanadium
SLIDE 9
Tc Transition Curves: Lead
SLIDE 10
Tc Transition Curves: Lead
SLIDE 11
Tc Transition Curves: Niobium
SLIDE 12
Tc Fit Procedure
Find mean of constant regions Define midpoint as V0 with uncertainty δV0 Fit y = ax + b to transition region by least-
squares regression without uncertainties
SLIDE 13
Tc Fit Procedure (cont.)
Define the deviation Uncertainty of Tc due to line width is E/a
SLIDE 14
Tc Fit Procedure: Example
SLIDE 15
Summary of Tc Transitions
Summary of Tc fitting procedure There is some hysteresis, esp. for Type II Error due to pumping and calibration curve
No error at 77 K ~0.5 K error at 4.2 K
SLIDE 16
Tc Dependence on B for Vanadium
SLIDE 17
Field Exclusion in Lead
SLIDE 18
Overview of Probe 2
SLIDE 19
Probe 2: Videos
SLIDE 20
Conclusions
Observed Meissner effect in superconductors
Magnetic flux exclusion (Probe 1) Persistent current (Probe 2)
Used Meissner effect to measure Tc of various
superconducting samples
Observed B-dependent phase transition curve
SLIDE 21
