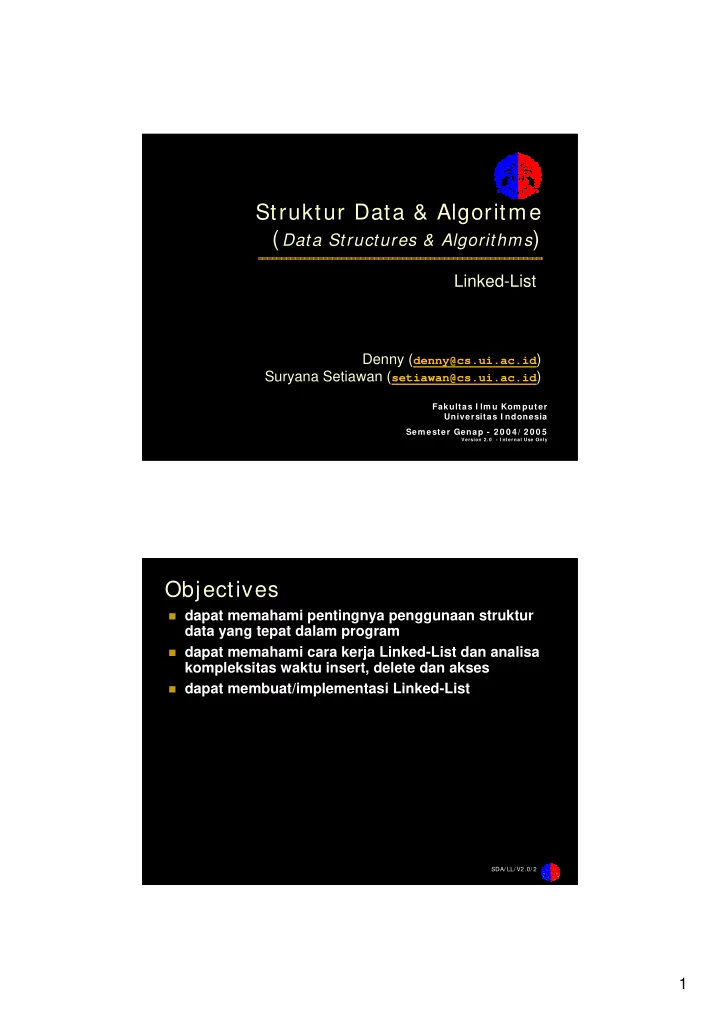

Struktur Data & Algoritme ( Data Structures & Algorithms ) Linked-List Denny ( denny@cs.ui.ac.id ) Suryana Setiawan ( setiawan@cs.ui.ac.id ) Fakultas I lm u Kom puter Universitas I ndonesia Sem ester Genap - 2 0 0 4 / 2 0 0 5 Version 2 .0 - I nternal Use Only Objectives � dapat memahami pentingnya penggunaan struktur data yang tepat dalam program � dapat memahami cara kerja Linked-List dan analisa kompleksitas waktu insert, delete dan akses � dapat membuat/implementasi Linked-List SDA/ LL/ V2.0/ 2 1

Outline � Importance and properties of Data Structure � Basics of Linked Lists vs. Array � Linked Lists and Iterators � Linked Lists variant: � Doubly Linked Lists � Circular Linked Lists � Sorted Linked Lists SDA/ LL/ V2.0/ 3 Data Structure � Algorithms require the use of a proper representation of data to achieve efficiency � Data structure (aka ADT – Abstract Data Type) = representation + operations � operation allowed may vary between data structure • insert • delete • access • update � Kita perlu menganalisa waktu yang dibutuhkan untuk setiap operasi tersebut. SDA/ LL/ V2.0/ 4 2

Mengapa Butuh Struktur Data � Struktur data membantu tercapainya Component Reusability . � Menerapkan konsep OO paradigm: encapsulation , information- hiding dan abstraction . SDA/ LL/ V2.0/ 5 Macam Struktur Data yang Umum � linked lists � stacks � queues � trees � binary search trees � AVL trees � B-Trees � Trie � hash tables � priority queues SDA/ LL/ V2.0/ 6 3

Linked Lists � Stores a collection of items non-contiguously. � Each item in the list is stored with an indication of where the next item is. � Must know where first item is. � The list will be a chain of objects of type ListNode that contain the data and a reference to the next ListNode in the list. � Allows addition or deletion of items in the middle of collection with only a constant amount of data movement. Contrast this with array. ListNode A0 A1 A2 A3 first last SDA/ LL/ V2.0/ 7 ListNode: Definition public class ListNode { Object element; // some element ListNode next; // constructors ListNode (Object theElement, ListNode n) { element = theElement; next = n; } ListNode (Object theElement) { this (theElement, null); } ListNode () { this (null, null); } } SDA/ LL/ V2.0/ 8 4

Linked List: Insertion a b c d current � Insert X immediately after current position a b c d x current SDA/ LL/ V2.0/ 9 Insertion’s Steps � Insertion immediately after current position // create a new node tmp = new ListNode( ); // place x in the element field tmp.element = x; // x’s next node is b tmp.next = current.next; // a’s next node is x current.next = tmp; a b x current SDA/ LL/ V2.0/ 10 5

Insertion’s Steps � Insertion immediately after current position // create a new node tmp = new ListNode( ); // place x in the element field tmp.element = x; // x’s next node is b tmp.next = current.next; // a’s next node is x current.next = tmp; a b x current SDA/ LL/ V2.0/ 11 Simplification of insertion’s code � More efficient approach tmp = new ListNode (x, current.next); a b x current current.next = tmp; a b x current SDA/ LL/ V2.0/ 12 6

Simplification of insertion’s code � Most efficient approach current.next = new ListNode (x, current.next); SDA/ LL/ V2.0/ 13 Linked List: append � Insert X immediately at the end of the list // last refers to the last node in the linked list last.next = new ListNode(); last = last.next; // adjust last last.element = x; // place x in the node last.next = null; // adjust next a b c d last a b c d X last � Most efficient approach last = last.next = new ListNode (x, null); SDA/ LL/ V2.0/ 14 7

Linked Lists: Basic Deletion � Delete an item immediately after current position � Basic deletion is a bypass in the linked list. a b x current a b current SDA/ LL/ V2.0/ 15 Deletion’s Steps � Need a reference to node prior to the one to be deleted. current.next = current.next.next; a x b current a x b current a b SDA/ LL/ V2.0/ 16 current 8

Important Note � Ingat!!! Yang disimpan dalam ListNode adalah reference dari object-nya, BUKAN object-nya itu sendiri atau salinan dari object-nya SDA/ LL/ V2.0/ 17 Iterate the Linked List � Jika item disimpan dalam contiguous array: //step through array a, outputting each item for (int index = 0; index < a.length; index++) System.out.println (a[index]); � Jika item disimpan dalam sebuah linked list: // step through List theList, outputting each item for (ListNode p = theList.first; p != null; p = p.next) { System.out.println (p.data); } A0 A1 A2 A3 first last SDA/ LL/ V2.0/ 18 9

Header Nodes � Deletion of first item and insertion of new first item are special cases. � Can be avoided by using header node; � contains no data, but serves to ensure that first "real" node in linked has a predecessor. � Go to the first element = current set to header.next; � Empty list if header.next == null; � Searching routines will skip header. Header A B C SDA/ LL/ V2.0/ 19 Linked Lists: List interface public interface List { /** Test if the list is logically empty. @return true if empty, false otherwise. */ boolean isEmpty (); /** Make the list logically empty. */ void makeEmpty (); } SDA/ LL/ V2.0/ 20 10

Linked Lists: List implementation public class LinkedList implements List { // friendly data, so LinkedListItr can have access ListNode header; /** Construct the list */ public LinkedList () { header = new ListNode (null); } /** Test if the list is logically empty. @return true if empty, false otherwise. */ public boolean isEmpty( ) { return header.next == null; } SDA/ LL/ V2.0/ 21 Linked Lists: List implementation /** Make the list logically empty. */ public void makeEmpty( ) { header.next = null; } } SDA/ LL/ V2.0/ 22 11

Iterator Class � Maintains notion of the current position (aka cursor). � List class provides method that do not depend on any position (such as isEmpty , and makeEmpty ). � List iterator ( ListItr ) provides most other methods such as advance , retrieve , first , which act on the current position stored in the iterator. SDA/ LL/ V2.0/ 23 Iterator Class // Insert x after current position void insert (x); // Remove x void remove (x); // Remove item after current position void removeNext( ); // Set current position to view x boolean find( x ); // Set current position to prior to first void zeroth (); // Set current position to first void first( ); // Set current to the next node void advance (); // True if at valid position in list boolean isInList (); // Return item in current position Object retrieve() Exceptions thrown for illegal access, insert, or remove. � SDA/ LL/ V2.0/ 24 12

Example � A static member function that computes the number of elements in any list: public static int listSize (List theList) { int size = 0; ListItr itr = new ListItr (theList); for (itr.first(); itr.isInList(); itr.advance()) { size++; } return size; } SDA/ LL/ V2.0/ 25 Java Implementations � Mostly straightforward; all routines are short. � ListItr maintains a reference to the list that it is bound to as a private data member. � Because ListItr is in the same package as List , if List 's data is friendly, it can be accessed by ListItr . SDA/ LL/ V2.0/ 26 13

LinkedListItr implementation � public class LinkedListItr implements ListItr /** contains List header. */ protected LinkedList theList; /** stores current position. */ protected ListNode current; /** Construct the list. As a result of the construction, the current position is the first item, unless the list is empty, in which case the current position is the zeroth item. @param anyList a LinkedList object to which this iterator is permanently bound. */ public LinkedListItr( LinkedList anyList ) { theList = anyList; current = theList.isEmpty( ) ? theList.header : theList.header.next; } SDA/ LL/ V2.0/ 27 /** Construct the list. @param anyList a LinkedList object to which this iterator is permanently bound. This constructor is provided for convenience. If anyList is not a LinkedList object, a ClassCastException will result. */ public LinkedListItr( List anyList ) throws ClassCastException { this( ( LinkedList ) anyList ); } /** * Advance the current position to the next node in the list. * If the current position is null, then do nothing. * No exceptions are thrown by this routine because in the * most common use (inside a for loop), this would require the * programmer to add an unnecessary try/catch block. */ public void advance( ) { if( current != null ) current = current.next; } SDA/ LL/ V2.0/ 28 14
